Product Description

High Accuracy CNC Lathe Machine with Y Axis, CNC Turning and Milling Machine, CNC Turning and Milling Machine

Features

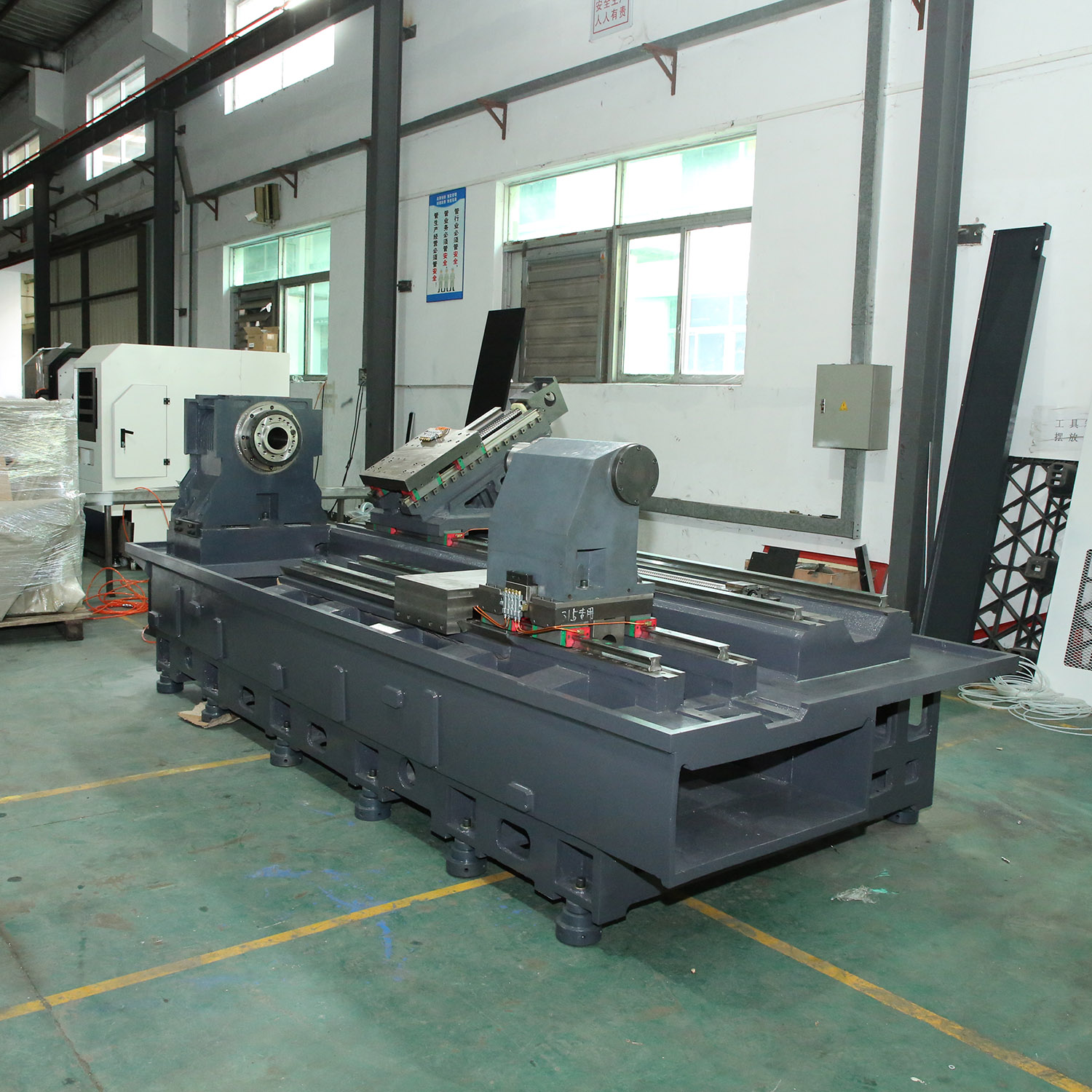

1. Slant bed, high rigidity, high stability, smooth discharge, guarantee a long-term accuracy.
2. Low vibration, long work life of tools, save the cost of tools.

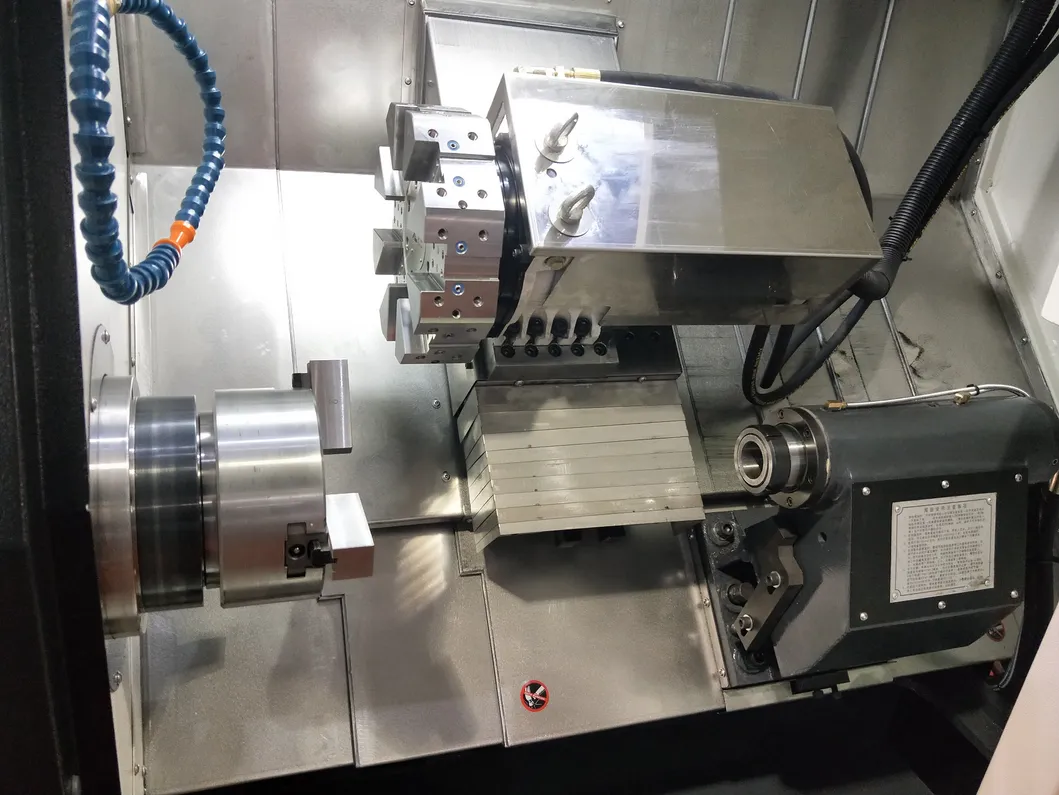

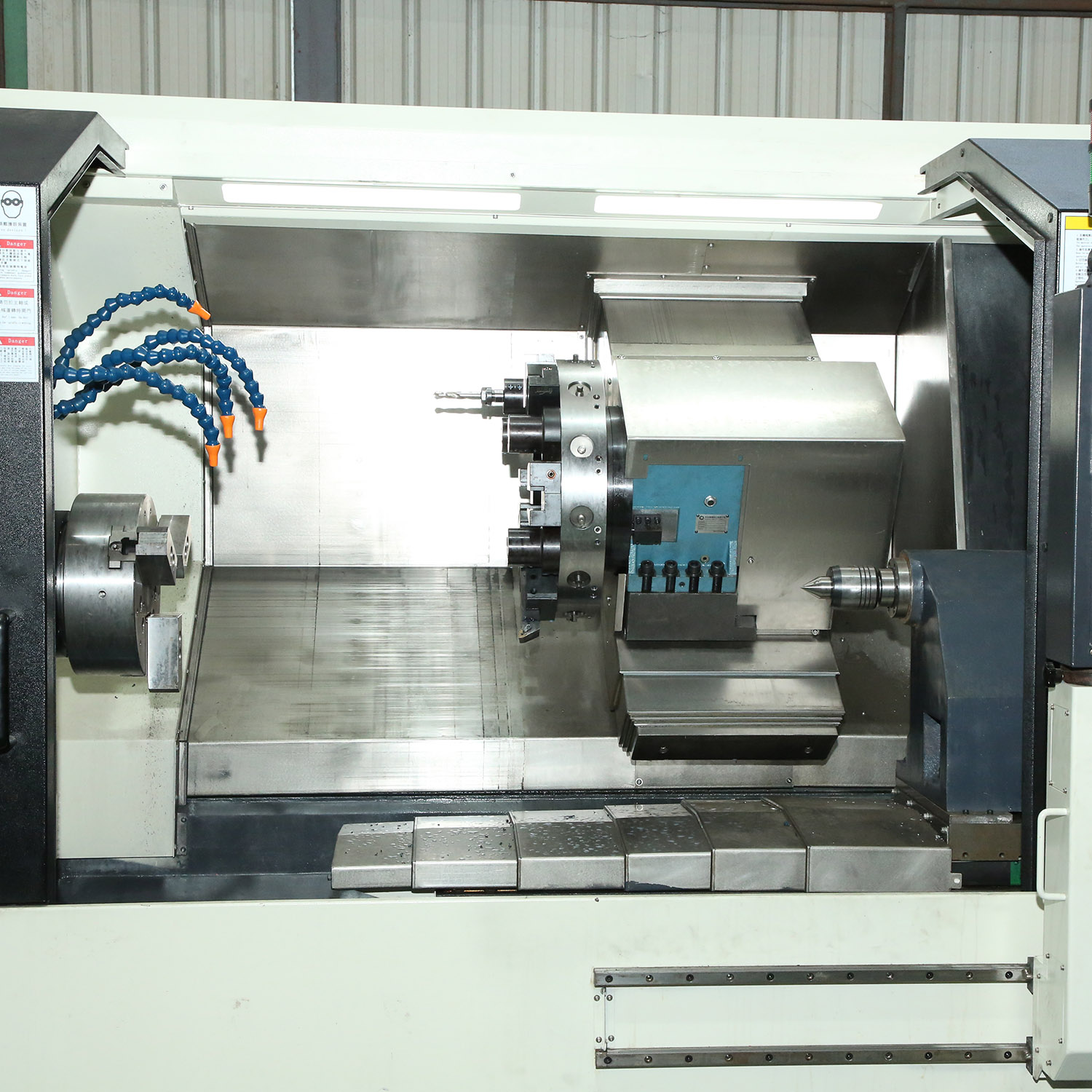

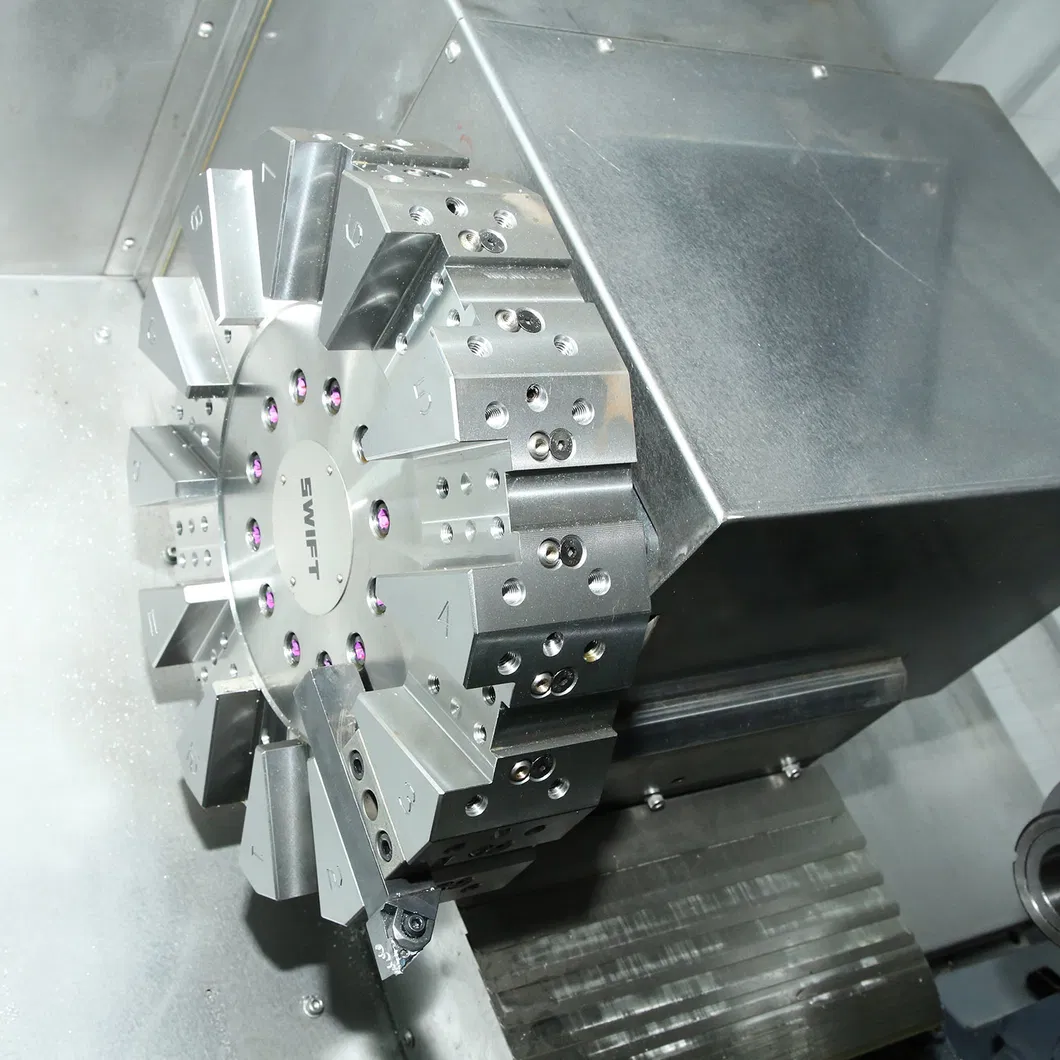

3. More choice of configuration, including counter spindle, VDI power turret, double turret, Y axis, automatic feeding device, automatic receiving device. The machine realizes the multiple functions of turning and milling.

High Accuracy CNC Lathe Machine with Y Axis, CNC Turning and Milling Machine, CNC Turning and Milling Machine

Specifications

Item	Unit	EL52
Swing over bed	mm	520
Max.processing Dia.	mm	310
Max.work-piece length	kg	480

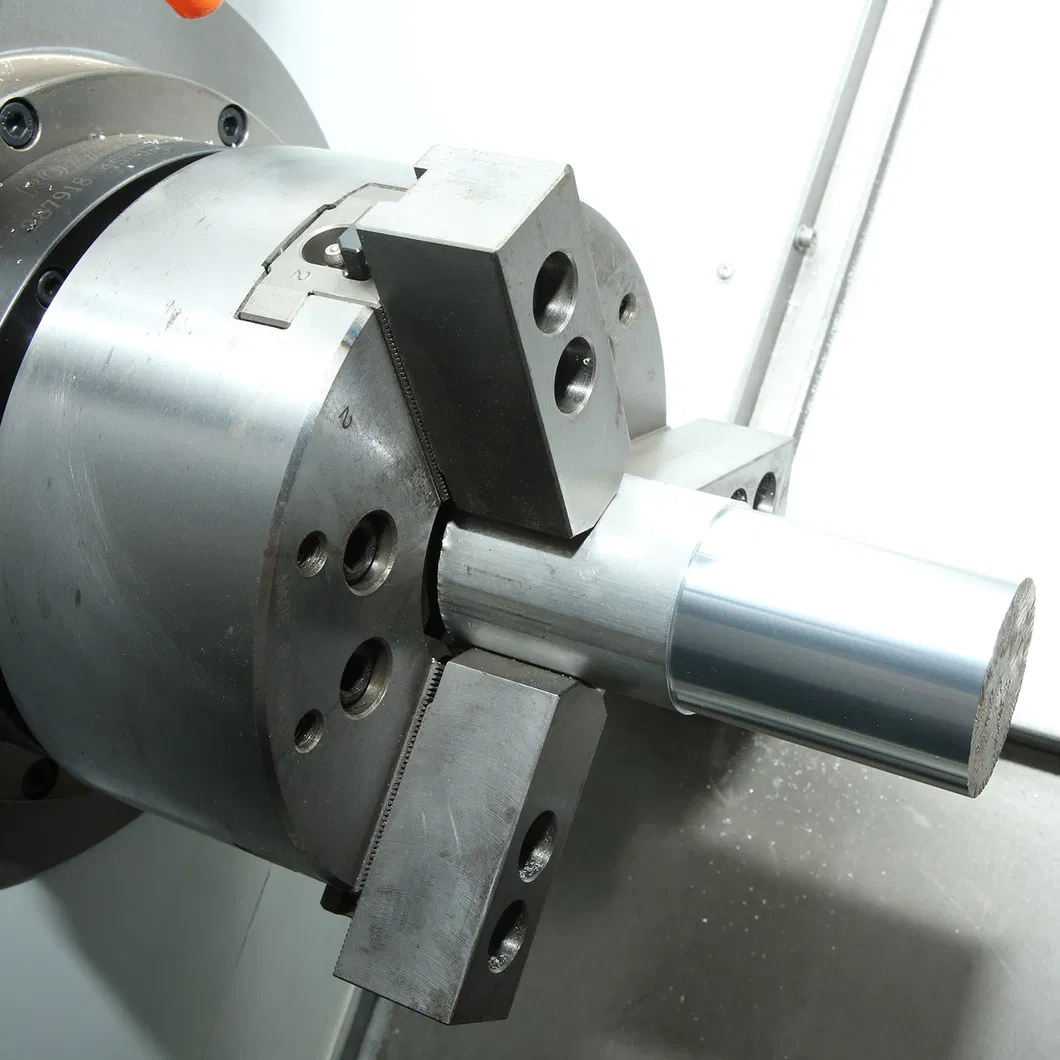

Chuck Size	inch	8
Spindle bore	mm	62
Max.Barstock Dia.	mm	52
Spindle Power	kw	7.5/11
Spindle rpm	rpm	4500
X feeding range	mm	185
Z feeding range	mm	500
Y feeding range	mm	-
S feeding range	mm	-
Rapid Feedrate	m/min	X/Z:32/32
Tool Number	pcs	12
NC system		FANUC 0ITF

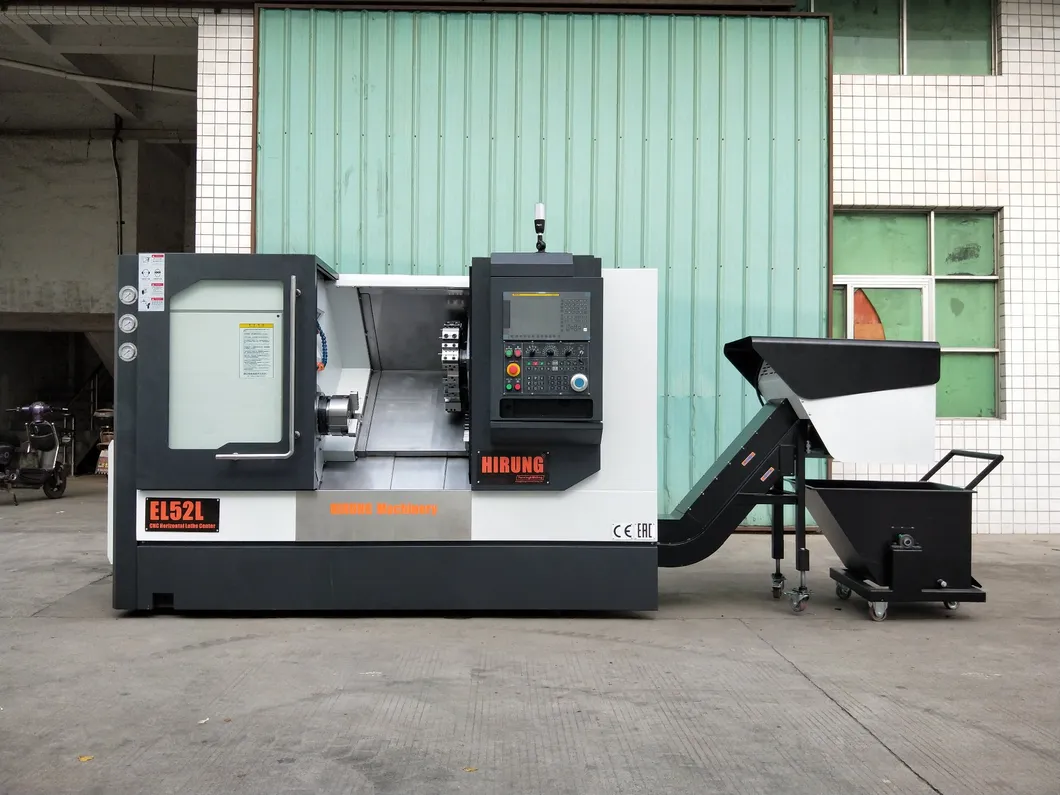

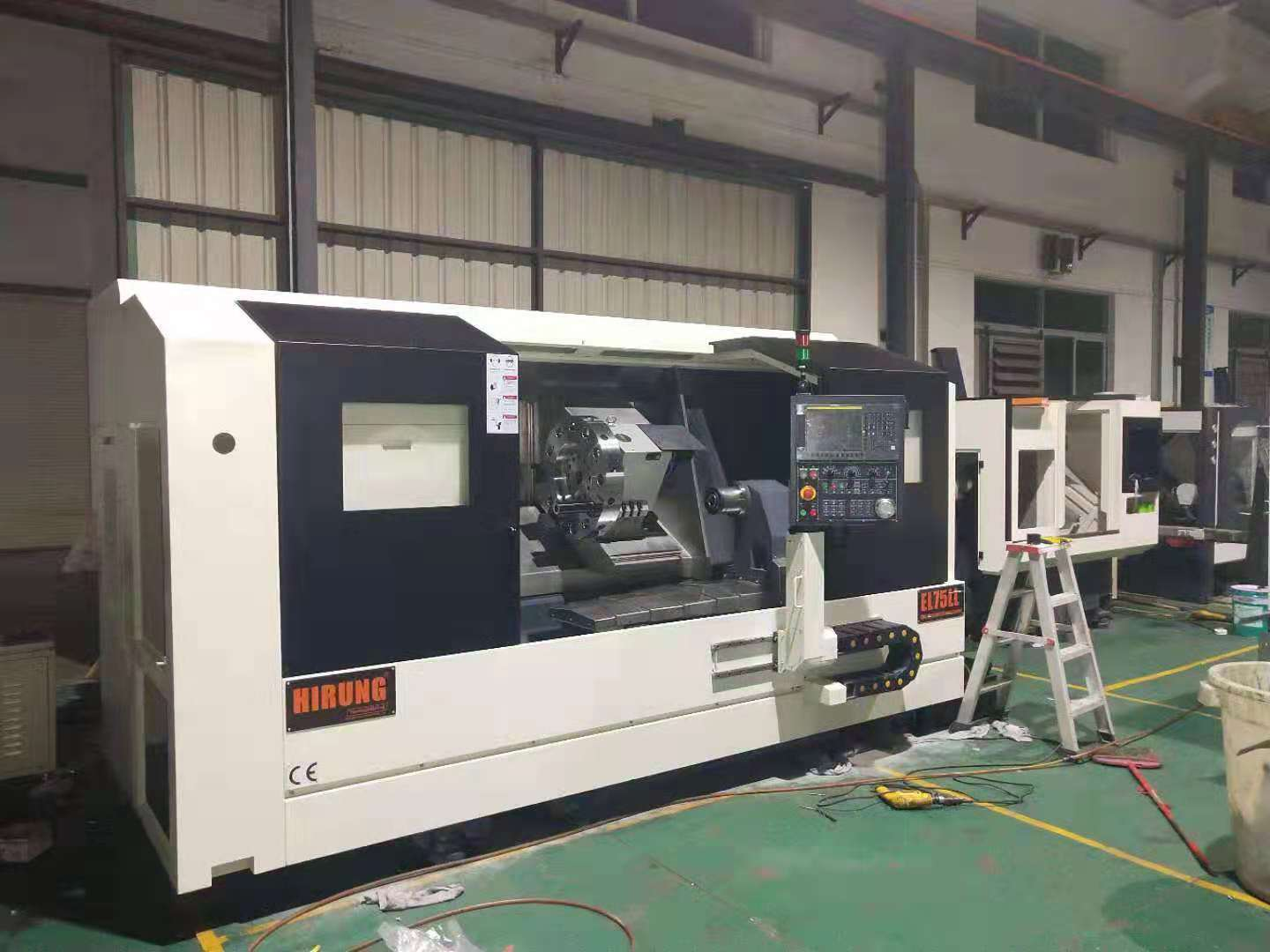

item		unit	EL42L	EL52L		EL75L	EL75LL
Swing over bed		mm	400	520		630	630
Processing dia		mm	200	250		300	300
chuck size		inch	6(160mm)	8(210mm)		10/12(260/310mm)	12(310mm)
Spindle Nose			A2-5	A2-6		A2-8	A2-8
max processing length		mm	500	620		680	980
X axis travel		mm	180	230		280	280
Z axis travel		mm	580	700		820	1120
Spindle speed		mm	4500	3500		3500	3500
Spindle power		KW	5.5/7.5	7.5/11		11/15	15/18.5
Spindle hole through dia		mm	56	66		86	86
Max bar feeding dia		mm	46	56		76	76
Rapid feedrate(X/Z/Y/S)		M/min	36/36	32/32		30/30	30/30
Tools no		pcs	10	12		12	12
Tailstock travel		mm	500	600		500	650
tailstock model			MT-4	MT-5		MT-5	MT-5
Machine weight		KG	3600	4200		5200	6000
Control system			FAUNC Oi TF SIEMENS 828D SIEMENS 808D GSK 980TDi
Position accuracy (X/Z)		mm	±0.003/0.01(JIS B6338/VDI3441)
Repeatability (X/Z)		mm	±0.003/0.01(JIS B6338/VDI3441)
3. Random Standard Function FANUC 0i-TF
1	Control axis				4axis
2	No of axis Sincronous				3 axis
3	Minimum movement amount				0.001mm
4	Minimum input unit				0.001mm
5	Rapid feedrate adjustment				F0-100%
6	Feed rate adjustment				F0-150%
7	Automatic acceleration and deceleration				Standard
8	Rigid tapping				Standard
9	Spindle speed command				S5 dimension code specified
10	Spindle orientation				Standard
11	Spindle speed adjustment				50-120%
12	Origin return				G28
13	Origin return check				G27
14	The second origin return				G30
15	Manual pulse				0.001mm 0.01mm 0.1mm
16	Tool compensation				64 groups
17	Tool nose radiusautomatically compensated				G41 G42
18	Tool nose radius compensation eliminated				G40
19	Tool offset counter input				Standard
20	Tool offset values are entered directly				Standard
21	Chamfering ON/OFF				Standard
22	Polar coordinate book				Standard
23	Cylinders				Standard
24	Pitch backlash correction				Standard
25	Coordinate system setting				G50
26	Decimal point input method				Standard
27	Processing in program editing				Standard
28	Processing time display				Standard
29	Spindle speed display				Standard
30	Feed speed display				Standard
31	Self-diagnosis function				Standard
32	Program memory length				640m
33	The number of programs can be stored				400
34	Program number				O4 Specify code
35	M code function				M2 code Specify
36	Conversion system				G20 G21
37	Input code				RS-232 C& PCMCIA
38	PC staircase graph display				EIA/ISOAutomatic discrimination
39	PCLadder diagram display				Standard
40	Screen display				8.4 Inch color display
41	Emergency stop function				Standard
42	Single operation function				Standard
43	The program name is displayed				Standard
44	Mechanical locking function				Standard
45	Auxiliary function lock				Standard
46	Program memory protection				Standard
47	Limit stroke setting				Standard
48	Linear cutting function				G01
49	Arc cutting function				G02 G03
50	Suspend function				G04
