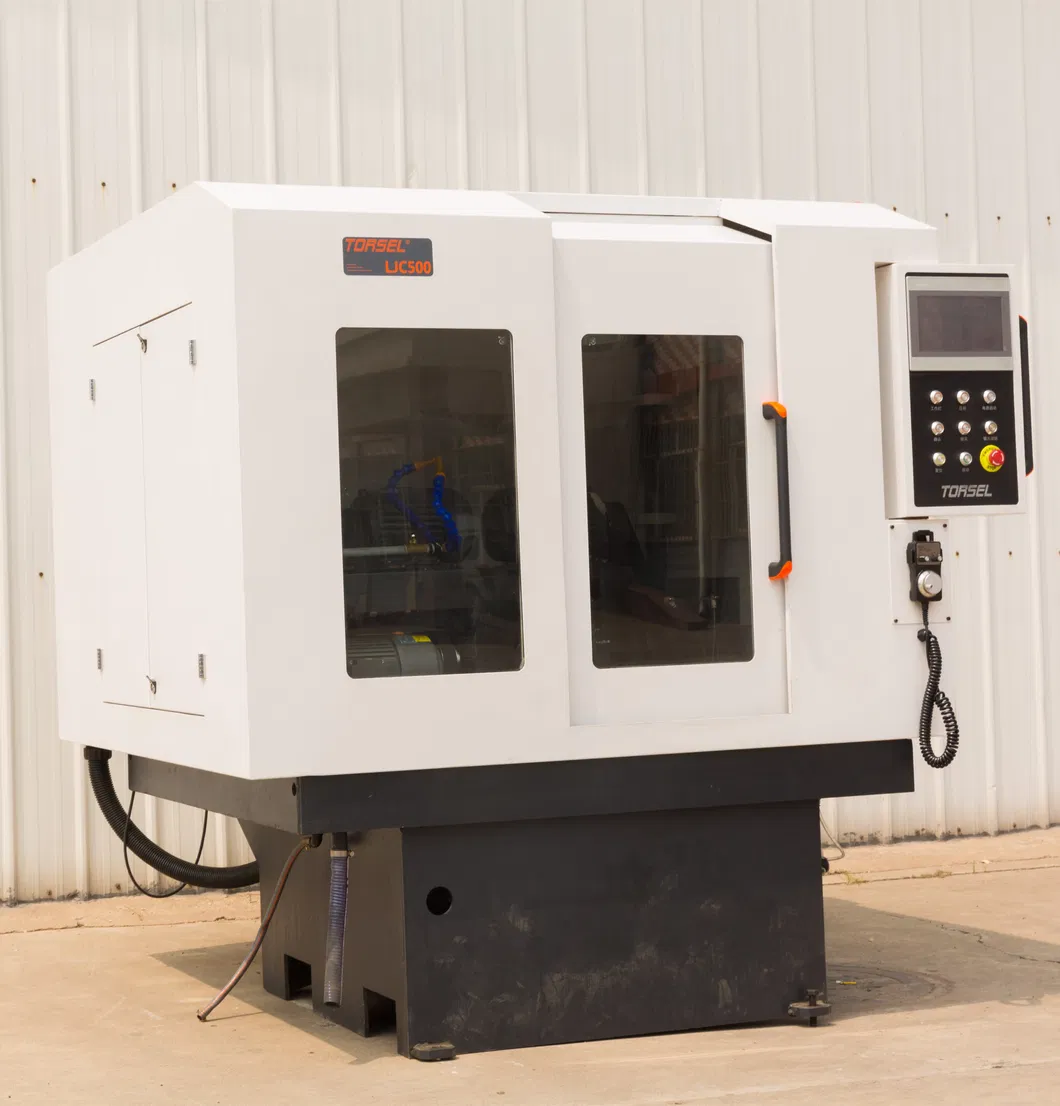

2222 CNC Turnning Side Grinding Machine
CMT 500 CNC Turnning Side Sharpening Machine with Robot High-level productivity & precision grinding machine for carbide tools. Advantages of saw blade sharpener More precision- grinding precision: <0.01mm,be impressed by the higher accuracy. More efficiency- experienced productivity on a ......
Send Inquiry
Product Description

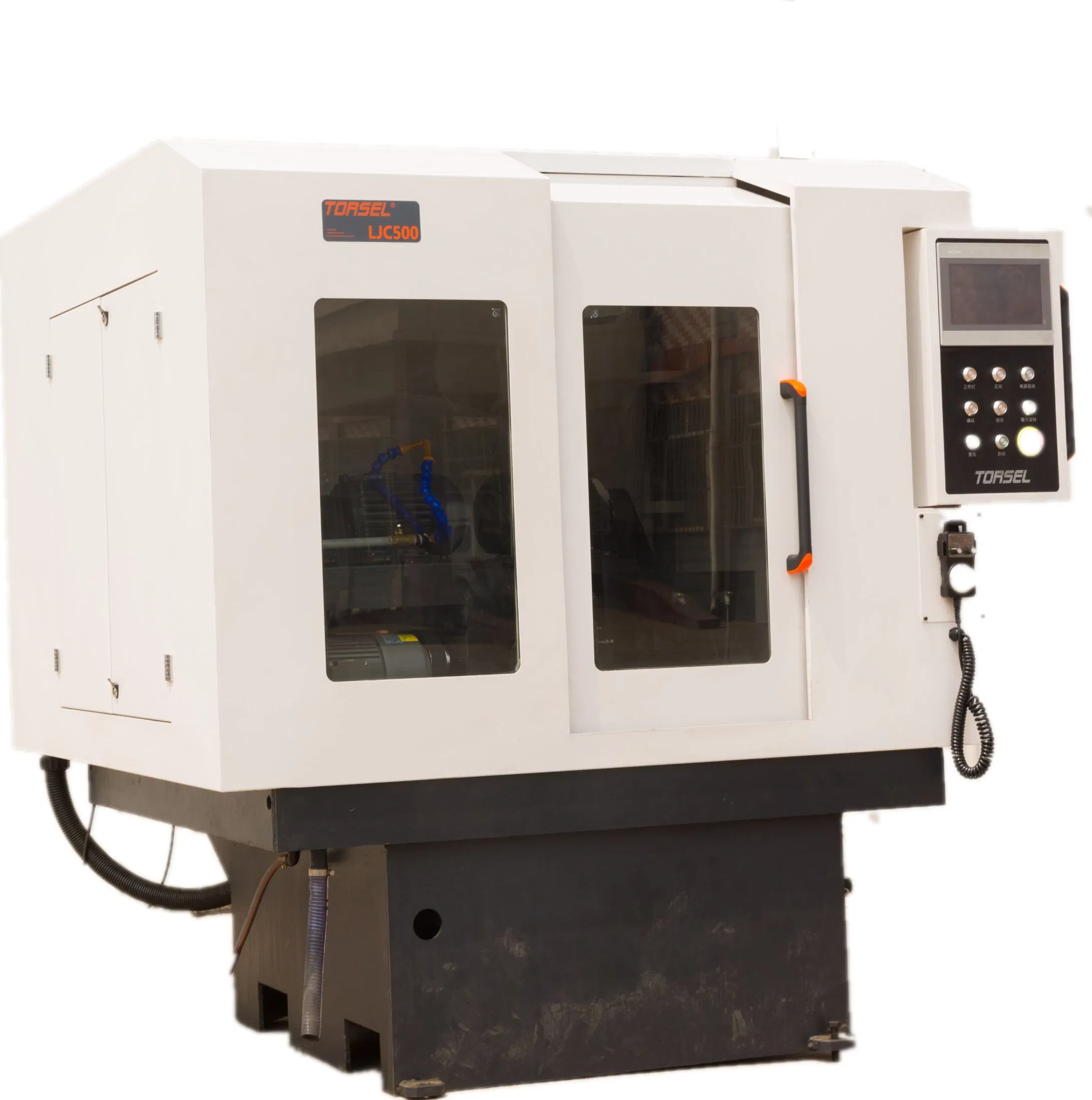

CMT 500 CNC Turnning Side Sharpening Machine with Robot
High-level productivity & precision grinding machine for carbide tools.
Advantages of saw blade sharpener
• More precision- grinding precision: <0.01mm,be impressed by the higher accuracy.
• More efficiency- experienced productivity on a higher level
• More user comfort- simplify your work
• More flexibility-for precision in any requirement
• More Function- grinding SIDE of saw blade

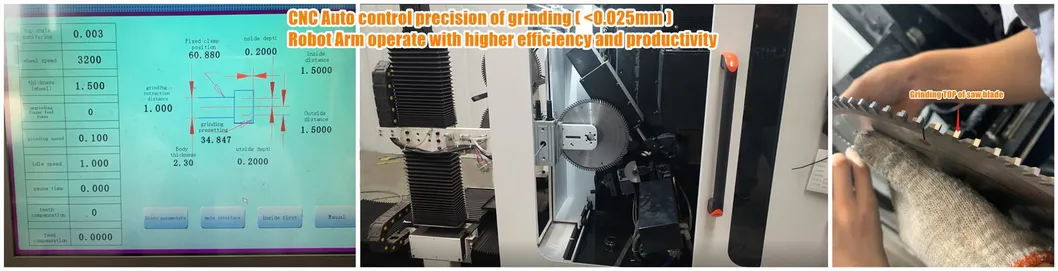

CNC Control- High Precision is flexible to control ultra-precision grinding as requirement.
3-D Graphics Grinding Machine
Technical Premeter
Configuration
FAQ
1. How to chooce best saw blade grinding machine?
- Best grinding machine process tools with higher precision & long service life.
2. How is the performance of TORSEL saw blade grinding machine?
- TORSEL saw blade grinding machine process tool with excellent precision <0.01mm,the service life is upto 7-15 years.
3. Whats your cooperation companys?
High-level productivity & precision grinding machine for carbide tools.
Advantages of saw blade sharpener
• More precision- grinding precision: <0.01mm,be impressed by the higher accuracy.
• More efficiency- experienced productivity on a higher level
• More user comfort- simplify your work
• More flexibility-for precision in any requirement

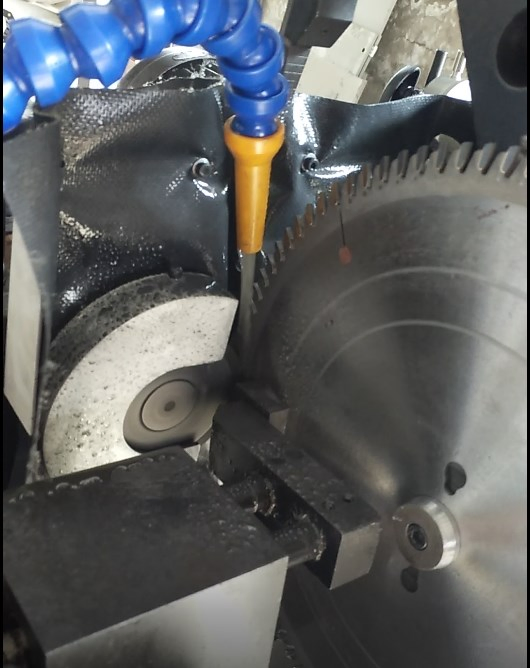

• More Function- grinding SIDE of saw blade

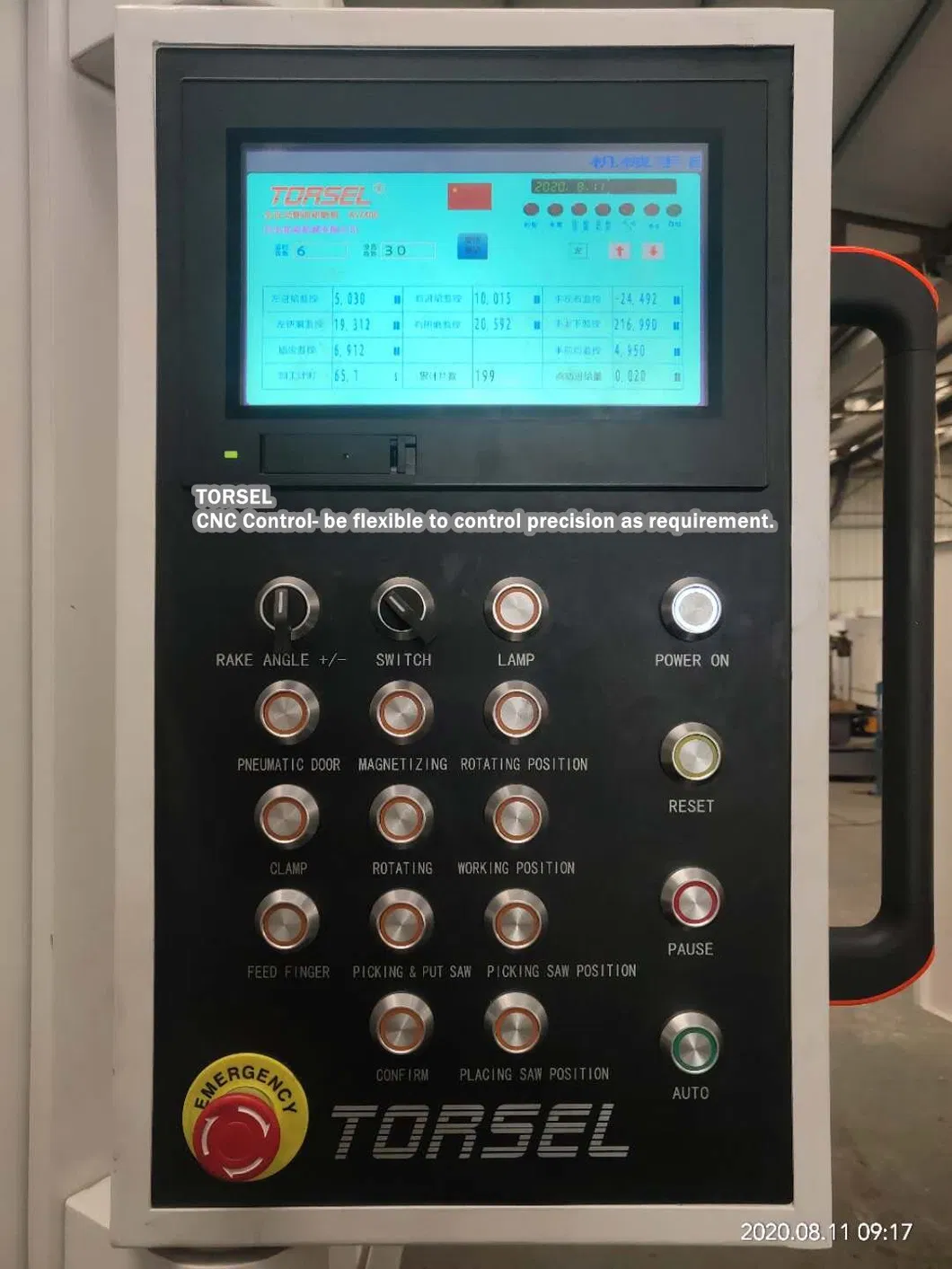

CNC Control- High Precision is flexible to control ultra-precision grinding as requirement.

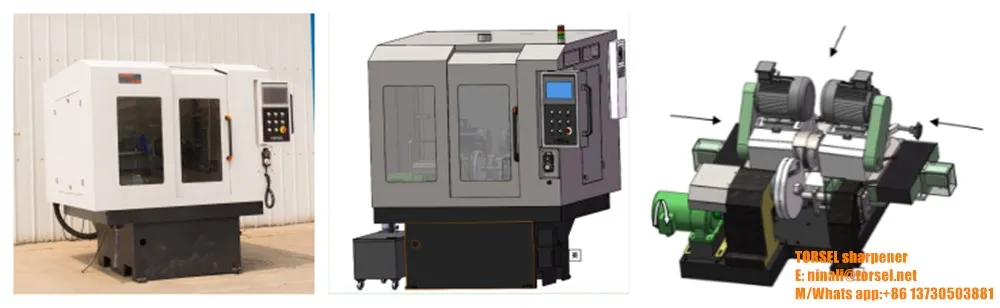

3-D Graphics Grinding Machine
Technical Premeter
| Saw Diameter | 250~500mm |
| Side Relief | 0°~ 4° |
| Side Angle | 0° |
| Bore Diameter | 15.88~120mm |
| Flange Diameter | 180-460mm |
| Wheel Size | 150mm*32mm |
| Wheel Speed | 2500~3500RPM |
| Saw Speed | 10~50RPM |
| Power | 5.1KW |
| Dimension | 1600*1500*1850mm |
| Weight | 1980kg |
Configuration
| Ball Screw | IF(Germany) |
| Roller Guide | HIWIN(Taiwan) |
| Pneumatic Parts | SMC(Japan) |
| Servo Motor | Inovance |
| PLC | Inovance ARM600 |
| Harmonic Drive | Inovance |
FAQ
1. How to chooce best saw blade grinding machine?
- Best grinding machine process tools with higher precision & long service life.
2. How is the performance of TORSEL saw blade grinding machine?
- TORSEL saw blade grinding machine process tool with excellent precision <0.01mm,the service life is upto 7-15 years.
3. Whats your cooperation companys?
