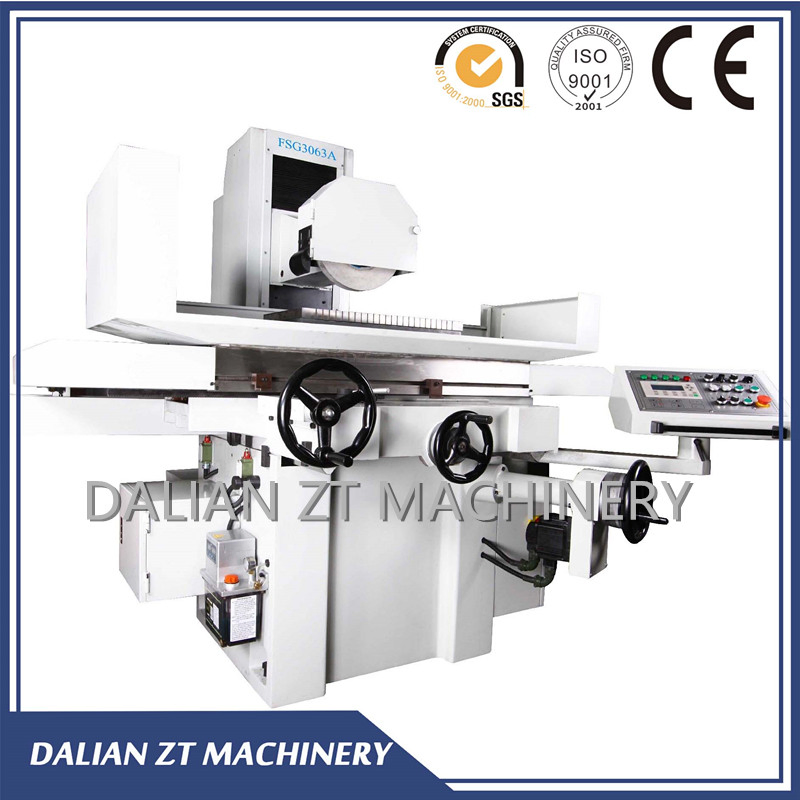

High Precision Saddle Moving Surface Grinding Machine Grinder FSG- 3063
Features:Saddle moving grinding machine; Well designed perfect symmetrical structure ensures the machine is very suitable for precision grinding. Saddle makes elevating movement and is driven by manual (M series), AC motor (R series), or AC servo motor (A series).CE standard electric requirements; I......
Send Inquiry
Product Description
Features:

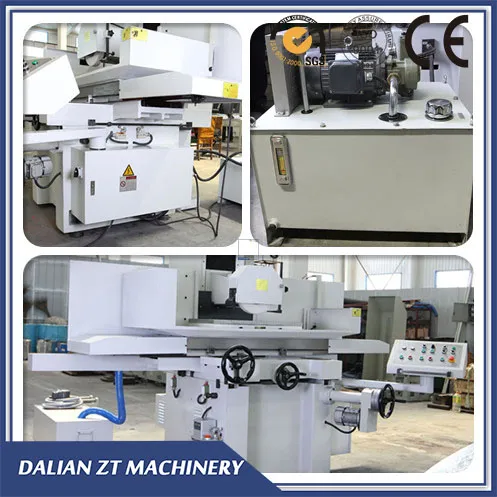

Saddle moving grinding machine; Well designed perfect symmetrical structure ensures the machine is very suitable for precision grinding. Saddle makes elevating movement and is driven by manual (M series), AC motor (R series), or AC servo motor (A series).
CE standard electric requirements;

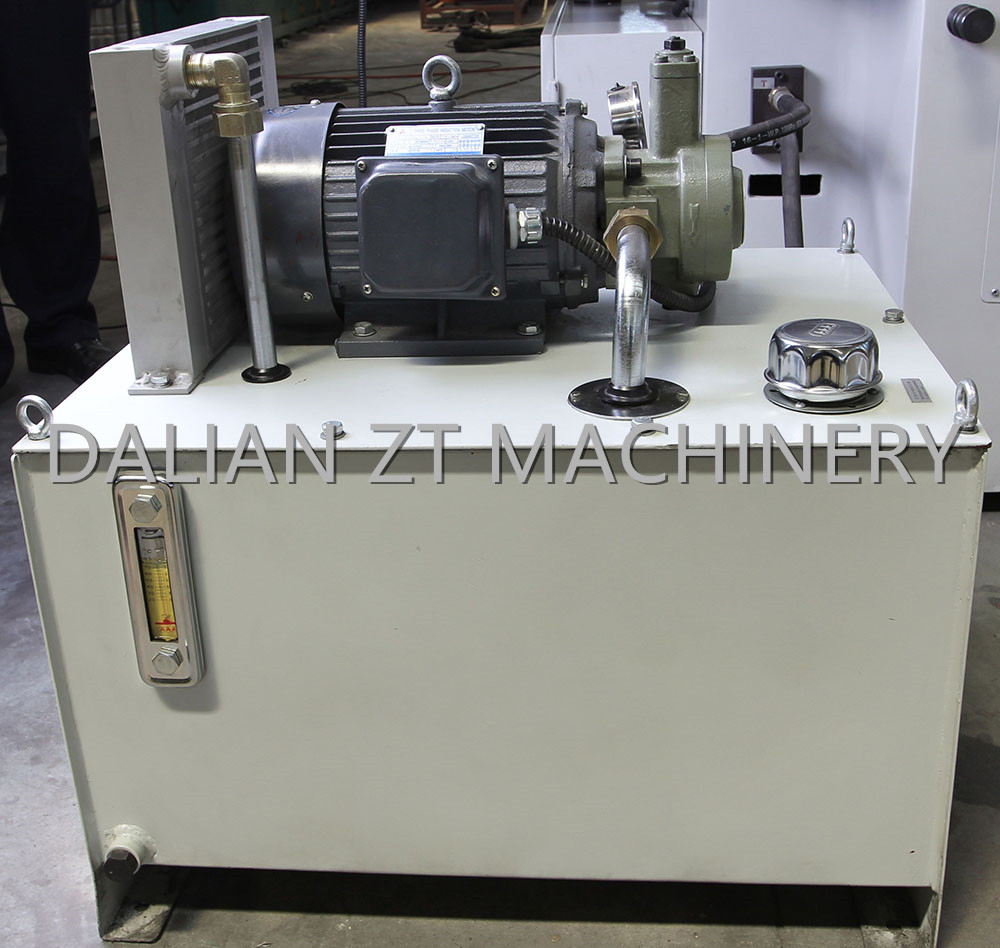

Independent hydraulic station;
Turcite coated guide way;
Test & Shipment:
Exhibition & Customers Visiting
FAQ
1. How can I choose the most suitable machines?
A: You can choose the exact model by yourself. Or you can tell us your specifications, to let us choose the best model for you, too.
You can also send us the product drawing, and we will choose the most suitable machines for you.
.
2. When do you deliver?
A: It depends on the machine and model you choose. Mostly 1.5 months - 3 months. All machines are brand new, made according to your order. Occasionally there will be a few machines available from stock. You can send us a message or mail to check exact delivery time.
3. Is machine tested?
A: The accuracy, noisy will be tested according to China GB standard.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5. What's the Payment Terms?
A : T/T 30% down payment when order ,70% balance payment before shipment ;
Irrevocable L/C at sight also acceptable but it will subject additional bank fee.
6. Do you accept cash or L/C?
A: We accept T/T or L/C, all through banking system. We do not accept cash, 'cause we are an official registered company that all payment must go through official bank account.
7. What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set)
8. How is the warranty?
A: 12 months after shipment date
9. If I have a problem setting up/ getting it running problem, will you be available by email to assist in solving the problem.
A: Video technical support, online service, we can answer you in 24 hours.
Saddle moving grinding machine; Well designed perfect symmetrical structure ensures the machine is very suitable for precision grinding. Saddle makes elevating movement and is driven by manual (M series), AC motor (R series), or AC servo motor (A series).
CE standard electric requirements;
Independent hydraulic station;
Turcite coated guide way;
| Item | SG-3063M | SG-3063R | SG-3063A |
| Table size | 305*635mm | 305*635mm | 305*635mm |
| Magnetic chuck size | 300*600mm | 300*600mm | 300*600mm |
| Max. Distance from spindle center to table | 580mm | 580mm | 580mm |
| Table cross travel | 340mm | 340mm | 340mm |
| Table longitudinal travel | 765mm | 765mm | 765mm |
| Max. Loading capacity (including chuck) | 270kg | 270kg | 270kg |
| Speed of table longitudinal movement | 5-25m/min | 5-25m/min | 5-25m/min |
| Cross motion | |||
| Intermittent feedrate | 0.1-8mm/t | 0.1-8mm/t | 0.1-8mm/t |
| Rapid speed | 990mm/min | 990mm/min | 990mm/min |
| Feed of handwheel | 0.02mm/div | 0.02mm/div | 0.02mm/div |
| Vertical motion | |||
| Auto down feed rate | 0.005-0.5mm/t | ||
| Rapid down speed | 650mm/min | 480mm/min | |
| Feed of handwheel | 0.005mm/div. | 0.005mm/div. | 0.005mm/div. |
| Spindle speed | 1450(50Hz)/1750(60Hz) | ||
| Grinding wheel size | 350*40*127mm | ||
| Spindle motor power | 4kW | ||
| Floor space (L*W*H) | 2900*2200*1900mm | ||
| Gross weight | 2800kg | ||
| Packing size | 2350*2200*2210mm | ||
Test & Shipment:
Exhibition & Customers Visiting
FAQ
1. How can I choose the most suitable machines?
A: You can choose the exact model by yourself. Or you can tell us your specifications, to let us choose the best model for you, too.
You can also send us the product drawing, and we will choose the most suitable machines for you.
.
2. When do you deliver?
A: It depends on the machine and model you choose. Mostly 1.5 months - 3 months. All machines are brand new, made according to your order. Occasionally there will be a few machines available from stock. You can send us a message or mail to check exact delivery time.
3. Is machine tested?
A: The accuracy, noisy will be tested according to China GB standard.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5. What's the Payment Terms?
A : T/T 30% down payment when order ,70% balance payment before shipment ;
Irrevocable L/C at sight also acceptable but it will subject additional bank fee.
6. Do you accept cash or L/C?
A: We accept T/T or L/C, all through banking system. We do not accept cash, 'cause we are an official registered company that all payment must go through official bank account.
7. What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set)
8. How is the warranty?
A: 12 months after shipment date
9. If I have a problem setting up/ getting it running problem, will you be available by email to assist in solving the problem.
A: Video technical support, online service, we can answer you in 24 hours.
