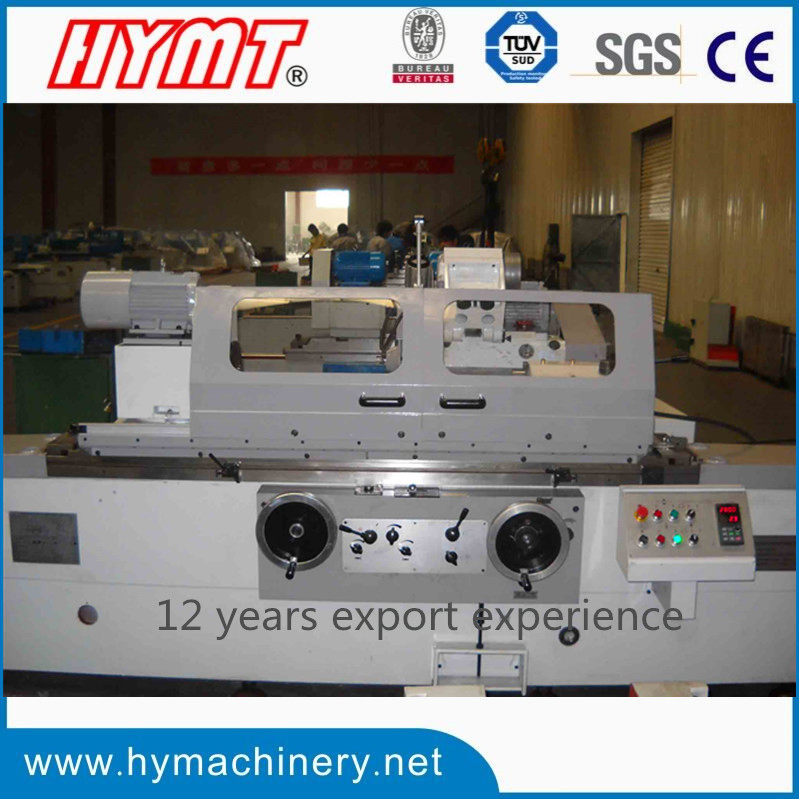

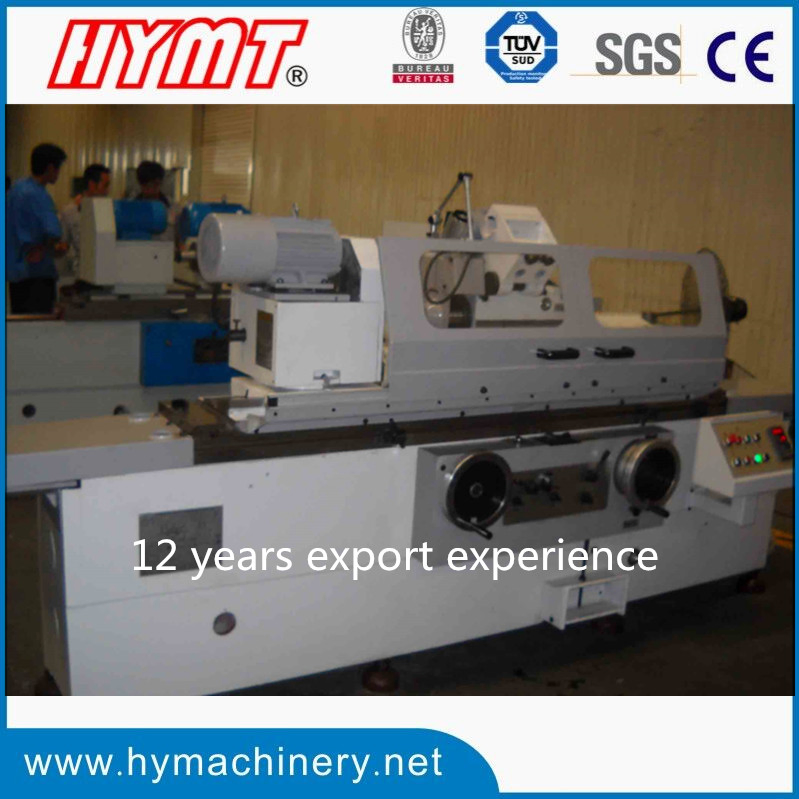

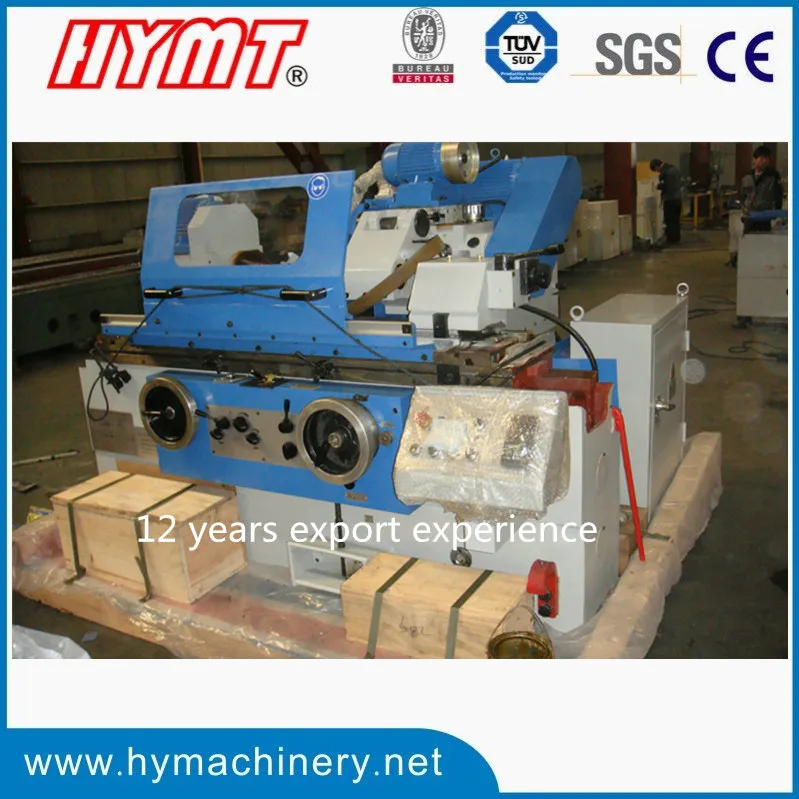

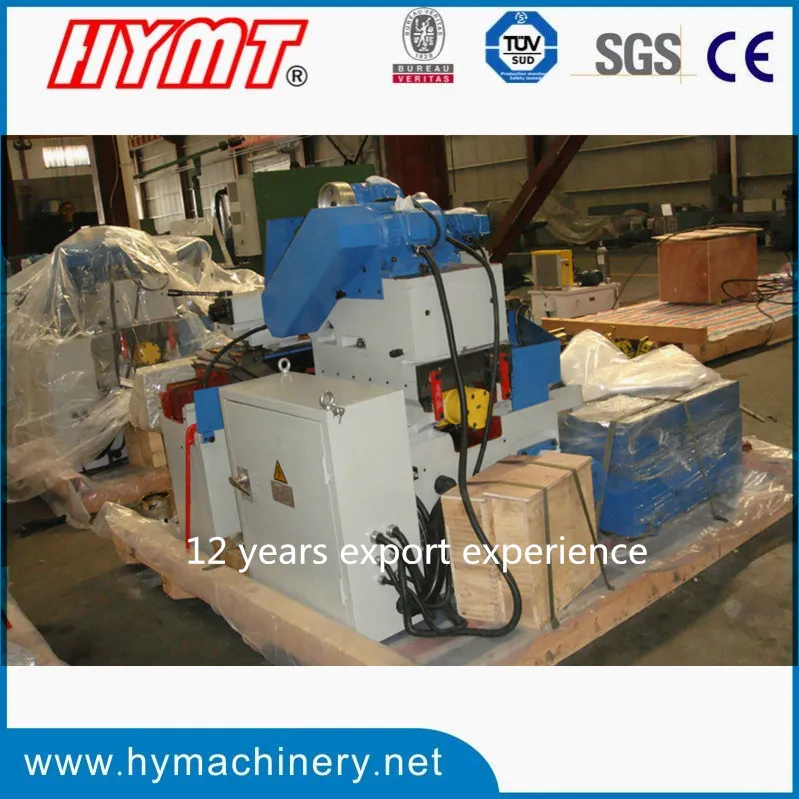

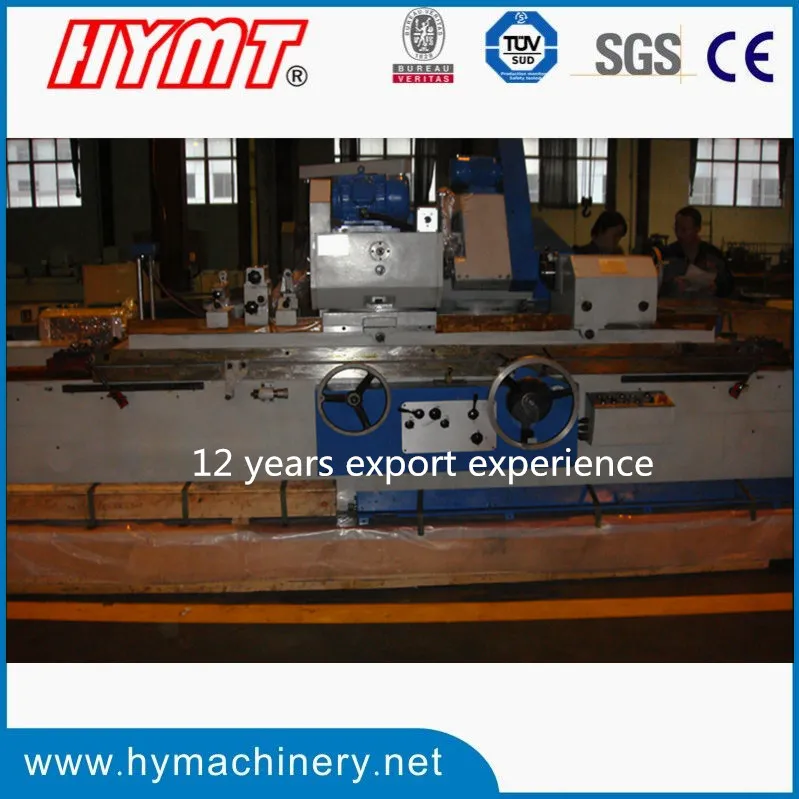

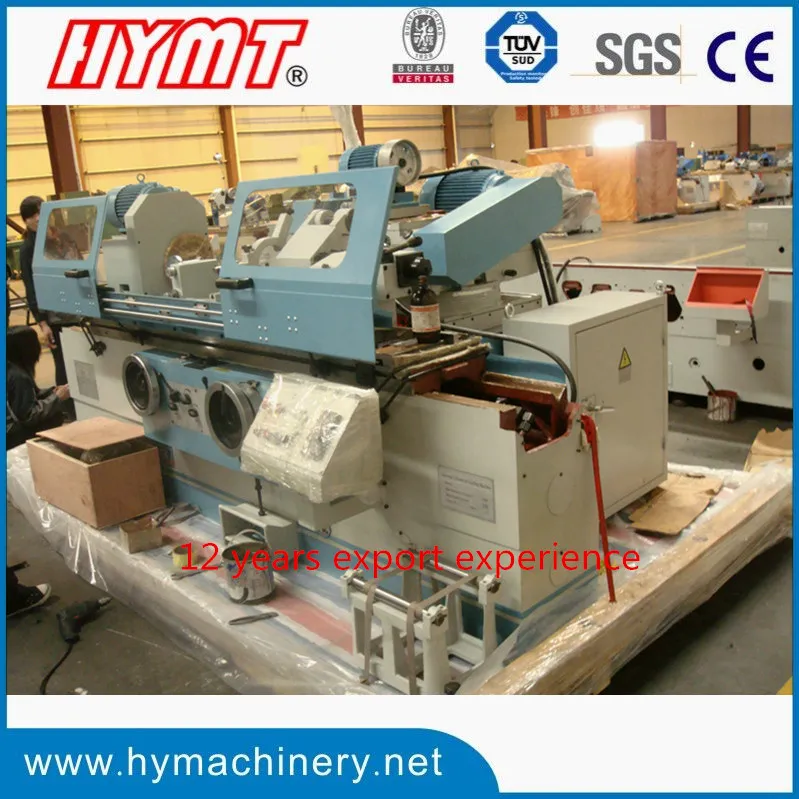

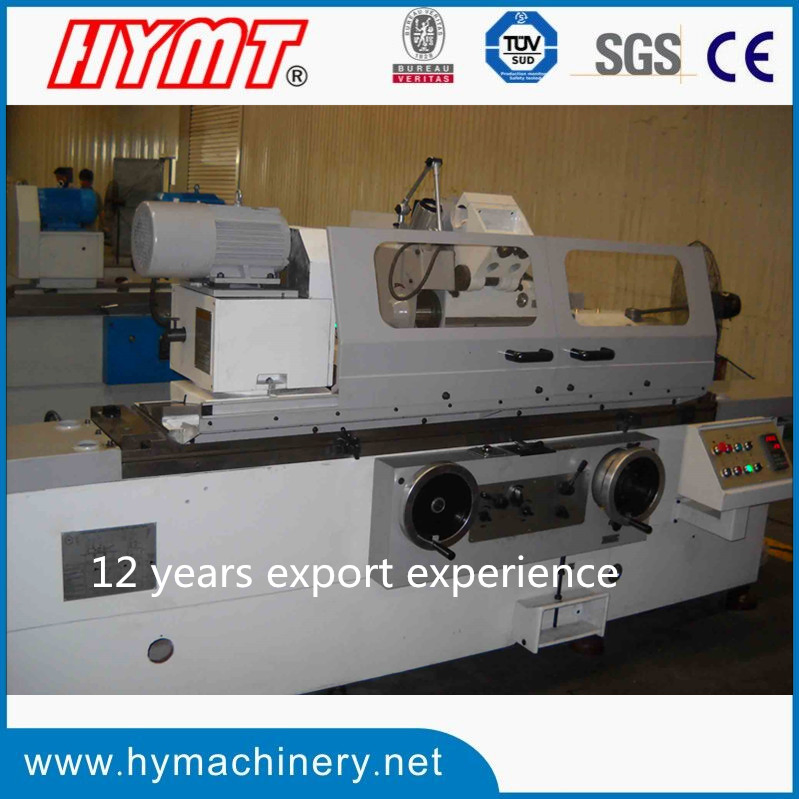

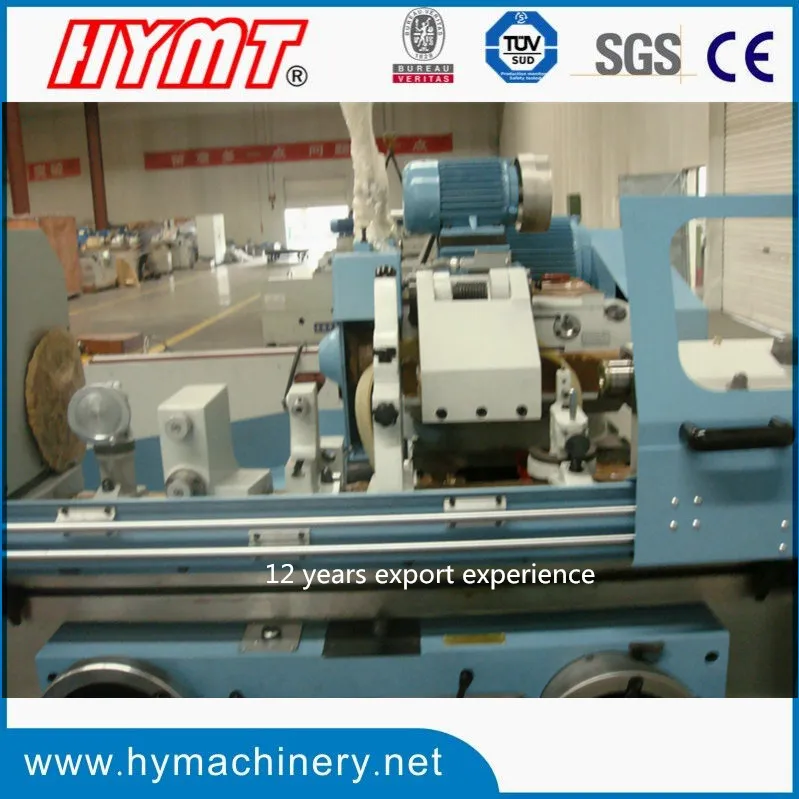

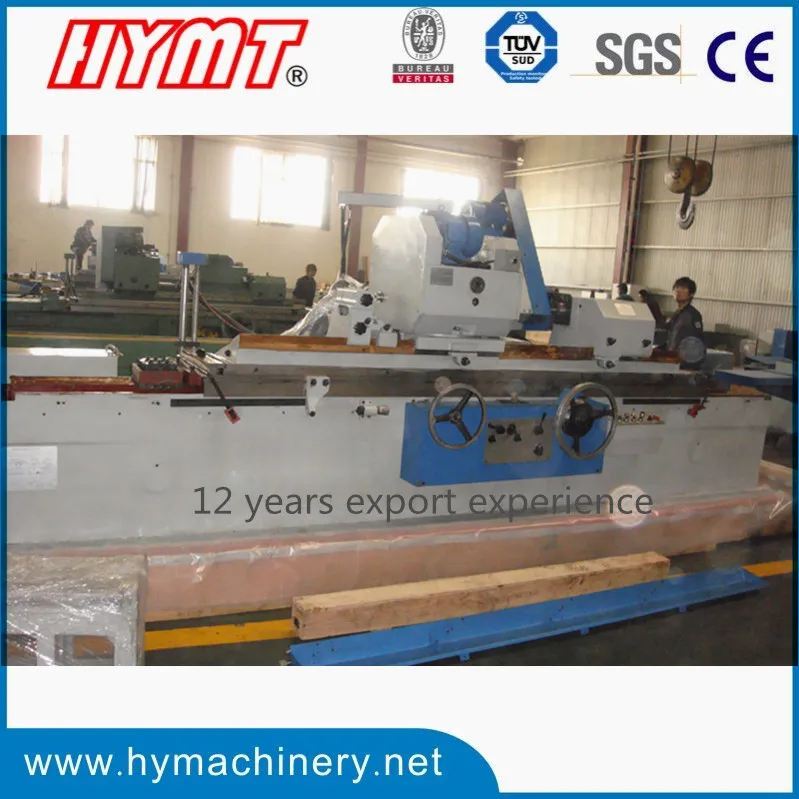

M1432B series high precision Universal Cylindrical Grinding Machine

Main features:

1) The machine can grind cylindrical and conical external surfaces and holes with accuracy of IT6 and IT5. The longitudinal travel of the worktable and the in-feed of the wheel head are carried out hydraulically or manually. The rapid approach and withdrawal of the tailstock center, the lubrication of the worktable slide-way and the in-feed lead screw etc, are all hydraulically controlled.
2) The electro system have been designed according to the CE standard All the electro parts adopted world brand or Chinese famous brand, such as the Siemens, schneider, Delixi, Juche, etc.

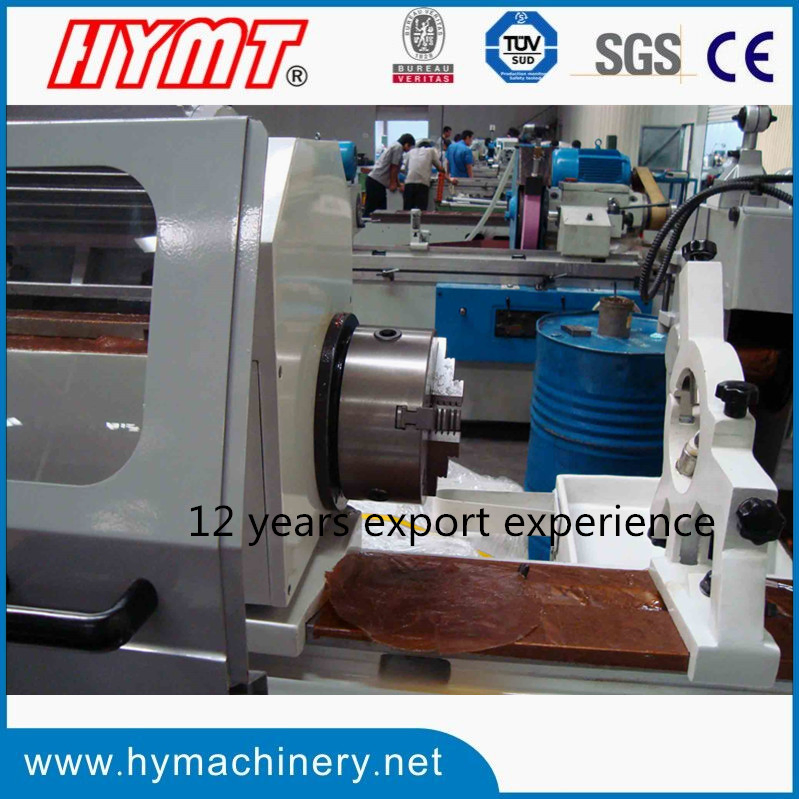

3) The high precision spindle unit is well designed and produced high load resistible, mounted in pre-loaded angular deep-groove ball bearing ensures low-vibration operation, high accuracy, increased lifetime, and low maintenance
4) The vertical lift lead screw is made in Taiwan, Name: SHYH MINMACHINERY The Cross feed screw is Ball screw ( SGA30~40 series), make sure the smooth moving. AC motor drove the cross screw by timing belt then realize auto intermittent feed.
5) The spindle Motor, Y axis drove Motor, and other important parts, Are all made by famous specialty manufacturer, SHVH MIN, Juli, Shuanglin etc...
6) Carefully painting. Pay more attention to the round corner, straight border. Elaborate work make the machine with not only good accuracy but also nice appearance.
7) The surface grinding machine with pleasing appearance and well designed structure, the machine is an indeed precision grind equipment for metal working. Also it can be equipped with optional accessories, such as parallel wheel dresser, magnetic separate coolant unit, etc
Main specifications:

Model Deseription///CODE NO.	unit	Specifications
Model Deseription///CODE NO.	unit	M1432B× 1000	M1432B× 1500	M1420× 500	M1420× 750
General capacity
Distance between centers	mm	1000	1500	500	750
Centre heigh	mm	180	180	135	135
Dia. Ground(O. D)	mm	8~320	8~320	5~200	5~200
Dia. Ground(I. D)	mm	30~100	30~100	25~100	25~100
Max. length ground(O. D)	mm	1000	1500	500	750
Max. length ground(I. D)	mm	125	125	100	100
Max weight of work piece	kg	150	150	100	100
Workhead
Swivelling angle		+90	+90	+90	+90
Center taper	MT	4	4	4	4
Spindle speed	r/min	50HZ: 25-220 60HZ: 30-364	50HZ: 25-220 60HZ: 30-364	25~380	25~380
Wheelhead
Wheel spindle speed	r/min	1670	1670	1670	1670
Wheelhead rapid travel	mm	50	50	50	50
Max travel	mm	246	246	205	205
Wwivelling angle	°	± 30°	± 30°	+10°	+10°
Hand feed per. rev	mm	rough: 2.0 fine: 0.5	rough: 2.0 fine: 0.5	rough: 2.0 fine: 0.5	rough: 2.0 fine: 0.5
Hand feed per. gra	mm	rough: 0.01 fine: 0.0025	rough: 0.01 fine: 0.0025	rough: 0.01 fine: 0.0025	rough: 0.01 fine: 0.0025
Max dimension of wheel(OD× W× ID)	mm	400× 50× 203	400× 50× 203	400× 50× 203	400× 50× 203
Internal grinding
Spindle speed	r/min	10000	10000	10000	10000
Dimension of wheel	mm	max: 50× 25× 13 min: 17× 20× 6	max: 50× 25× 13 min: 17× 20× 6	max: 30× 25× 10 min: 17× 20× 6	max: 30× 25× 10 min: 17× 20× 6
Table
Table travel	mm	6	6	6	6
Max swivelling angle of table	°	clockwise: 3° widdershins: 7°	clockwise: 3° widdershins: 6°	clockwise: 3° widdershins: 9°	clockwise: 3° widdershins: 8°
Longitudinal traverse speed of table	m/min	0.1~4	0.1~4	0.1~4	0.1~4
Tailstock
Center taper	MT	4	4	4	4
Quill travel	mm	30	30	30	30
Motor
Wheelhead motor power	Kw	5.5	5.5	4	4
Internal grinding	Kw	1.1	1.1	1.1	1.1
Power of workhead motor	Kw	1.5	1.5	0.55	0.55
Machinc
Gross weigh	Kg	5300	6100	4100	4300
Packing dimension	mm	3380× 2000× 2050	4380× 2000× 2050	2600× 2060× 2050	3000× 2060× 2050
