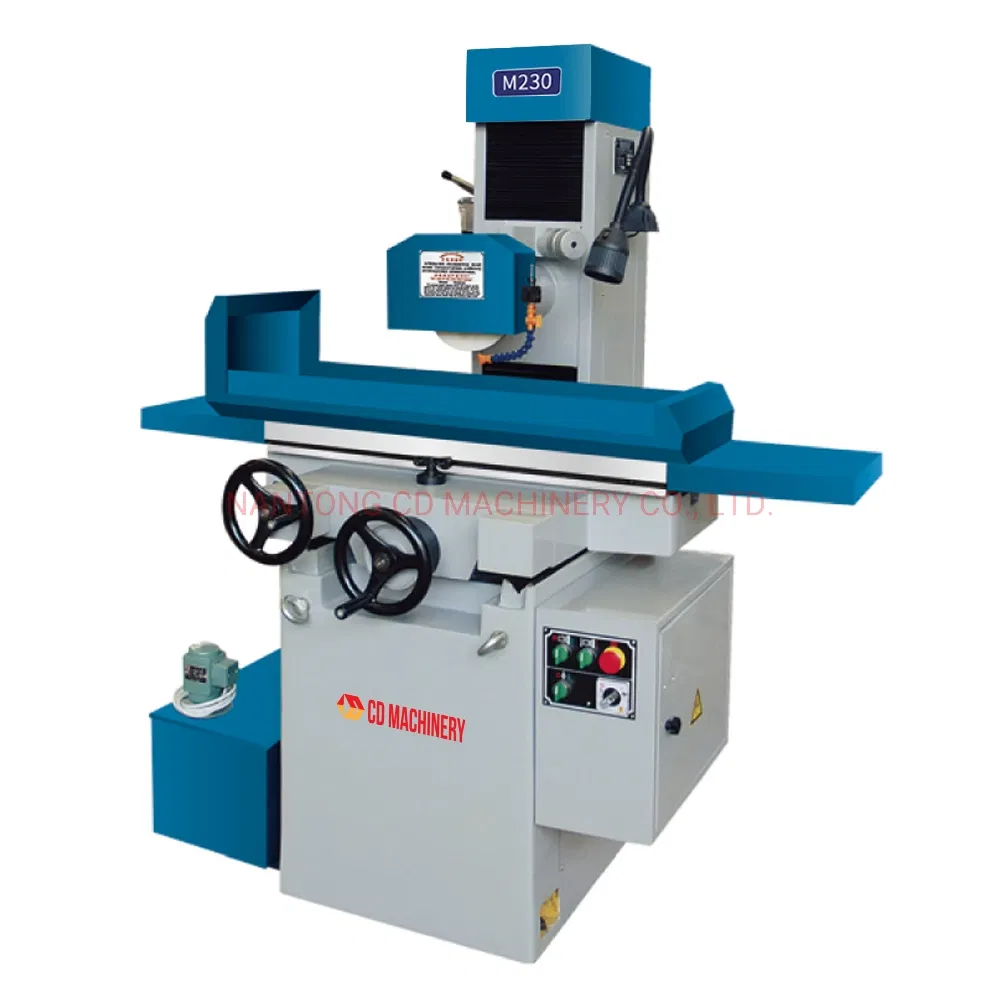

M230-9"X18" Small Size Manual Surface Grinding Machine
1. Picture2. ParametersParametersUnitM230Working Surface of Tablemm230×450 (9"×18")Max.Table Travelmm500Max.Cross Travelmm250Distance Between Table Surface and Spindle Centermm430Max.Table Loadkgs100T-Solt (Number×Width)mm1×12Table Speedm/min ManualC......
Send Inquiry
Product Description
1. Picture
2. Parameters
3. Standard Accessories
4. Feature
Table ways use hardened steel linear rails with precision balls for smooth and effortless hand feed. These reliable machines are low maintenance and easy to operate.

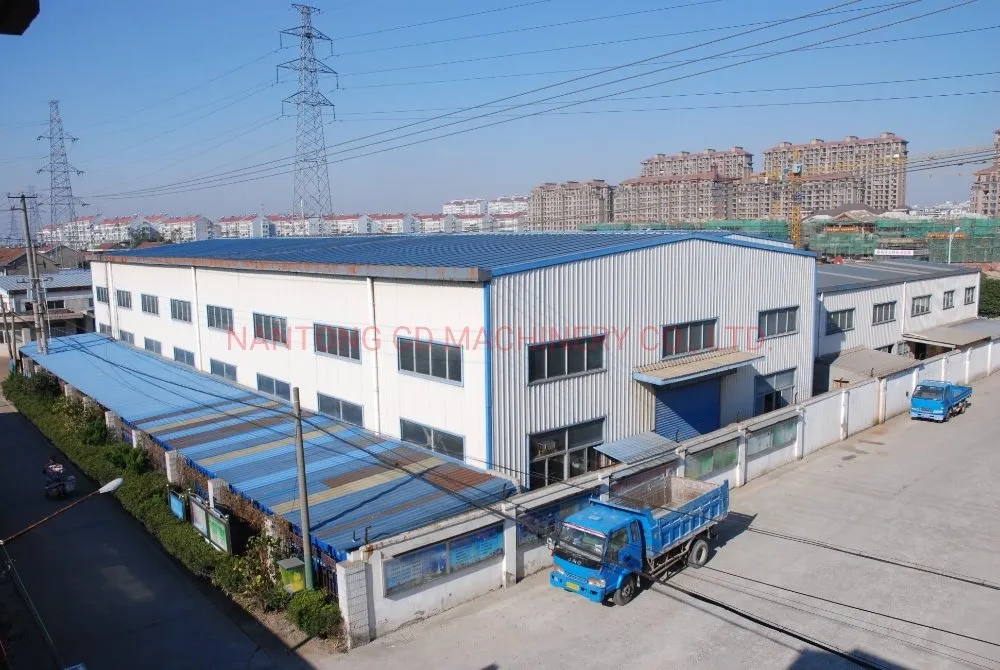

5. Company & Factory
Nantong CD Machinery Co., Ltd. is located in the beautiful city of Nantong, about 100 kilometers away from Shanghai.Our main products are : CNC grinding Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machine ,Drilling Machine ,Milling Machine and others metal cutting machine tools .All the products above have passed CE ,ISO certificates .Our company formed a good win-win relationship with domestic and foreign sales agents.Our company not only has formed a mature sales network in China, but also signed sales agency contracts with copanies from more than 30 foreign countries, and our machines has been exporting to Europe, Asia, Africa, South America, North America, Australia and other zones ,and have been trusted and praised by vast number of users. Our company focuses on strict and effective management,system, strict audit machines' quality ,try not to let out a detail, and make the machines more refined and finer .Service is our eternal theme of the pursuit.Our company can also procide OEM and ODM service .Is always adhering to the "QUALITY IS THE FIRST" purposes, to provide better quality machines ,more efficient and thoughtful after-sale service to customers . With your support, we will make great progress. Let's join hands and create a better future!
Welcome to visit us!
6. Dellivery Picture
7. FAQ
Q: Are you trading company or manufacture?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 10~20 days if the goods are in stock.Or it is 30~60 days if the goods aer not in stock,according to your quantity.
Q: Do you provide samples?is it free or extra?
A: Yes,we could offer the sample,but need extra cost.
Q: What is your terms or payment?
A: 30% T/T in advance,balance before shippment.
2. Parameters
| Parameters | Unit | M230 | |
| Working Surface of Table | mm | 230×450 (9"×18") | |
| Max.Table Travel | mm | 500 | |
| Max.Cross Travel | mm | 250 | |
| Distance Between Table Surface and Spindle Center | mm | 430 | |
| Max.Table Load | kgs | 100 | |
| T-Solt (Number×Width) | mm | 1×12 | |
| Table Speed | m/min | Manual | |
| Cross feed Handwheel | 1gard | mm | 0.02 |
| 1 rev | 3 | ||
| Automatic Cross feed of Saddle | mm | - | |
| Power Cross Feed | 50HZ | mm/min | - |
| 60HZ | - | ||
| Grinding Wheel Dimensions | mm | 200×16×32 | |
| Spindle Speed | 50HZ | rpm | 2850 |
| 60HZ | 3420 | ||
| Vertical Handwheel | 1gard | mm | 0.002 |
| 1 rev | 0.15 | ||
| Power Head Increment | mm/min | - | |
| Spindle Motor | kw | 1.1 | |
| Vertical Motor | w | - | |
| Hydraulic Motor | kw | - | |
| Dust Collection Motor | w | 550 | |
| Coolant Motor | w | 40 | |
| Crossfeed Motor | w | - | |
| Floor Space | mm | 1900×1300 | |
| Packing Dimensions | mm | 1180×1140×1950 | |
| Net Weight | kgs | 900 | |
| Gross Weight | kgs | 1000 | |

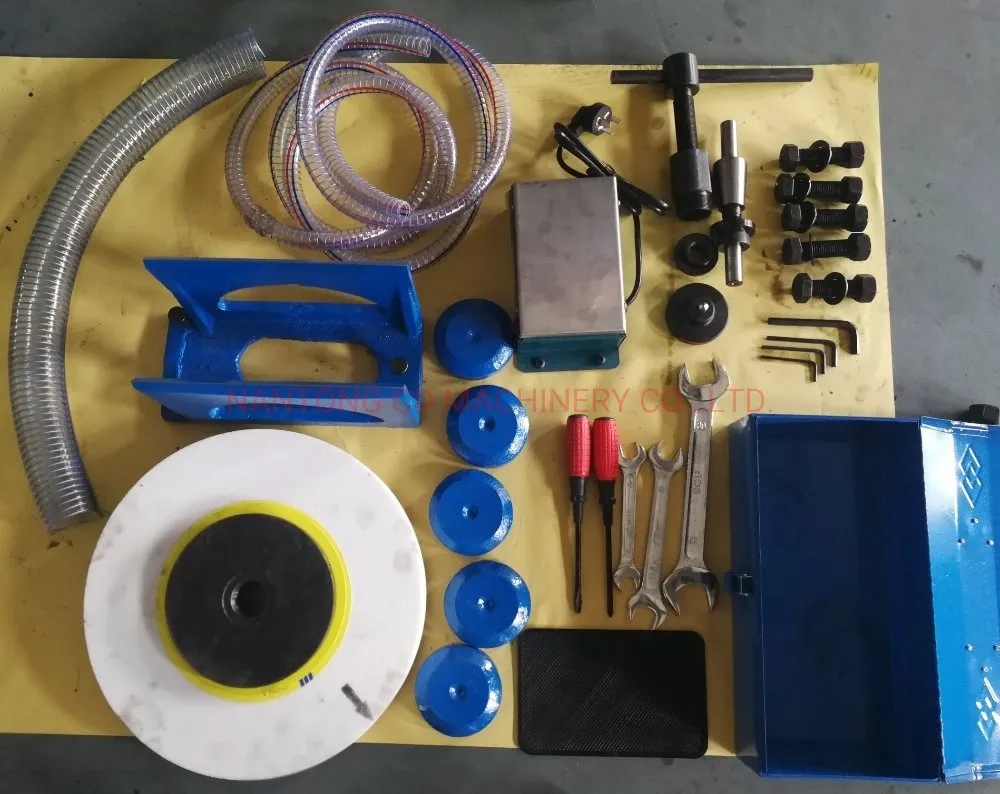

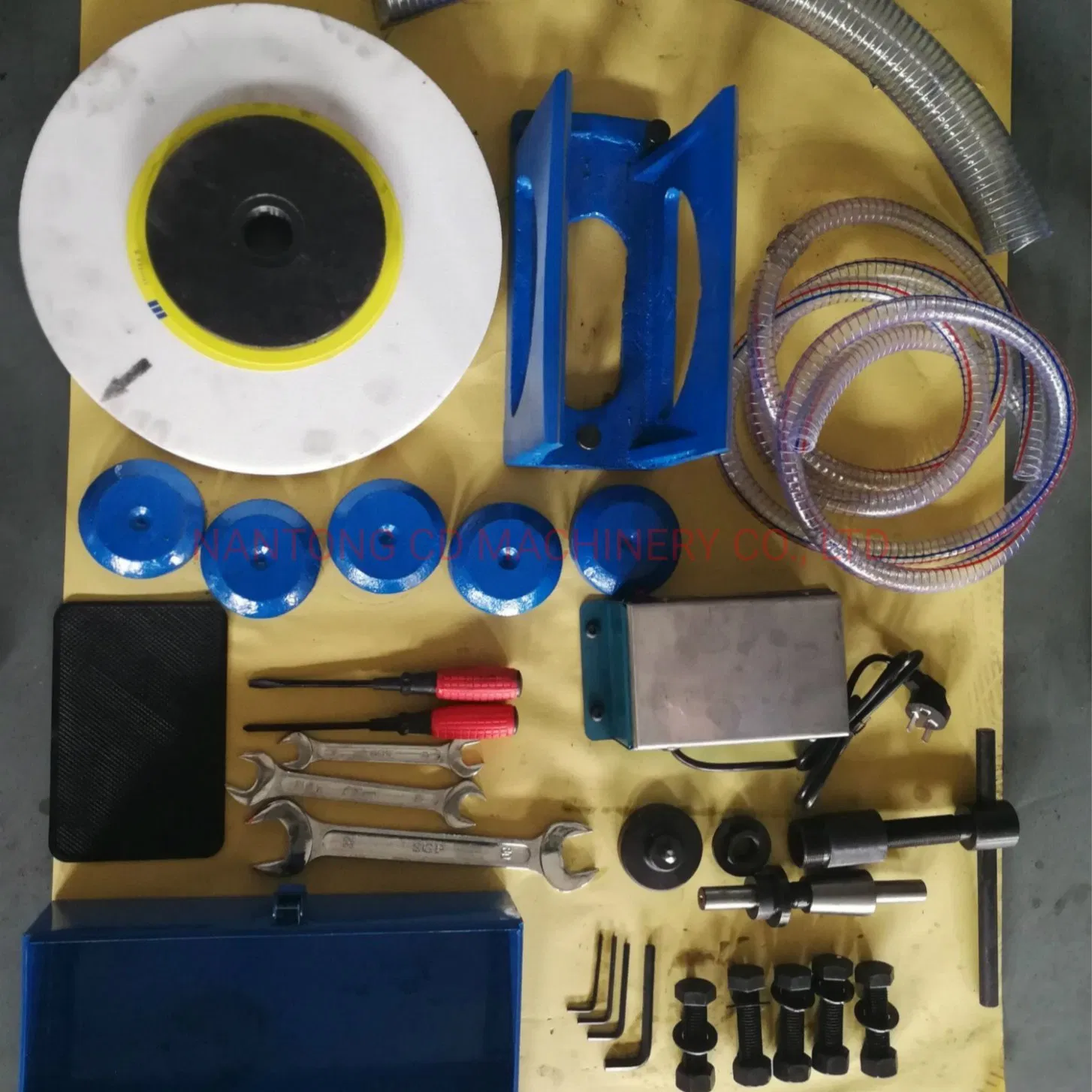

3. Standard Accessories
| 1 | Grinding wheel | 2 | Wheel flange |
| 3 | Wheel balancing base | 4 | Wheel balancing arbor |
| 5 | Extractor | 6 | Diamond dresser |
| 7 | Leveling pad | 8 | Anchor bolt |
| 9 | Tool box with tools | 10 | Permanent magnetic chuck |
| 11 | Cooling system | 12 | Manual book |
4. Feature
Table ways use hardened steel linear rails with precision balls for smooth and effortless hand feed. These reliable machines are low maintenance and easy to operate.
5. Company & Factory
Nantong CD Machinery Co., Ltd. is located in the beautiful city of Nantong, about 100 kilometers away from Shanghai.Our main products are : CNC grinding Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machine ,Drilling Machine ,Milling Machine and others metal cutting machine tools .All the products above have passed CE ,ISO certificates .Our company formed a good win-win relationship with domestic and foreign sales agents.Our company not only has formed a mature sales network in China, but also signed sales agency contracts with copanies from more than 30 foreign countries, and our machines has been exporting to Europe, Asia, Africa, South America, North America, Australia and other zones ,and have been trusted and praised by vast number of users. Our company focuses on strict and effective management,system, strict audit machines' quality ,try not to let out a detail, and make the machines more refined and finer .Service is our eternal theme of the pursuit.Our company can also procide OEM and ODM service .Is always adhering to the "QUALITY IS THE FIRST" purposes, to provide better quality machines ,more efficient and thoughtful after-sale service to customers . With your support, we will make great progress. Let's join hands and create a better future!
Welcome to visit us!
6. Dellivery Picture
7. FAQ
Q: Are you trading company or manufacture?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 10~20 days if the goods are in stock.Or it is 30~60 days if the goods aer not in stock,according to your quantity.
Q: Do you provide samples?is it free or extra?
A: Yes,we could offer the sample,but need extra cost.
Q: What is your terms or payment?
A: 30% T/T in advance,balance before shippment.
