Product Description

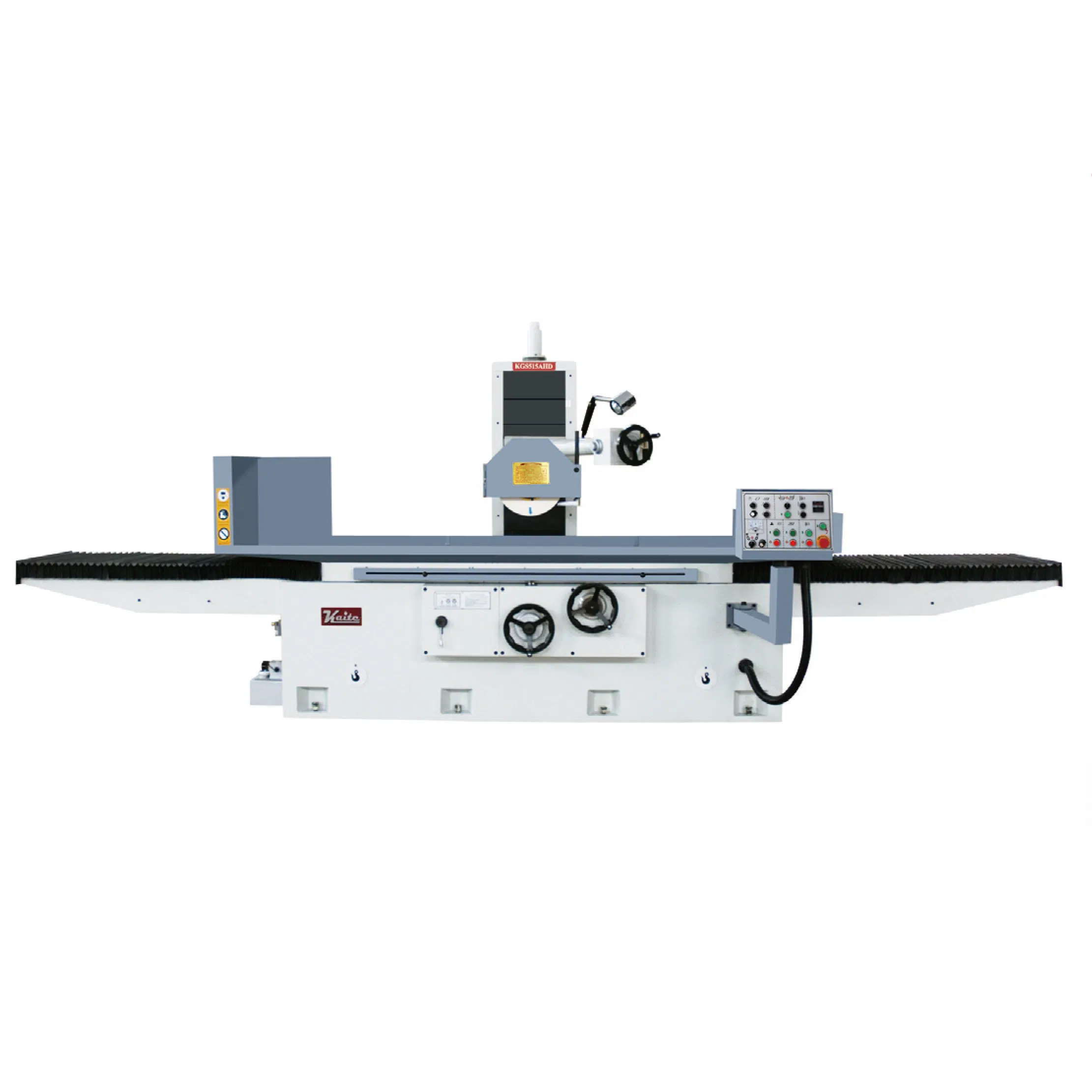

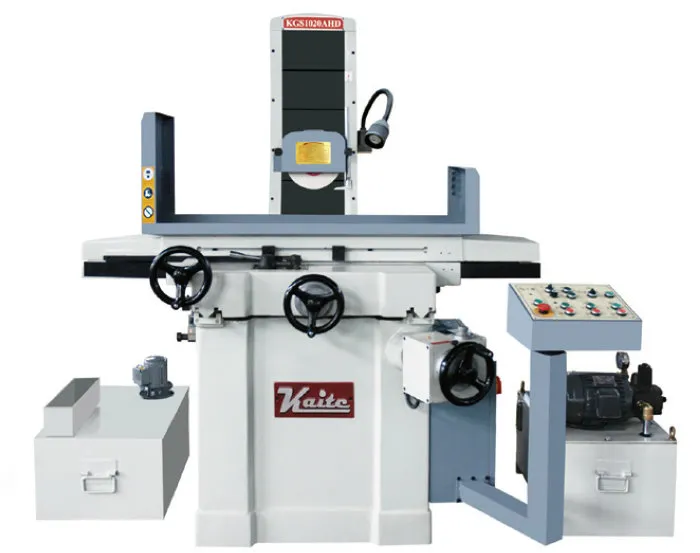

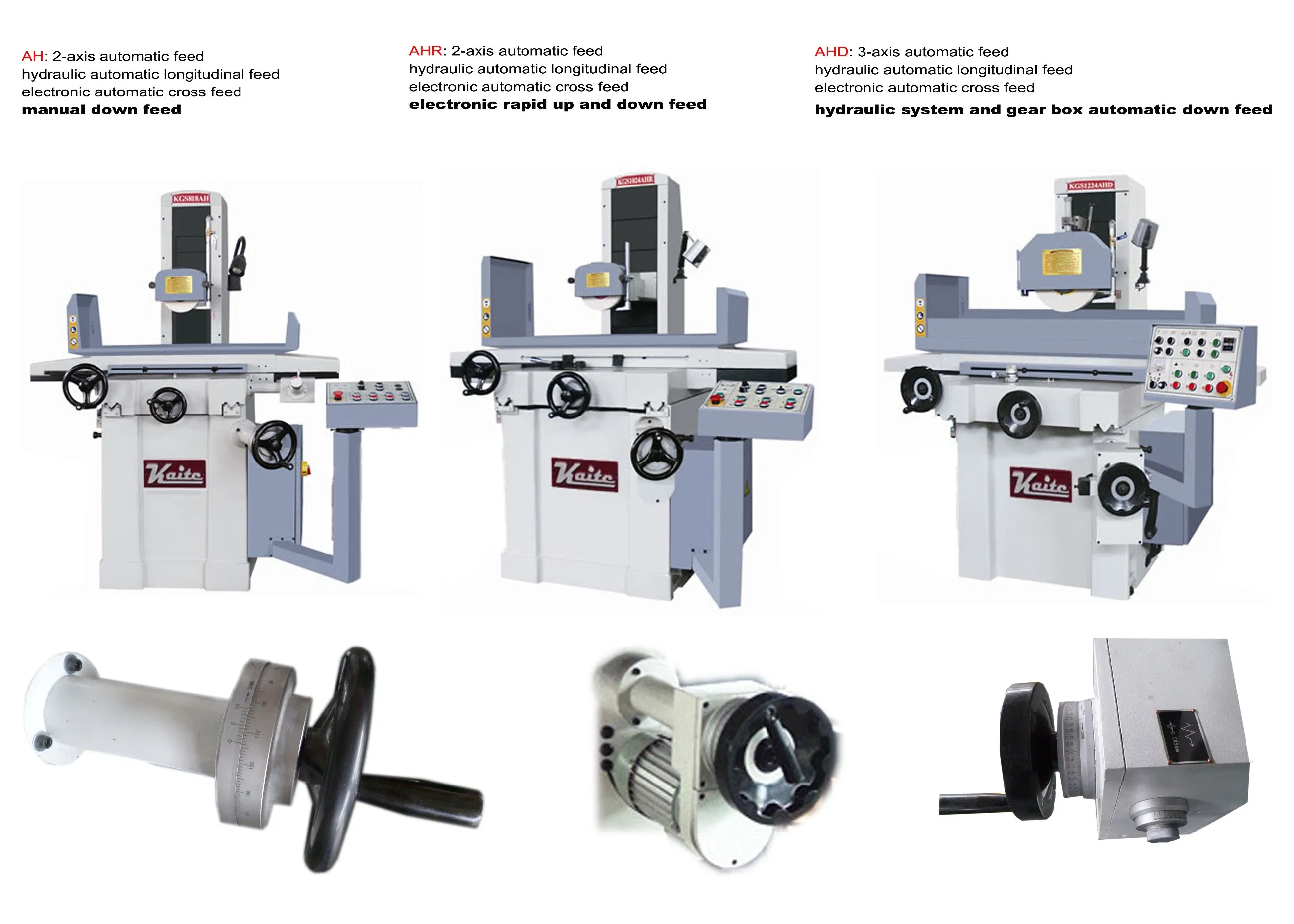

1. Picture
AHD: 3-axis automatic feed
hydraulic automatic longitudinal feed
electronic automatic cross feed
incremental auto down feed (use hydraulic system and gear box)
2. Parameters
3. Main Configuration of Grinding Machine
1. Spindle motor: ABB brand.
2. Spindle bearing: NSK brand P4 grade precision ball bearing which from Japan.
3. Main electrical components: SIEMENS brand.
4. Main hydraulic components: brand from TAIWAN.
4. Standard Accessories
5. Optional Accessories
6. Feature
1. Well designed cast iron structure provides excellent dampening
2. Flange mount spindle cartridge for superior side grinding rigidity
3. Grinding spindle features low-maintenance preloaded high precision angular ball
bearings(NSK P4 grade)
4. "V" and flat type guide way which precision hand scrapped turcite saddle ways for smooth and long lasting performance
5. Table guideways are hardened, ground and counter-laminated with PTFE(TEFLON) to ensure high wear-resistance
6. Centralized automatic lubrication system ,supplies oil to guide-ways and lead-screws as the machine operates. This system ensures all the critical components are lubricated with the right amount of oil at all times
7. Separate hydraulic tank prevents heat and vibrations from being transferred to the machine
8. Electric components and functional modules are well arranged and packed in the electric cabinet, making maintenance and trouble-shooting easily accessible
9. Safety 24V control circuit power
7. Company & Factory
Nantong Kaite Machine Tool Co., Ltd.
A Sino-US joint venture machine tool company with KENT INDUSTRIAL (USA) INC.
KAITE specializes in manufacturing precision surface grinding and milling machine since 1999.
KAITE supply the USA quality machines and with China price.
KAITE is located in Nantong city, Jiangsu Province where near Shanghai city and welcome to visit us!
8. Delivery Picture
AHD: 3-axis automatic feed
hydraulic automatic longitudinal feed
electronic automatic cross feed
incremental auto down feed (use hydraulic system and gear box)
2. Parameters
| Parameters | Unit | KGS818AHD | |
| Working Surface of Table | mm | 200x460(8"×18") | |
| Max.Table Travel | mm | 510 | |
| Max.Cross Travel | mm | 225 | |
| Distance Between Table Surface and Spindle Center | mm | 520 | |
| Max.Table Load | kgs | 150 | |
| T-Solt (Number×Width) | mm | 1×14 | |
| Table Speed | m/min | 0~25 | |
| Cross feed Handwheel | 1gard | mm | 0.02 |
| 1 rev | 5 | ||
| Automatic Cross feed of Saddle | mm | 0.5~12 | |
| Power Cross Feed | 50HZ | mm/min | 780 |
| 60HZ | 950 | ||
| Grinding Wheel Dimensions | mm | 200×25×32/31.75 | |
| Spindle Speed | 50HZ | rpm | 2850 |
| 60HZ | 3420 | ||
| Vertical Handwheel | 1gard | mm | 0.01 |
| 1 rev | 2 | ||
| Automatic Down Feed Rate | mm | 0.002~0.2 | |
| Power Head Increment | mm/min | - | |
| Spindle Motor | kw | 1.5 | |
| Vertical Motor | w | - | |
| Hydraulic Motor | kw | 1.5 | |
| Dust Collection Motor | w | 550 | |
| Coolant Motor | w | 90 | |
| Crossfeed Motor | w | 60 | |
| Floor Space | mm | 2500×1900 | |
| Packing Dimensions | mm | 1920×1458×2125 | |
| Net Weight | kgs | 1320 | |
| Gross Weight | kgs | 1520 | |
3. Main Configuration of Grinding Machine
1. Spindle motor: ABB brand.
2. Spindle bearing: NSK brand P4 grade precision ball bearing which from Japan.
3. Main electrical components: SIEMENS brand.
4. Main hydraulic components: brand from TAIWAN.

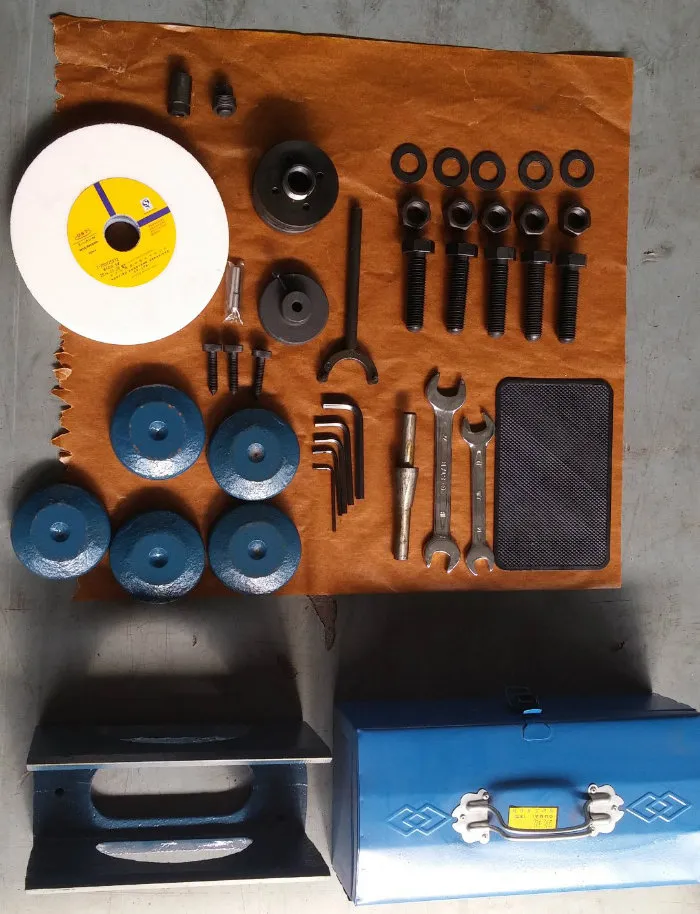

4. Standard Accessories
| 1 | Grinding wheel | 2 | Wheel flange |
| 3 | Wheel balancing base | 4 | Wheel balancing arbor |
| 5 | Extractor | 6 | Diamond dresser |
| 7 | Leveling pad | 8 | Anchor bolt |
| 9 | Tool box with tools | 10 | Electric magnetic chuck |
| 11 | Cooling system | 12 | Working light |

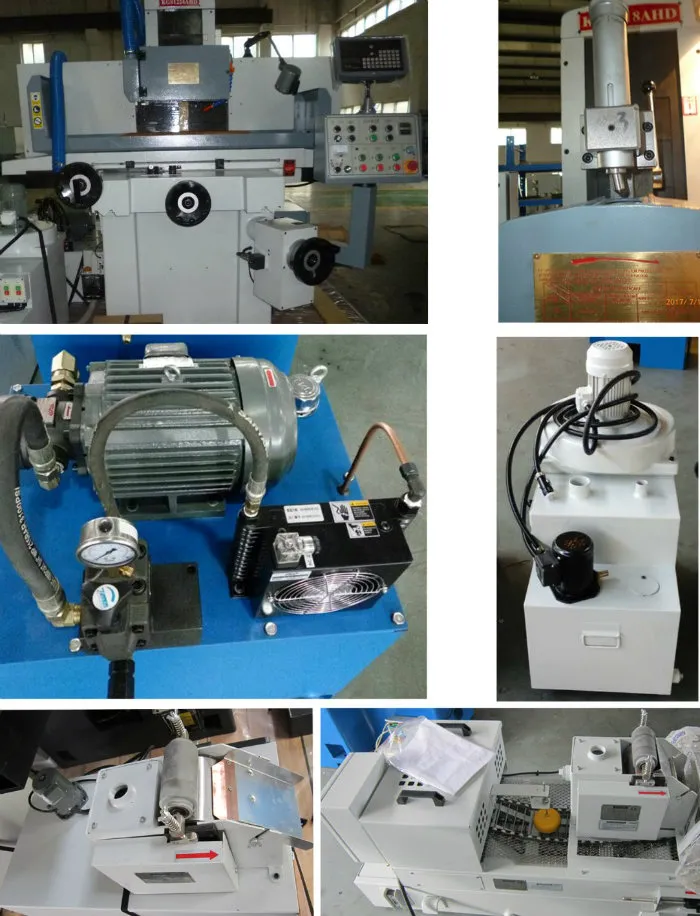

5. Optional Accessories
| Serial No. | Name of Article |
| 1 | rear splash guard |
| 2 | DRO (digital read out) |
| 3 | overhead parallel dresser |
| 4 | hydraulic tank oil cooling |
| 5 | cooling & suction device |
| 6 | magnetic separator |
| 7 | cooling magnetic paper filter |
| Note | 6 and 7, select one just OK. |
6. Feature
1. Well designed cast iron structure provides excellent dampening
2. Flange mount spindle cartridge for superior side grinding rigidity
3. Grinding spindle features low-maintenance preloaded high precision angular ball
bearings(NSK P4 grade)
4. "V" and flat type guide way which precision hand scrapped turcite saddle ways for smooth and long lasting performance
5. Table guideways are hardened, ground and counter-laminated with PTFE(TEFLON) to ensure high wear-resistance
6. Centralized automatic lubrication system ,supplies oil to guide-ways and lead-screws as the machine operates. This system ensures all the critical components are lubricated with the right amount of oil at all times
7. Separate hydraulic tank prevents heat and vibrations from being transferred to the machine
8. Electric components and functional modules are well arranged and packed in the electric cabinet, making maintenance and trouble-shooting easily accessible
9. Safety 24V control circuit power

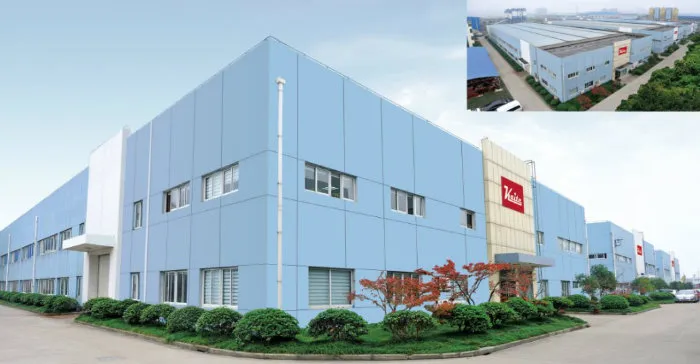

7. Company & Factory
Nantong Kaite Machine Tool Co., Ltd.
A Sino-US joint venture machine tool company with KENT INDUSTRIAL (USA) INC.
KAITE specializes in manufacturing precision surface grinding and milling machine since 1999.
KAITE supply the USA quality machines and with China price.
KAITE is located in Nantong city, Jiangsu Province where near Shanghai city and welcome to visit us!
8. Delivery Picture
