Product Description

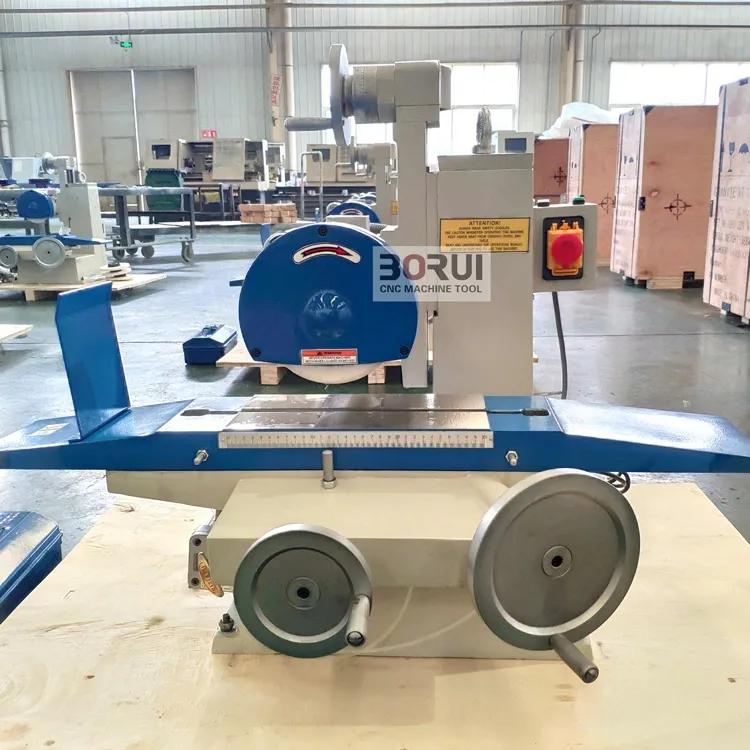

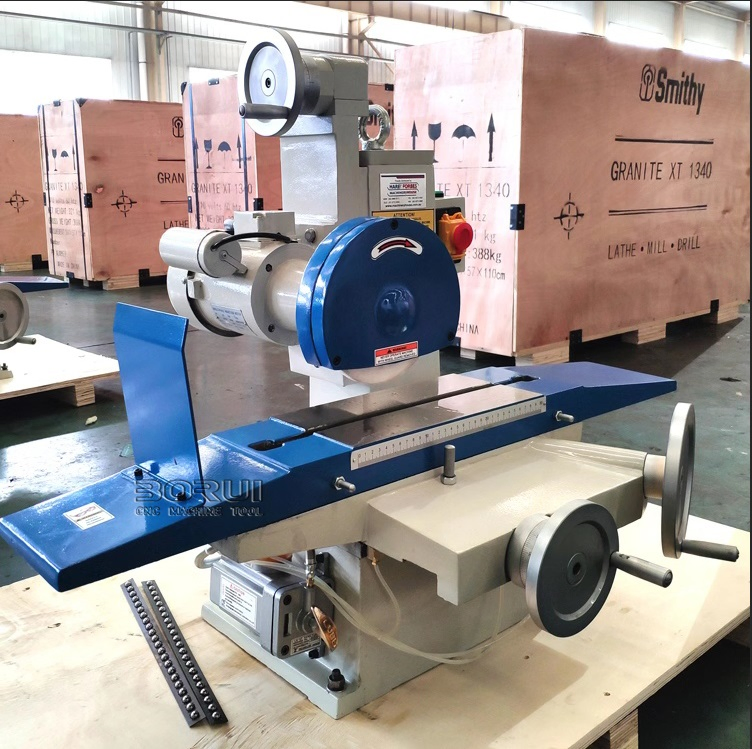

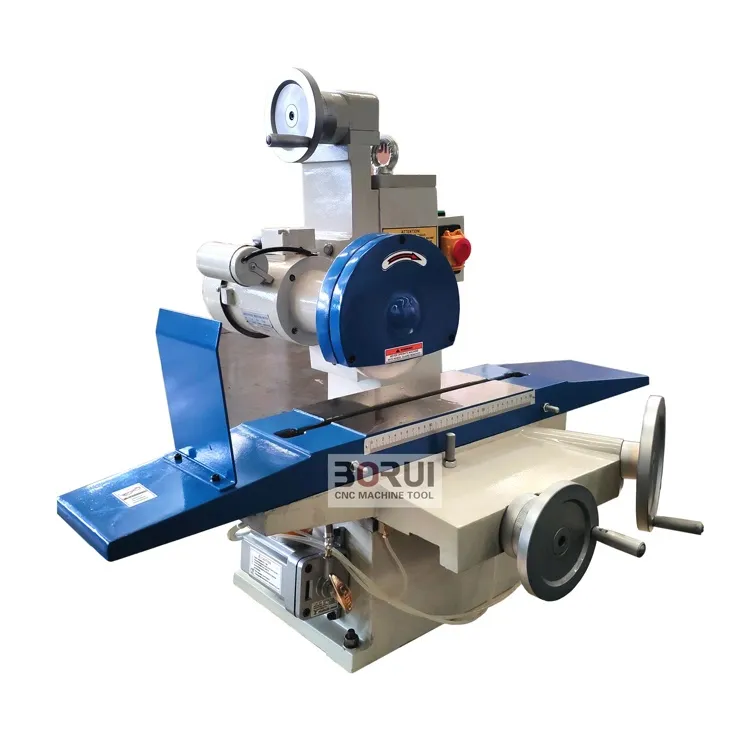

MJ7115 cheap mini manual surface grinding machine

Tooling is designed to grind various horizontal and vertical surfaces of the workpieces and end faces of the grinding wheel. It can also grind various contoured workpieces with shaped wheel or craftsmanship apparatus

Mj7115 Cheap Mini Manual Surface Grinding Machine

Product main technical specification:

SPECIFICATIONS	Metric	Inch
Longitudinal stroke	340mm	14
Lateral stroke	170mm	7
Grinding height	210mm	8

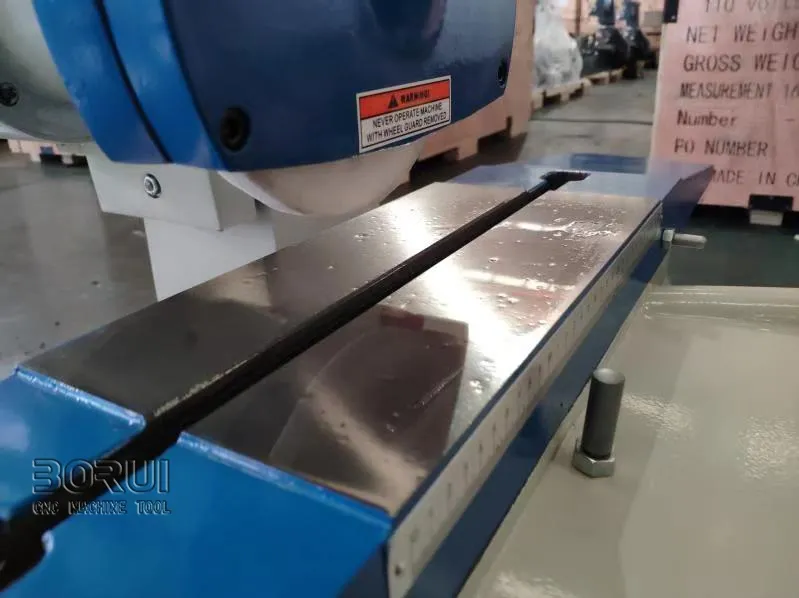

Area of table	152mm×304mm	6×12
Width of T-slot	1-12mm	1-0.47

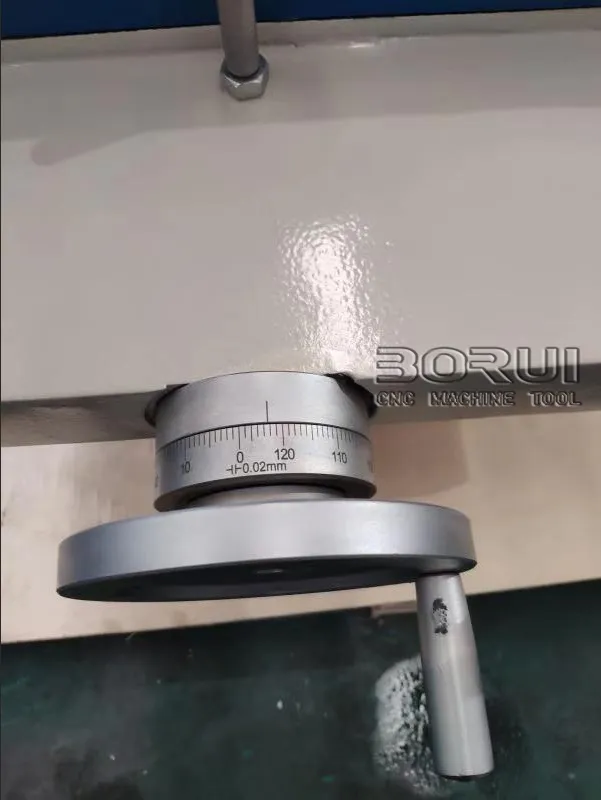

Cross feed per graduation	0.02mm	0.001
Cross feed per round	2.54mm	0.1

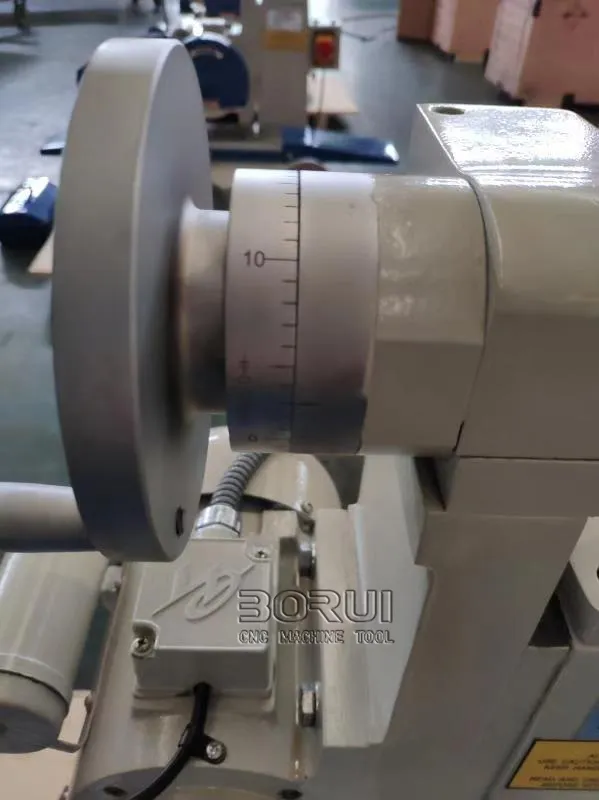

Vertical feeds per graduation	0.025mm	0.001
Vertical feed per round	1.25mm	0.05
Roughness	1.6μm
Grinding wheel	180mm×32mm×13mm

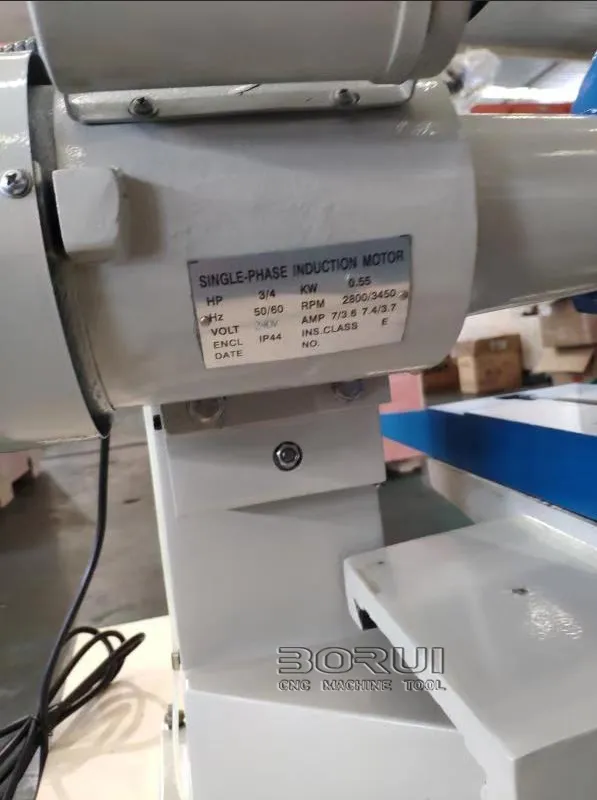

Power of motor	0.55kw
N. W. / G.W.of machine	210/258kg
N. W. / G.W.of stand	30/54kg
Overall dimension of machineL×W×H	930×780×730mm
Case dimension of machineL×W×H	930×780×1480mm
Case dimension of standL×W×H	720×550×550mm

Standard Accessories:

Grinding wheel, grinding wheel adaptor, grinding wheel dresser, pad irons, tools, etc.

Optional Accessories:

Stand, permanent magnetic chuck, precision flat vise.Ball leadscrew model

The Main features:

1)Integrated grinding head of high quality, high rigidity and accuracy.

2)Small size, light weight, easy operation & maintenance.

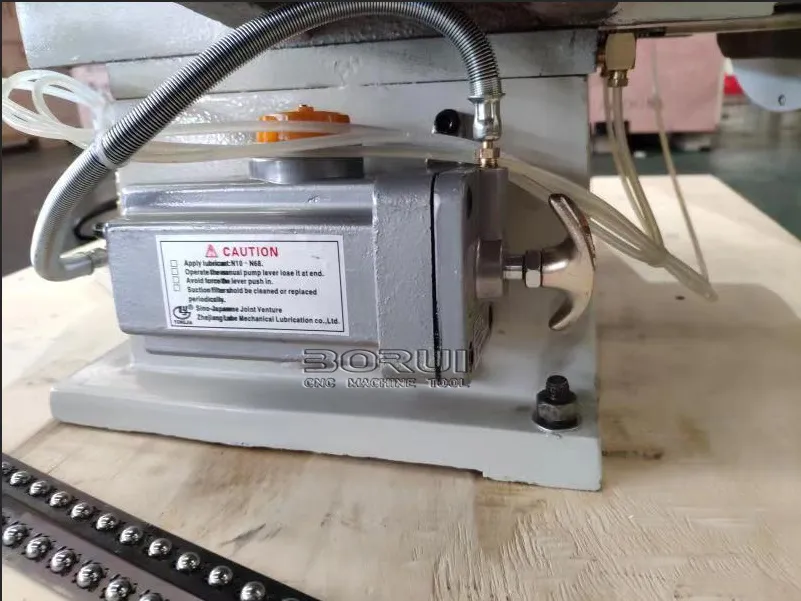

3)Centralized lubrication for oil pump.

Mj7115 Cheap Mini Manual Surface Grinding Machine

Packing shipping

For machine: usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Free fumigation plywood packaging steel base
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have
