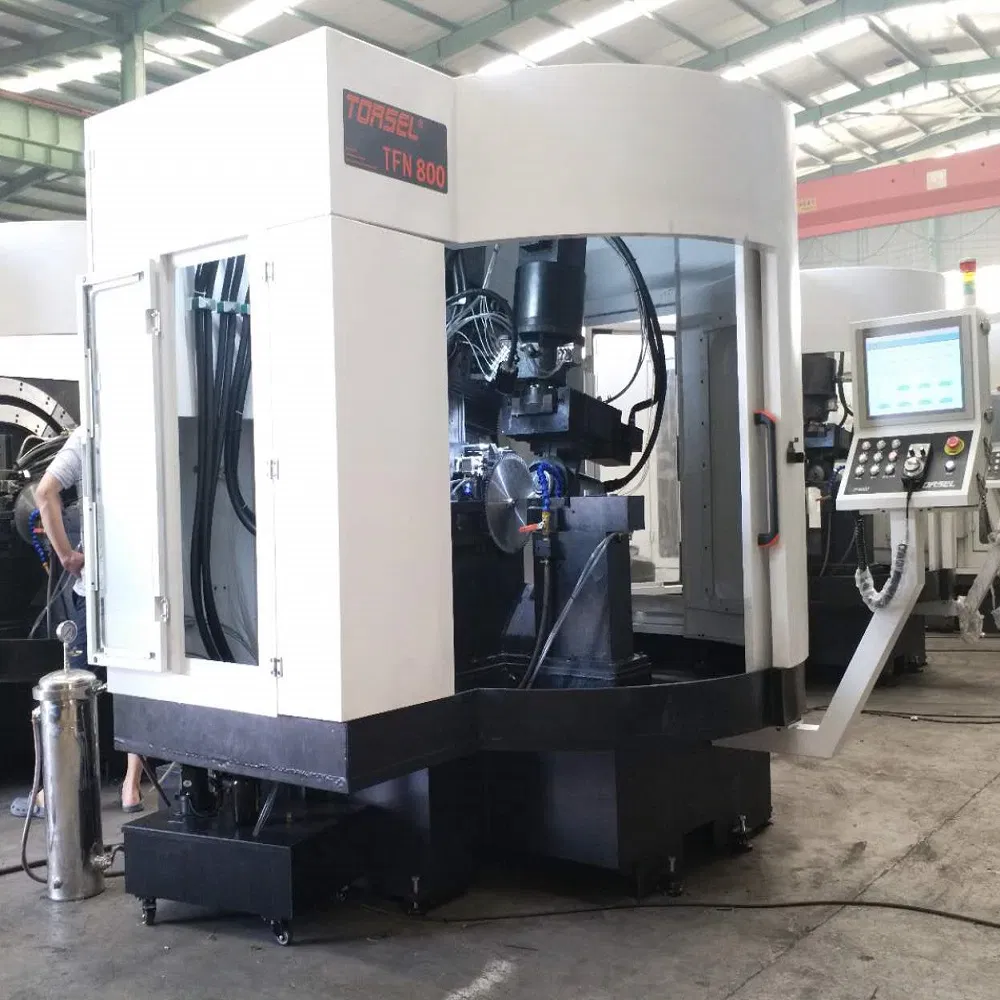

Multi Application Top/Face/Groove/Chip Breaker Slot Automatic Circular Cold Saw Sharpening Machine
TF800 Features and AdvantagesAble to grind cermet and tct saw blade.(mainly for cermet tip grinding). Saw blade diameter is up to 810mm. It is multi-functional, able to grind tooth top/negative face chamfer/concave/chip breaker slot. TF800 and NSB800 (side) form a production line.Features: 1. Multif......
Send Inquiry
Product Description
TF800 Features and Advantages
Able to grind cermet and tct saw blade.(mainly for cermet tip grinding). Saw blade diameter is up to 810mm. It is multi-functional, able to grind tooth top/negative face chamfer/concave/chip breaker slot. TF800 and NSB800 (side) form a production line.
Features:

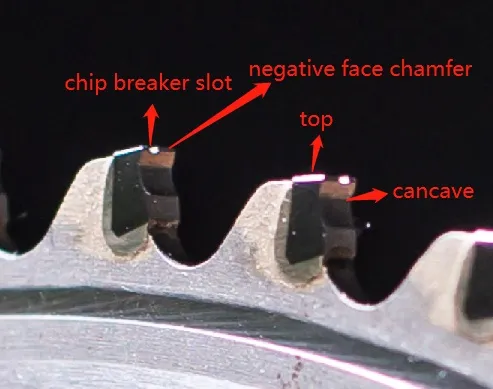

1. Multifuctional --sharpening tooth top/negative face chamfer/concave/chip breaker slot
2. CNC servo motor for precise positioning
3. Built-in program for ease of use.
4. User friendly interface panel with touch screen
5. tooth skipping, automatic compensation function available
6. special treated cast iron base and imported parts.
7. Ready for both water and oil coolant
Adavantages:
1. Easy operation: CNC with friendly interface panel, various tooth shapes available, all parameters can be set directly and stored automatically. Portable electrical handwheel for elaborate actions
2. High accuracy: <0.015mm or even better. this machine is with the highest precision
3. Good stability: use specially treated cast iron base, no deformation, low vibration,long term use.

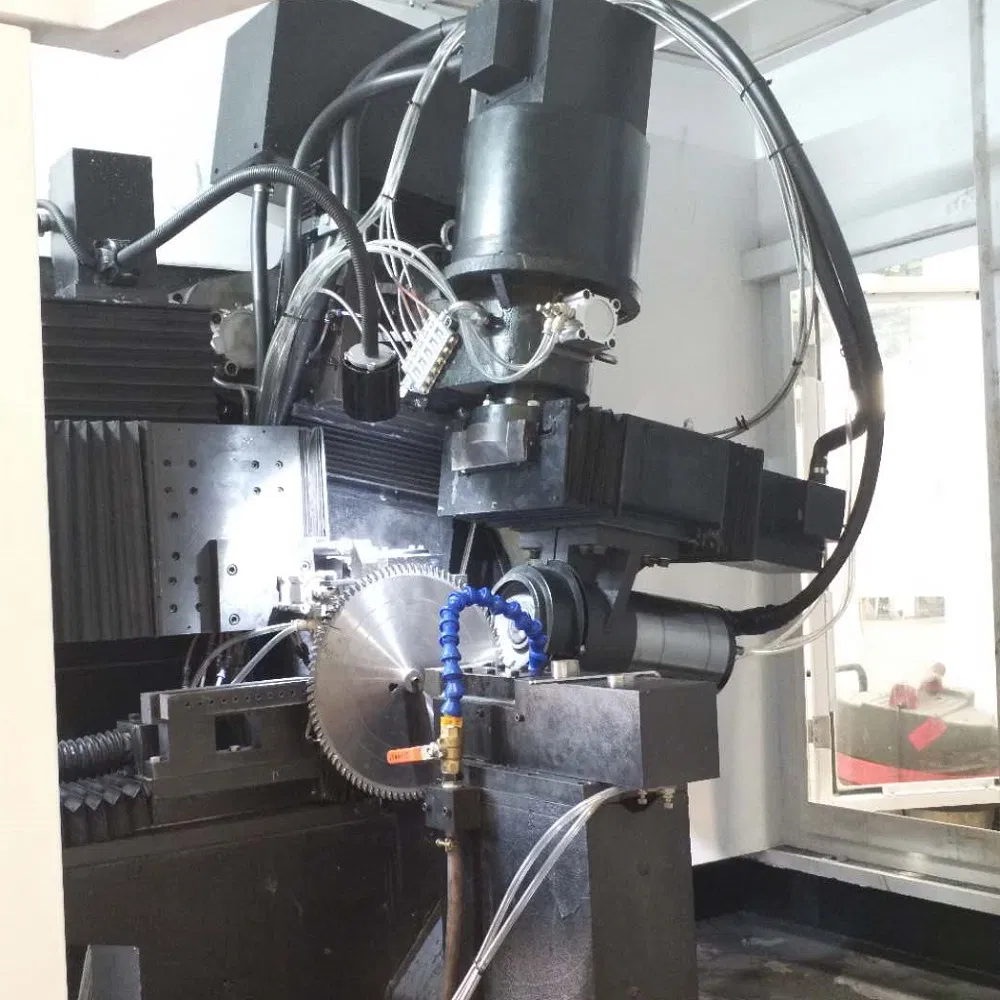

3. Machine Details

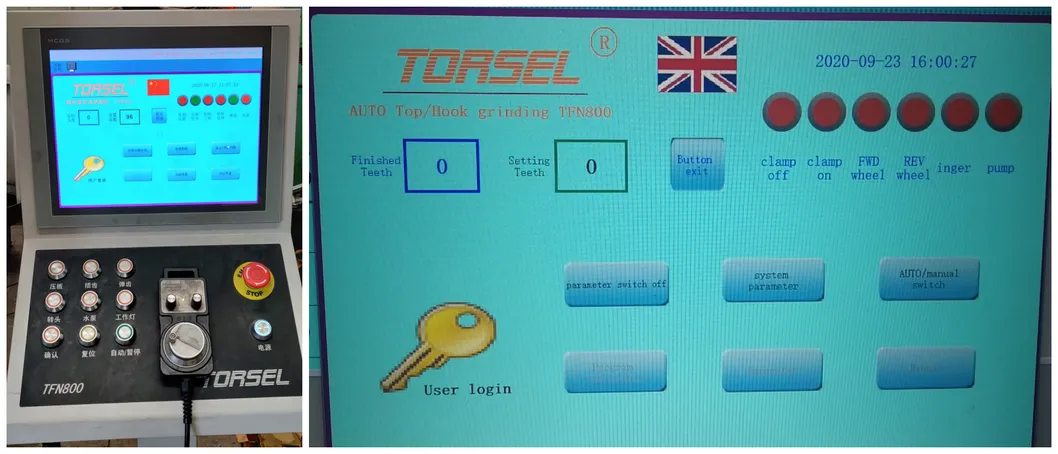

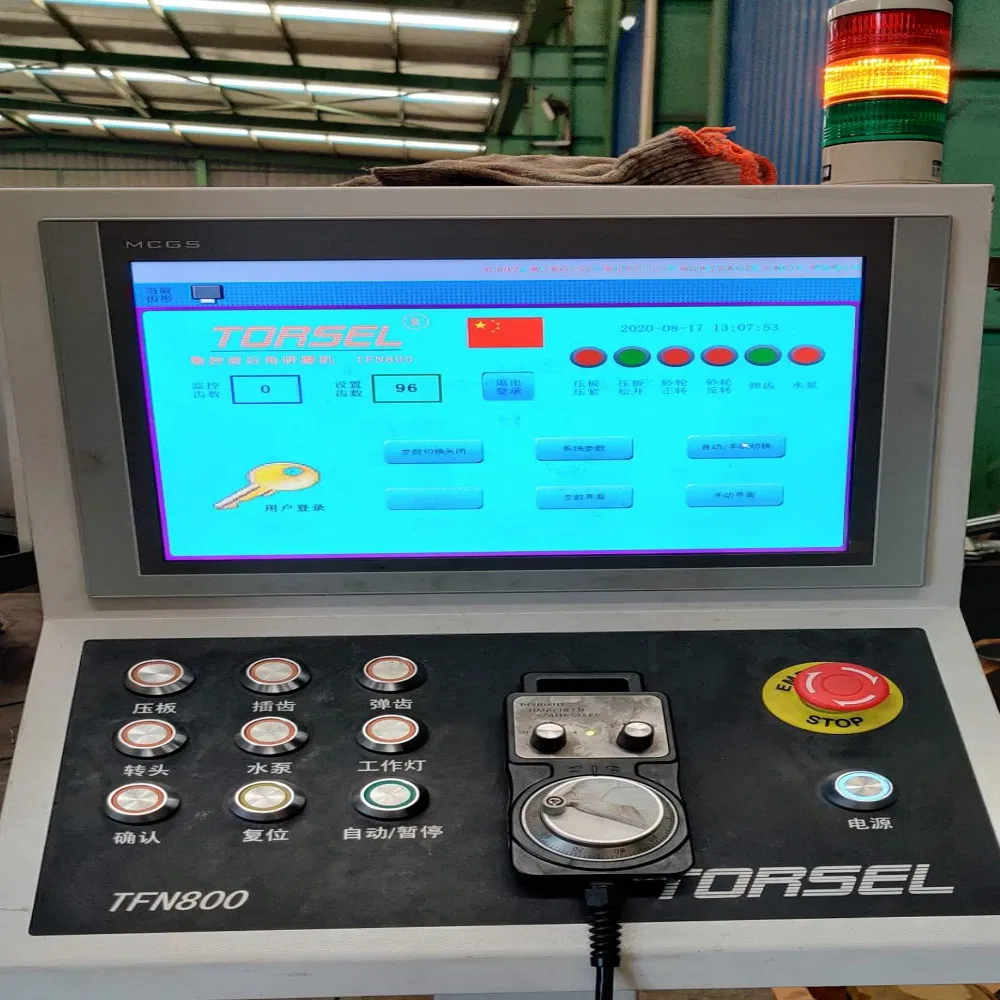

Interface panel with touch screen

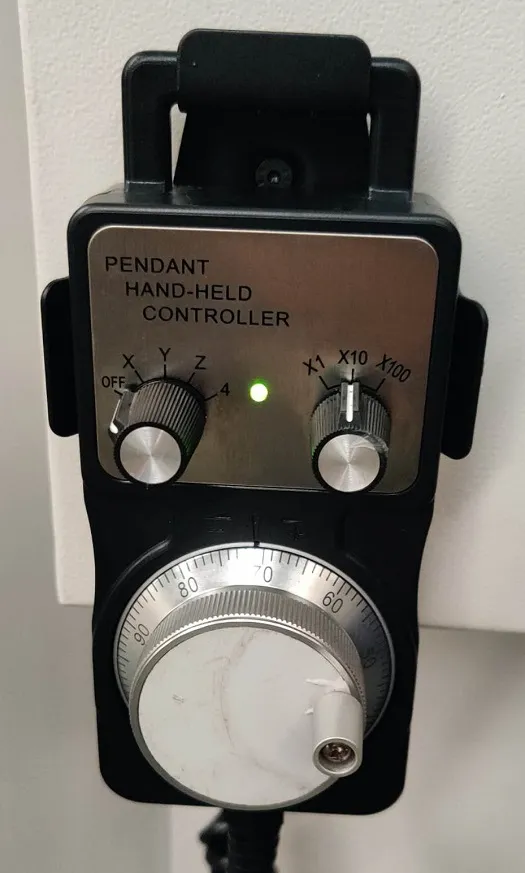

Portable electrial handwheel

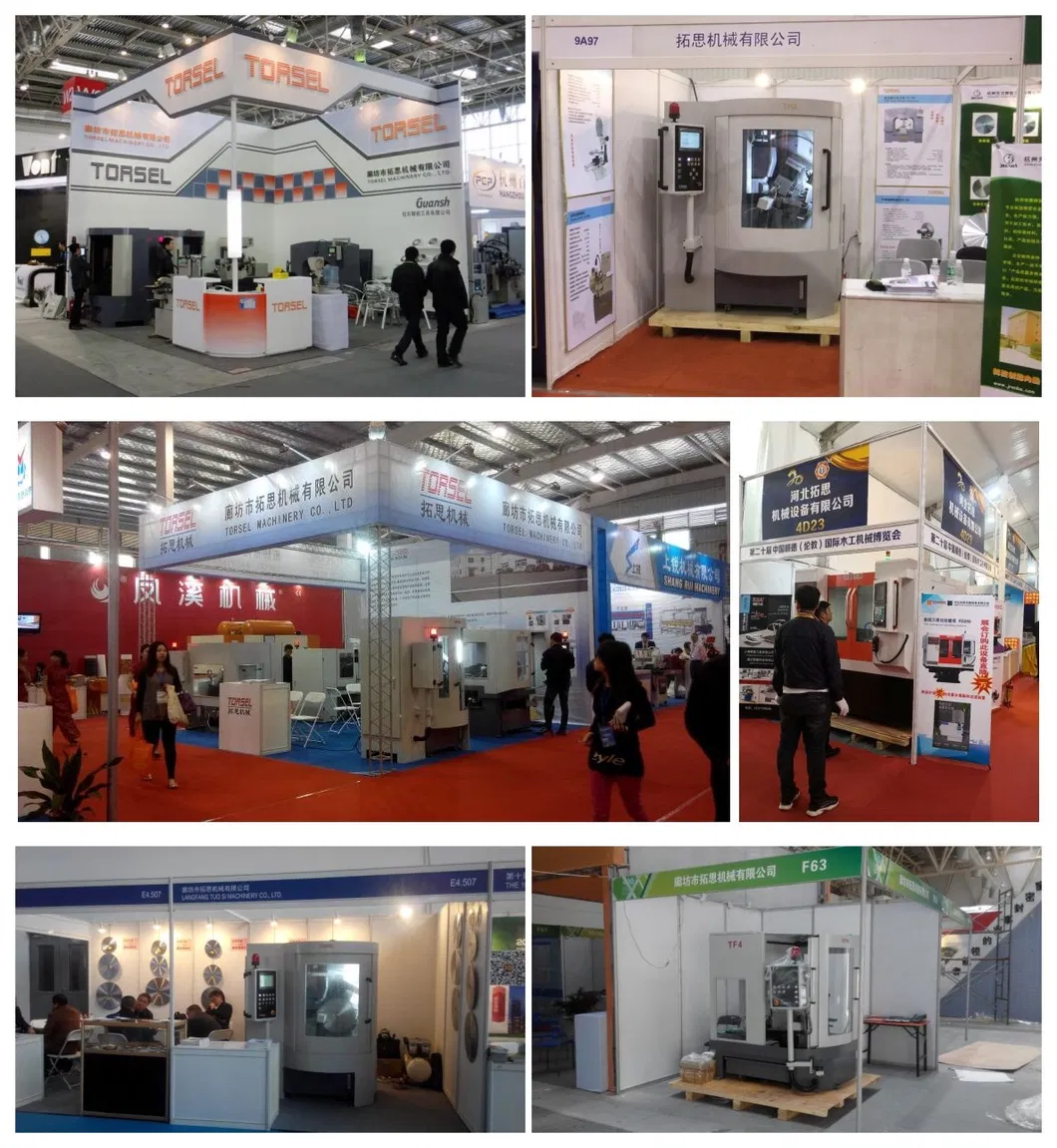

Exhibition show
FAQ
1. What products do we have?
Four categories saw blade sharpening machine:
1. economic type: normal accuracy, normal saw blade diameters, lower price, suitable for tct blade.
2. accurate type: high accuracy, large diameter saw blade can be processed, suitable for tct blade.
3. sharpening machine with robot: robot auto picking and putting saw blade, suitable for mass production of tct blade.
4. cold saw blade sharpening machine: highest accuracy, suitable for cermet tipped saw blade.
Except saw blades sharpening machine, we also supply Measuring Projector, Side Runout Inspection Machine, Radial Runout Inspection Machine, Automatic Belt Polishing Machine, CNC Router Bit Grinding Machine, Automatic Tooth Seat Grinding Machine,etc.
2. What are the advantages of our circular saw blade sharpening machine?
1) long service life: using quality cast iron base treated by high temperature tempering and vibration aging. no deformation and low vibration.
2) easy operation: CNC with friendly interface panel, all parameters can be set directly and stored directly. A machine can store up to 100 sets of data.
3) high efficiency: adjustable grinding speed, robot auto load, one person can operate several machines at the same time.
4) high accuracy: use quality machine components to realize high accuracy.
5) competitive price: price is very competitive for such good quality.
Multi-Function CNC Saw Blade Sharpening Machine for Cermet and Tungsten Carbide Tipped Saw Blade
Features:
1. Multifuctional --sharpening tooth top/negative face chamfer/concave/chip breaker slot
2. CNC servo motor for precise positioning
3. Built-in program for ease of use.
4. User friendly interface panel with touch screen
5. tooth skipping, automatic compensation function available
6. special treated cast iron base and imported parts.
7. Ready for both water and oil coolant
Adavantages:
1. Easy operation: CNC with friendly interface panel, various tooth shapes available, all parameters can be set directly and stored automatically. Portable electrical handwheel for elaborate actions
2. High accuracy: <0.015mm or even better. this machine is with the highest precision
3. Good stability: use specially treated cast iron base, no deformation, low vibration,long term use.
4. High efficiency: 6~30s/tip adjustable grinding speed.

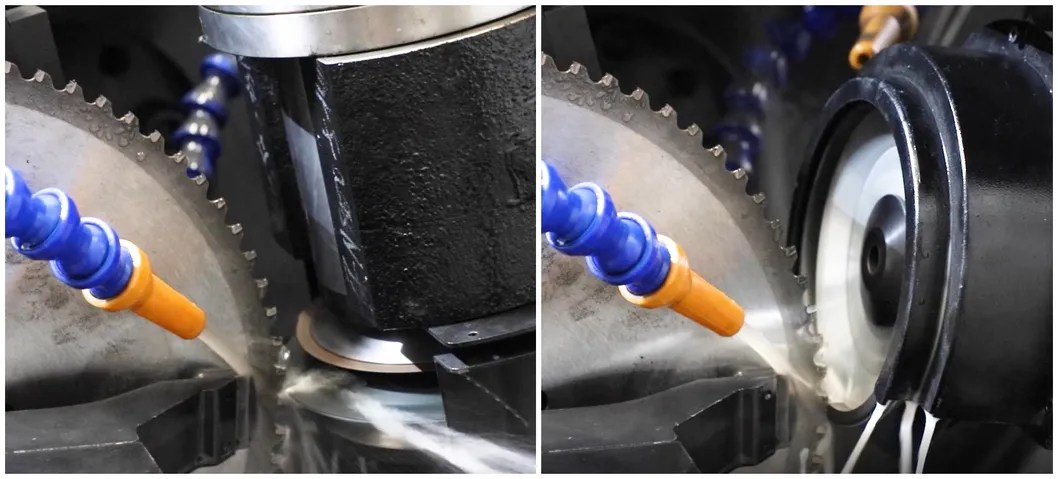

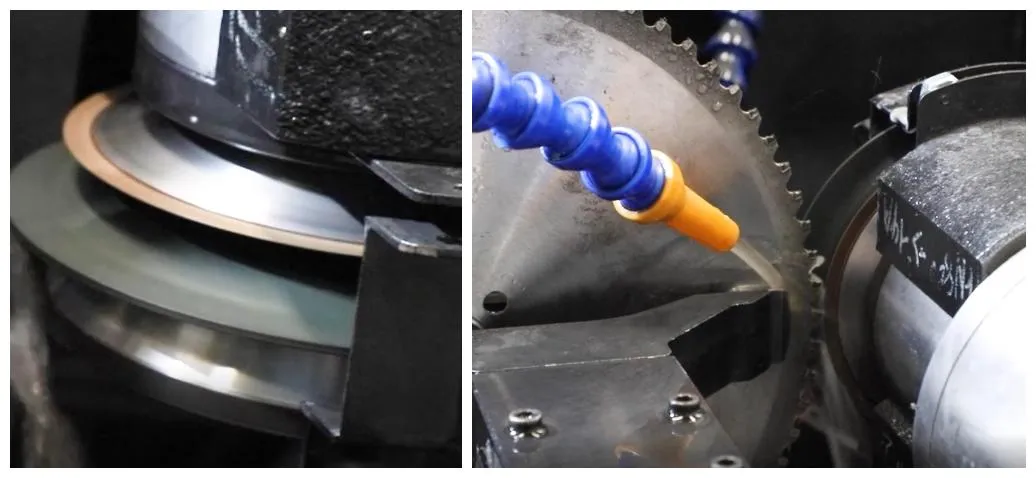

Three grinding wheels in one set
2. Machine Parameters
| Saw diameter | 120~810mm |
| Hook angle | 25°~ -30° |
| Top angle | 8°~ 30° |
| Top chamfer angle | 45°~ -45° |
| Face chamfer angle | 30°~ -30° |
| Bore diameter | 12~120mm |
| Pitch | 2-80mm |
| Top wheel size | Φ125mm*Φ32mm*16mm |
| Notch wheel size | Φ125mm*Φ32mm*9mm |
| Face wheel size | Φ150mm*Φ32mm*14mm |
| Wheel speed | 2500~3500RPM |
| Grinding speed | 6~30s/tip |
| Power | 5KW |
| Dimension | 2500*1800*2200mm |
| Weight | 3680kg |

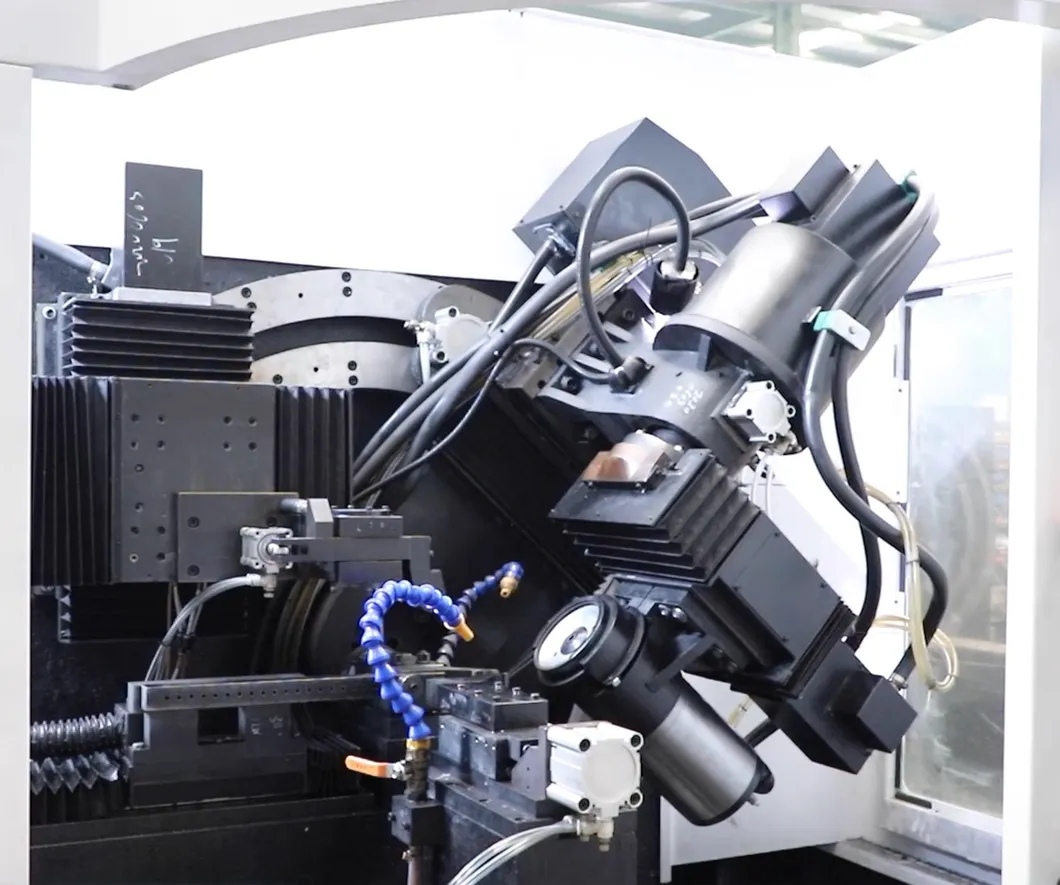

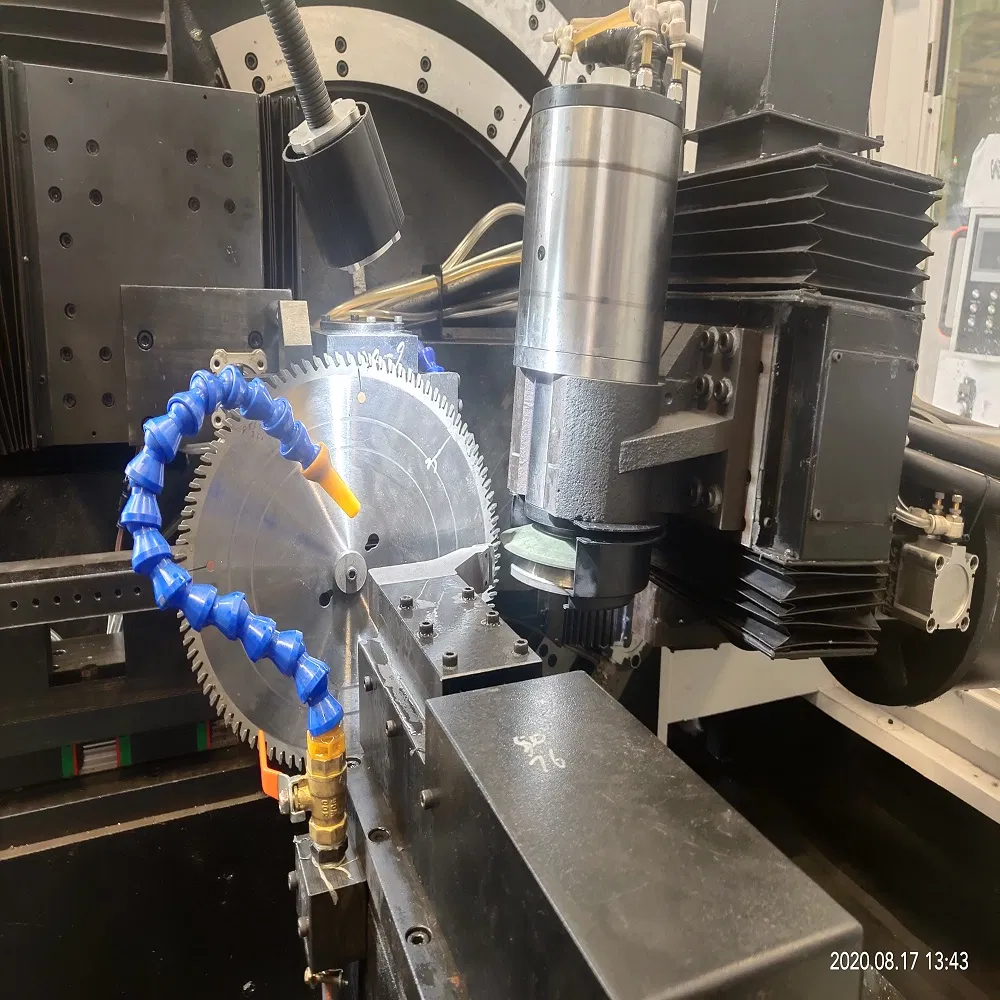

3. Machine Details
Interface panel with touch screen
Portable electrial handwheel
Hebei Tuosi Mechanical Equipment Co.ltd is a professional saw blade manufacturer, specializing in producing circular&band saw blade tooth sharpening machine, circular sawing machine and other machine related to saw blade production. We have dozens of machines for you to choose from, including precision and economy models, to meet your different needs for quality and price. Just let us know your needs, tailored solution is available.
Exhibition show
FAQ
1. What products do we have?
Four categories saw blade sharpening machine:
1. economic type: normal accuracy, normal saw blade diameters, lower price, suitable for tct blade.
2. accurate type: high accuracy, large diameter saw blade can be processed, suitable for tct blade.
3. sharpening machine with robot: robot auto picking and putting saw blade, suitable for mass production of tct blade.
4. cold saw blade sharpening machine: highest accuracy, suitable for cermet tipped saw blade.
Except saw blades sharpening machine, we also supply Measuring Projector, Side Runout Inspection Machine, Radial Runout Inspection Machine, Automatic Belt Polishing Machine, CNC Router Bit Grinding Machine, Automatic Tooth Seat Grinding Machine,etc.
2. What are the advantages of our circular saw blade sharpening machine?
1) long service life: using quality cast iron base treated by high temperature tempering and vibration aging. no deformation and low vibration.
2) easy operation: CNC with friendly interface panel, all parameters can be set directly and stored directly. A machine can store up to 100 sets of data.
3) high efficiency: adjustable grinding speed, robot auto load, one person can operate several machines at the same time.
4) high accuracy: use quality machine components to realize high accuracy.
5) competitive price: price is very competitive for such good quality.
Multi-Function CNC Saw Blade Sharpening Machine for Cermet and Tungsten Carbide Tipped Saw Blade
