Universal Cylindrical Grinding Machine Electrical Knife Grinding M1432b /1000
Application and FeatureM1432B Universal Cylindrical Grinding machine is designed on the basis of M131W and M 1432A also manufactured by our works and featured by improvement from those two models after summing up their strong points.The machine is intended for cylindrical, internal and taper grind......
Send Inquiry
Product Description
Application and Feature
M1432B Universal Cylindrical Grinding machine is designed on the basis of M131W and M 1432A also manufactured by our works and featured by improvement from those two models after summing up their strong points.
The machine is intended for cylindrical, internal and taper grinding. It is specially suitable for workshops engaged in single-piece, small and medium batch production.
The workpiece, cylindrical and internal grinding wheels, hydraulic and coolant pumps are driven by their separate motors.
The table longitudinal traverse is actuated by hydraulic means at steplessly variable speed or operated by means of handwheel.
The wheelhead rapid approach and withdrawal and intermittent feed are effected hydraulically. The wheel feed can also be operated by hand.
Specification
Machine Photos
Factory Capabiltiy
M1432B Universal Cylindrical Grinding machine is designed on the basis of M131W and M 1432A also manufactured by our works and featured by improvement from those two models after summing up their strong points.
The machine is intended for cylindrical, internal and taper grinding. It is specially suitable for workshops engaged in single-piece, small and medium batch production.
The workpiece, cylindrical and internal grinding wheels, hydraulic and coolant pumps are driven by their separate motors.
The table longitudinal traverse is actuated by hydraulic means at steplessly variable speed or operated by means of handwheel.
The wheelhead rapid approach and withdrawal and intermittent feed are effected hydraulically. The wheel feed can also be operated by hand.
Specification
| Description | Unit | M1432B*1000 |
| Grinding Length(O.D/I.D) | mm | 1000/125 |
| Grinding dia.(O.D/I.D) | mm | φ8-φ320/φ30-φ100 |
| Center height | mm | 180 |
| Max.workpiece weight | kg | 150 |
| Worktable speed | m/min | 0.1-4 |
| Wheel peripheral velocity | m/s | 35 |
| Max.travel of table | mm | 1100 |
| Swivel range of worktable | ° | -3 - +7° |
| External wheel size | mm | φ400*50*φ203 |
| Spindle speed of headstock | r/min | 50HZ:25-220 |
| Workhead and tailstock center | morse | No.4 |
| Wheelhead displacement per div.of handwheel coarse/fine | mm | 0.01/0.0025 |
| Total motor power | KW | 9 |
| overall dimenstions(L*W*H) | mm | 3605*1810*1515 |
| Machine weight | kg | 3700 |

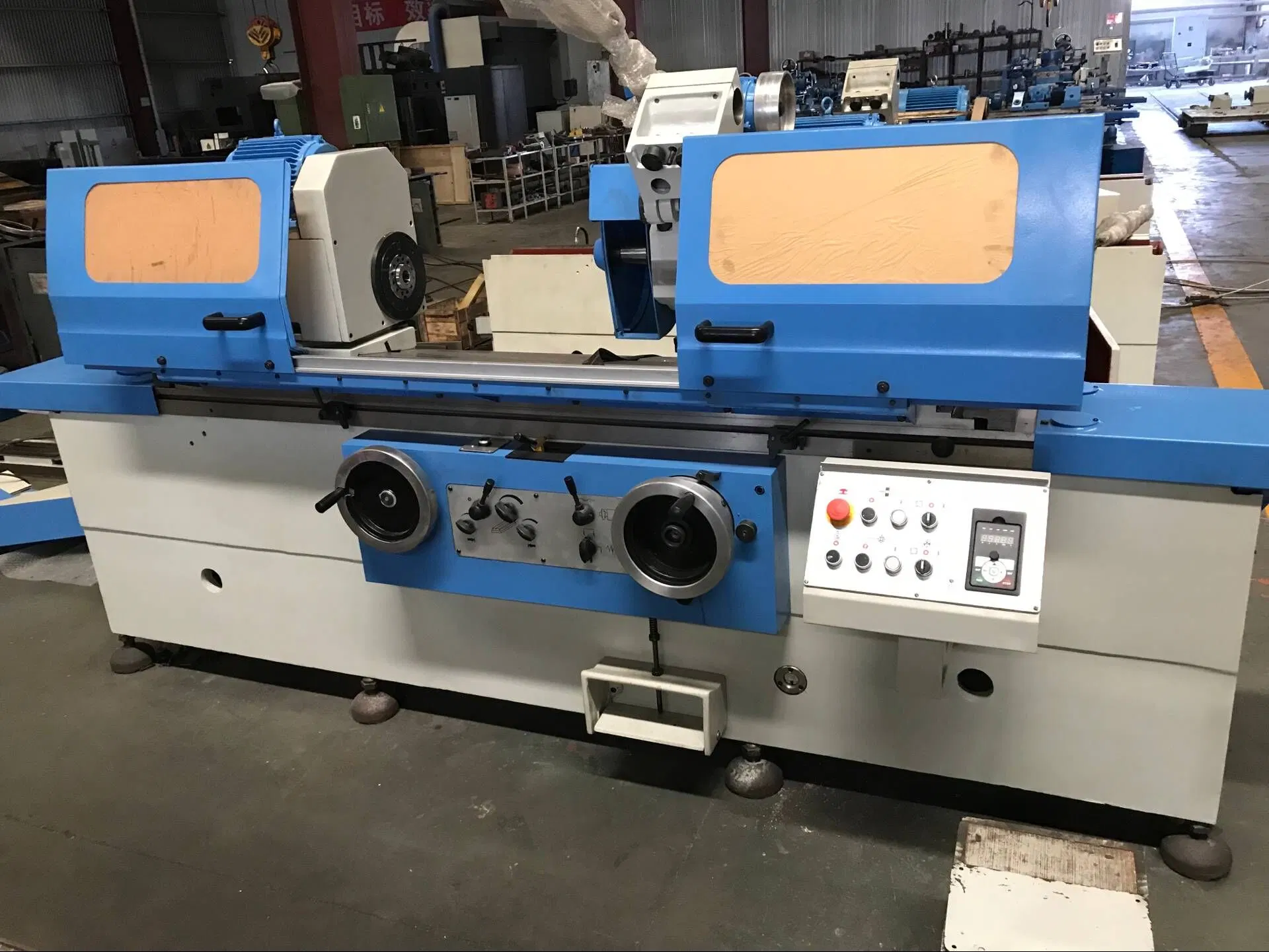

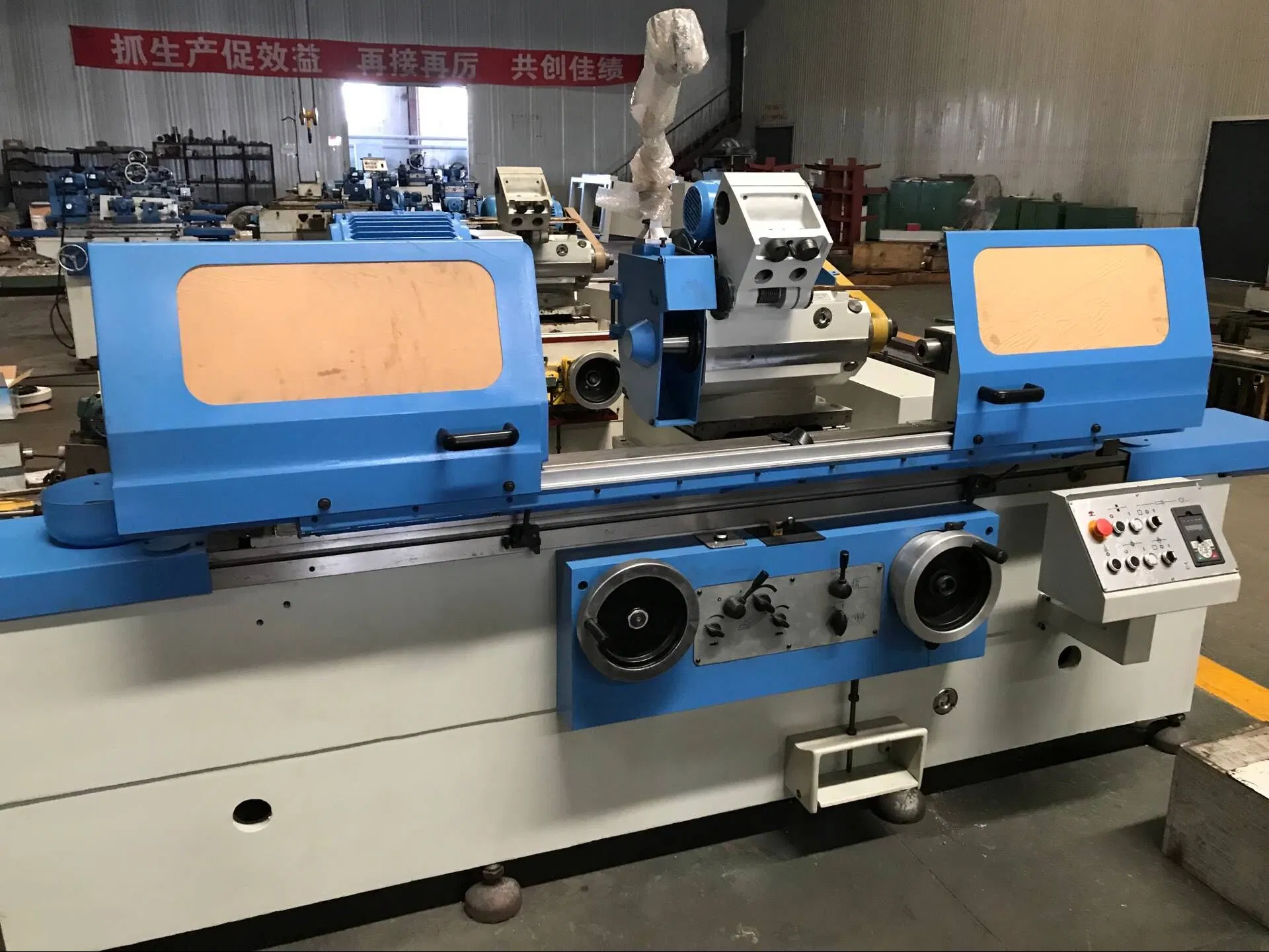

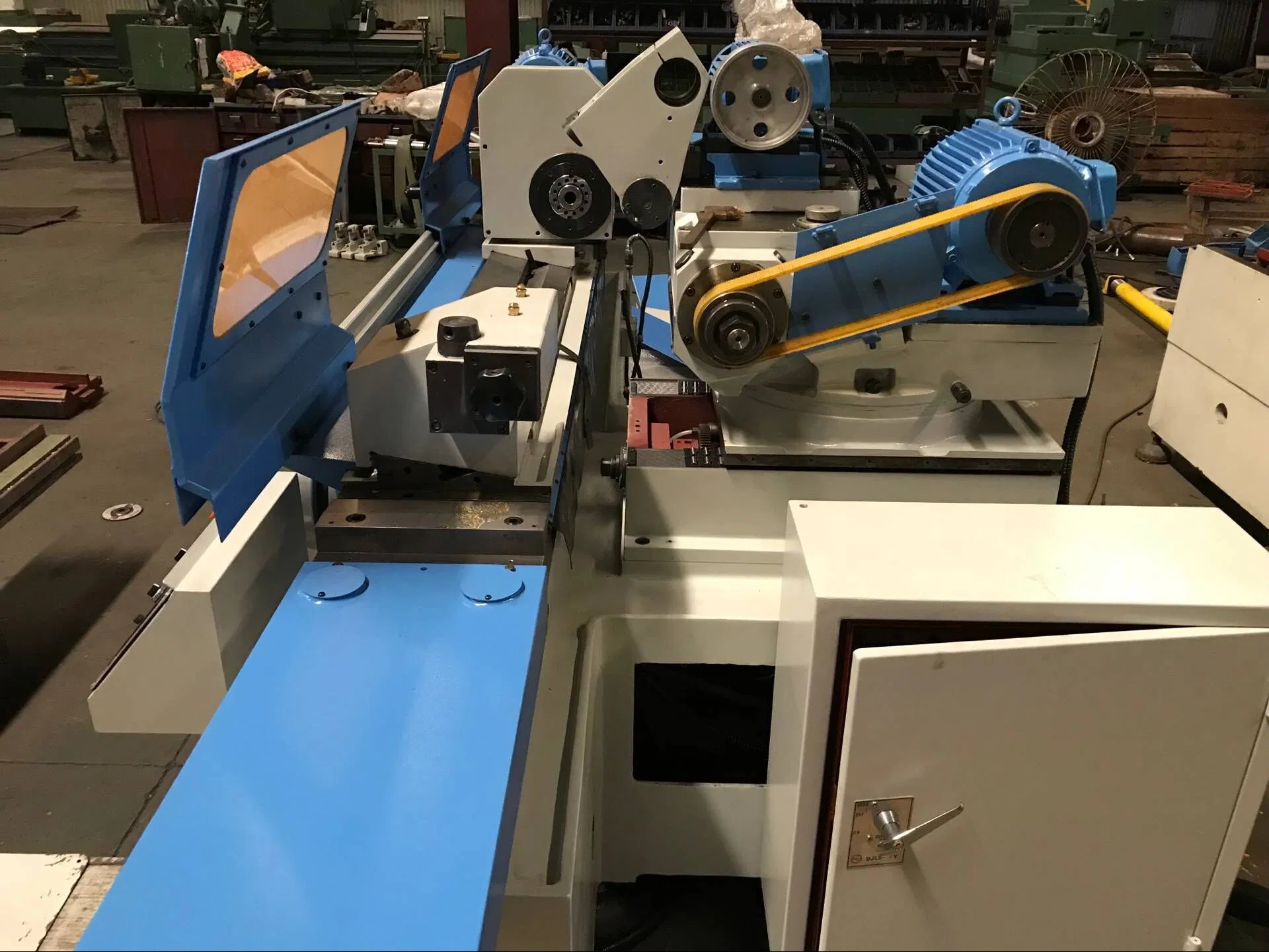

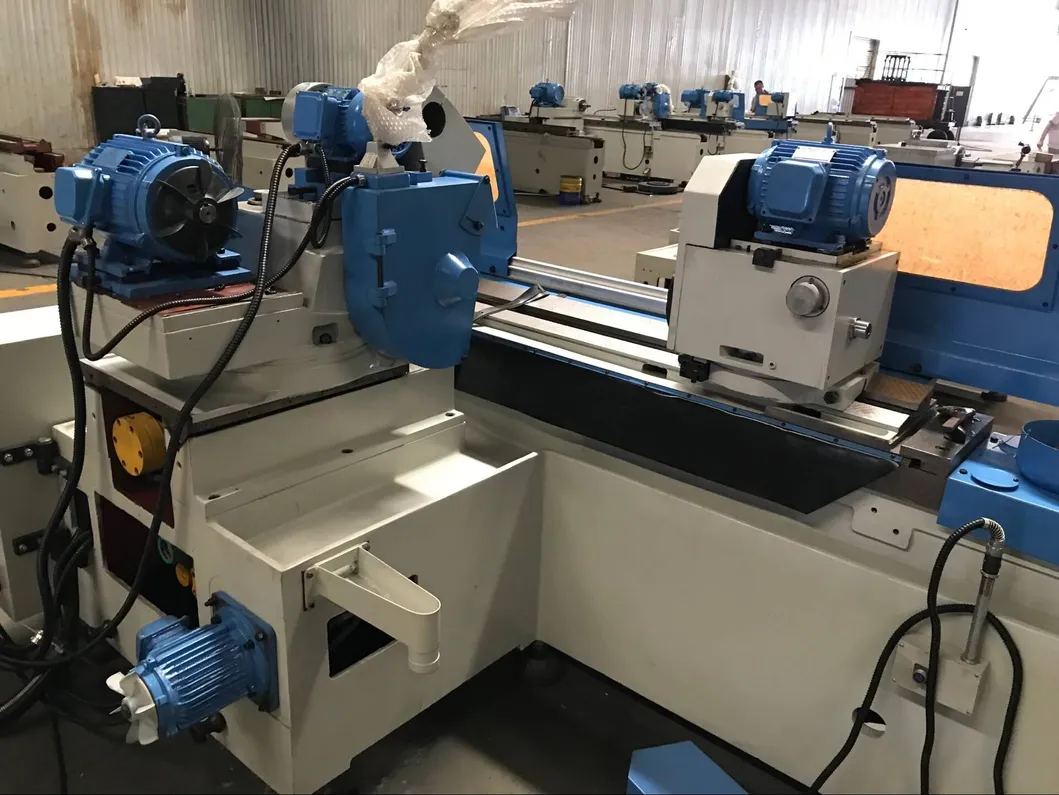

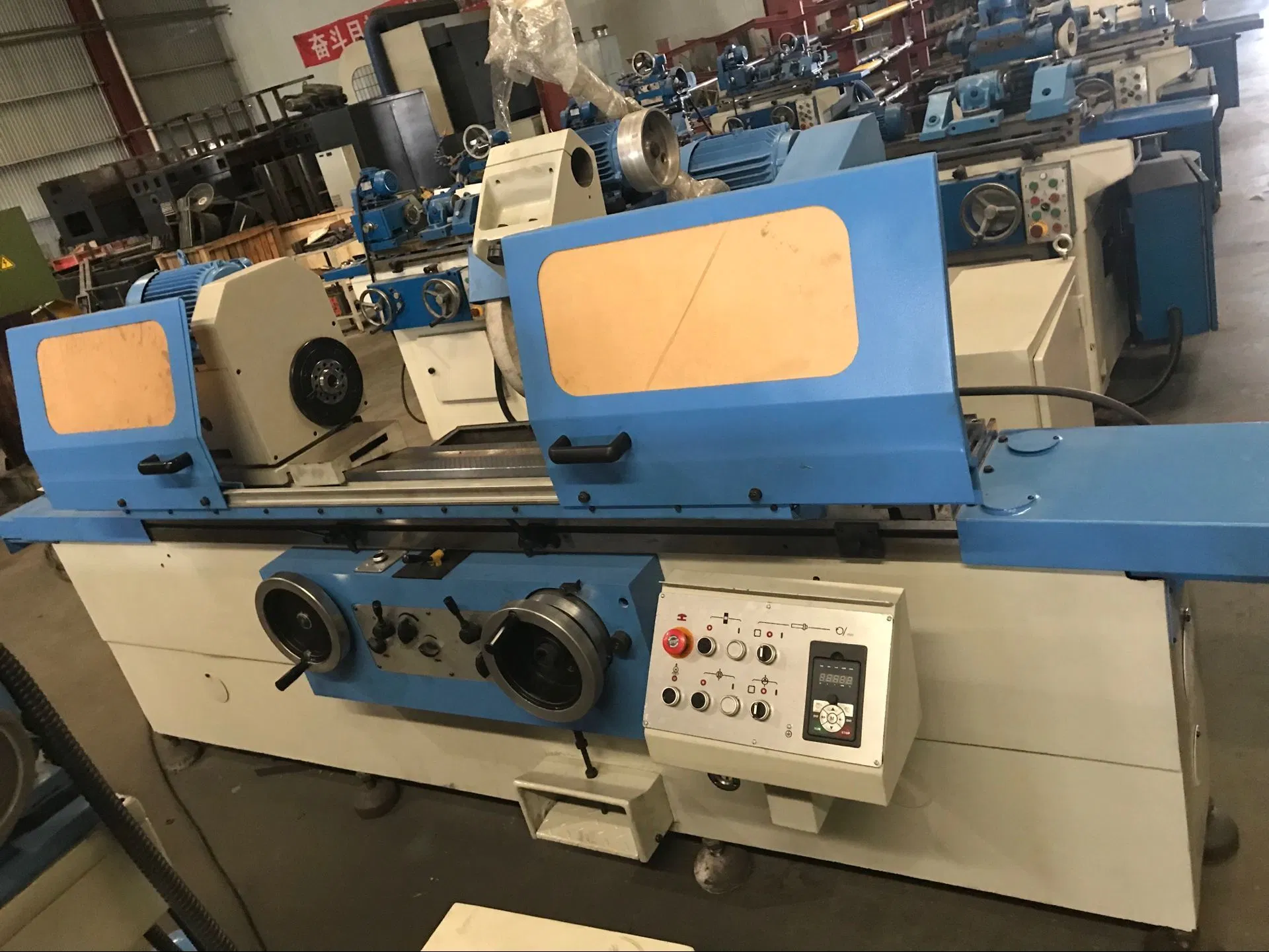

Machine Photos

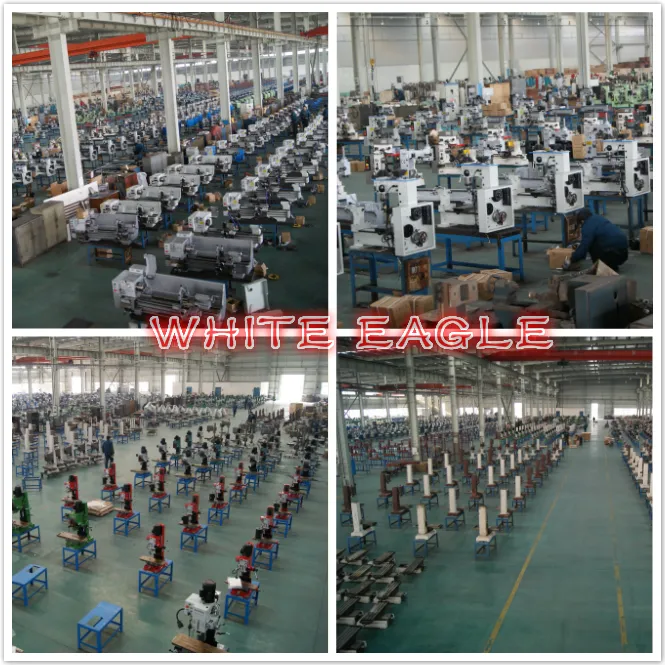

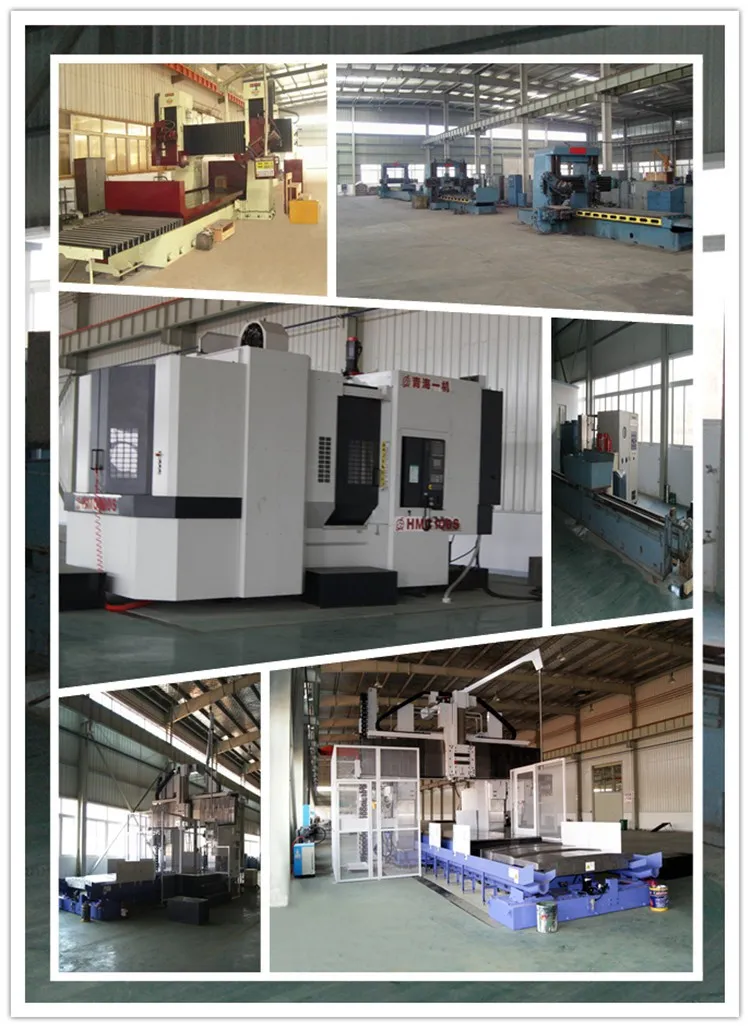

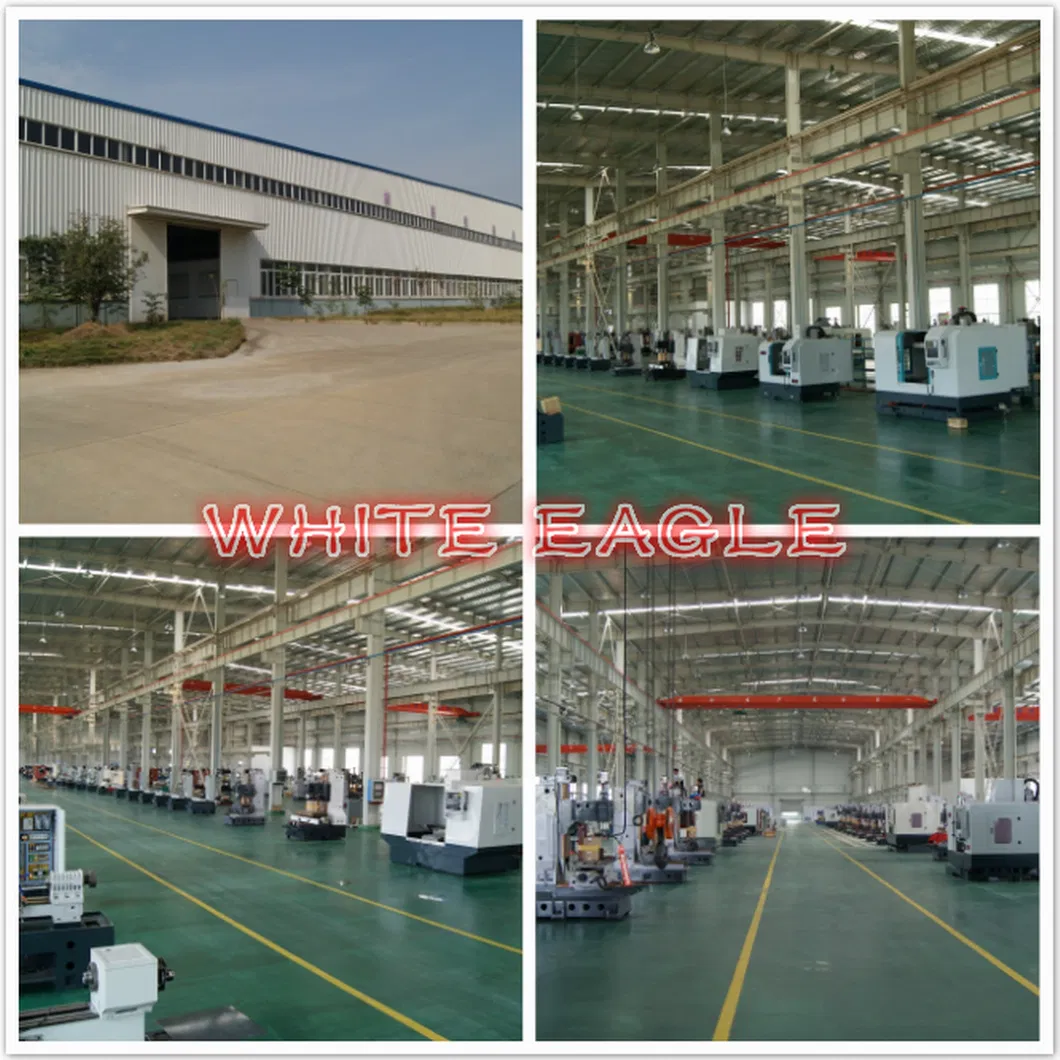

Factory Capabiltiy
