Product Description

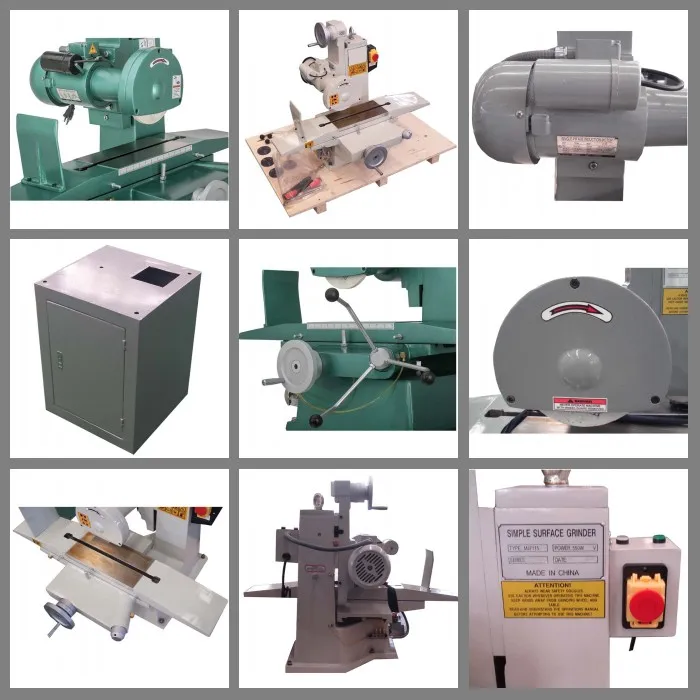

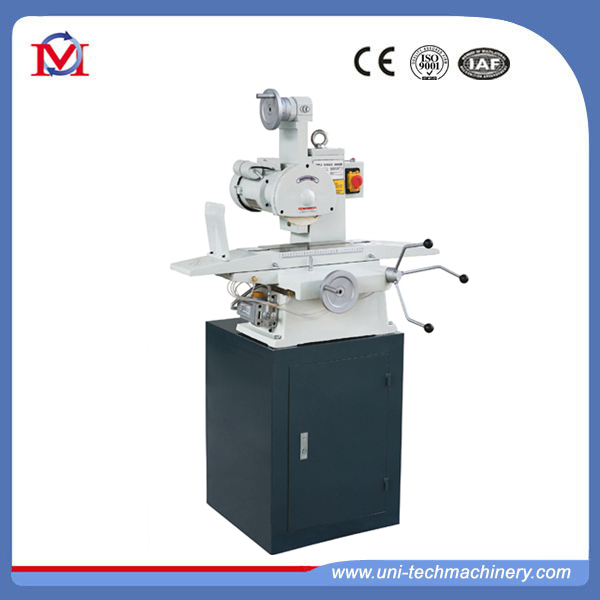

Universal tool grinder machine(MJ7115)

MAIN FEATURES:

1. Surface grinding is designed to grind various horizontal and vertical surfaces of the workpieces and end faces of the grinding wheel.

2. It can also grind various contoured workpieces with shaped wheel or craftsmanship apparatus.

3. Integrated grinding head of high quality, high rigidity and accuracy.

4. Small size, light weight, easy operation & maintenance.

5. Centralized lubrication for oil pump.

6. Super slide table

7.Enclosed cabinet style stand

8.Swarf guard

9.One shot lubrication

10.Diamond wheel dresser with holder

11.Tool Box

12.Wheel balancing kit

13.Single phase 3450 RPM motor

Standard accessories:

1. Grinding wheel

2. wheel adaptor

3. grinding wheel dresser

4. pad irons

5. tool box

6. hexagom wrench

7. wheel flange

8. wheel dresser holder

Optional accessories:

1. Stand

2. permanent magnetic chuck

3. precision flat vise

4. ball leadscrew model.

Specification:

Specification	Metric	Inch
Longitudinal Travel	340mm	14
Cross Travel	170mm	7
Vertical travel	210mm	8
Table size(W*L)	152mm×304mm	6×12
Width of T-slot	1-12mm	1-0.47
Cross feed per graduation	0.0254mm	0.001
Cross feed per round	2.54mm	0.1
Vertical feed per graduation	0.0254mm	0.001
Vertical feed per round	1.27mm	0.05
Size of grinding wheel	180mm×31.75mm×13mm
wheel Motor power	0.55kw
Roughness	1.6μm
N.W. / G.W. of machine	210/260kg
N.W. / G.W. of stand	30/54kg
Overal dimensions of machine	930×780×730mm
Case dimensions of machine	930×780×1480mm
Case dimensions of stand	720×550×550mm
