Finished Plate CNC Twin Head Milling Machine Dealer -Mold Base Double Head Milling Machine Manufacture
LC-1640NC CNC Gantry Surface Milling Machine Product Introduction The thickness of the workpiece is coarse and the precision milling is integrated, the numerical control system controls the size to set the processing size, the automatic measurement, the second side automatic coarse and finishing, re......
Send Inquiry
Product Description

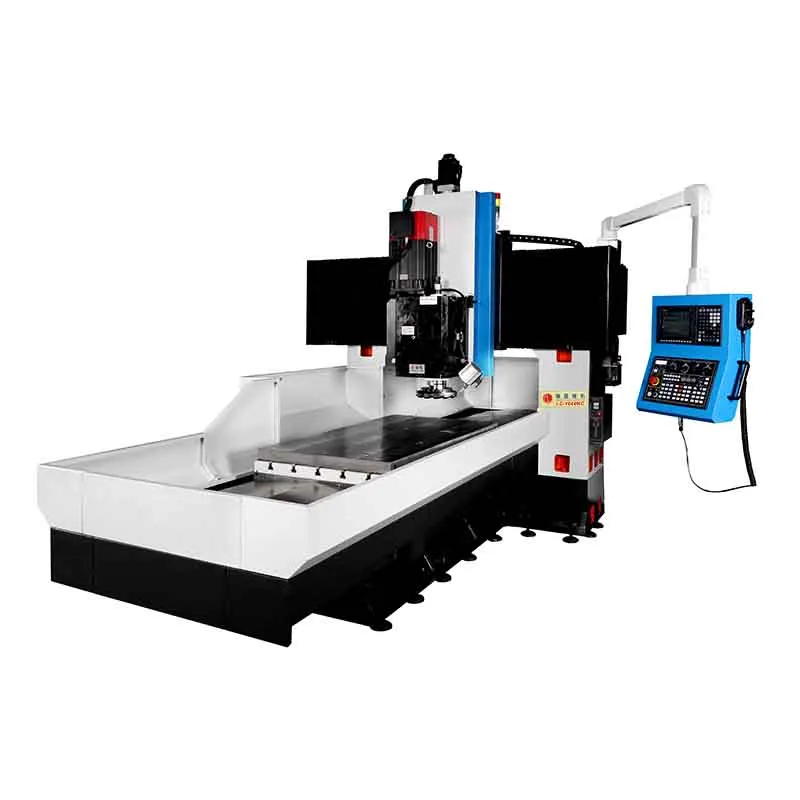

LC-1640NC CNC Gantry Surface Milling Machine
Product Introduction
The thickness of the workpiece is coarse and the precision milling is integrated, the numerical control system controls the size to set the processing size, the automatic measurement, the second side automatic coarse and finishing, reduce the working intensity of the operation staff, improve the processing efficiency, ensure the flatness and roughness of the workpiece.

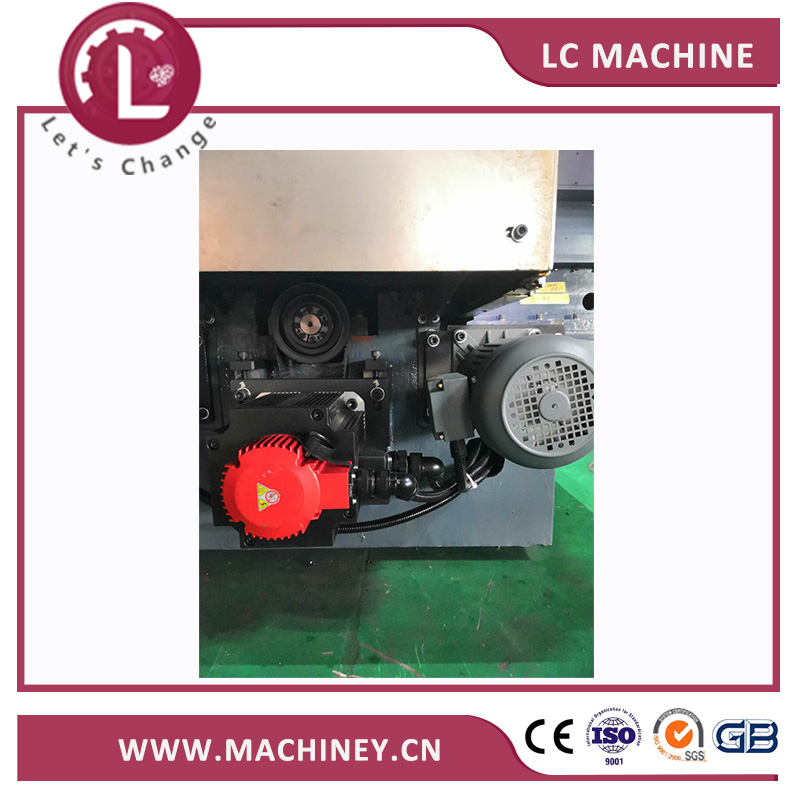

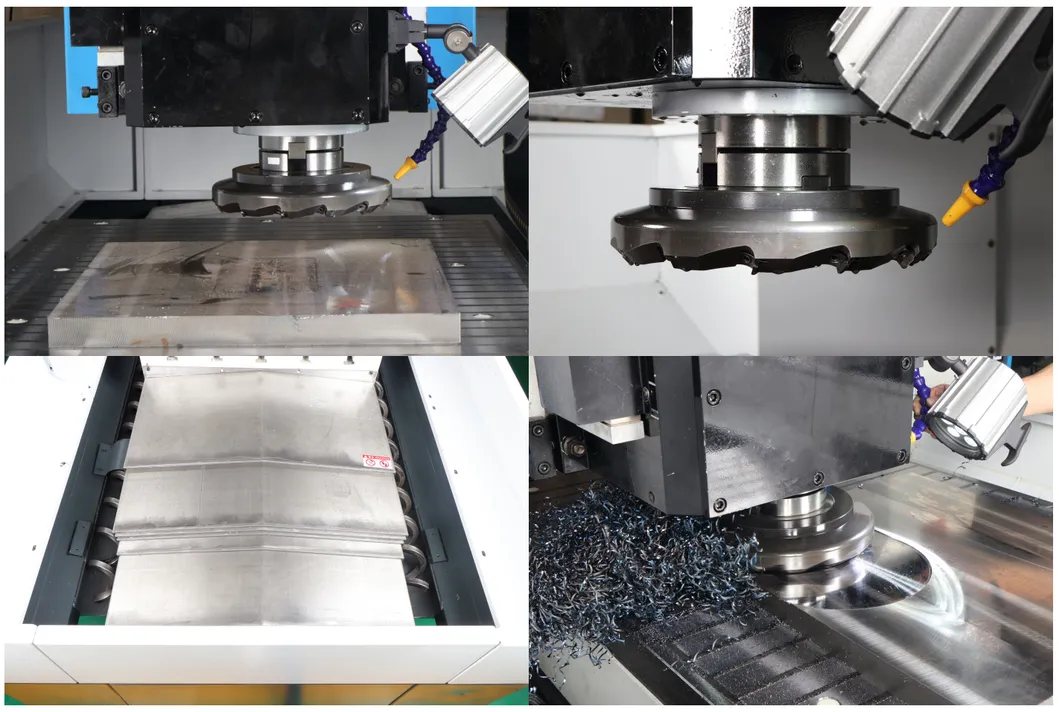

Details Show
1.Firmly hold the workpiece, ensure the safety of the processing process, through the demagnetization controller and machine tool connection, through the button operation demagnetization, very convenient to use, improve the machining efficiency of the machine up to more than 80%
2.The large spiral normal blade provides a small cutting tool for stable cutting, and the thickened reinforcing blade has a finishing treatment
3.The friction resistance is very small, and it has the characteristics of high precision, reversibility and high efficiency.
4.Workpiece processing coarse, fine milling integration, numerical control system control size setting processing size, automatic measurement, automatic coarse, finishing, reduce the working intensity of the operation staff, improve the processing efficiency, ensure the flatness of the workpiece, roughness.
Base Data2.The large spiral normal blade provides a small cutting tool for stable cutting, and the thickened reinforcing blade has a finishing treatment
3.The friction resistance is very small, and it has the characteristics of high precision, reversibility and high efficiency.
4.Workpiece processing coarse, fine milling integration, numerical control system control size setting processing size, automatic measurement, automatic coarse, finishing, reduce the working intensity of the operation staff, improve the processing efficiency, ensure the flatness of the workpiece, roughness.
| Main Specification | ||||
| Items | Name | LC-1640NC | ||
| Cutting capacity | Control axis number | 3 | ||
| Cutting capacity mm | 5 | |||
| Length*width*Height mm | 4000*1200*600mm | |||
| Worktable | Dimensions mm | 4000×1200 | ||
| Max loading weight kg | 10000 | |||
| Spindle | Spindle speed(Infinitely variable speeds) rpm | 0-800 | ||
| Spindle power kw | 15 | |||
| Spindle taper | BT50(7:24) | |||
| Spindle speed sections (Manual) | / | |||
| Cutter diameter mm | 250 | |||
| XYZ axis | X/Y/Z axis motor power kw | Same 3KW/15N.M | ||
| X/Y/Z Max feed speed m/min | 8/5/3 | |||
| X/Y/Z work range mm | / | |||
| X/Y/Z Max cutting speed | 5M/Min | |||
| Accuracy | Accuracy for dimension mm/300mm | 0.03 | ||
| Tank capacity | Hydraulic oil tank L | / | ||
| Lubrication oil tank L | 20 | |||
| Power | Power | AC440V±10%, 24KVA | ||
| Net weight | Machine net weight KG | 24000 | ||
| Product size | Product size | L9600*W3300*H3500mm | ||
| Main parts | ||||
| Sort | Name | Quantity | Size | Origin |
| Machinery | Ball screw (XYZ axis) | 3 | XZ-R5010 Y- R4010 | Taiwan TBI |
| Guide rail | 3 | / | Domestic | |
| Main Spindle (Vertical) | 1 | Gearbox 1:6 | Taiwan ENLOG | |
| Flexible stainless steel plate shield of worktable | 2 | SPCC | Domestic | |
| Base casting | 1 | / | HT300 | |
| Automatic lubricating machine | 1 | 1/4HP Pump | Domestic | |
| Oil line | N | 4/6 | Domestic | |
| Bearing | / | / | Japan NSK | |
| Electrical appliances | CNC system | 1 | E80/EJ | Japan Mitsubishi |
| MPG | 1 | HC121 | Japan Mitsubishi | |
| Servo motor | 3 | / | Japan Mitsubishi | |
| High precision electromagnetic table | 1 | 1500*800mm | Taiwan Brand | |
| Spindle motor | 1 | 15KW-1500rpm | MK | |
| AC contactor | / | / | Schneider | |
| Relay | / | / | Schneider | |

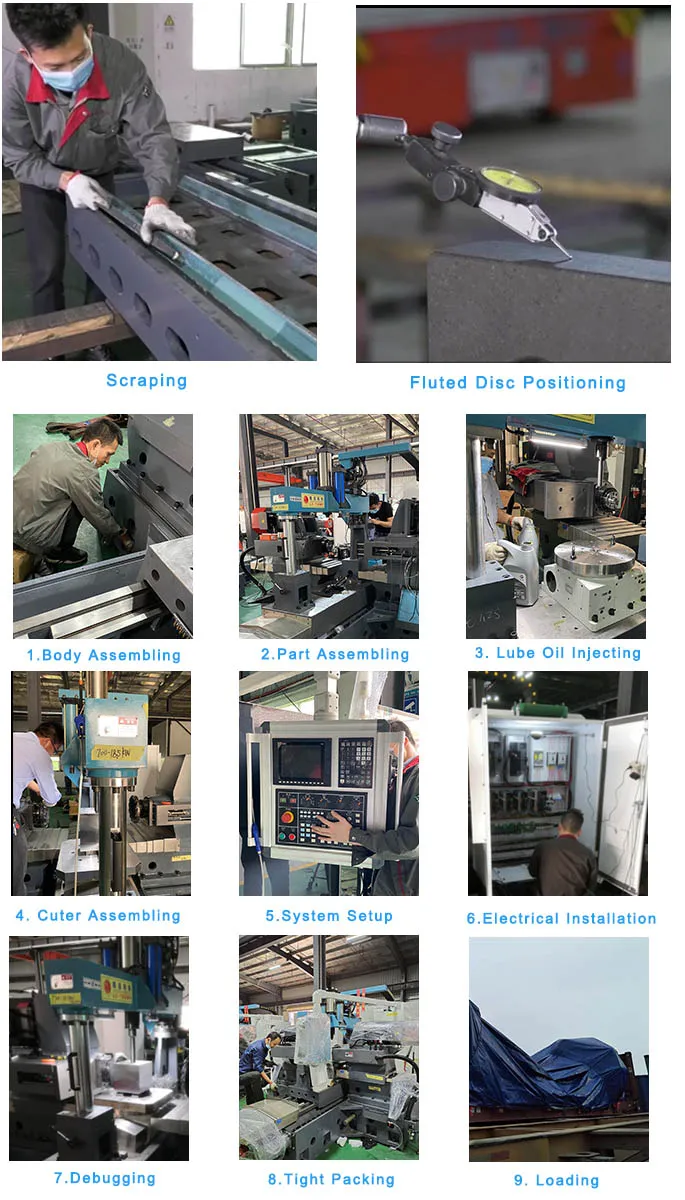

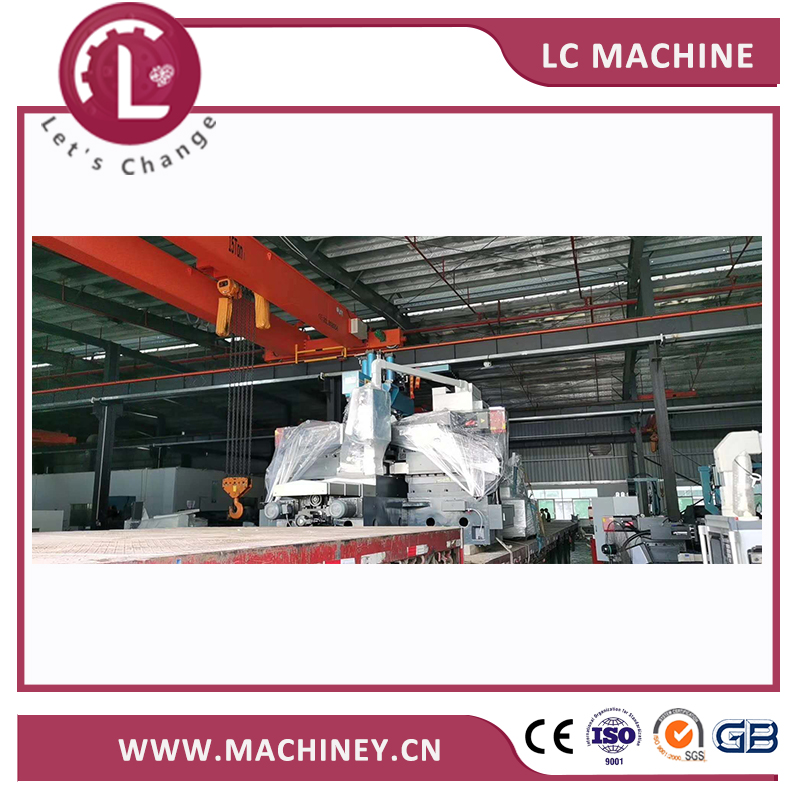

Manufacturing
Production Capacity

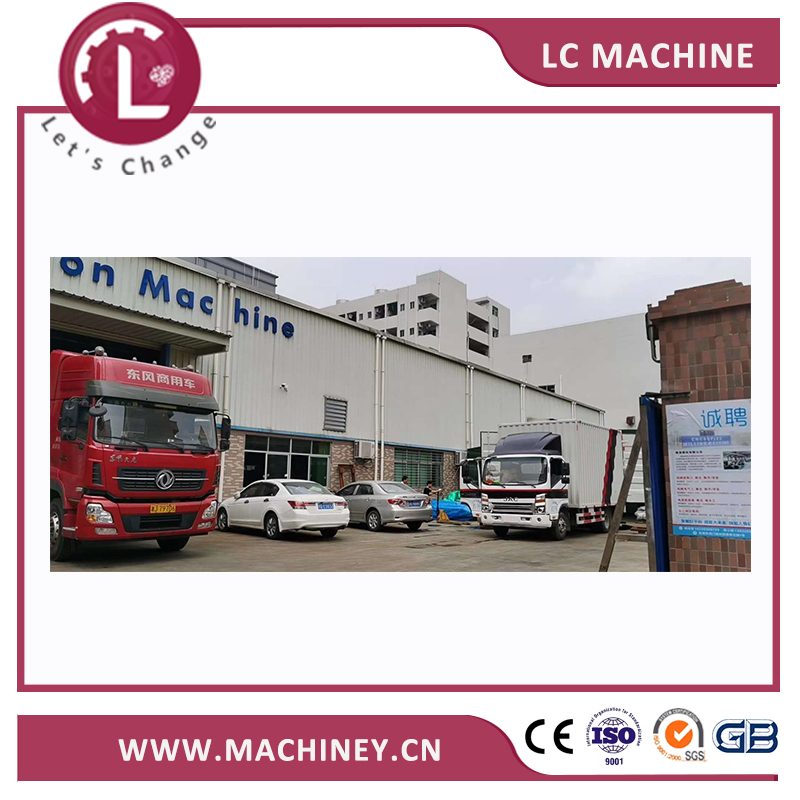

Factory Address: No.1 Yintai North Road, Shutian, Humen Town, Dongguan, City, China
R&D Capacity: Own Brand, ODM, OEM
No. of R&D Staff: 160
No. of Production Lines: Above 10
Annual Output Value: US$15Million
R&D Capacity: Own Brand, ODM, OEM
No. of R&D Staff: 160
No. of Production Lines: Above 10
Annual Output Value: US$15Million
APPLICATION

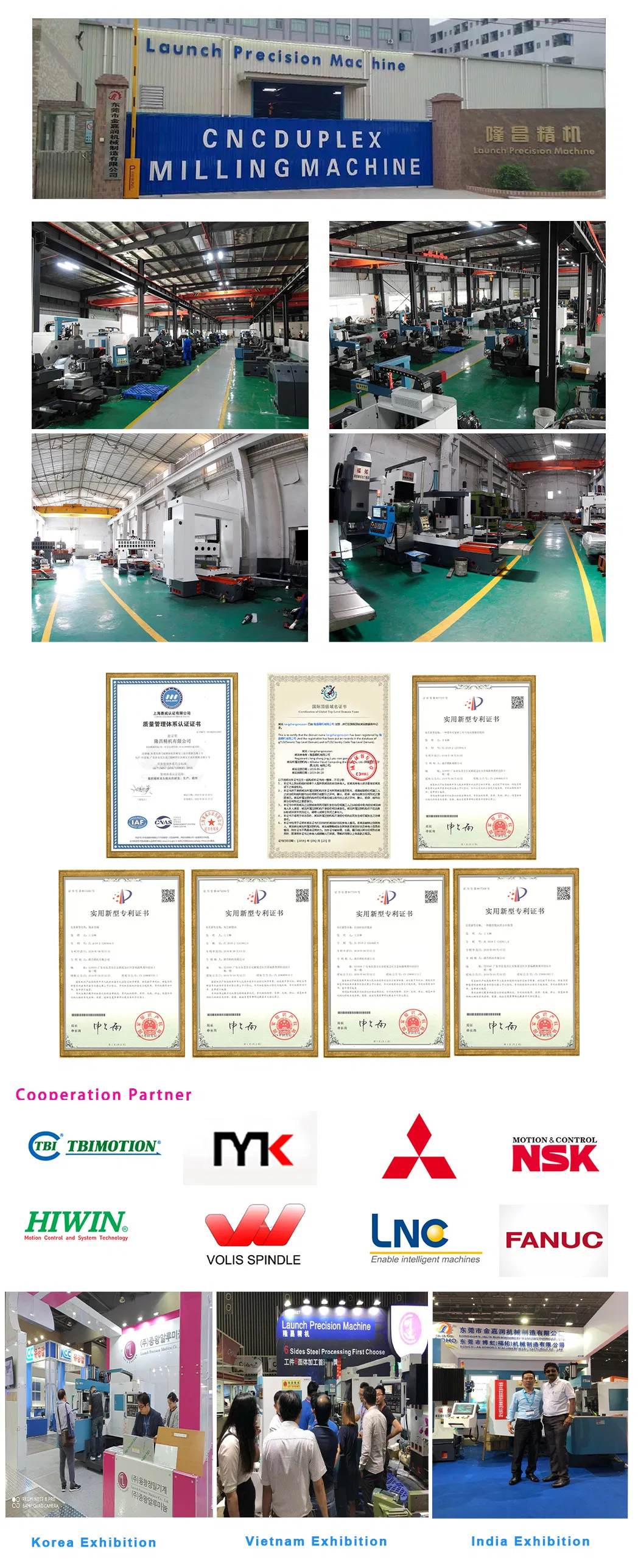

Company Profile
Launch Precision Machinery Co.,Ltd (LC Machine) is a professional modern enterprise, with long-term research & development, manufacturing, sales, after-service. The company gathered engineer team who engaged in CNC machine and mould manufacturing for decades , won trust and support from domestic and oversea clients by good idea, excellent design,reliable quality,full service.
The company has absorbed the advantages of NC technology from Germany and Japan and gathering the leading technology from domestic and foreign industries. All machines are marked ISO 9001 and CE, exported to 58 countries. Main products: Duplex milling machine, Vertical gantry milling machine, Side milling machine, Powerful gantry grinder, Cutting machine, Chamfering machine etc.
We are committed to be the No.1 brand in 6 side milling machine and one-stop service supplier in mould processing industry, serving global client , promoting mould processing industry to reach new level.
Launch Precision Machinery Co.,Ltd (LC Machine) is a professional modern enterprise, with long-term research & development, manufacturing, sales, after-service. The company gathered engineer team who engaged in CNC machine and mould manufacturing for decades , won trust and support from domestic and oversea clients by good idea, excellent design,reliable quality,full service.
The company has absorbed the advantages of NC technology from Germany and Japan and gathering the leading technology from domestic and foreign industries. All machines are marked ISO 9001 and CE, exported to 58 countries. Main products: Duplex milling machine, Vertical gantry milling machine, Side milling machine, Powerful gantry grinder, Cutting machine, Chamfering machine etc.
We are committed to be the No.1 brand in 6 side milling machine and one-stop service supplier in mould processing industry, serving global client , promoting mould processing industry to reach new level.

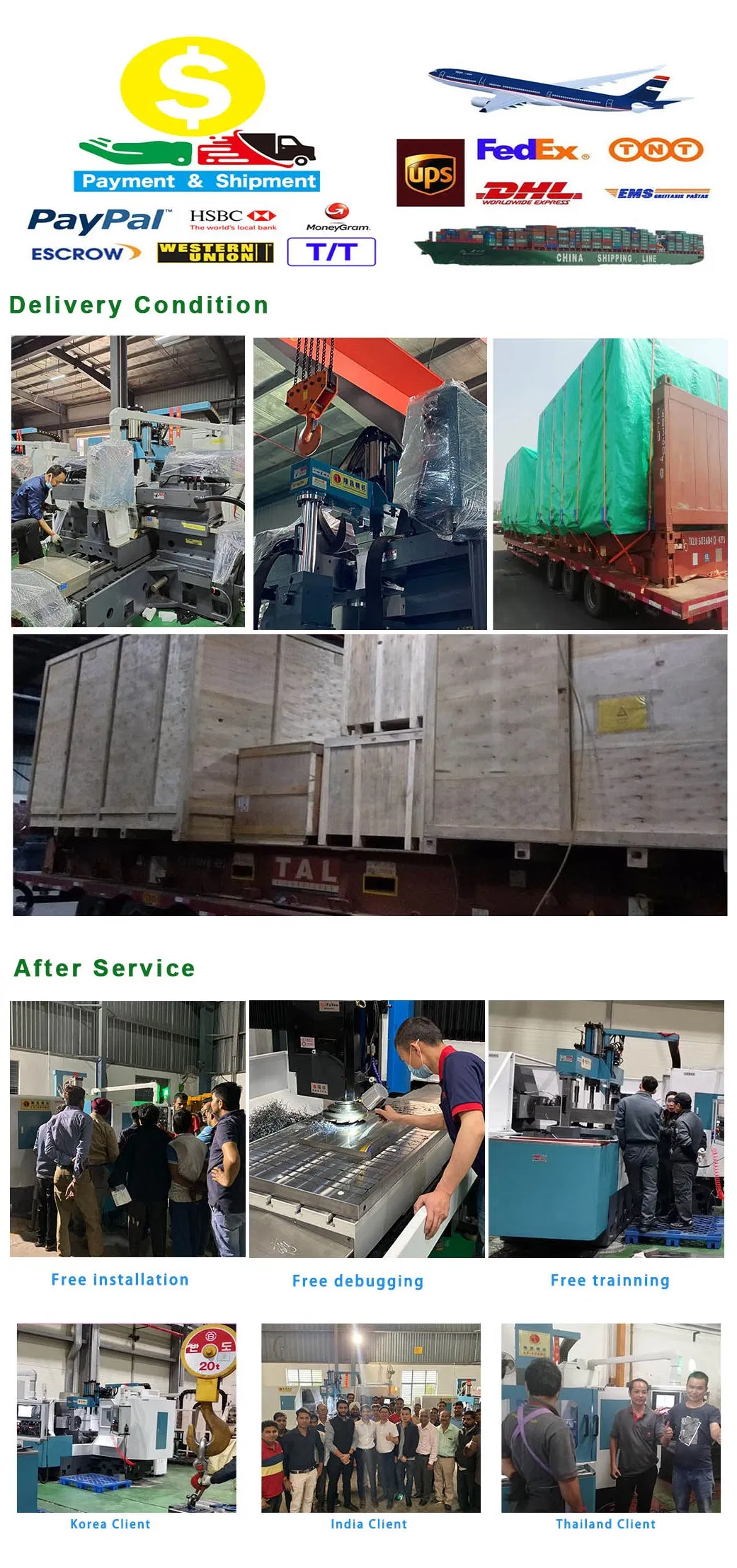

After-Sale Service
1. Installation services for free.
2. Operation training for free.
3. We will create files for every client, to track product quality and after service.
4. Providing one year (12 months) warranty for free except for the wrong operation by the user . The spare part is not on the free warranty list.
5. Providing maintenance and repair service termly.
6. Seller will provide solution way within 72 hrs once receiving A-F service request from the buyer.
2. Operation training for free.
3. We will create files for every client, to track product quality and after service.
4. Providing one year (12 months) warranty for free except for the wrong operation by the user . The spare part is not on the free warranty list.
5. Providing maintenance and repair service termly.
6. Seller will provide solution way within 72 hrs once receiving A-F service request from the buyer.
FAQ
Q: Are you a manufacturer or Trading Company?
A: We are a innovative interprise with rich import & export experience and 10 professional production line.Warmly welcome you to visit our factory.
Q: Do you have Agency in my country?
A: With the development of our company, we are expanding export gradually to get a bigger worldwide share of marketing.(The United States/ Korea / India / Southeast Asia etc.). Till now, we have agence in India/Korea/Thailand/ Vietnam, please feel free to contact us to get more detail.
Q: How can I Install the machine, and What should I do if my machine was broken down
A: We provide free installation service to your home. If your machine was broken, please contact us immediately and we will give you solution way within 48 hours.
Q: Can you support OEM Service?
A: Sure, As your requirement, We would like to make the plan and provide the best service for you.
Q: Are you a manufacturer or Trading Company?
A: We are a innovative interprise with rich import & export experience and 10 professional production line.Warmly welcome you to visit our factory.
Q: Do you have Agency in my country?
A: With the development of our company, we are expanding export gradually to get a bigger worldwide share of marketing.(The United States/ Korea / India / Southeast Asia etc.). Till now, we have agence in India/Korea/Thailand/ Vietnam, please feel free to contact us to get more detail.
Q: How can I Install the machine, and What should I do if my machine was broken down
A: We provide free installation service to your home. If your machine was broken, please contact us immediately and we will give you solution way within 48 hours.
Q: Can you support OEM Service?
A: Sure, As your requirement, We would like to make the plan and provide the best service for you.
