What Makes the High-speed Jet Dobby Compatible with Rapier Looms?
2026-09-11

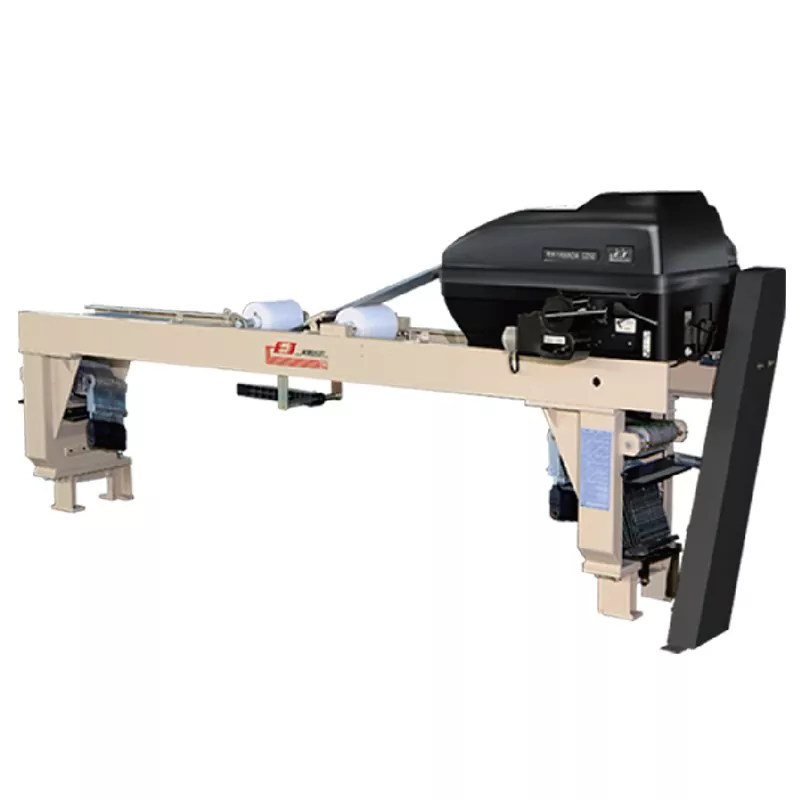

1. Why Does a Rapier Loom Need a High-speed Jet Dobby?
Rapier looms are known for their versatility in weaving a wide range of fabrics, from light apparel to heavy technical textiles. However, the traditional cam shedding mechanism used on many rapier looms limits the pattern repeat to a small number of picks. A High-speed Jet Dobby expands the pattern capability by allowing each heald frame to be controlled independently, which means the pattern repeat can be 20, 28, or even 32 picks. The jet dobby achieves this by using a pneumatic cylinder to move each heald frame. The movement is controlled by a solenoid valve that is actuated by the loom's electronic control system. The result is a shedding mechanism that is faster than a mechanical dobby and more flexible than a cam system. In our factory, we have supplied High-speed Jet Dobby units for rapier looms in mills producing home textiles, denim, and technical fabrics.
Key compatibility factor: The High-speed Jet Dobby must be synchronized with the rapier loom's main shaft. The shedding motion must complete before the rapier enters the shed, and the shed must be closed before the rapier beats up. The timing window is determined by the loom's speed and the fabric construction.
2. What Mechanical and Timing Parameters Determine Compatibility?
The compatibility of a High-speed Jet Dobby with a rapier loom depends on four mechanical and timing parameters. The first is the mounting interface. The dobby must be mounted on the loom frame at the correct height and distance from the heald frames. The second is the drive connection. The dobby is driven by the loom's main shaft through a timing belt or a gear train. The gear ratio must be correct to ensure that the dobby completes one full cycle for every pick. The third is the shedding timing. The dobby must open and close the shed at the correct crank angle. The fourth is the heald frame stroke. The stroke must be sufficient to create a clear shed for the rapier to pass through. The table below shows the typical compatibility parameters for a High-speed Jet Dobby on a rapier loom.
| Parameter | Typical value for rapier loom | Verification method |
| Mounting height (from floor) | 800 – 1000 mm | Laser level and tape measure |
| Drive gear ratio | 1:1 (one dobby cycle per pick) | Timing mark alignment |
| Shed opening angle | 28 – 32 degrees | Protractor or timing diagram |
| Heald frame stroke | 60 – 120 mm (depending on fabric) | Dial indicator on frame |
| Timing window (shed fully open) | 60 – 90 degrees of crank rotation | Electronic timing analyzer |
Changshu Textile Machinery Works Co. Ltd. provides a compatibility checklist with every High-speed Jet Dobby unit. The checklist includes the mounting dimensions, the drive connection details, and the recommended timing settings for different rapier loom models.
3. How Does the Pneumatic System Affect Dobby Performance on a Rapier Loom?
The High-speed Jet Dobby uses compressed air to move the heald frames. The pneumatic system must provide a stable air supply at the correct pressure and flow rate. The air pressure determines the force that moves the frame. If the pressure is too low, the frame will not move fast enough, and the shed will not be fully open when the rapier enters. If the pressure is too high, the frame will hit the stop with excessive force, causing vibration and wear. The air flow rate determines how quickly the cylinder fills and exhausts. A restricted flow will slow down the frame movement. The table below shows the recommended pneumatic parameters for a High-speed Jet Dobby on a rapier loom.
| Parameter | Recommended value | Consequence of deviation |
| Air pressure | 0.4 – 0.6 MPa | Low pressure: incomplete shed; high pressure: excessive wear |
| Air flow rate per cylinder | 0.8 – 1.2 L/min | Low flow: slow frame movement; high flow: wasted energy |
| Air filtration | 5 μm particulate filter | Contamination: valve sticking and seal damage |
| Air dew point | < 5°C | Condensation: corrosion and valve failure |
| Valve response time | < 5 ms | Slow response: timing errors and fabric defects |
In our factory, we recommend installing a dedicated air preparation unit for the High-speed Jet Dobby. The unit should include a filter, a regulator, and a lubricator. The air supply should be separate from other pneumatic consumers on the loom to prevent pressure fluctuations.
4. What Electronic and Control System Considerations Are Critical?
The High-speed Jet Dobby is controlled by the loom's electronic control system. The control system sends a signal to each solenoid valve at the correct time in the weaving cycle. The compatibility of the control system depends on three factors. The first is the signal interface. The dobby must accept the signal format used by the loom controller (typically 24V DC or 0-10V). The second is the number of outputs. The controller must have enough outputs to drive all the solenoid valves. The third is the software. The loom controller must have a dobby control program that allows the pattern to be entered and edited. In our factory, we supply High-speed Jet Dobby units with a control interface that is compatible with the major rapier loom controllers, including Staubli, Picanol, and Dornier. We also provide a software patch that adds the dobby control function to the loom controller if it is not already present.
Compatibility verification step: Before installing the High-speed Jet Dobby, run a static test of the control system. Simulate the weaving cycle and verify that each solenoid valve receives a signal at the correct crank angle. This test takes about 30 minutes and can prevent costly damage during the first production run.
Frequently Asked Questions About High-speed Jet Dobby and Rapier Loom Compatibility
Summary for Weaving Mill Engineers
The High-speed Jet Dobby is compatible with rapier looms when the mechanical interface, timing, pneumatic system, and control system are properly matched. The key to a successful installation is to verify each of these parameters before commissioning. The mounting adapter ensures correct positioning. The timing window ensures that the shed is open when the rapier enters. The pneumatic system provides the force and speed for the frame movement. The control system provides the signals that synchronize the dobby with the loom. Changshu Textile Machinery Works Co. Ltd. has been supplying High-speed Jet Dobby units for rapier looms for over 15 years and provides full technical support for integration.
Changshu Textile Machinery Works Co. Ltd. manufactures High-speed Jet Dobby units for a wide range of rapier loom models. We provide mounting adapters, control interfaces, and timing documentation to ensure a smooth installation.
