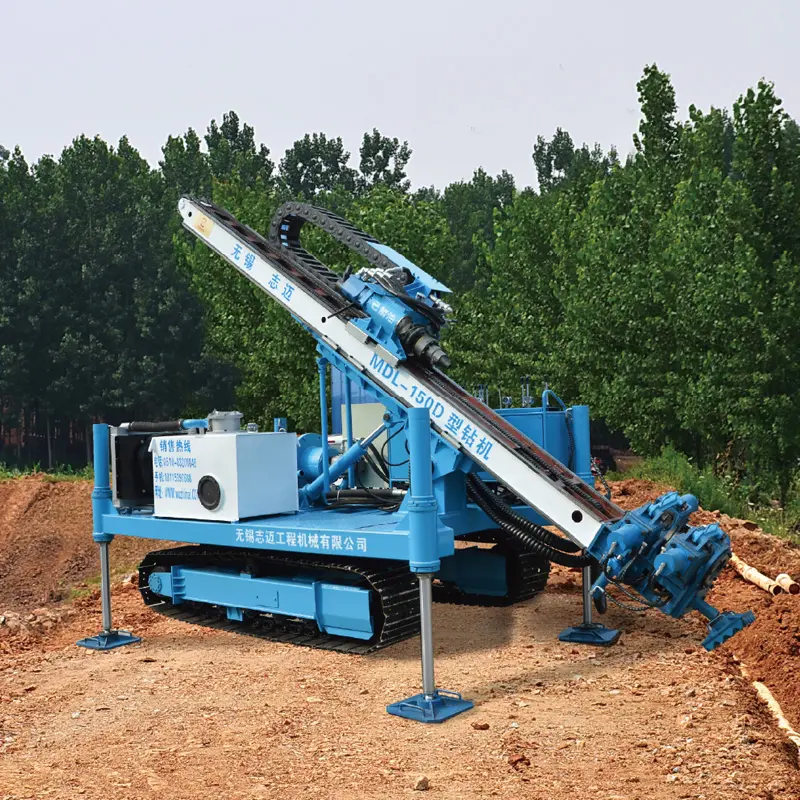

Anti Floating Anchor Drilling Rig – Precision Anchoring for Complex Geologies
2025-08-04
The Anti Floating Anchor Drilling Rig is a highly specialized piece of engineering equipment designed to deliver deep, stable anchoring in loose soil, high groundwater, or uplift-prone environments. This rig is specifically built to resist floating phenomena during anchor installation, which is a common challenge in infrastructure and geotechnical engineering.
Widely used in foundation reinforcement, retaining wall construction, slope stabilization, and underground projects, this drilling rig offers unmatched adaptability, torque control, and structural stability in complex terrain.
Why Choose Our Anti Floating Anchor Drilling Rig?
At the heart of construction safety and long-term structural reliability lies the performance of anchoring systems. Our Anti Floating Anchor Drilling Rig offers the following benefits:
-
Anti-float structure design for secure and accurate anchor positioning
-
Multi-layer soil compatibility from soft clays to mixed strata
-
Modular assembly for easy transportation and field deployment
-
Smart pressure control to prevent over-drilling and anchor uplift
-
Customizable drill rods and bits to meet various project needs
Technical Specifications
The following table provides a detailed breakdown of the core technical parameters of our Anti Floating Anchor Drilling Rig:
| Parameter | Specification |
|---|---|
| Model Number | RMA-280AF |
| Max Drilling Diameter | 300 mm |
| Max Drilling Depth | 50 m |
| Rated Torque | 9500 Nm |
| Rotation Speed | 0–100 rpm (variable speed) |
| Power Source | Diesel Engine (Cummins QSB 6.7) |
| Engine Power | 153 kW |
| Climbing Ability | ≤ 30° |
| Hydraulic System Pressure | 28 MPa |
| Casing Diameter | 168 mm / 219 mm (optional) |
| Pull-down Force | 60 kN |
| Pull-back Force | 90 kN |
| Rig Weight | 11,000 kg |
| Overall Dimensions (L×W×H) | 6000×2200×2600 mm |
| Applicable Drill Bits | Alloy, PDC, Roller Cone, Auger |
| Cooling System | Water-cooled |
| Operation Mode | Manual + Hydraulic Joystick |
Key Features
Our Anti Floating Anchor Drilling Rig is not just a machine – it's a smart solution tailored to demanding site conditions.
The system detects resistance and automatically adjusts drilling speed and pressure, minimizing the risk of anchor movement during installation.
Hydraulic feed cylinder supports two-speed feed control, enabling operators to balance speed with torque efficiency.
Accommodates both top drive and casing pipe rotation, effectively preventing borehole collapse in unstable formations.
Tracked chassis with reinforced undercarriage ensures stability on uneven terrain, including slopes and soft ground.
Application Scenarios
The Anti Floating Anchor Drilling Rig is suitable for the following project types:
-
Subway and underground tunnel anchoring
-
Foundation pit support and slope protection
-
Dam and reservoir reinforcements
-
High-rise foundation engineering
-
Landslide mitigation projects
-
Anti-floating base construction for wetland or coastal structures
How It Works
The Anti Floating Anchor Drilling Rig works by using a high-torque rotating head and adjustable hydraulic feed to drill anchor holes at controlled depths and diameters. Once the borehole is completed, anchor rods or cables are inserted with a grout mix. The anti-floating system ensures the anchor stays stable during setting, resisting upward buoyancy forces often caused by groundwater or soil backpressure.
Advantages Over Conventional Drilling Rigs
| Feature | Conventional Rig | Anti Floating Anchor Drilling Rig |
|---|---|---|
| Uplift Resistance | Low | High |
| Depth Control Accuracy | Medium | High |
| Soil Compatibility | Limited | Wide (clay, gravel, sand, etc.) |
| Torque and Feed Control | Manual | Fully Hydraulic |
| Anchor Rod Stability | Risk of Floating | Fully Stabilized |
| Operator Learning Curve | Steep | Simplified Controls |
Common Questions (FAQ)
Q1: What makes an Anti Floating Anchor Drilling Rig different from a standard anchor rig?
A1: The Anti Floating Anchor Drilling Rig includes a built-in anti-uplift mechanism that stabilizes the anchor during installation. In standard rigs, ground pressure or groundwater may push the anchor upward, leading to failures. This rig counters that force actively.
Q2: Can this rig operate effectively in water-saturated soil or near rivers?
A2: Yes. The rig is specifically engineered for environments with high water content. Its hydraulic system and drill casing stabilize boreholes, while its anti-floating feature maintains anchor integrity even in buoyant soil layers.
Q3: How long does it take to train an operator to use this equipment efficiently?
A3: With our on-site support and simplified control system, a skilled technician can be trained to operate the Anti Floating Anchor Drilling Rig within 2–3 days. Its intuitive joystick controls and real-time pressure monitoring reduce the learning curve significantly.
Summary
The Anti Floating Anchor Drilling Rig is a robust, intelligent solution for complex anchoring challenges. With advanced hydraulic systems, adaptive control, and a strong anti-floating mechanism, it has become a key choice for construction companies around the world dealing with difficult soil conditions and uplift risks.
Call to Action
Ensure your anchor projects never float again. Choose the precision and power of our Anti Floating Anchor Drilling Rig today. Contact Wuxi Ruimai Engineering Machinery Co., Ltd. now for a free consultation and quotation.
