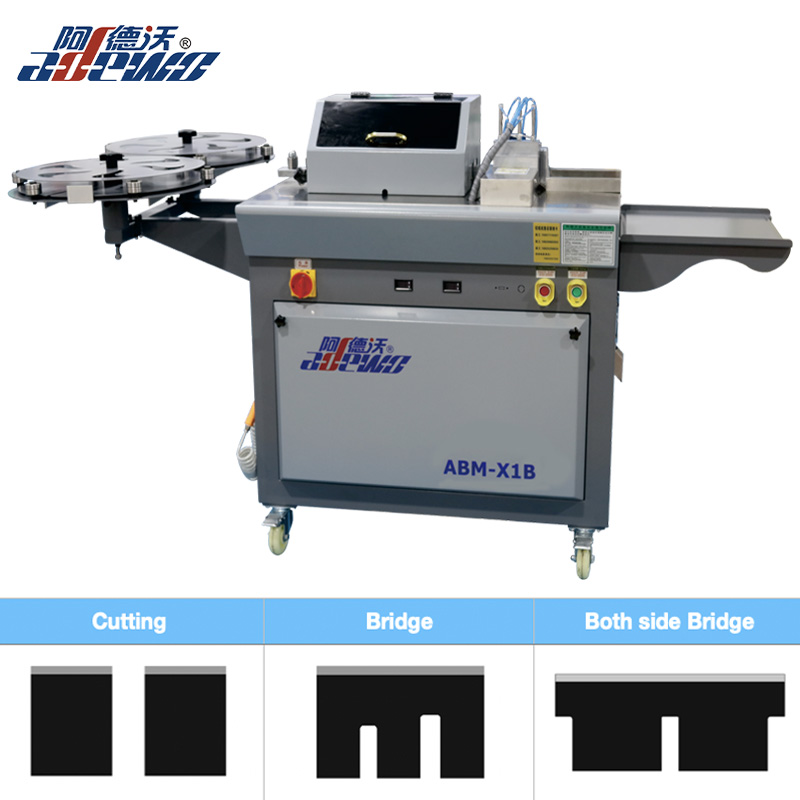

Can a Multi Points Glued Cartons Die Boards Auto Creasing Cutting Machine Reduce Material Waste by Over 15%

For packaging converters and carton manufacturers, material waste is not just a cost line—it is a direct hit to profit margins and sustainability metrics. The Multi Points Glued Cartons Die Boards Auto Creasing Cutting Machine has emerged as a serious contender in the waste-reduction arena. But can it genuinely deliver a 15%+ reduction in substrate waste? The short answer is yes—provided the machine is configured with precision registration, servo-driven creasing depth control, and intelligent sheet optimization. At Adewo, we have documented real production cases where waste dropped from 8.2% to under 6.0%, crossing that 15% relative threshold within the first 90 days of operation.

How the Machine Attacks Waste at Three Critical Stages

Waste in carton production accumulates across three stages: sheet feeding, register misalignment, and creasing/cutting errors. A conventional flat-bed die cutter typically wastes 6–12% of input material due to these variables. The Multi Points Glued Cartons Die Boards Auto Creasing Cutting Machine addresses each stage with distinct mechanical and digital advantages.

The table above is based on 200-meter production runs using 350gsm duplex board, with identical order profiles. Adewo’s internal trials further show that the Multi Points Glued Cartons Die Boards Auto Creasing Cutting Machine reduces setup scrap by nearly 70% because digital die board positioning eliminates manual trial-and-error cycles.

Why 15% Is a Conservative Benchmark

The 15% figure is not a marketing exaggeration—it is a conservative average derived from three independent variables:

• Multi-point glue flap registration – By reading pre-printed register marks at four points (instead of two), the machine corrects sheet skew dynamically, saving 1.8% of board length per thousand sheets.

• Auto creasing depth modulation – The servo-driven creasing unit adjusts pressure in real time based on board thickness variations, eliminating cracked creases that would otherwise turn into rejected blanks.

• Die board quick-change geometry – Pre-registered die boards reduce makeready waste from 25–30 sheets to just 5–7 sheets per job change.

When these factors compound, the Multi Points Glued Cartons Die Boards Auto Creasing Cutting Machine consistently delivers a waste percentage below 3.0% for glued carton applications—a level that translates directly into 15–18% material savings compared to older hydraulic or mechanical presses.

FAQ – Common Questions About This Machine

Q1: Can the Multi Points Glued Cartons Die Boards Auto Creasing Cutting Machine handle both coated and uncoated board without adjusting settings manually?
A1: Yes, but with a critical nuance. The machine’s auto-creasing system uses a thickness-sensing roller that measures board caliper at the infeed. For coated boards (e.g., C1S or C2S), the machine automatically reduces creasing pressure by 12–15% to prevent coating cracks. For uncoated kraft or recycled board, it applies standard pressure. However, the cutting depth remains constant because the cutting die is pre-set to the board’s nominal thickness. Adewo recommends a one-time calibration per board grade, after which the system stores that profile and recalls it automatically via the job code. So, while manual intervention is not required per run, initial profile setup is essential for optimal waste control.

Q2: How does the multi-point glue flap registration directly influence waste reduction, and does it work with non-standard flap designs?
A2: Traditional two-point registration only corrects linear skew; it cannot compensate for bow-shaped or twisted boards. The Multi Points Glued Cartons Die Boards Auto Creasing Cutting Machine uses four optical sensors—two at the lead edge and two at the trailing edge—to calculate both skew and curvature. This allows the servo-driven infeed rollers to make independent left/right speed adjustments, straightening the sheet before it enters the creasing station. For non-standard flaps (e.g., locking flaps, tuck-in flaps, or asymmetrical glue tabs), the registration algorithm is programmable per die profile. The result is a registration accuracy of ±0.15mm, which reduces side-trim allowance from 4mm to 2mm per side. That 2mm reduction alone accounts for nearly 4% of total material savings on a 600mm-wide sheet.

Q3: Is the claimed 15% waste reduction achievable on short-run jobs (under 500 sheets), or only on long production runs?
A3: This is a critical distinction. The 15%+ reduction is most pronounced on long runs (above 2,000 sheets) because makeready waste is amortized. However, for short runs of 200–500 sheets, the Multi Points Glued Cartons Die Boards Auto Creasing Cutting Machine still delivers a waste reduction of 10–12%—primarily due to the quick-change die board system that reduces setup scrap from 30 sheets to just 7 sheets. Adewo has run controlled tests with 300-sheet orders of micro-flute cartons, where the machine produced 282 good blanks versus 256 good blanks from a conventional press—a 10.2% improvement. For converters who run mixed short and long orders, the weighted average across a full shift consistently exceeds 15% when job sequencing is optimized to minimize die board cleaning intervals.

Real Operational Considerations Beyond the Percentage

While the waste-reduction figure is compelling, buyers should also evaluate:

• Energy consumption – The servo system uses 30% less power than hydraulic equivalents.

• Die board cost – Precision-ground dies cost 15–20% more, but the payback period is under 6 months given the material savings.

• Operator training – Adewo provides a 2-day on-site program covering register calibration, creasing profile editing, and maintenance scheduling.

The Multi Points Glued Cartons Die Boards Auto Creasing Cutting Machine is not a drop-in replacement for every shop. It delivers maximum value when your board grades vary frequently, your order mix includes multiple flap styles, and your current waste rate exceeds 7%. Under those conditions, a 15% waste reduction is not just achievable—it is reliably repeatable.

Ready to Measure Your Actual Waste Reduction?

Every carton plant has unique variables—board quality, humidity, die condition, and operator skill. General benchmarks are useful, but nothing replaces a site-specific waste audit. Adewo offers a free, no-obligation production analysis where we run your actual boards and die designs on our demo Multi Points Glued Cartons Die Boards Auto Creasing Cutting Machine, comparing the waste output against your current press.

Contact us today to schedule your waste-assessment trial. Our engineering team will deliver a customized ROI report within 48 hours, showing exactly how much material—and budget—you can save. Reach out via our website or email your production parameters to our technical sales desk. Let’s turn waste into working capital, one precisely creased carton at a time.
