Can a universal Fermented Bean Curd Brine Pouring Machine adapt to different jar sizes from 100g to 500g without major reconfiguration
2026-10-15

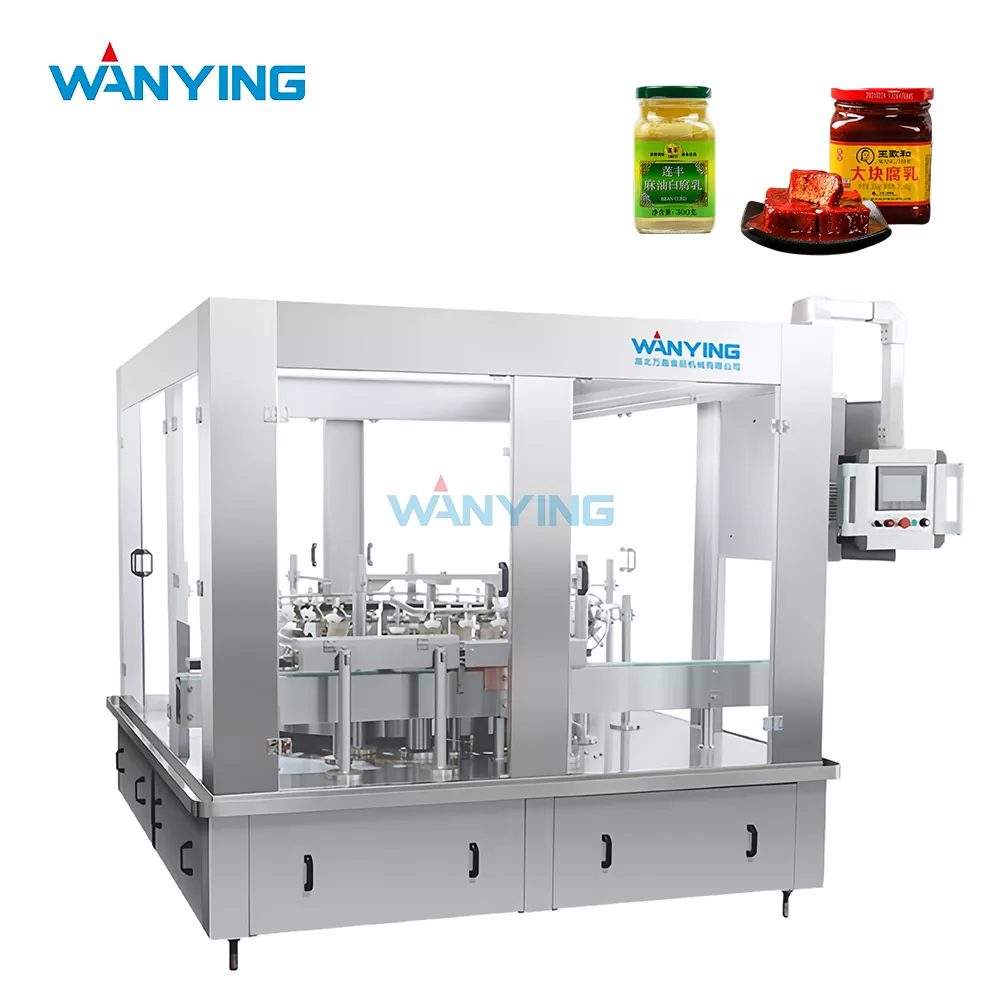

For fermented bean curd food manufacturers that run multiple product lines with different packaging specifications, frequent full equipment reconfiguration for different jar sizes will lead to long unplanned downtime, high labor adjustment costs and unstable production rhythm, and Wanying as a professional fermented food processing equipment manufacturer has 12 years of on-site production line optimization experience for traditional fermented product factories. The Fermented Bean Curd Brine Pouring Machine is a core unit that directly determines the final product filling consistency and food safety compliance, and its multi-specification adaptability has become one of the top selection criteria for small and medium-sized food processing enterprises. This article breaks down verified field test data and practical adjustment guidelines, proving that a properly designed universal model can seamlessly cover all common jar sizes in this range without major disassembly or reconfiguration.
Adaptation Performance Benchmark
Based on Wanying’s long-term on-site operation data, the table below lists the filling performance of a universal Fermented Bean Curd Brine Pouring Machine for different jar sizes without major reconfiguration:
| Jar Specification | Required Adjustment Time | Filling Accuracy | Maximum Hourly Output |
|---|---|---|---|
| 100g small glass jar | ≤ 5 minutes | ± 2% | 1800 jars |
| 250g standard glass jar | ≤ 3 minutes | ± 1.5% | 1500 jars |
| 500g large glass jar | ≤ 7 minutes | ± 2% | 1200 jars |
Core Quick Adaptation Guidelines
- Filling nozzle height electric adjustment: The servo-driven lifting mechanism of the universal Fermented Bean Curd Brine Pouring Machine can adjust the nozzle position up and down within a 200mm stroke, to perfectly match the different opening heights of 100g to 500g jars, completely eliminating brine splashing and overflow.
- Conveyor card position quick changeover: The side guiding rails on the conveyor belt only need to be loosened with two hand-turn knobs, no tools required, to adjust the channel width to fit different jar diameters, and the whole process takes no more than 2 minutes.
- Filling parameter one-click recall: The built-in touch screen control system of the Fermented Bean Curd Brine Pouring Machine can store 20 sets of pre-calibrated filling volume and speed parameters for different jar sizes. Switching between different specifications only needs to tap the corresponding preset recipe, no recalibration is required.
- No quick-release mold replacement: The universal filling valve is designed with a wide flow channel that can automatically adapt to different brine flow rates for different jar capacities, and no need to replace any valve body parts when switching between 100g to 500g jars.
Fermented Bean Curd Brine Pouring Machine FAQ
Q: What negative consequences will happen if the filling nozzle height is not adjusted properly when switching to 100g small jars?
A: If the nozzle is too high from the jar mouth, the brine flow will splash out of the small jar, leading to inconsistent net content of the finished product, sticky jar surface and even brine waste, which will increase the subsequent labeling difficulty and product defect rate.
Q: Can this universal Fermented Bean Curd Brine Pouring Machine handle seasoned brine with large chili particles and spice residues when switching between different jar sizes?
A: Yes. The wide-flow anti-clogging filling valve specially designed by Wanying can smoothly pass particles up to 8mm in diameter, and the flow rate will automatically adjust according to the preset filling parameters for different jar sizes, without causing particle accumulation or blockage during specification switching.
Q: Does switching between different jar sizes affect the food safety sanitation state of the equipment?
A: No. All quick adjustment parts are made of food-grade 304 stainless steel with no dead corner design. After switching specifications, operators only need to run one automatic CIP cleaning cycle to meet the food sanitation requirements, no disassembly of parts is needed.
As a fermented food processing equipment brand focused on practical production efficiency, Wanying equips every universal Fermented Bean Curd Brine Pouring Machine with 10 sets of pre-calibrated jar size recipes and a 2-year free on-site adjustment service. Contact us today to get a free customized production line layout solution and equipment test report, to help your factory realize fast switching between multiple product specifications with zero major reconfiguration.
