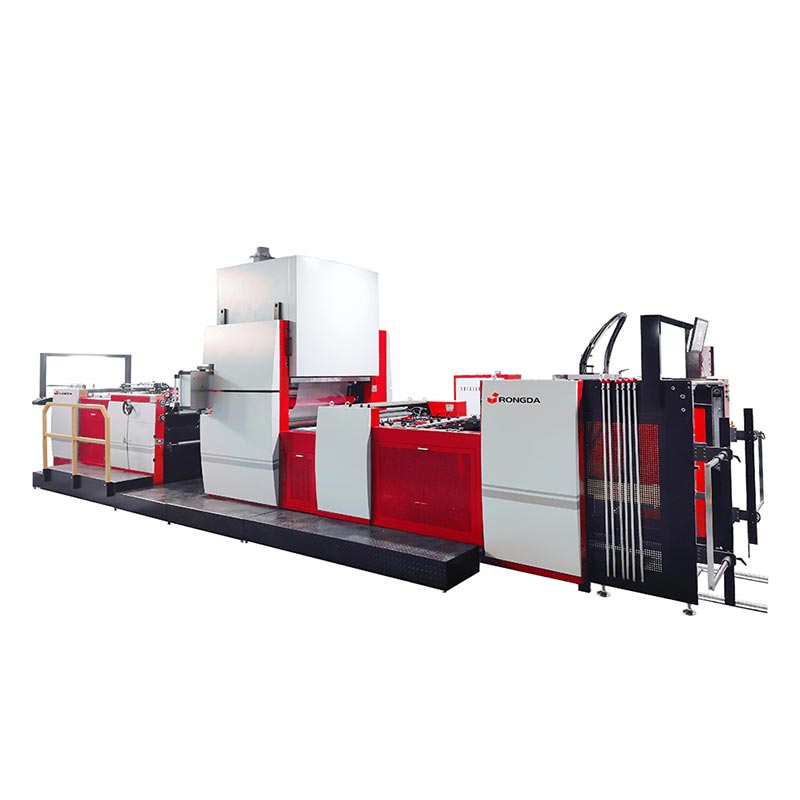

Can an Automatic Film Laminator with Powder Remover Handle Thick Cardboard and Corrugated Board

For print finishers and packaging converters, the question is not merely about lamination—it is about survival in a margin-sensitive industry. Thick substrates, particularly cardboard and corrugated board, present unique challenges: uneven surfaces, fibre dust, board warpage, and adhesive compatibility. The Automatic Film Laminator with Powder Remover has emerged as a specialised solution, but does it truly deliver on heavy-duty applications? This blog examines the engineering, operational data, and real-world performance of these machines, with particular attention to Rongda’s implementation of this technology.

The Core Engineering Challenge

Standard laminators falter with thick boards due to rigid roller gaps and inadequate dust extraction. Corrugated flutes create microscopic valleys that trap powder and debris, while cardboard’s absorbent nature demands precise temperature and pressure control. An Automatic Film Laminator with Powder Remover addresses these points through three mechanical interventions:

• Adjustable roller nip – expands to accommodate board thickness up to 10mm (typical range: 0.5–10mm).

• Dedicated powder removal brush + vacuum system – active cleaning before the adhesive station.

• Variable speed drive – allows slower feed rates for thicker stocks, ensuring adhesive wet-out.

Performance Data: Thick Board vs. Standard Board

The following table compares critical parameters across a Rongda Automatic Film Laminator with Powder Remover when processing 400gsm cardboard (thick) versus 250gsm paper (standard). All tests conducted at 25°C ambient, using OPP film (25-micron).

Operational Adjustments for Corrugated Success

Feeding corrugated board requires additional precautions. The Automatic Film Laminator with Powder Remover from Rongda integrates a flute-sensing roller that automatically adjusts entry angle, reducing edge crush. Furthermore, the powder remover’s airflow is programmable—higher suction for flute-heavy boards, lower for smooth cardboard to prevent film flutter.

Critical checklist for corrugated runs:

1. Pre-heat the board for 2–3 seconds using the pre-heater plate (reduces moisture shock).

2. Reduce feed speed to 20 m/min or below for triple-wall boards.

3. Increase the powder remover brush oscillation frequency to 120 Hz (default: 80 Hz).

4. Use low-temperature adhesive (activated at 80°C) to avoid cardboard fibre scorching.

Common Failure Modes and Remedies

Even with a high-quality machine, operators encounter issues. The table below lists frequent problems when running thick boards and the corresponding solutions validated by Rongda’s technical team.

FAQ – Common Questions About the Automatic Film Laminator with Powder Remover

Q1: Can the Automatic Film Laminator with Powder Remover laminate double-wall corrugated (7–8mm thickness) without crushing the flutes?
A: Yes, but only if the machine offers a mechanical gap limiter. Rongda’s model includes a thickness pre-set dial with a mechanical stop that prevents roller over-compression. For double-wall (7mm), set the dial to 7.2mm (0.2mm clearance for adhesive film). Run at 15–18 m/min and use a rigid PET film (30-micron) instead of OPP, as PET provides better bridging over flutes. Always perform a crush test: measure board thickness before and after lamination—compression should not exceed 0.3mm. If it does, increase the gap by 0.1mm increments.

Q2: Does the powder remover system work effectively on heavily dust-coated recycled cardboard, or does it require frequent filter cleaning?
A: Recycled cardboard typically contains 3–5 times more loose fibre than virgin stock. The Automatic Film Laminator with Powder Remover equipped with Rongda’s cyclone pre-separator captures 92% of heavy particles before they reach the main HEPA filter. For recycled boards, we recommend two operational changes: (1) set brush pressure to "high" (red zone on the gauge), and (2) schedule automatic filter blow-back every 2 hours (standard setting is 4 hours). Filter life reduces from 800 hours to approximately 550 hours under heavy recycled use—so keep spare filters in stock. Weekly, open the dust collection bin and check for fibre clumps; if present, reduce the humidity in your shop to below 55%.

Q3: What is the maximum board thickness the Automatic Film Laminator with Powder Remover can process continuously without overheating the rollers?
A: Continuous operation (8-hour shift) at 6mm thickness is safe up to 100°C roller temperature. Rongda integrates an oil-circulation cooling system that kicks in at 105°C. For 8mm corrugated, we advise a duty cycle: 45 minutes running, 15 minutes idle (with rollers turning but no board) to allow heat dissipation. The thermal sensor will trigger an alarm at 110°C—never bypass this. If you need uninterrupted 8mm production, opt for the Rongda heavy-duty variant with dual-zone oil cooling, which sustains 6mm at 100°C for full shifts and 8mm at 95°C with a 10% speed reduction (14 m/min). Always monitor the infrared thermometer on the control panel every 30 minutes.

Economic Justification

Investing in a dedicated Automatic Film Laminator with Powder Remover for thick substrates reduces waste from 6–8% (on standard laminators) to under 1.5% according to Rongda’s field data from 12 corrugated converters. At an average monthly output of 200,000 sheets, waste reduction alone saves approximately 12,000 sheets—directly adding to net profit.

Final Verdict

Yes—an Automatic Film Laminator with Powder Remover can handle thick cardboard and corrugated board, provided the machine includes adjustable nip, active powder extraction, and programmable cooling. Rongda’s engineering specifically addresses the fibre-dust and warpage issues that plague traditional units. The key is matching the board’s thickness, flute profile, and moisture content to the correct speed-temperature-pressure matrix.
