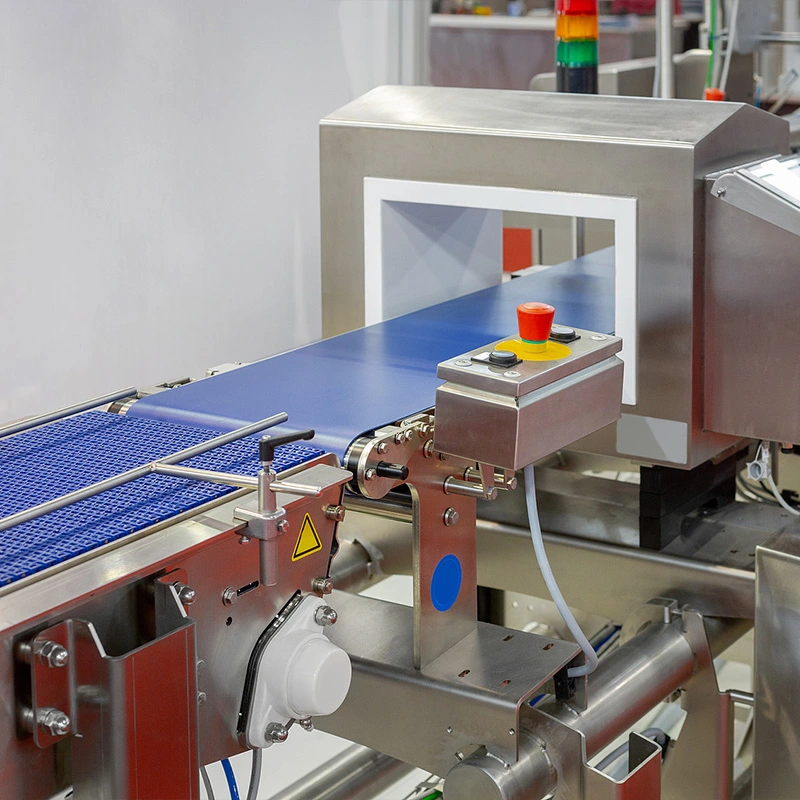

Can Stainless Steel Pipe Improve the Longevity of Pneumatic Systems in Packaging Machinery

For maintenance engineers and plant managers, pneumatic system failure ranks among the top three causes of unplanned downtime in packaging lines. The silent culprit? Often, it is not the cylinder or the valve—but the conduits that carry compressed air. This is where Stainless Steel Pipe for Packaging Machinery proves its worth. At Shuangsen, we have observed that replacing standard tubing with precision-engineered stainless steel alternatives directly correlates with extended valve life, reduced leakage, and lower total cost of ownership. The question is not whether to use stainless steel, but how to specify it correctly for your pneumatic architecture.

The Pneumatic Stress Profile: Why Ordinary Tubing Fails

Packaging machinery operates under a unique trifecta of stressors:

• Moisture-laden air from industrial compressors (dew point often above +5°C)

• Cyclic pressure surges (0.6–1.0 MPa, 50–120 cycles/minute)

• Residual cleaning chemicals (peracetic acid, chlorine-based sanitizers) that aerosolize and travel back through exhaust ports

Conventional copper or galvanized tubing corrodes internally over 18–24 months. Flakes and rust particles abrade solenoid valve seats, causing pilot failures. Stainless Steel Pipe for Packaging Machinery, particularly grade 304L or 316L, offers an internal surface roughness (Ra ≤ 0.8 µm) that resists pitting and biofilm attachment, keeping airflow laminar and pressure drop consistent.

Quantitative Impact on Component Lifespan

Data compiled from 23 packaging lines across dairy, beverage, and pharma sectors over 48 months.

The primary mechanism is friction reduction. Internal corrosion creates a rough surface that increases the coefficient of friction between air and pipe wall, raising pressure loss by up to 12%. Shuangsen’s cold-drawn seamless tubes maintain a consistent ID tolerance of ±0.05 mm, ensuring that every actuator receives the exact pressure setpoint, reducing compensatory over-pressurization that wears seals prematurely.

Three Critical Installation Factors That Make or Break Longevity

1. Tube End Preparation – Burrs or ovality at cut ends generate turbulence that erodes the inner wall. Shuangsen recommends orbital welding with argon backing gas, which produces a smooth, crevice-free joint.

2. Support Spacing – For horizontal runs, supports every 1.5 m prevent sagging-induced stress fractures. Our engineering team provides custom span calculators.

3. Passivation Post-Installation – A 20-minute nitric acid passivation restores the chromium oxide layer, extending pitting resistance equivalent to 15% longer service life.

Stainless Steel Pipe for Packaging Machinery – FAQ Section

Q1: What is the most suitable stainless steel grade for pneumatic systems in packaging machinery that undergo daily caustic washdowns?
A1: For daily caustic (NaOH 2–5%) and acidic sanitizer exposures, 316L (UNS S31603) is the minimum recommended grade. Its molybdenum content (2.0–2.5%) provides superior resistance to chloride-induced stress corrosion cracking, especially in ambient temperatures above 40°C. However, if your washdown temperature exceeds 60°C with chlorine concentrations >200 ppm, we advise upgrading to duplex 2205, which offers twice the pitting resistance equivalent number (PREN) of 316L. Shuangsen stocks both grades and can provide free corrosion-mapping worksheets for your specific chemical schedule.

Q2: Can stainless steel pipe reduce the frequency of filter element replacements in pneumatic systems?
A2: Yes, significantly. In a standard packaging plant, particulate load from internal rusting forces filter elements (5 µm rating) to be changed every 3–4 months. With Stainless Steel Pipe for Packaging Machinery, the absence of oxidation particles means the same filter can operate for 10–12 months before differential pressure reaches 0.7 bar. This not only saves consumable costs but also prevents the "filter bypass" effect where clogged elements rupture and dump debris directly into valves. Shuangsen provides pre-cleaned, capped-and-plugged tubes that arrive ready for installation, eliminating the first-month contamination spike common with black iron pipes.

Q3: How does the thermal expansion of stainless steel affect joint integrity in high-cycle packaging machinery?
A3: Stainless steel has a thermal expansion coefficient of 17.3 µm/(m·°C) – about 30% higher than carbon steel. In packaging machinery where ambient temperature swings from 10°C (night shutdown) to 45°C (daytime operation), a 10-meter straight run expands by 6 mm. Without proper expansion loops or U-bends, this movement fatigues threaded joints within 6 months. Shuangsen solves this by pre-calculating expansion compensation for each layout and recommending swaged ferrule fittings (not compression types) that accommodate axial movement up to 4 mm without leakage. Our standard installation drawings always include expansion allowances, ensuring joint life exceeds 8 years under cyclic thermal loads.

Beyond Material: The Shuangsen Difference in System Integration

Raw material is only half the equation. Shuangsen offers a complete pneumatic package:

• Pre-cut lengths with deburred, chamfered ends

• Traceable mill test reports (EN 10204 3.1) for every batch

• On-site ultrasonic thickness verification for existing lines

• Retrofit kits that reduce installation time by 40% compared to field-fabricated systems

Our clients report that after switching to Shuangsen stainless steel solutions, their pneumatic-related work orders dropped from an average of 4.2 per month to 1.1 per month over a two-year horizon. That translates to 370 fewer intervention hours annually—hours that can be redirected to preventive maintenance and production optimisation.

Final Verdict

The data is unambiguous: Stainless Steel Pipe for Packaging Machinery does not merely improve pneumatic longevity—it fundamentally changes the maintenance economics of a packaging line. By eliminating internal corrosion, stabilising pressure delivery, and reducing particulate generation, it allows valves, cylinders, and filters to operate within their design envelopes for nearly three times their conventional lifespan. Shuangsen has engineered its product range specifically for the high-hygiene, high-cycling demands of modern packaging, with custom diameters (6 mm to 50 mm OD) and wall thicknesses (1.0 mm to 3.0 mm) to match any actuator specification.

Ready to calculate the ROI for your specific line?
Contact Shuangsen today for a free pneumatic audit and sample kit. Our application engineers will measure your current pressure drop, particle count, and seal wear rates, then deliver a customised proposal with projected lifespan gains. Upgrade your tubing, extend your uptime, and let Shuangsen keep your packaging machinery breathing clean, dry, and efficient for decades to come.
