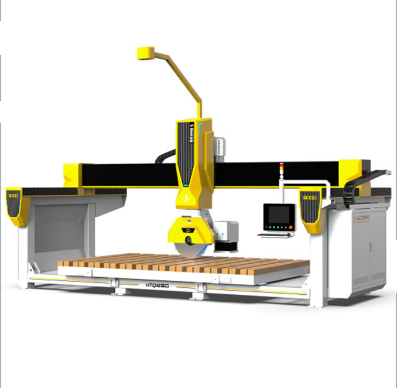

The CNC 5 Axis Bridge Saw is revolutionizing the way fabricators and stone workers approach complex cutting and shaping tasks. Designed to combine advanced computer numerical control with 5-axis movement, this saw delivers unmatched precision, efficiency, and versatility. Whether you're working with granite, marble, quartz, or engineered stone, a CNC 5 Axis Bridge Saw enhances productivity and reduces human error in even the most intricate cutting jobs.

Why Choose a CNC 5 Axis Bridge Saw?

Fabricators today are no longer limited by straight lines and simple angles. With the CNC 5 Axis Bridge Saw, users can execute cuts at any angle and direction, follow complex geometries, and automate repeatable patterns. This results in significant time savings, reduced material waste, and consistent high-quality output.

Key applications include:

• Countertop fabrication

• Sink and stove cutouts

• Edge shaping

• Miter cuts

• Artistic and architectural stone elements

Technical Parameters of CNC 5 Axis Bridge Saw

Below is a breakdown of the key technical specifications that define the performance and capabilities of a standard CNC 5 Axis Bridge Saw:

Core Features

Here are the standout features that make the CNC 5 Axis Bridge Saw a smart investment for professional stone workshops:

• 5 Axis Cutting Capability: Offers multi-dimensional precision for angled and curved cuts.

• Automatic Tool Path Programming: Reduces setup time and eliminates guesswork.

• High-Strength Bridge Structure: Ensures vibration-free and accurate cutting.

• Tiltable & Rotatable Table: For easy slab positioning and complex cuts.

• Intuitive User Interface: CNC software with simple touchscreen navigation.

• Remote Diagnostics & Updates: Easy software management and support.

• Laser Alignment System: Assists in accurate blade positioning before cutting.

Benefits of Using CNC 5 Axis Bridge Saw

• Versatility: Perfect for custom kitchens, bathrooms, and commercial stone jobs.

• Labor Reduction: Automated functions reduce the need for manual labor.

• Precision: Achieves a tolerance of less than 0.1 mm per cut.

• Material Optimization: Maximize yield from each slab with optimized nesting.

• Cost Efficiency: Less waste and labor mean better ROI for fabricators.

• Safety: Fully enclosed cutting zones and emergency stop systems protect operators.

Recommended Industries & Use Cases

The CNC 5 Axis Bridge Saw is suited for a variety of sectors:

• Stone countertop fabrication companies

• Construction firms handling architectural stone

• Funeral and memorial product manufacturers

• Monumental stone artisans

• Tile production workshops

Detailed Component Overview

To give further clarity on how the machine functions, here's a detailed list of major components:

Key Components List:

• Spindle Motor – 15kW with inverter for variable speeds

• Hydraulic Tilting Table – Adjustable for easier material handling

• Industrial CNC Controller – Windows/Linux based with PLC integration

• Linear Guide Rails – German-made rails for all axis movements

• Blade Housing Unit – Heavy-duty, water-cooled, corrosion resistant

• Lubrication System – Automatic centralized greasing

• Safety Shield – Full protective enclosure with sensors

CNC 5 Axis Bridge Saw FAQs

Q1: What is the advantage of 5-axis movement over traditional 3-axis saws?
A1: The main benefit of 5-axis movement is its ability to execute highly complex and curved cuts without repositioning the slab. This includes undercuts, sink openings, and compound angles, which are not possible on 3-axis machines. It saves time and ensures higher precision by maintaining the integrity of the material in a single setup.

Q2: How difficult is it to operate a CNC 5 Axis Bridge Saw?
A2: Operating the CNC 5 Axis Bridge Saw is user-friendly, thanks to its intuitive touchscreen and preloaded cutting programs. Most models come with training modules and DXF file compatibility. After basic training, most operators can create advanced cuts with ease, even without extensive programming knowledge.

Q3: What kind of maintenance does the CNC 5 Axis Bridge Saw require?
A3: Routine maintenance includes daily cleaning of the blade area, weekly checks of guide rails and bearings, monthly lubrication, and software updates. The machine is designed for durability and features self-diagnostic alerts to notify the operator of maintenance needs. This proactive design minimizes downtime and extends machine life.

Why Partner With Us?

We are a specialized manufacturer of CNC 5 Axis Bridge Saw equipment with decades of experience in designing stone fabrication machinery. Our machines are engineered with European-grade components, backed by reliable after-sales service, and built to comply with international safety and performance standards.

What we offer:

• Full installation and training

• Remote technical support

• Spare parts readily available

• Customized machine options for different stone types

Testimonials From Our Clients

"We upgraded to the CNC 5 Axis Bridge Saw last year, and it's been a game-changer for our stone fabrication business. The cut quality and automation have drastically improved our efficiency."
– Thomas M., Fabricator in Arizona

"The 5-axis movement allowed us to take on more creative and architectural projects. Our clients love the clean edges and perfect miters."
– Elena R., Designer in New York

Final Thoughts

For fabricators looking to take their stone processing capabilities to the next level, investing in a CNC 5 Axis Bridge Saw is a clear choice. It offers precision, speed, flexibility, and control that older systems can't match. Whether you run a small workshop or a large-scale operation, this powerful tool will redefine how you cut and shape stone materials.

Explore our range of CNC 5 Axis Bridge Saw models today, and transform your production line into a high-performance powerhouse.
