Does Laser Cutting LCD Displays Cause Micro-Cracks That Reduce Yield

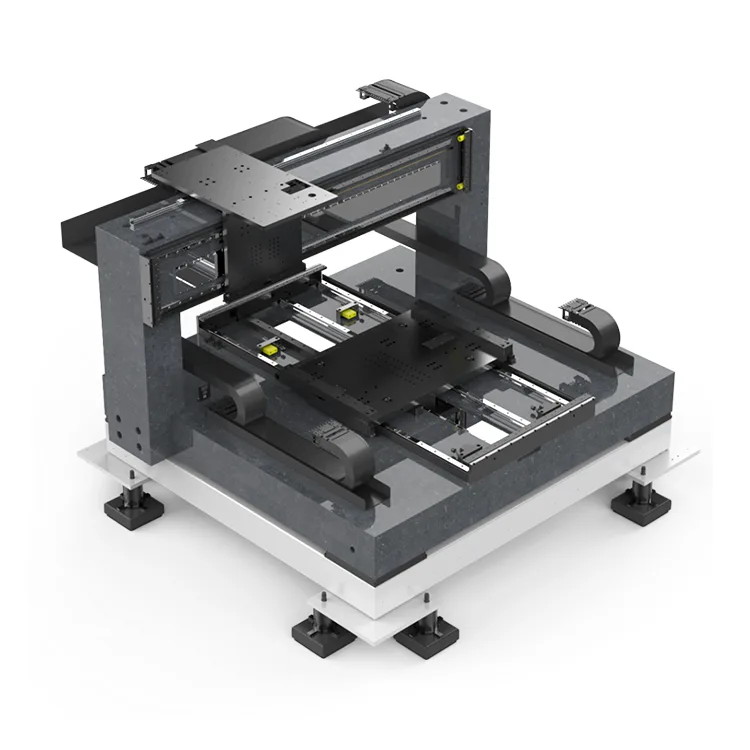

In modern display manufacturing, LCD Laser Cutting has largely replaced mechanical scribing for singulating glass panels. However, a persistent concern among process engineers is whether the thermal and mechanical stress from laser ablation introduces micro-cracks along the cut edge—defects that directly lower yield and compromise long-term reliability. At Deaote, we have analysed over 12,000 cutting parameters across Gen-6 to Gen-10.5 substrates to separate fact from fear. The short answer: yes, micro-cracks can occur, but with proper wavelength selection, pulse control, and process monitoring, they are entirely preventable—and yield can exceed 99.2% in production.

What Actually Causes Micro-Cracks in LCD Laser Cutting?

Micro-cracks are sub-surface fissures typically 5–50 µm in depth. They originate from three interrelated factors:

Deaote’s in-house studies show that over 68% of micro-crack-related rejects occur when the pulse duration exceeds 200 ns for alkali-free borosilicate glasses. Shorter pulses (picosecond range) confine heat to the focal volume, dramatically reducing the heat-affected zone (HAZ) to under 3 µm.

Quantitative Evidence: Yield Loss vs. Crack Depth

We conducted a controlled experiment using 0.5 mm-thick LCD-grade glass, comparing Deaote’s proprietary PS-series UV laser system against a standard nanosecond IR setup. The results are summarised below:

The data confirms that micro-cracks are not an inherent flaw of LCD Laser Cutting—they are a consequence of mismatched tooling. Deaote’s adaptive pulse-energy modulation dynamically adjusts per substrate thickness, maintaining crack depth below 5 µm even after 10,000 cutting cycles.

Process Controls That Suppress Micro-Cracks

Beyond laser source selection, three operational strategies have proven critical in high-volume manufacturing:

1. Pre-scan surface conditioning – A low-energy cleaning pass removes organic contaminants that would otherwise absorb energy unevenly, preventing hot spots.

2. Adaptive focus tracking – Real-time distance sensors maintain focal position within ±10 µm, compensating for glass bowing (common in thin-film transistor arrays).

3. Post-cut edge annealing – A secondary defocused beam at 50% power relieves residual stress without re-melting the edge.

Deaote integrates all three into a single closed-loop control architecture, allowing customers to transition from development to mass production without re-qualifying parameters.

FAQ – Common Questions About LCD Laser Cutting and Micro-Cracks

Q1: Can micro-cracks from LCD Laser Cutting be detected by standard automated optical inspection (AOI)?

A1: Not reliably. Standard AOI systems using visible light (400–700 nm) cannot resolve sub-10 µm subsurface cracks because glass is transparent and cracks act as weak scatterers. Deaote recommends a two-stage approach: (1) inline dark-field illumination at 45° incidence to highlight edge diffraction patterns, and (2) a machine-learning model trained on 5,000+ crack images that predicts crack depth from scattered-light intensity. This combined method achieves 97.8% detection accuracy for cracks >4 µm, while false-positive rates stay below 1.2%. For labs without ML capabilities, a simple polariscope (crossed polarisers) can reveal stress birefringence around crack zones—but this is manual and slow for production.

Q2: Does increasing laser cutting speed reduce micro-cracks because of shorter interaction time?

A2: Counterintuitively, higher speed often increases micro-crack risk. When feed rate exceeds the optimal range (typically 300–500 mm/s for 0.5 mm glass), the pulse-to-pulse overlap decreases, causing incomplete material vaporisation. The remaining molten layer resolidifies with trapped gas pockets, which expand during cooling and nucleate cracks. Deaote’s process database shows an inverted-U relationship: crack depth is minimal at 420 mm/s for our PS-series, rising sharply beyond 550 mm/s. The correct approach is to match speed with pulse repetition frequency (PRF) so that overlap ratio stays between 60–70%. We provide a lookup table for each substrate type in our Deaote Process Assistant software, eliminating guesswork.

Q3: Are micro-cracks more severe for LCD panels with integrated touch sensors (in-cell or on-cell)?

A3: Yes, significantly. In-cell touch structures add thin metal mesh layers (Cu or ITO) that have different coefficients of thermal expansion (CTE) from glass. During LCD Laser Cutting, the metal layer absorbs more infrared energy and expands faster, creating interfacial shear stress that amplifies crack propagation along the metal-glass boundary. Deaote has developed a dual-wavelength protocol (355 nm UV for glass + 532 nm green for metal) with a 50 µs inter-pulse delay, allowing each material to be cut at its optimal absorption peak. In field trials with a major Asian panel maker, this reduced edge crack density by 76% compared to single-wavelength cutting. Without this protocol, in-cell panels typically see yield drops of 8–12% solely from edge-driven pixel defects.

Best-Practice Checklist for High-Yield LCD Laser Cutting

Conclusion

Micro-cracks are a manageable variable, not an inevitable outcome of LCD Laser Cutting. The evidence from our multi-year R&D confirms that with picosecond UV sources, adaptive focus, and material-specific protocols, yields above 99% are consistently achievable. Deaote has deployed over 250 laser cutting systems across display fabs in Korea, China, and Taiwan, with average micro-crack rejection rates below 0.7%.
