Article Summary: A plate heat exchanger (PHE) is designed to transfer heat between two fluids through a series of thin, corrugated metal plates. Its compact structure, large effective heat-transfer surface, counter-current flow arrangement, and relatively high heat-transfer performance make it suitable for HVAC, refrigeration, food processing, chemical processing, marine systems, district energy, power equipment, and many other industrial applications. However, achieving stable performance depends on more than simply choosing a larger exchanger. The fluid properties, thermal duty, flow rate, pressure drop, fouling tendency, plate material, gasket compatibility, operating temperature, pressure, maintenance requirements, and future capacity all need to be considered together.

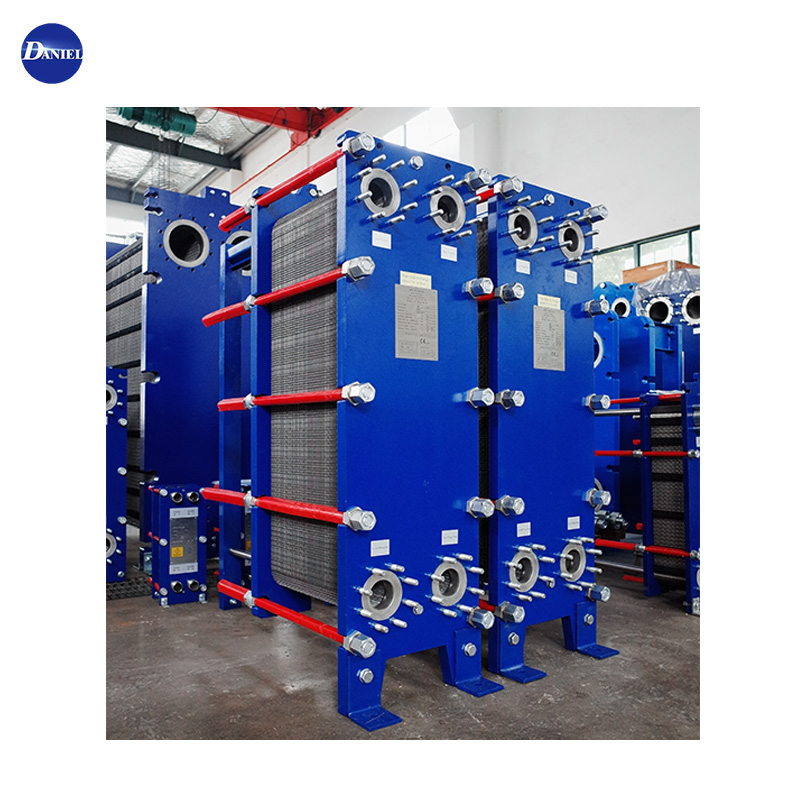

What Is a Plate Heat Exchanger?
A plate heat exchanger is a thermal device that transfers energy from one fluid to another without allowing the two fluids to mix. Instead of using a large cylindrical shell and tube bundle, a typical plate heat exchanger uses a stack of thin metal plates. Corrugations pressed into the plates create flow channels and increase turbulence, while gaskets, brazing, or welding separate the two fluid circuits.
In a conventional gasketed design, hot and cold fluids pass through alternating channels. Heat travels from the hot fluid, through the metal plate, and into the colder fluid. Because the fluids can be arranged in counter-current flow, the temperature difference can remain effective across much of the exchanger.
Compact Construction
Thin plates provide a large heat-transfer surface within a relatively small installation footprint, helping plants where equipment space is limited.
Efficient Heat Transfer
Corrugated channels promote fluid mixing and turbulence, supporting strong heat transfer while keeping the heat-transfer wall relatively thin.
Service Flexibility
Gasketed plate-and-frame units can be opened for inspection and cleaning, and their plate arrangement can often be modified as process requirements change.
Why Use a Plate Heat Exchanger for Industrial Systems?
Industrial heat-transfer equipment is rarely judged by heat-transfer capacity alone. Engineers and plant operators also need to consider floor space, pumping energy, maintenance access, cleaning frequency, process stability, fluid compatibility, and lifecycle cost.
A properly specified PHE can address several of these challenges at the same time. Its compact plate pack can provide substantial heat-transfer area without requiring the same physical arrangement as many traditional heat exchangers. For facilities with limited mechanical-room space, this can simplify equipment layout and installation.
Key advantages at a glance
- High heat-transfer intensity: Corrugated plates encourage turbulence and efficient thermal exchange.
- Compact footprint: A large effective surface can be packaged into a comparatively small volume.
- Close temperature approaches: Counter-current flow can support effective heat recovery and temperature control.
- Flexible configuration: Plate count, channel arrangement, plate pattern, and materials can be matched to the duty.
- Maintenance accessibility: Gasketed units can generally be opened for inspection and cleaning.
- Broad application range: PHE technology can be applied to water, glycol solutions, oils, process fluids, refrigerants, and other compatible media.
How the Heat Transfer Process Works
Understanding the flow path is essential when diagnosing performance problems or preparing a specification. In a typical gasketed plate heat exchanger, four port connections allow the two fluids to enter and leave the plate pack. The gasket arrangement directs each fluid into alternating channels.
The corrugated pattern creates a controlled flow path. As the fluids move through the narrow channels, turbulence helps reduce the thermal resistance near the plate surface. Heat is transferred through the metal plate while the gasket system maintains separation between the circuits.
Counter-current flow and temperature approach
Counter-current flow is commonly used because the hot fluid and cold fluid travel in opposite directions. This arrangement can maintain a useful temperature difference over a significant portion of the heat-transfer surface. For many industrial duties, that can help achieve the required outlet temperatures without unnecessarily increasing the exchanger footprint.
Thermal design normally considers the required heat duty, flow rates, inlet and outlet temperatures, fluid properties, allowable pressure drop, fouling allowance, and material compatibility. A practical specification should therefore contain actual operating data rather than relying only on a nominal capacity value.
How to Select a Plate Heat Exchanger
The most common purchasing problem is specifying a PHE from incomplete information. A supplier can provide a more meaningful design when the process data is clear and realistic. The following sequence provides a practical starting point.
Define the thermal duty
Establish the required heating or cooling duty, normally expressed as a heat load. Provide inlet and target outlet temperatures for both circuits whenever possible.
Confirm flow rates
Mass flow or volumetric flow affects channel velocity, heat-transfer performance, and pressure drop. Maximum, minimum, and normal flow conditions are useful for systems with variable demand.
Describe the fluids
Identify each medium and provide relevant concentration, viscosity, density, specific heat, solids content, and chemical characteristics. Water and glycol, for example, do not behave identically at the same temperature.
Set pressure and temperature limits
Design pressure and design temperature should be considered separately from normal operating conditions. The exchanger must be suitable for the complete expected operating envelope, including startup and shutdown conditions.
Define allowable pressure drop
Higher flow velocity can improve heat transfer but may increase pressure drop. The exchanger therefore needs to balance thermal performance against available pump or compressor head.
Evaluate fouling and cleaning requirements
If the process contains suspended solids, biological growth, scaling minerals, oils, or other deposits, channel geometry and cleaning strategy become particularly important.
Choose suitable plate and gasket materials
Material selection should be based on fluid chemistry, chloride exposure, temperature, pressure, corrosion risk, and the required service life. Gasket material must also be compatible with the process medium and temperature.
| Selection Parameter | Information to Provide | Why It Matters |
|---|---|---|
| Thermal duty | Heating/cooling load and target temperatures | Determines the required heat-transfer performance |
| Flow rate | Normal, minimum and maximum flow | Affects velocity, turbulence and pressure drop |
| Fluid properties | Viscosity, density, specific heat and composition | Influences thermal and hydraulic calculations |
| Pressure | Operating and design pressure | Defines mechanical requirements |
| Temperature | Operating and design temperatures | Influences material and gasket selection |
| Fouling | Scaling, solids, biological or oil deposits | Guides channel and maintenance strategy |
| Materials | Plate and gasket requirements | Helps prevent corrosion and sealing problems |
How Different PHE Designs Address Different Duties
“Plate heat exchanger” describes a family of technologies rather than a single construction. The most appropriate design depends on the application and operating envelope.
| PHE Type | Construction | Typical Strength | Considerations |
|---|---|---|---|
| Gasketed | Plates clamped in a frame with replaceable gaskets | Serviceability and configuration flexibility | Gaskets must suit temperature and fluid chemistry |
| Brazed | Metal plates permanently brazed together | Compact size and sealed construction | Not normally opened like a gasketed plate pack |
| Semi-welded | Selected plate channels welded while other sections use gaskets | Useful for specific aggressive or refrigeration duties | Application-specific engineering is required |
| Fully welded | Plate pack permanently welded | Higher-demand pressure, temperature or fluid applications | Cleaning and service methods differ from gasketed units |
For applications where regular inspection and mechanical cleaning are important, a gasketed plate-and-frame exchanger can provide useful service flexibility. For compact closed-loop duties, brazed construction may be appropriate. More demanding process conditions may call for welded or semi-welded technology.
How to Improve Thermal Performance and Reliability
When a plate heat exchanger does not reach its expected outlet temperature, replacing the entire unit is not always the first solution. Performance should be investigated systematically.
1. Check whether the actual flow matches the design
Reduced flow can change channel velocity and heat-transfer conditions. Excessive flow, on the other hand, can create unnecessary pressure loss. Comparing actual operating data with the original design point is a useful diagnostic step.
2. Monitor temperature differences
Record inlet and outlet temperatures on both sides. Changes in temperature approach can help identify fouling, insufficient flow, changes in process conditions, or problems elsewhere in the system.
3. Watch pressure drop
A rising pressure drop at a similar flow rate can indicate channel obstruction or deposits. A sudden change may also point to a valve, pump, control, or flow-distribution issue.
4. Control fouling before it becomes severe
Deposits add thermal resistance and can reduce the effective flow area. The best cleaning interval depends on the fluid, temperature, operating hours, water quality, process conditions, and historical performance.
5. Protect the exchanger from unsuitable solids
Plate channels can be relatively narrow. If the process contains significant particles, filtration, strainers, wider-gap configurations, or another suitable heat-transfer technology may need to be considered.
How Maintenance Helps Prevent Unexpected Downtime
Maintenance should be treated as part of the original exchanger specification rather than an afterthought. A unit that is easy to clean but impossible to access within the plant layout is not genuinely maintenance-friendly.
Practical maintenance checklist
- Record inlet and outlet temperatures during normal operation.
- Monitor pressure drop on both circuits where instrumentation permits.
- Investigate abnormal changes rather than waiting for complete performance loss.
- Inspect gaskets and plate surfaces during scheduled opening of gasketed units.
- Use cleaning chemicals compatible with the plate and gasket materials.
- Follow appropriate cleaning concentration, temperature, circulation and flushing procedures.
- Check tightening dimensions and assembly procedures after maintenance according to the manufacturer's instructions.
- Keep records of cleaning dates, operating conditions, replaced gaskets and damaged plates.
For a gasketed PHE, gasket condition is especially important. Incorrect gasket material, installation damage, over-compression, under-compression, thermal cycling, or chemical incompatibility can contribute to leakage and shortened service life.
Maintenance requirements also depend on construction. Brazed and welded units generally require cleaning methods that are different from an openable gasketed frame. The service strategy should therefore be considered before purchase.
Where Are Plate Heat Exchangers Commonly Used?
PHEs are used wherever controlled heat transfer between two fluids is required. Their compact construction and flexible configuration make them suitable for both utility systems and process equipment.
HVAC & Building Services
Heating water, chilled-water circuits, heat recovery, district heating interfaces, cooling systems and secondary loops.
Food & Beverage
Product heating and cooling, process water, cleaning systems and other applications where controlled thermal processing is required.
Refrigeration
Water, glycol and other secondary circuits can use compact plate exchangers for cooling and heat-recovery duties.
Chemical Processing
Process heating and cooling can be designed around suitable plate alloys, channel configurations and sealing materials.
Marine Systems
Compact heat-transfer equipment can help manage engine cooling, central cooling and other marine thermal loads where equipment space is valuable.
Industrial Energy Systems
Heat recovery, oil cooling, closed-loop cooling and process temperature control can benefit from compact plate-based heat transfer.
Common Selection Mistakes to Avoid
Many PHE problems can be traced back to incomplete process information rather than a fundamental limitation of the technology. The following mistakes are particularly worth avoiding.
- Choosing only by nominal heat-transfer area. Area is important, but thermal duty, flow arrangement, fluid properties and pressure drop must also be evaluated.
- Ignoring the minimum operating condition. A system may perform well at maximum flow but behave differently during low-load operation.
- Using unsuitable gasket material. Gasket selection must match the actual fluid and temperature conditions.
- Underestimating fouling. A theoretically efficient design may lose performance quickly if deposits are not included in the engineering assessment.
- Leaving no maintenance space. Gasketed plate packs need sufficient clearance for opening, inspection and service.
- Providing incomplete fluid information. “Water” or “oil” may not be enough. Concentration, temperature, viscosity and contamination can materially affect the design.
- Ignoring future capacity changes. If production is expected to increase, discuss expansion requirements before finalizing the exchanger configuration.
Frequently Asked Questions
What is the main purpose of a plate heat exchanger?
Its main purpose is to transfer heat between two separate fluid circuits while keeping the fluids physically separated. The heat passes through the metal plates between the channels.
Why are corrugated plates used in a PHE?
Corrugations create the channel geometry and promote turbulence. This helps improve interaction between the fluid and the heat-transfer surface while also providing mechanical support between adjacent plates.
What information is needed to size a plate heat exchanger?
Important information normally includes heat duty, inlet and outlet temperatures, flow rates, fluid properties, operating and design pressure, operating and design temperature, allowable pressure drop, fouling characteristics, and material requirements.
What is the difference between gasketed and brazed plate heat exchangers?
A gasketed plate heat exchanger uses a clamped plate pack with replaceable gaskets and can generally be opened for inspection and cleaning. A brazed plate heat exchanger has plates permanently bonded by brazing and is typically more compact but not designed for routine opening like a gasketed unit.
How can fouling affect plate heat exchanger performance?
Fouling can create an additional thermal resistance layer and reduce the effective flow area. As deposits accumulate, heat-transfer performance may decrease while pressure drop increases.
Can a plate heat exchanger handle corrosive fluids?
It can be suitable for many corrosive-fluid applications when the plate alloy, gasket material, construction type and operating conditions are correctly selected. Material compatibility must be evaluated for the specific chemistry rather than assumed from the exchanger category alone.
How often should a plate heat exchanger be cleaned?
There is no universal cleaning interval. The appropriate frequency depends on fluid cleanliness, scaling tendency, operating temperature, water quality, duty cycle and actual changes in temperature performance or pressure drop. Monitoring operating data is a practical way to establish a maintenance interval.
Can a gasketed plate heat exchanger be expanded later?
Many gasketed plate-and-frame designs allow the plate pack to be reconfigured or expanded, subject to the frame, connections, pressure rating and manufacturer's engineering limits. If future expansion is expected, it should be discussed during the original design stage.
What makes a plate heat exchanger suitable for industrial use?
Suitability depends on matching the exchanger to the complete process envelope. Thermal duty, pressure drop, fluid compatibility, temperature, pressure, fouling, materials, cleanability, installation space and maintenance requirements should all be considered together.
A Practical Way to Start Your PHE Project
If you are replacing an existing heat exchanger or designing a new process system, start with the real operating conditions instead of a generic equipment model. Gather the fluid information, flow rates, temperatures, pressure limits, required heat duty and allowable pressure drop. Then discuss fouling, cleaning, material compatibility and future operating changes.
Jiangyin Daniel Cooler Co., Ltd. provides plate heat exchanger solutions for industrial heat-transfer requirements. A detailed process specification allows the engineering team to assess the appropriate construction, plate configuration, materials and operating parameters for the application.
Whether the requirement involves industrial cooling, heating, process temperature control, heat recovery, HVAC, refrigeration or another thermal application, the objective should be the same: achieve stable heat transfer while maintaining manageable pressure drop, serviceability and long-term operating reliability.
