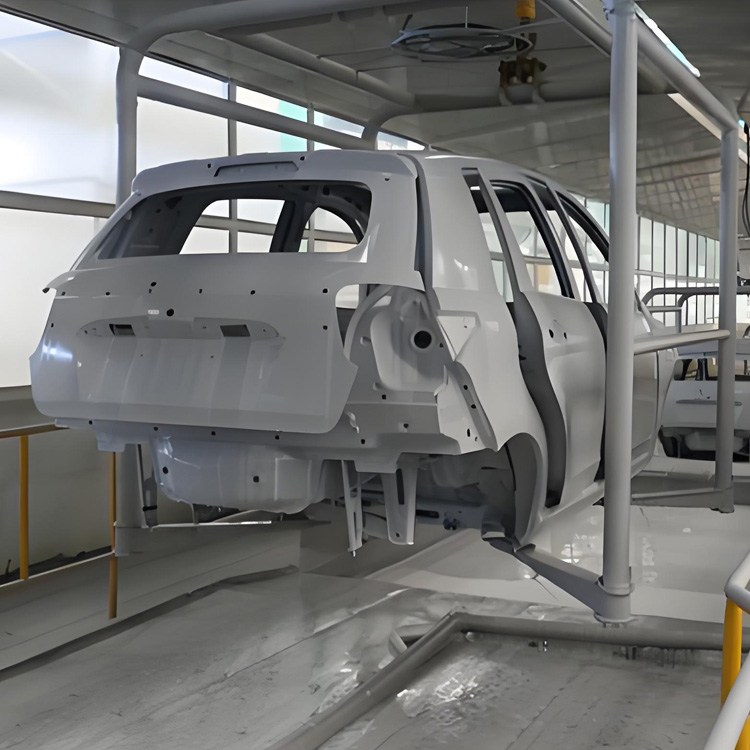

What Is an Automobile Electrophoresis Production Line?

An automobile electrophoresis production line is an industrial coating system that uses an electric field to deposit paint particles onto conductive surfaces. The process is widely associated with automotive corrosion protection, particularly for vehicle bodies, chassis components, and selected metal parts that require consistent protective coverage.

Electrophoretic coating is also known as electrodeposition coating or e-coating. Unlike conventional spray painting, which applies paint through a spray gun, electrodeposition places a conductive workpiece in a specially formulated coating bath. An electrical potential drives the deposition process, allowing coating material to form on accessible surfaces, including many recessed areas that are difficult to coat uniformly with conventional spraying alone.

A complete production line typically integrates pretreatment equipment, an electrophoresis tank, a power supply, circulation and filtration systems, rinsing stations, a curing oven, conveyors, and an industrial control system. The exact arrangement depends on the workpiece dimensions, material, required coating performance, production volume, and available factory space.

For automotive manufacturers, the main objective is not simply to apply paint. It is to establish a repeatable process that supports adhesion, corrosion resistance, coating uniformity, and stable production output.

How Does Electrophoretic Coating Work?

The process relies on the movement and deposition of electrically charged coating particles in a liquid medium. In a typical automotive cathodic electrocoat system, the workpiece acts as the cathode, while an appropriate anode system completes the electrical circuit.

When direct current is applied, charged resin and pigment particles migrate toward the oppositely charged workpiece. Electrochemical reactions at the surface cause the coating material to deposit and form a film. As the film builds, its electrical resistance increases, helping the deposition process become self-limiting under suitable operating conditions.

Key Factors That Affect Deposition

• Voltage and current: Influence deposition behavior and must remain within the coating formulation's operating window.
• Bath temperature: Affects coating chemistry, viscosity, and process stability.
• Coating bath composition: Resin, pigment, solids content, conductivity, and pH require appropriate monitoring.
• Workpiece geometry: Shape, openings, cavities, and electrical contact influence coating distribution.
• Immersion time: Determines how long the workpiece remains in the deposition environment.
• Surface pretreatment: Cleanliness and conversion coating quality strongly affect adhesion and corrosion performance.

These parameters are interdependent. Raising voltage alone, for example, is not a universal solution to inadequate film thickness. The correct settings should be established through coating supplier recommendations, equipment commissioning, process trials, and quality testing.

What Are the Main Production Stages?

A well-planned automobile electrophoresis production line coordinates several stages to prepare the metal surface, deposit the coating, remove excess material, and cure the finished film.

Which Equipment Does an Automobile Electrophoresis Production Line Require?

Equipment selection should be based on the entire production process, not only the electrophoresis tank. Each subsystem contributes to coating quality, throughput, operational reliability, and maintenance requirements.

Depending on the application, supporting equipment may also include heat exchangers, pure-water systems, wastewater treatment, ventilation, exhaust treatment, laboratory testing instruments, and other utilities. The final equipment list should be confirmed during engineering design.

Key Benefits for Automotive Manufacturing

More Consistent Corrosion Protection

When the substrate is correctly prepared and the process is controlled, electrophoretic coating can form a uniform protective film over many accessible surfaces. It is particularly valuable where automotive components face moisture, road contamination, and other corrosive conditions. Actual performance depends on the coating specification, substrate, film thickness, and service environment.

Coverage of Complex Geometries

Because deposition takes place in a coating bath, electrophoresis can reach many recessed areas and internal surfaces that are difficult to cover consistently with direct spray application. However, deep cavities, narrow openings, trapped air, electrical shielding, and drainage limitations can still create coverage challenges.

Repeatable High-Volume Processing

Automated conveying and coordinated process control reduce dependence on manual handling. A properly balanced line can process large quantities of components according to a defined production sequence, supporting repeatable quality and more predictable scheduling.

Efficient Coating Material Management

Rinsing and ultrafiltration arrangements can recover a portion of usable coating material that would otherwise be lost with excess paint. Actual recovery rates and material consumption depend on the system design, operating conditions, and maintenance practices.

Integration with Automotive Production

Conveyor controls, production planning, and quality records can be integrated with upstream fabrication and downstream finishing operations. Good integration helps reduce unnecessary handling, waiting time, and scheduling conflicts between production stages.

Common Coating Problems and Practical Solutions

Coating defects can increase scrap, rework, and delivery delays. A structured troubleshooting process should identify the root cause before operators change electrical or chemical parameters.

These are potential causes rather than definitive diagnoses. Operators should follow the coating supplier's technical guidance and the plant's approved procedures. Changes to bath chemistry, voltage, temperature, or curing settings should be documented and validated before being adopted as standard practice.

Automation, Monitoring, and Process Control

Automation is most useful when it provides stable operation and actionable production information. A PLC-based control system can coordinate conveying, tank operations, pumps, rinsing, and oven functions according to the equipment design.

Monitor Critical Process Variables

Useful monitoring points may include bath temperature, conductivity, pH, solids content where measured, electrical output, circulation status, filtration condition, conveyor speed, and curing conditions. Not every variable is measured directly by the PLC; some require laboratory sampling or dedicated instruments.

Improve Traceability

Recording production parameters, alarms, maintenance activities, and inspection results helps engineers investigate quality changes. Where required, product identifiers can connect a component or production batch with its process history.

Coordinate the Conveyor and Workpiece Handling

Conveyor speed, loading intervals, immersion time, and oven residence time must be coordinated with the required production rate. Incorrect synchronization may create bottlenecks, inadequate processing time, or unnecessary equipment idling.

Use Alarms to Support Maintenance

Clear alarm descriptions and fault history can help maintenance personnel locate problems faster. Depending on the design, monitoring may identify abnormal pump operation, temperature deviation, filtration issues, or conveyor faults before they cause extended interruptions.

When comparing automated systems, buyers should ask for a demonstration of normal operation, alarm handling, recipe changes, data export, and recovery after a controlled stop. These practical checks are more informative than an automation claim alone.

How to Select the Right Automobile Electrophoresis Production Line

Selecting a suitable line requires a clear production brief. The least expensive quotation may not provide the best long-term value if it omits essential utilities, recovery equipment, safety provisions, or commissioning support.

1. Define Workpiece Requirements

Provide part dimensions, weight, material, surface condition, geometry, and the required coating performance. Clarify whether the system will process complete vehicle bodies, chassis assemblies, castings, stamped parts, or mixed component types.

2. Establish Capacity and Production Targets

Specify the expected parts per hour or vehicles per shift, operating hours, product mix, and anticipated future expansion. Ask the supplier to explain how the proposed conveyor speed, tank capacity, and process residence times support the target output.

3. Confirm the Coating Specification

Identify the coating chemistry, substrate preparation requirements, target film thickness, curing conditions, and applicable customer or industry standards. These details influence tank design, power requirements, rinsing configuration, and testing procedures.

4. Evaluate the Factory Site

Review available floor space, building height, structural loading, utilities, drainage, ventilation, wastewater treatment, and access for installation and maintenance. Site limitations can significantly affect the layout and project schedule.

5. Compare Total Project Cost

Consider equipment purchase price alongside installation, utilities, coating materials, labor, maintenance, consumables, waste treatment, spare parts, and expected downtime. Request a clearly itemized quotation to understand what is included and what remains the buyer's responsibility.

6. Review Commissioning and After-Sales Support

Clarify installation supervision, commissioning tests, operator training, documentation, spare-part availability, warranty terms, and response arrangements for technical issues. Agree on the acceptance criteria before the project begins.

Qingguo, operated by Jiangsu Qingguo Intelligent Technology Co., Ltd., provides coating equipment and production-line solutions, including electrophoretic coating systems. Buyers can discuss their workpiece specifications, production targets, site conditions, and required process configuration with the company before requesting a project quotation.

Maintenance and Operating Cost Management

Reliable operation requires preventive maintenance across the coating, conveying, electrical, filtration, and curing systems. A maintenance plan should be based on equipment manuals, operating conditions, coating chemistry, and the manufacturer's recommendations.

Maintain the Coating Bath

Monitor the specified chemical and physical parameters and follow the coating supplier's sampling schedule. Investigate abnormal trends instead of making unrecorded adjustments. Proper bath management supports consistent deposition and reduces the risk of defects caused by chemistry variation.

Inspect Filtration and Ultrafiltration Systems

Check filter condition, pump operation, membrane performance where applicable, and signs of leakage or abnormal flow. Timely maintenance can help preserve rinse quality and material recovery performance.

Check Conveyors and Electrical Connections

Inspect conveyor wear points, load-handling devices, electrical contacts, and safety interlocks according to the approved maintenance schedule. Electrical inspections must be performed by qualified personnel using the plant's isolation and lockout procedures.

Verify Oven Performance

Monitor temperature control, airflow, burner or heating-system condition, and the actual curing profile required by the coating. Periodic temperature profiling can help verify that workpieces receive the necessary curing conditions.

Track Energy, Water, and Downtime

Recording utility consumption, rejected parts, maintenance hours, and unplanned stoppages helps identify cost drivers. Improvements may include better line balancing, preventive maintenance, reduced drag-out, improved heat management, and more effective rinse-water management.

Environmental and safety requirements should be considered throughout operation. Chemical handling, wastewater discharge, exhaust management, electrical protection, and oven safety must comply with the applicable local regulations and site procedures.
