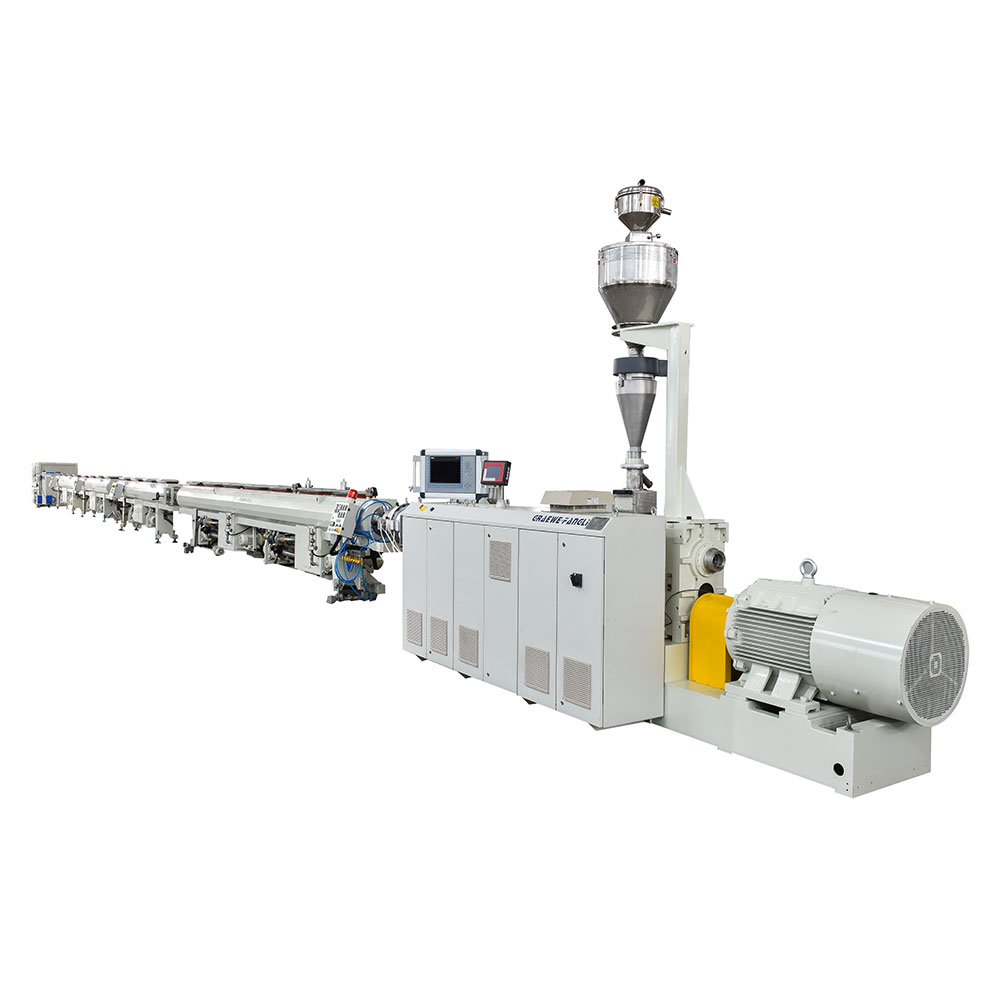

How can manufacturers optimize energy consumption in a POK Pipe Extrusion Line

Energy efficiency has become a decisive factor in the profitability of modern plastic pipe production. For manufacturers operating a POK Pipe Extrusion Line, reducing power consumption without compromising output quality is both a technical challenge and a financial opportunity. FANGLI has observed that many extrusion lines waste 15–25% of their energy through outdated components and suboptimal process settings. This article presents actionable strategies to optimize energy use in a POK Pipe Extrusion Line, supported by data and real-world solutions.

Key optimization strategies

Practical steps for immediate implementation

1. Monitor idle periods – A POK Pipe Extrusion Line left on standby for two hours per shift wastes enough energy to run an entire additional production day per month.

2. Calibrate barrel temperature zones – Overheating by only 10°C can raise energy use by 7%. Use thermal imaging to detect hotspots.

3. Upgrade to synchronous motors – Premium efficiency IE4 motors reduce electrical losses by up to 40% compared to IE2 models.

FANGLI integrates these principles directly into its POK Pipe Extrusion Line designs. For example, the optional VFD-controlled haul-off unit allows manufacturers to match speed precisely to output, eliminating unnecessary torque draw.

FANGLI POK Pipe Extrusion Line FAQ – Common questions from manufacturers

Q1: What is the single biggest energy waste in a typical POK Pipe Extrusion Line?

A1: The largest source of energy waste is uncontrolled barrel heating combined with inefficient cooling. Most lines run constant heater power while using excessive water cooling to compensate, creating thermal cycling that consumes 30% more power than necessary. FANGLI addresses this by integrating PID temperature controllers with zone-specific heaters and using closed-loop water recirculation, which maintains stable temperatures with far less heating/cooling oscillation.

Q2: Can retrofitting an older POK Pipe Extrusion Line achieve the same energy savings as buying a new one?

A2: Yes, to a large extent. Retrofitting VFDs on the extruder motor and vacuum pump, adding barrier screw elements, and insulating heater bands can reduce energy consumption by 18–25% at about 40% of the cost of a new line. However, if the line uses obsolete DC drives or single-stage screws, replacement with a modern FANGLI POK Pipe Extrusion Line typically delivers 30–35% savings plus higher output speeds, making new investment more cost-effective within two years.

Q3: How does material formulation affect energy consumption in a POK Pipe Extrusion Line?

A3: Significantly. Polyketone (POK) has a lower melting point (around 220°C) than PA or PET, but it also has higher shear sensitivity. Using poorly blended additives or excessive stabilizers increases melt viscosity, raising motor load. FANGLI recommends maintaining a consistent POK resin feed with pre-dried pellets (below 0.05% moisture) and avoiding regrind levels above 15%. This keeps melt pressure stable and reduces screw drive power by up to 12% compared to contaminated feeds.

Long-term benefits of optimized energy use

Reducing energy consumption in a POK Pipe Extrusion Line lowers production costs by typically $12–18 per metric ton of output. More importantly, it extends screw and barrel life through lower thermal stress. FANGLI has documented cases where optimized lines ran 40% longer between screw replacements.

Take the next step with FANGLI

Every POK Pipe Extrusion Line configuration is different. FANGLI offers free energy audits for existing lines and provides customized VFD retrofits or complete turnkey systems. Contact us today with your line specifications to receive a simulation-based energy savings report and a proposal tailored to your production floor. Our engineering team responds within 24 hours.
