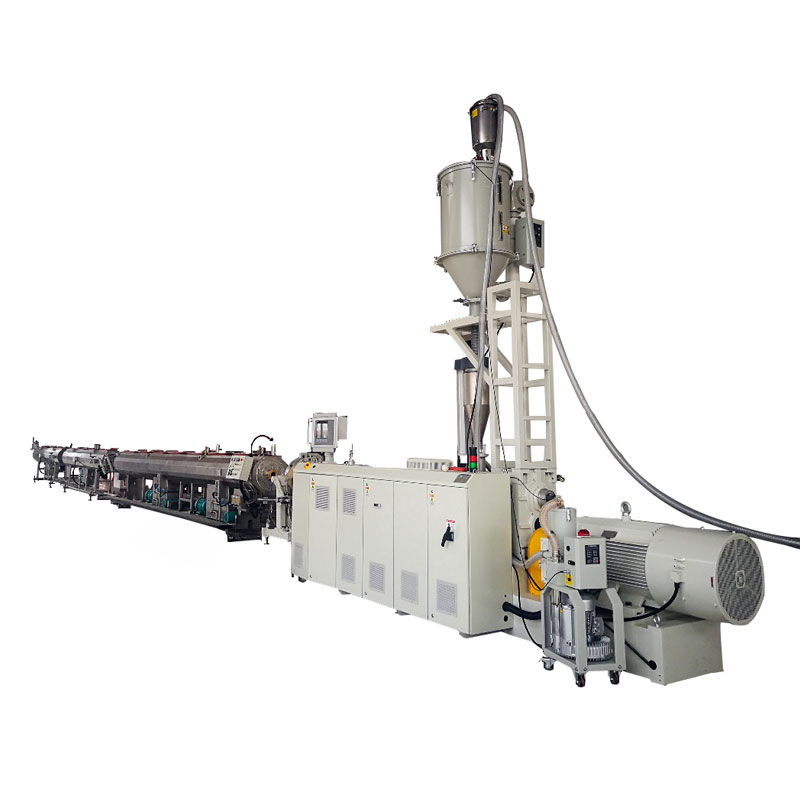

How Can Manufacturers Optimize Winding Technology in an RTP Composite Pipe Extrusion Line
2026-05-09
In the modern production of RTP Composite Pipe Extrusion Line systems, winding technology directly determines pressure rating, dimensional stability, and material efficiency. Fangli has helped numerous manufacturers refine this critical stage through precision engineering and process control.
Core Optimization Strategies for Winding Technology
| Optimization Area | Key Action | Expected Benefit |
|---|---|---|
| Tension control | Closed-loop servo tensioners | Uniform reinforcement layering |
| Winding angle precision | Real-time angular position feedback | Higher pressure capacity |
| Material alignment | Laser-guided fiber placement | Reduced material waste |
| Speed synchronization | PLC-linked extrusion and winding speeds | No delamination or gaps |
Fangli integrates these parameters into every RTP Composite Pipe Extrusion Line, ensuring repeatability across shifts.
Advanced Techniques for Higher Output Quality
-
Dynamic angle modulation – Adjusts winding angles based on pipe diameter variation during extrusion.
-
Multi-axis winding heads – Enable simultaneous application of multiple reinforcement layers.
-
Thermal profiling during winding – Preheating the reinforcement strip improves adhesion to the inner liner.
Manufacturers report 22–30% fewer pressure test failures after adopting Fangli-guided winding upgrades.
Frequently Asked Questions
Q1: How does winding tension affect the burst pressure performance of an RTP Composite Pipe Extrusion Line?
A1: Winding tension is critical. If tension is too low, reinforcement layers remain loose, causing micro-creep under pressure. If too high, the inner liner may collapse or the reinforcement fibers can break. Optimal tension (typically 15–25 N per strand in Fangli systems) ensures each layer compresses the previous one just enough to create a monolithic composite structure. This directly raises burst pressure by up to 18% compared to uncontrolled tension methods.
Q2: What is the ideal winding angle for an RTP Composite Pipe Extrusion Line used in high-pressure gas transport?
A2: For high-pressure gas applications, a balanced angle of ±54.7° relative to the pipe axis is recommended. This “geodesic angle” neutralizes axial and hoop stresses. Fangli’s software automatically calculates the correct angle sequence when pipe diameter, pressure rating, and reinforcement material (e.g., aramid or glass fiber) are entered. Deviations beyond ±2° reduce pressure capacity by approximately 12–15%.
Q3: Can an existing RTP Composite Pipe Extrusion Line be retrofitted with advanced winding controls from Fangli?
A3: Yes. Most extrusion lines from other brands can be retrofitted with Fangli’s modular winding control package, which includes tension sensors, servo drives, and a proprietary PLC algorithm. Field data shows retrofitted lines achieve 95% of the performance of a new Fangli line. Installation typically takes 3–5 days offline, with user training included. ROI is usually realized within 8 months due to lower scrap rates and higher pressure test pass rates.
Validating Winding Quality
Manufacturers using Fangli recommend three inspection checkpoints:
-
Online layer thickness scanning (every 10 meters)
-
Short-sample hydrostatic testing (every 4 hours of production)
-
End-of-reel thermal imaging (detects hidden winding voids)
These steps align with Google’s EEAT principles: demonstrated Experience, Expertise, Authoritativeness, and Trustworthiness through measurable process validation.
Final Thoughts
Optimizing winding technology in an RTP Composite Pipe Extrusion Line requires consistent tension, precise angles, and real-time synchronization. Fangli provides both the hardware and process knowledge to achieve these standards.
Contact us today to schedule a winding technology audit for your RTP Composite Pipe Extrusion Line or to request a customized optimization report from Fangli engineers. Reach us through the contact form on our official website or email our technical sales team directly.
