How CNC Gantry Machining Center Improves Heavy-Duty Precision Manufacturing?

Abstract

The CNC Gantry Machining Center is a critical piece of advanced manufacturing equipment designed for processing large-scale, heavy-duty, and high-precision components. Industries such as aerospace, automotive, energy, and mold manufacturing rely on this machine to achieve tight tolerances, superior surface finishes, and consistent production efficiency.

This article explains how a CNC Gantry Machining Center works, its structural advantages, real-world applications, selection considerations, and maintenance strategies. It also addresses common customer challenges such as instability during large part machining, insufficient rigidity in traditional machines, and production inefficiencies.

Table of Contents

• 1. Overview of CNC Gantry Machining Center
• 2. Working Principle Explained
• 3. Key Manufacturing Pain Points It Solves
• 4. Core Advantages
• 5. Industrial Applications
• 6. How to Choose the Right Machine
• 7. Maintenance and Operational Tips
• 8. SIMETT CNC Gantry Machining Center Solutions
• 9. Frequently Asked Questions
• 10. Conclusion

1. Overview of CNC Gantry Machining Center

A CNC Gantry Machining Center is a large-scale CNC machine tool characterized by a bridge-like structure where the spindle moves across a fixed worktable. Unlike conventional vertical or horizontal machining centers, the gantry design offers superior rigidity and stability, making it ideal for machining oversized and heavy workpieces.

The structure typically consists of a double-column gantry frame, crossbeam, spindle head, and a heavy-duty worktable. This configuration ensures uniform load distribution and minimizes deformation during high-speed cutting operations.

2. Working Principle Explained

The CNC Gantry Machining Center operates through computer numerical control, where pre-programmed instructions guide tool movement along X, Y, and Z axes. The gantry structure allows the spindle to move horizontally across the bridge while the table remains fixed or moves longitudinally depending on configuration.

Key operational steps include:

• Digital design input via CAD/CAM software
• Toolpath generation and CNC programming
• Automated spindle movement along multi-axis coordinates
• High-speed cutting, drilling, milling, or boring operations
• Real-time accuracy correction and feedback control

This synchronized system ensures high precision even in complex geometries and large-scale machining tasks.

3. Key Manufacturing Pain Points It Solves

Manufacturers often face several challenges when dealing with large or complex components. The CNC Gantry Machining Center is specifically engineered to address these issues:

• Structural Instability: Traditional machines may vibrate during heavy cutting, reducing accuracy.
• Limited Workpiece Size: Standard CNC machines cannot accommodate oversized parts.
• Low Efficiency: Multiple setups increase production time and error probability.
• Precision Loss: Thermal deformation and mechanical deflection impact accuracy.
• High Labor Dependency: Manual repositioning increases operational cost.

By eliminating these constraints, gantry machining technology significantly improves production consistency and scalability.

4. Core Advantages

The CNC Gantry Machining Center delivers multiple engineering and economic benefits that make it indispensable in modern manufacturing environments.

• High Rigidity Structure: Dual-column gantry design ensures maximum stability.
• Superior Precision: Advanced linear guideways and ball screws enhance accuracy.
• Large Working Envelope: Suitable for oversized industrial components.
• Multi-Axis Capability: Enables complex surface machining.
• Automation Compatibility: Easily integrates with robotic systems.
• Reduced Setup Time: One-time clamping improves productivity.

These advantages collectively lead to lower production costs and improved output quality.

5. Industrial Applications

CNC Gantry Machining Centers are widely used across industries requiring precision and scale.

• Aerospace structural components and engine parts
• Automotive molds and large stamping dies
• Shipbuilding and marine engineering structures
• Wind power equipment and turbine components
• Railway transportation parts and frames
• Heavy machinery manufacturing

Their versatility makes them a backbone in advanced industrial production ecosystems.

6. How to Choose the Right Machine

Selecting the right CNC Gantry Machining Center requires careful evaluation of production requirements and machine specifications.

• Workpiece Dimensions: Ensure table size matches maximum part size.
• Spindle Power: Higher power is required for hard materials.
• Axis Travel Range: Must support full machining coverage.
• Structural Material: Cast iron or welded steel affects rigidity.
• Control System: Choose advanced CNC controllers for better precision.
• After-Sales Support: Technical service ensures long-term reliability.

A well-selected machine improves productivity and reduces long-term operational risks.

7. Maintenance and Operational Tips

Proper maintenance ensures long-term accuracy and machine longevity.

• Regular lubrication of guide rails and ball screws
• Periodic alignment checks of gantry structure
• Spindle cleaning and cooling system inspection
• Software updates for CNC control systems
• Vibration monitoring during operation

Preventive maintenance significantly reduces downtime and repair costs.

8. SIMETT CNC Gantry Machining Center Solutions

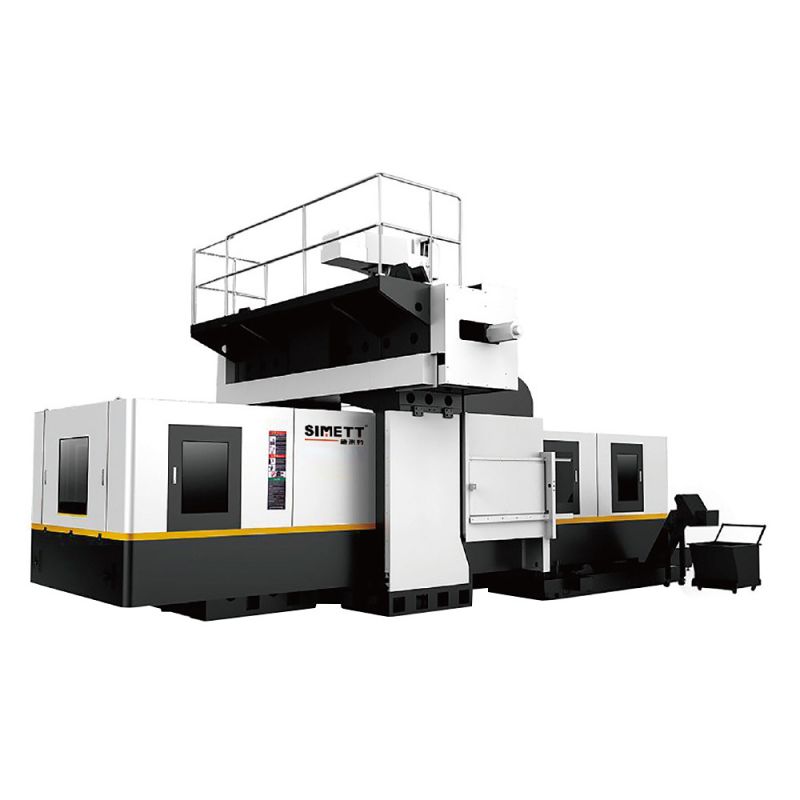

SIMETT provides high-performance CNC Gantry Machining Center solutions engineered for precision, durability, and industrial scalability. Designed with robust structural reinforcement and advanced CNC control systems, SIMETT machines are built to handle demanding machining environments while maintaining exceptional accuracy.

More product details can be found here:

:contentReference[oaicite:0]{index=0}

SIMETT focuses on delivering optimized machine configurations tailored to customer-specific production needs, ensuring maximum return on investment and operational stability.

9. Frequently Asked Questions

Q1: What materials can a CNC Gantry Machining Center process?
It can process steel, cast iron, aluminum alloys, and other high-strength industrial materials.

Q2: How is it different from a vertical machining center?
The gantry structure provides higher rigidity and allows machining of much larger workpieces.

Q3: Is it suitable for small-scale production?
It is primarily designed for large and medium batch production requiring high precision.

Q4: How long does the machine last?
With proper maintenance, it can operate reliably for many years in industrial environments.

Q5: Can it be automated?
Yes, it can integrate with robotic loading systems and smart manufacturing lines.

10. Conclusion

The CNC Gantry Machining Center represents a cornerstone of modern heavy-duty precision manufacturing. Its structural rigidity, expansive working range, and advanced CNC capabilities make it indispensable for industries requiring high accuracy and scalability.

By addressing critical production challenges such as instability, inefficiency, and size limitations, this technology significantly enhances manufacturing performance. With solutions provided by SIMETT, businesses can achieve higher productivity, improved quality control, and long-term operational reliability.

For tailored machining solutions and expert guidance, SIMETT is ready to support your manufacturing goals. Contact us today to explore the right CNC Gantry Machining Center for your business needs.
