How Do You Maintain a 12 Passage Wire Drawing Machine for Maximum Lifespan

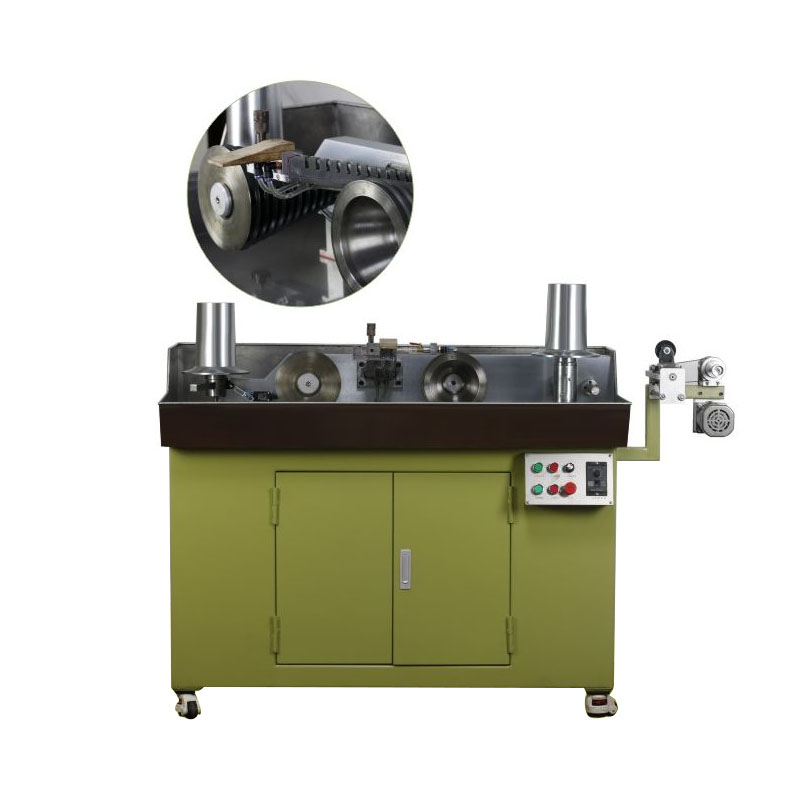

Industrial wire drawing is a high‑stress operation. A 12 Passage Wire Drawing Machine runs continuously under extreme tension, heat, and abrasion. Without a disciplined maintenance strategy, even the most robust equipment deteriorates faster than expected. ALPHA has studied thousands of production floors, and the difference between a machine that lasts 15 years and one that fails in 8 years is never luck—it is routine care. This guide walks through every critical maintenance layer, from daily visual checks to annual overhauls, all tailored for your 12 Passage Wire Drawing Machine.

The Core Philosophy: Predict, Inspect, Correct

Maintenance for a 12 Passage Wire Drawing Machine falls into three pillars: lubrication, alignment, and wear monitoring. Each passage draws wire through progressively smaller dies, so friction accumulates. ALPHA recommends a staggered schedule that matches actual running hours, not calendar days. Below is the proven framework used by high‑yield plants.

Daily Habits That Extend Service Life

Operators should spend the first 15 minutes of each shift on a 5‑point walkaround for the 12 Passage Wire Drawing Machine:

1. Listen – Uneven knocking signals loose capstan bearings.

2. Feel – Touch the die box outer surface; if unbearable within 5 seconds, cooling flow is insufficient.

3. Observe – Check the wire surface for scoring marks—this often means a worn die in passage 4 or 9.

4. Measure – Record the amp draw on the main motor; a steady climb over days indicates mechanical binding.

5. Clean – Remove accumulated copper or steel dust from guide rollers using a soft brass brush.

ALPHA field data shows that plants following this 5‑point routine reduce unplanned stops by 42% in the first quarter.

Lubrication: The Lifeblood of Every Passage

Each of the 12 passages demands a specific viscosity and flow rate. Using a single generic oil for all passages is a common mistake. ALPHA engineers recommend a graded approach:

• Passages 1–4 (heavy reduction): ISO VG 460 with extreme‑pressure additives.

• Passages 5–8 (medium reduction): ISO VG 320.

• Passages 9–12 (finishing): ISO VG 220 with anti‑foam agents.

Change the full lubricant volume every 2,000 running hours or when the total acid number (TAN) exceeds 2.0 mg KOH/g. Always pre‑filter new oil through a 3‑micron cellulose cartridge before filling your 12 Passage Wire Drawing Machine.

Electrical & Control System Care

Modern 12 Passage Wire Drawing Machine units rely on PLC‑controlled variable frequency drives (VFDs). Dust is the number one enemy. ALPHA insists on:

• Monthly infrared thermography of all VFD heatsinks.

• Quarterly replacement of cabinet air filters (washable types must be dried for 24 hours before re‑installation).

• Annual replacement of DC bus capacitors—even if they test fine, their ESR degrades.

A simple logbook for inverter fault codes helps predict which passage motor will fail next. Record the fault frequency per passage; if passage 7 shows three overcurrent trips in a week, inspect its gear coupling immediately.

3 Critical FAQs About the 12 Passage Wire Drawing Machine

Q1: How often should I replace the drawing dies on a 12 Passage Wire Drawing Machine, and what signs indicate replacement is due?

A1: Die replacement frequency depends on the material (copper vs. steel) and inlet size. As a rule, measure the die’s bearing length every 40 tons of output. When the bearing length increases by 8% over its original dimension, or when the wire surface shows longitudinal scratches under 10x magnification, replace that die immediately. For high‑carbon steel, ALPHA suggests rotating dies across passages (e.g., move passage 3 die to passage 5) to even out wear, but never reuse a die that has lost its polished entry angle—that angle must stay between 12° and 14° for proper metal flow.

Q2: What is the correct procedure for cleaning the cooling system of a 12 Passage Wire Drawing Machine to prevent scale buildup?

A2: Scale inside the cooling channels reduces heat transfer by up to 30%, directly shortening bearing and capstan life. ALPHA recommends a two‑step chemical clean every 3 months: first, circulate a 5% citric acid solution at 60°C for 90 minutes, then flush with deionized water until pH returns to neutral (6.8–7.2). Never use hydrochloric acid—it attacks brazed joints. After flushing, run the machine idle for 10 minutes with full coolant flow and check each passage’s return line temperature; a variance greater than 4°C between passages indicates a partial blockage that needs mechanical rodding.

Q3: How do I adjust the tension control system when switching from 2.5 mm to 1.2 mm input wire on a 12 Passage Wire Drawing Machine?

A3: Tension is managed by dancer arm position and proportional‑integral‑derivative (PID) gain settings. For a thinner input wire, reduce the dancer arm weight by 40–50% (use the counterbalance spring adjustment) and lower the derivative gain (Kd) by 30% to avoid oscillation. Then perform a “dry run” with no die—feed the wire through all 12 passages and measure the tension at each capstan with a handheld tensiometer. Target values: 15–18 N for passages 1–6, and 8–10 N for passages 7–12. ALPHA provides a lookup table for gain coefficients based on input diameter—always recalibrate the load cells after any gain change.

Annual Overhaul: The Non‑Negotiable Investment

Once every 12 months, schedule a 5‑day downtime for your 12 Passage Wire Drawing Machine. This is not a repair—it is a renewal. Tasks include:

• Gearbox disassembly and backlash measurement (replace shims if backlash exceeds 0.15 mm).

• Bearing replacement for all capstan shafts, regardless of visual condition—bearings are cheap compared to a cracked shaft.

• Full software backup and PLC battery change.

• Motor insulation resistance test (megger) at 500 V DC—minimum acceptable value is 10 MΩ.

ALPHA offers a comprehensive annual inspection kit that includes pre‑cut gaskets, labeled replacement bolts, and a step‑by‑step video library for each passage assembly. Plants that complete this overhaul every year report a 28% longer mean time between failures than those that skip it.

Record Keeping: The Invisible Tool

Every adjustment, every die change, every oil analysis result must be logged. ALPHA recommends a digital log with three mandatory fields: running hours at event, passage number affected, and corrective action taken. This data turns into a predictive model—for example, if passage 6 always needs die replacement after 210 tons, you schedule it at 190 tons proactively.

Conclusion & Next Step

Maintaining a 12 Passage Wire Drawing Machine is not about reacting to breakdowns—it is about building a rhythm of inspection, lubrication, measurement, and documentation. The 5‑point daily walk, graded lubricants, electrical hygiene, annual overhauls, and rigorous record‑keeping form a complete system that ALPHA has validated across more than 200 installations worldwide. When you treat every passage with the same attention, the machine returns stable gauge accuracy, lower energy cost, and fewer scrap coils.

Contact us today—ALPHA’s maintenance engineers will review your current schedule, provide a customized checklist for your specific material mix, and offer remote condition‑monitoring hardware that alerts you 72 hours before a potential failure. Send your machine model and running hours to our service desk, and we will deliver a 12‑month maintenance calendar within one business day. Your 12 Passage Wire Drawing Machine deserves nothing less than ALPHA‑grade care.
