How Do You Select a High Capacity Constant Spring Hanger for Critical Piping

Selecting a High Capacity Constant Spring Hanger for critical piping is one of the most important decisions in pipe support engineering. When a piping system operates at high temperature, the thermal expansion can cause significant displacement, and any variation in support force can introduce unacceptable stress into the system. Tianshui has spent decades designing and manufacturing High Capacity Constant Spring Hanger solutions for power plants, refineries, petrochemical facilities, and other demanding applications where load variation must remain within tight tolerances. This guide explains the professional selection process step by step.

Understanding the Core Selection Criteria

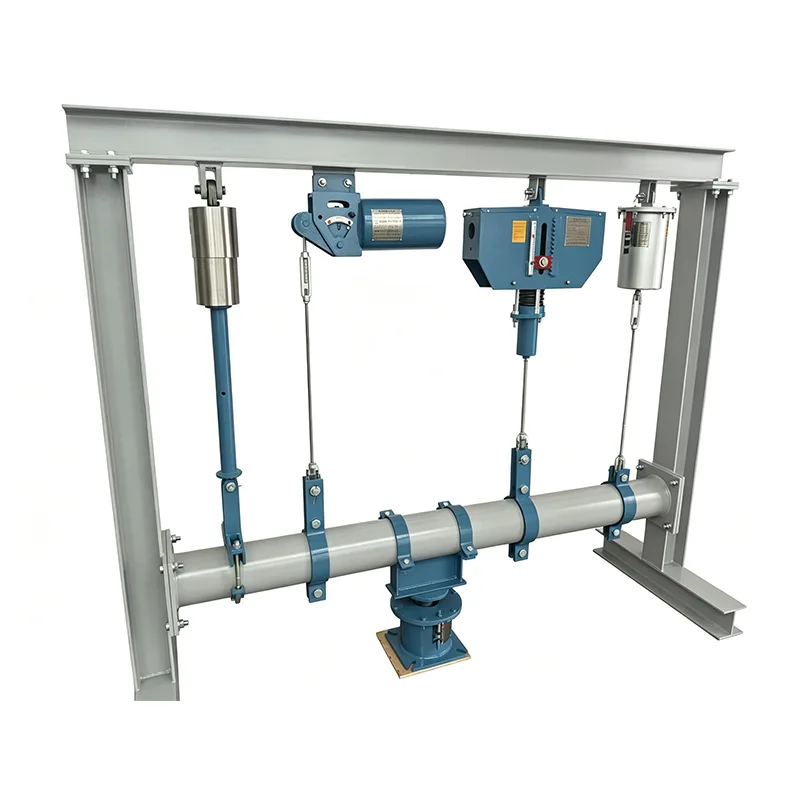

A High Capacity Constant Spring Hanger is designed to maintain a nearly constant supporting force throughout the full travel range, typically keeping load variation within 6% or less. Unlike a variable spring hanger, which allows the supporting force to change proportionally with displacement, a constant spring hanger compensates for thermal movement while protecting sensitive equipment nozzles, pumps, turbines, and headers from excessive stress.

The selection process begins with accurate engineering data. Without reliable input, even the best High Capacity Constant Spring Hanger will not perform as intended.

Step-by-Step Selection Procedure

Step 1: Confirm the Load and Travel Requirements
The engineer must know the actual load the High Capacity Constant Spring Hanger will carry at the operating position, not merely the nominal pipe weight. The travel range must include cold-to-hot displacement plus any additional allowance for field adjustment.

Step 2: Verify the Load Variation Limit
For critical piping, the acceptable load variation is often specified as ±6% or less. Tianshui engineers verify this by checking the spring characteristic curve against the calculated travel.

Step 3: Check the Hanger Configuration
The High Capacity Constant Spring Hanger must match the structural attachment, rod orientation, and available headroom. Incorrect configuration can cause binding, misalignment, or unexpected load transfer.

Step 4: Review Material and Finish
Components are commonly supplied in carbon steel, alloy steel, or stainless steel, with finishes such as hot-dip galvanizing or epoxy coating. The choice depends on temperature, outdoor exposure, and plant specifications.

Step 5: Confirm Testing and Documentation
A qualified High Capacity Constant Spring Hanger should be accompanied by load testing records, calibration certificates, and dimensional reports. Tianshui provides full traceability for every unit supplied to critical service.

Common Mistakes to Avoid

• Using variable spring hanger data for a constant spring hanger selection.

• Ignoring the difference between installation load and operating load.

• Selecting travel exactly equal to calculated movement without safety margin.

• Overlooking field adjustment accessibility after installation.

• Accepting load variation above the project specification.

FAQ

What is the acceptable load variation for a High Capacity Constant Spring Hanger?
A High Capacity Constant Spring Hanger is normally designed to keep load variation within 6% of the operating load across the full travel range, although some critical specifications require even tighter tolerances such as 5% or 4%, depending on the sensitivity of the connected equipment.

How does a High Capacity Constant Spring Hanger differ from a variable spring hanger?
A variable spring hanger allows the supporting force to change directly with displacement, while a High Capacity Constant Spring Hanger uses a constant spring mechanism to maintain a nearly uniform force, making it suitable for critical piping where load fluctuation could cause nozzle overstress or equipment misalignment.

When should a High Capacity Constant Spring Hanger be specified instead of a rigid support?
A High Capacity Constant Spring Hanger should be specified when the piping system experiences significant thermal movement and the support point must continue to carry load without transferring excessive force, particularly near turbines, pumps, compressors, and air-cooled heat exchangers where allowable nozzle loads are strictly limited.
