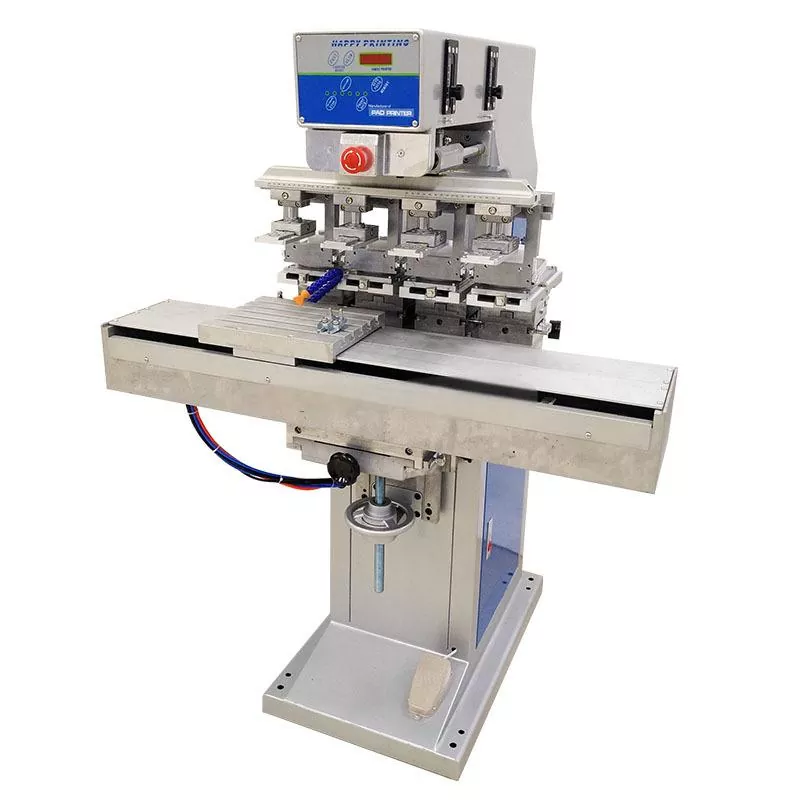

How Does a Shuttle Table Pad Printing Machine Work on Irregular Surfaces
2026-01-06
Pad printing excels at transferring high-definition graphics onto flat and even curved objects. But what about complex, irregular surfaces with recesses, protrusions, or textured finishes? This is where the engineering of a Shuttle Table Pad Printing Machine truly shines. Unlike simpler systems, a HOYSTAR shuttle table machine is specifically designed to handle these challenging geometries with precision and repeatability, making it indispensable in industries like automotive, electronics, and promotional goods.
The core principle involves the synchronized movement between the printing pad and the workpiece. The “shuttle” mechanism is key: while one station is being printed, the other can be safely loaded or unloaded. For irregular surfaces, the process leverages several critical features:
-
Adaptive Silicone Pads: The pad is the heart of the process. Its flexibility allows it to deform, conform to the surface contour, pick up the ink from the etched cliché (printing plate), and then gently roll onto the target area to deposit the image without smudging.
-
Precision Fixturing: The object must be held securely in the exact same position for every print cycle. HOYSTAR machines utilize custom-designed fixtures or vacuum chucks to lock irregular parts in place, ensuring registration accuracy.
-
Programmable Z-Axis Stroke: Advanced machines allow fine-tuning of the pad’s vertical descent and retraction path. This is crucial for clearing raised features on a part without collision and ensuring consistent ink deposition in recessed areas.
Key Advantages for Irregular Surface Printing:
| Feature | Benefit for Irregular Surfaces |
|---|---|
| Precision Fixturing | Eliminates part movement, ensuring consistent print registration on uneven geometries. |
| Variable Pad Hardness | Softer pads conform to deep textures; harder pads provide sharp detail on gentle curves. |
| Angled Pad Approach | The pad can be set to contact the surface at an optimal angle to avoid air entrapment. |
| Multi-Station Shuttle | Enables application of multiple colors or coatings (like UV) in a single, automated cycle. |
Shuttle Table Pad Printing Machine FAQ
Q: What types of irregular surfaces can a shuttle table machine print on?
A: It can successfully print on a wide variety, including concave/convex surfaces, textured plastics, angled faces, raised buttons, medical device housings, golf balls, and pen barrels. The limit often depends on designing the correct fixture and selecting the appropriate pad shape and hardness.
Q: How do you ensure consistent ink adhesion on textured or oily surfaces?
A: Consistency requires a holistic approach. First, proper surface pretreatment (like flame or plasma treatment for plastics) is often essential. Secondly, the HOYSTAR machine ensures precise, repeatable ink deposition. Finally, using specially formulated inks for challenging substrates (like silicone or coated metals) is critical for durable adhesion.
Q: Can these machines handle very small or highly detailed graphics on complex parts?
A: Absolutely. High-precision Shuttle Table Pad Printing Machines are capable of printing extremely fine text and logos under 0.5mm. The combination of a high-resolution cliché, a precisely engineered silicone pad, and rock-solid fixturing allows for exceptional detail reproduction, even on small, uneven components like electronic connectors or watch bezels.
Mastering print quality on irregular surfaces requires expertise, the right consumables (pads, inks, fixtures), and a machine built for precision and reliability. HOYSTAR’s range of Shuttle Table Pad Printing Machines is engineered to provide exactly that—turning complex printing challenges into consistent, high-yield production.
Contact us today to discuss your specific application. Our technical team can help you configure the optimal HOYSTAR printing solution for your most demanding surfaces.
