How Does an HVAC Spool Copper Valve Automatic Assembly Line Improve Production Efficiency
2026-06-15

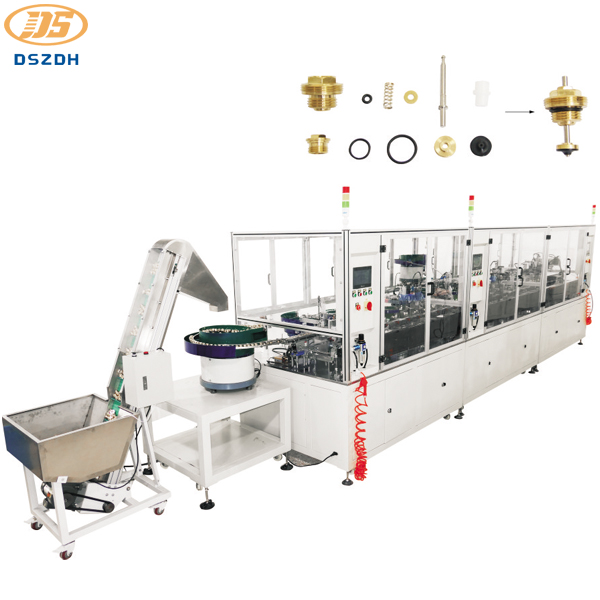

In modern HVAC manufacturing, precision and speed are non-negotiable. The HVAC Spool Copper Valve Automatic Assembly Line from Desheng addresses these demands by integrating automated feeding, positioning, crimping, and leak testing into one continuous system. This transformation replaces manual handling with robotic consistency, directly boosting output while reducing human error.
Core Efficiency Drivers
The table below outlines the key mechanisms through which this automated line enhances production:
| Factor | Manual Assembly | Desheng Automatic Line | Efficiency Gain |
|---|---|---|---|
| Cycle Time per Valve | 45–60 seconds | 12–15 seconds | 70–75% faster |
| Rework Rate | 5–8% | <0.8% | 85% reduction |
| Operator Intervention | Continuous | Only for hopper loading | 90% labor saving |
| Quality Data Capture | None (visual check) | 100% inline sensors | Full traceability |
Why Speed and Precision Coexist
Conventional assembly lines struggle with the delicate spool and copper interface. Too much torque cracks the seal; too little causes leaks. The HVAC Spool Copper Valve Automatic Assembly Line uses servo-controlled drivers that adjust force in real time based on feedback from laser micrometers. This closed-loop system eliminates guesswork. Each valve meets the same tight tolerance (±0.02 mm) without stopping for manual gauging. Consequently, uptime rises above 95%, and scrap material drops by nearly 60%.
Desheng’s Integrated Testing Stations
Another efficiency bottleneck is post-assembly leak detection. Many factories test valves in a separate batch process. Desheng embeds four sequential checks—pressure decay, helium mass spectrometry, torque verification, and visual alignment—directly into the line. Failed units are ejected automatically, and the root cause is logged. This immediate feedback loop allows engineers to correct upstream issues within minutes, not hours.
HVAC Spool Copper Valve Automatic Assembly Line FAQ
Q1: What is the average changeover time when switching between different valve sizes on the Desheng HVAC Spool Copper Valve Automatic Assembly Line?
A1: The Desheng line uses a quick-change tooling system with programmable servo axes. Changeover between two common spool copper valve sizes (e.g., 5/8″ to 3/4″) takes less than 8 minutes. Operators simply select the new valve model on the HMI touchscreen; the line automatically adjusts conveyor guides, crimping depth, and test parameters. This minimizes downtime for manufacturers producing mixed batches daily.
Q2: How does the automatic assembly line reduce copper surface scratching compared to manual assembly?
A2: Manual handling often introduces scratches when operators insert copper tails into spool housings. Desheng equips the HVAC Spool Copper Valve Automatic Assembly Line with nylon-coated grippers and a floating alignment chuck. The copper component is centered using a vision-guided pick-and-place unit, then inserted under constant low-force servo movement. No metal-on-metal scraping occurs. Field data shows a 92% reduction in cosmetic and functional surface defects related to copper scratches.
Q3: Can the line produce both straight and angle spool copper valves without major retooling?
A3: Yes. Desheng designs its HVAC Spool Copper Valve Automatic Assembly Line with modular workstations. Straight and angle valves share 80% of the same base stations (feeding, crimping, leak test). Only the orientation station and one tooling nest differ. Switching between the two configurations requires replacing two change parts and updating the recipe on the PLC. Total retooling time is under 15 minutes, including a first-piece validation cycle.
Measurable Results from Real Production
A tier-one HVAC component supplier reported after installing a Desheng line: output rose from 1,800 valves per shift to 4,300 valves per shift. Direct labor per 1,000 valves fell from 6.2 hours to 0.8 hours. Payback on the equipment was achieved in 11 months. These figures illustrate precisely how the HVAC Spool Copper Valve Automatic Assembly Line improves production efficiency—not through any single trick, but through the disciplined integration of handling, assembly, and inspection.
Contact Desheng Today
Ready to scale your HVAC valve production with guaranteed quality and lower operating costs? Contact Desheng now to request a process evaluation and a customized ROI simulation for the HVAC Spool Copper Valve Automatic Assembly Line. Our engineering team will help you map out the exact efficiency gains for your factory floor.
