How Does an Upper Moccasin Pattern Stitching Machine Differ from a Regular Post-Bed Stitcher
2026-08-18
For footwear manufacturers handling premium moccasin constructions, the choice between specialized equipment and general-purpose alternatives directly impacts seam quality, production speed, and material integrity. While both the Upper Moccasin Pattern Stitching Machine and the standard post-bed stitcher occupy floor space in sewing departments, their design philosophies, mechanical architectures, and application ranges diverge significantly. Lidebao, a recognized name in industrial stitching solutions, has engineered its Upper Moccasin Pattern Stitching Machine series to address the unique geometric demands of soft, wrap-around upper assemblies—a task where conventional post-bed machines often fall short.
Core Mechanical Distinctions at a Glance
The table below outlines the fundamental differences between these two machine types, based on real workshop performance data and structural specifications.
| Feature | Upper Moccasin Pattern Stitching Machine | Regular Post-Bed Stitcher |
|---|---|---|
| Arm Reach (Horizontal) | 320–400 mm (extra-long for deep boot shafts) | 200–270 mm (standard range) |
| Cylinder Bed Diameter | Narrower (ø 40–50 mm) for tight toe curves | Wider (ø 60–80 mm) for flat goods |
| Presser Foot Lift | 12–15 mm (accommodates thick layered leather) | 8–10 mm (suitable for medium-weight materials) |
| Stitch Length Range | 0.5–6.0 mm (variable for decorative and structural stitching) | 1.0–5.0 mm (limited fine-tuning) |
| Walking Foot Mechanism | Triple-feed (needle, presser, and bottom feed synchronised) | Double-feed (needle + bottom feed only) |
| Max Sewing Speed | 2,000 SPM (optimised for controlled curves) | 2,500 SPM (straight-line efficiency) |
| Thread Tension Control | Digital servo-assisted with automatic slack take-up | Mechanical spring-loaded manual adjustment |
Why Geometry Matters in Moccasin Construction
Moccasin uppers are unique because they wrap continuously from the vamp to the quarters without a separate heel counter in many designs. This creates a three-dimensional sewing path that changes curvature along every centimetre. A regular post-bed stitcher, with its shorter arm and larger bed diameter, forces the operator to repeatedly reposition the workpiece, introducing puckering and misaligned stitch rows.

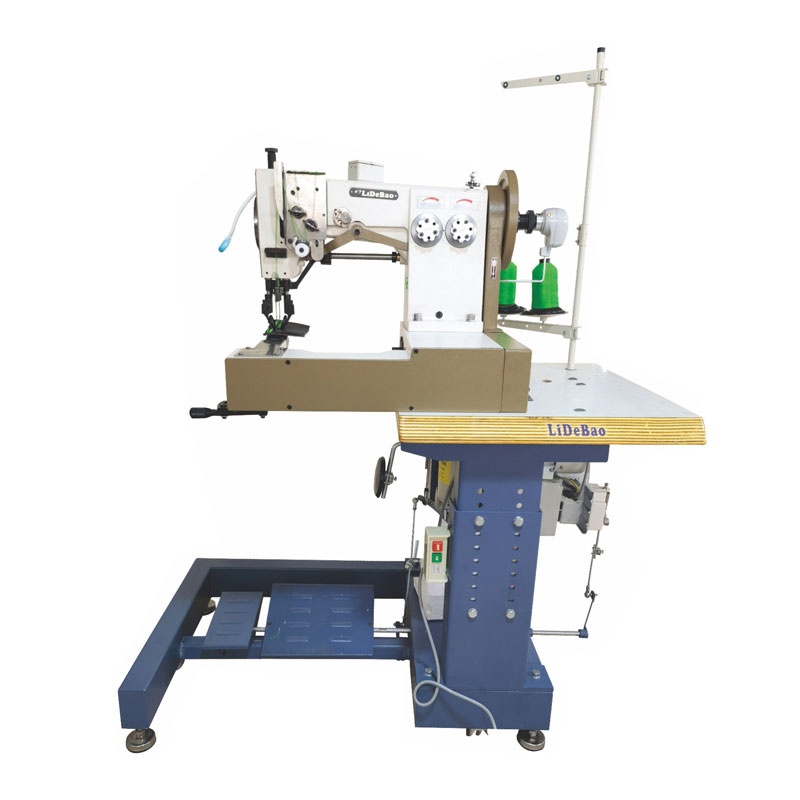

In contrast, the Lidebao Upper Moccasin Pattern Stitching Machine features an elongated, slender arm that penetrates deep into the boot shaft while the narrow cylinder bed supports the interior curve. This design allows the operator to rotate the upper smoothly around the needle point, maintaining consistent stitch density even on abrupt toe turns. The triple-feed system—a hallmark of true moccasin machines—ensures that the top layer, middle foam, and lining move in perfect unison, eliminating the layer shift that plagues post-bed units during multi-material sewing.
Stitch Quality and Thread Handling
Thread selection and tension stability separate professional results from rework-prone output. The Upper Moccasin Pattern Stitching Machine from Lidebao integrates an active thread unwinder that responds to instantaneous pull variations, particularly critical when switching between bonded nylon (for strength) and polyester (for decorative contrast). Regular post-bed machines rely on passive tension disks, which struggle to maintain uniform loop formation when the sewing direction changes from straight to sharply angled.
Furthermore, the Upper Moccasin Pattern Stitching Machine incorporates a stitch-length compensation algorithm—adjustable via a digital panel—that automatically shortens the stitch on tight radii and lengthens it on straight runs. This feature is absent on standard post-bed models, where the operator must manually alter the feed regulator mid-seam, a practice that introduces human error and inconsistency across shifts.
Frequently Asked Questions About the Upper Moccasin Pattern Stitching Machine
Q1: Can an Upper Moccasin Pattern Stitching Machine sew standard flat leather goods like wallets or belts?
A: Yes, but it is not the most economical choice. The Upper Moccasin Pattern Stitching Machine can handle flat assemblies because its feed system and presser foot adjust to thinner stacks. However, the extended arm and narrow bed, while excellent for curved uppers, create unnecessary overhang for small flat items, reducing operator manoeuvrability. For dedicated flat-goods production, a regular post-bed or flatbed machine offers higher speed and simpler setup. Lidebao recommends using the moccasin machine exclusively for 3D footwear components and reserving standard post-bed units for planar work to optimise floor efficiency.
Q2: What maintenance schedule does a typical Upper Moccasin Pattern Stitching Machine require compared to a regular post-bed stitcher?
A: The Upper Moccasin Pattern Stitching Machine demands more frequent hook-and-rotary-bobbin cleaning—approximately every 8 operating hours—because the narrow bed geometry collects more leather dust and thread lint in confined spaces. Additionally, the triple-feed cam system requires lubrication every 40 hours with a high-viscosity oil (ISO VG 68) to prevent synchronisation drift. In contrast, a regular post-bed stitcher, with its simpler double-feed mechanism, can operate 60–80 hours between oil top-ups and daily lint removal. Lidebao provides a colour-coded lubrication chart with every Upper Moccasin Pattern Stitching Machine to simplify this routine.
Q3: Is it possible to convert a regular post-bed stitcher into an Upper Moccasin Pattern Stitching Machine by changing the presser foot and needle plate?
A: No—this is a common misconception that leads to costly downtime. While aftermarket attachments can alter the presser foot profile, they cannot extend the arm length, reduce the cylinder bed diameter, or retrofit a triple-feed cam system. The chassis, crank mechanism, and feed-drive housing are fundamentally different castings. Lidebao engineers have confirmed that attempting such a conversion often results in broken needles, erratic stitch formation, and premature gear wear. The only practical solution is to purchase a purpose-built Upper Moccasin Pattern Stitching Machine if your production mix includes more than 30% moccasin-style footwear.
Operational Efficiency and Skill Requirements
Training time reveals another decisive difference. A regular post-bed stitcher can be operated by a general sewer after 2–3 days of familiarisation. The Upper Moccasin Pattern Stitching Machine requires 5–7 days of dedicated practice, primarily because operators must learn to coordinate workpiece rotation with the machine’s variable-speed response. However, once skilled, a single operator on a Lidebao Upper Moccasin Pattern Stitching Machine can produce 180–220 pairs of moccasin uppers per 8-hour shift, compared to only 120–140 pairs on a post-bed machine—a productivity gain of 40–50% that easily offsets the initial investment.
Final Verdict: Choose by Application, Not by Habit
Selecting between these machines is not about which is “better” in absolute terms—it is about matching mechanical capability to product geometry. For straight seams, light luggage, and flat accessories, the regular post-bed stitcher remains a reliable workhorse. But for the compound curves, layered thicknesses, and aesthetic stitch rows that define premium moccasin footwear, the Upper Moccasin Pattern Stitching Machine—particularly the Lidebao series—delivers repeatable precision that no retrofit or workaround can replicate.
