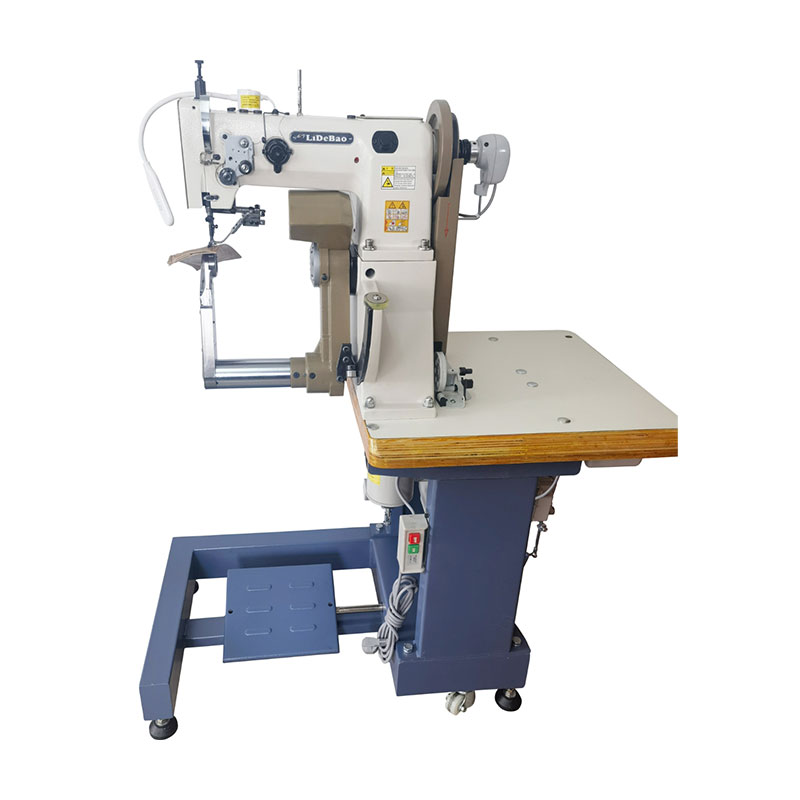

How to Maintain and Troubleshoot a U-shaped Rotary Arm Sewing Machine
2026-06-15
A U-shaped Rotary Arm Sewing Machine is indispensable for sewing cylindrical items like bags, shoes, and upholstery. However, even the most durable equipment requires regular care. This guide, brought to you by Lidebao, provides professional maintenance steps and troubleshooting solutions to keep your machine running efficiently.
Daily Maintenance Checklist
Proper maintenance prevents 90% of common failures. Follow this daily routine:
| Frequency | Task | Purpose |
|---|---|---|
| Every 8 hours | Wipe the rotary arm and hook area with a lint-free cloth | Remove dust and thread debris |
| Every 8 hours | Apply 2 drops of Lidebao certified oil to the rotary hook | Reduce friction and heat |
| Weekly | Check needle alignment and hook timing | Prevent skipped stitches |
| Monthly | Inspect belts and electrical connections | Avoid unexpected downtime |
Common Troubleshooting Table
| Problem | Likely Cause | Lidebao Recommended Fix |
|---|---|---|
| Needle breakage | Bent needle or incorrect size | Replace with Lidebao standard needle (size 18-22 for heavy fabric) |
| Skipped stitches | Dull needle or timing off | Re-sharpen or replace needle; adjust hook-to-needle clearance to 0.05mm |
| Irregular thread tension | Dirty tension discs | Clean discs with compressed air; rethread using Lidebao guide marks |
| Loud knocking noise | Worn rotary hook gear | Replace gear; lubricate with Lidebao high-viscosity oil |
U-shaped Rotary Arm Sewing Machine FAQ
Q1: Why does my U-shaped Rotary Arm Sewing Machine keep skipping stitches when sewing curved seams on bags?
A1: Skipped stitches on curved seams typically result from incorrect needle size or a dull needle. For curved work, use a Lidebao size 19 needle (LR grade). First, replace the needle and ensure the flat side faces right. Second, check the needle-to-hook timing: when the needle rises 2.2mm from its lowest position, the hook tip must meet the needle scarf exactly. Third, reduce sewing speed to 1,200–1,500 RPM for curved sections. If the issue persists, the rotary hook may have burrs—polish it with fine sandpaper (600 grit) or replace it with an original Lidebao hook.
Q2: How often should I lubricate the rotary arm of a U-shaped Rotary Arm Sewing Machine, and what type of oil is best?
A2: Lubricate the rotary arm every 8 operating hours or at the start of each shift. Use only clear, non-gumming sewing machine oil with a viscosity of ISO VG 22 (e.g., Lidebao premium white oil). Avoid vegetable oil or automotive oil, as they corrode internal seals. Apply 2–3 drops directly into the oil port on top of the rotary arm, then run the machine unthreaded for 10 seconds to distribute. For high-volume production (10+ hours/day), install Lidebao automatic drip-feed oiler to maintain consistent lubrication without over-oiling.
Q3: What should I do if my U-shaped Rotary Arm Sewing Machine produces uneven feed on heavy denim or leather?
A3: Uneven feed on heavy materials usually indicates worn feed dogs or incorrect presser foot pressure. First, clean the feed dog teeth with a brass brush—Lidebao machines include a cleaning brush in the accessory kit. Second, adjust presser foot pressure: turn the调节 screw on top of the machine head clockwise for more pressure (start with 1 full turn for 6–8 oz leather). Third, switch to Lidebao heavy-duty feed dogs with deeper teeth (0.8mm height). If the material still slips, install a roller presser foot accessory, available from Lidebao dealers. Finally, check that the rotary arm height matches material thickness—adjust using the side lever.
When to Seek Professional Service
Even with perfect maintenance, some issues require a trained technician. Contact Lidebao support if you notice:
-
Electrical burning smell during operation
-
Metal grinding noise from the rotary arm base
-
More than 10% stitch length variation automatically
Lidebao offers a 24-month warranty on all internal gears and hooks. For replacement parts, service manuals, or video troubleshooting guides, visit the official Lidebao service portal.
