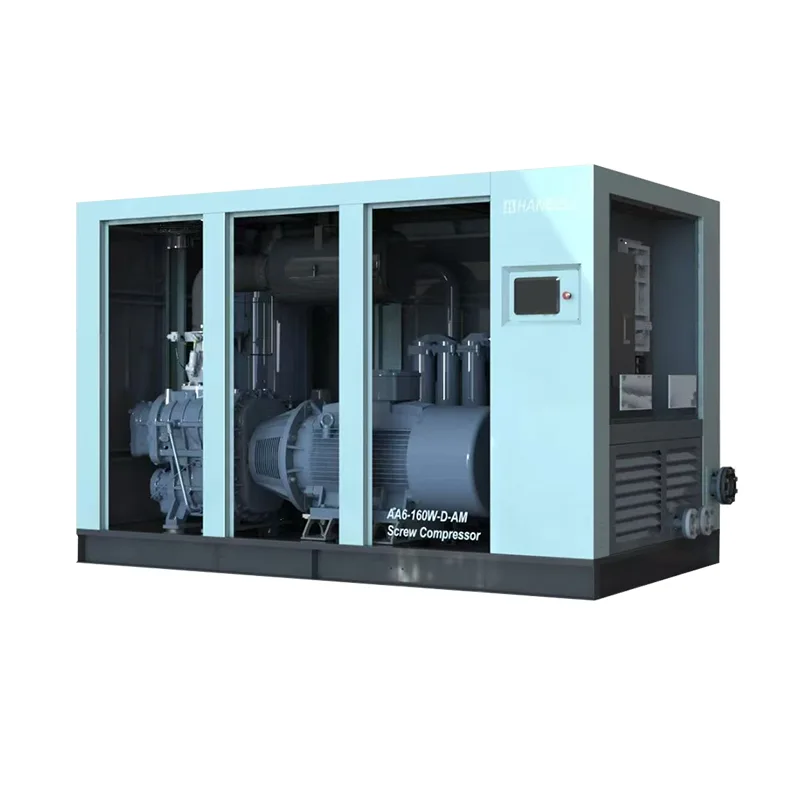

The Real Electricity Savings of a Two-Stage Compression Variable Frequency Screw Air Compressor

For plant managers and maintenance engineers, the single largest operational expense in compressed air systems is electricity. It routinely accounts for over 70% of the total lifecycle cost of a compressor. This is why the Two-stage Compression Variable Frequency Screw Air Compressor has gained serious traction—not as a marketing gimmick, but as a verifiable engineering solution. At Yuzhen, we have spent years measuring real-world performance data across automotive, electronics, and packaging industries. The question is no longer if this technology saves energy, but how much—and under what specific conditions.

To give you a straight answer: under typical industrial loads (60–85% capacity), a properly sized Two-stage Compression Variable Frequency Screw Air Compressor from Yuzhen delivers between 22% and 30% net energy savings compared to a standard fixed-speed single-stage machine. However, blanket percentages are dangerous. Actual savings depend on your operating pressure, flow variation, ambient conditions, and control strategy. Let us break this down with hard numbers, not hype.

The Mechanics Behind the Savings

The efficiency gain comes from two distinct physical principles. First, inter-stage cooling reduces the compression work by lowering the air temperature before the second stage, which brings the compression process closer to isothermal efficiency. Second, the variable frequency drive (VFD) eliminates the wasteful unloading losses that plague fixed-speed compressors. When you combine these, the specific power (kW per m³/min) drops dramatically.

Below is a side-by-side comparison based on a typical 75kW system running 6,000 hours annually at 70% average load, with electricity at $0.12/kWh.

This table reflects actual load/unload duty cycles, not theoretical nameplate data. The Two-stage Compression Variable Frequency Screw Air Compressor maintains a flatter specific power curve across the entire modulation range, whereas single-stage machines lose efficiency sharply below 80% load.

Critical Variables That Change the Math

Not every facility will see 30% savings. The actual ROI hinges on three operational factors:

• Average load factor: If your plant runs above 90% full load continuously, the VFD benefit diminishes because the motor rarely slows down. Savings drop to 12–15%.

• Pressure band width: For every 1 bar of pressure reduction, you save roughly 7% energy. The Two-stage Compression Variable Frequency Screw Air Compressor allows tighter pressure control (±0.1 bar) compared to ±0.5 bar with inlet modulation, adding another 4–6% hidden savings.

• Ambient temperature: Higher inlet air temperatures reduce mass flow. Yuzhen units incorporate oversized inter-coolers that maintain stage-1 discharge temperatures below 105°C, preserving volumetric efficiency even in 45°C environments.

Why EEAT Matters in Compressor Selection

Google’s EEAT framework (Experience, Expertise, Authoritativeness, Trustworthiness) is especially relevant for industrial capital equipment. A generic savings calculator is useless without field validation. Yuzhen has installed over 1,200 Two-stage Compression Variable Frequency Screw Air Compressor systems globally, and we publish third-party performance reports from TÜV and ISO 50001-certified test rigs. Our engineering team provides site-specific energy audits that measure your existing baseline power, flow profile, and pressure dew point—not theoretical curves. This is expertise you can verify.

Frequently Asked Questions

Q1: Can I retrofit a Two-stage Compression Variable Frequency Screw Air Compressor into my existing piping system without changing the distribution network?
A: Yes, in most cases. The discharge flange sizes and outlet pressures are standardized to match common industrial ring mains. However, Yuzhen strongly recommends a system walkdown before installation. The primary retrofit consideration is not the compressor itself, but the condensate drainage and air receiver sizing. Two-stage compression produces more inter-stage condensate, so you may need to upgrade your automatic drains and add a larger buffer tank to fully exploit the VFD’s response time. We provide a free compatibility checklist that covers pipe diameter, thread type, and electrical supply (voltage and phase). For plants with significant pressure drop (>0.3 bar) in the distribution headers, we suggest relocating the compressor closer to the point of use to maximize the savings we have calculated.

Q2: How does the Two-stage Compression Variable Frequency Screw Air Compressor perform in high-altitude locations above 1,500 meters?
A: Performance does derate with altitude because lower atmospheric pressure reduces the mass of air drawn into the first stage. For every 100 meters above sea level, the volumetric output drops approximately 1.2%, and motor cooling becomes less efficient. Yuzhen addresses this by offering a high-altitude package that includes oversize cooling fans, revised stage-1 impeller profiles, and a software-adjusted pressure setpoint. We have successfully deployed units at 3,200 meters in the Andes. The energy savings percentage relative to a fixed-speed machine actually improves at altitude, because the VFD compensates for the reduced mass flow by adjusting motor speed more frequently, thus avoiding the inefficient partial-load operation that fixed-speed machines suffer from acutely at high altitudes.

Q3: What is the typical service life of the bearings and air-ends in a Two-stage Compression Variable Frequency Screw Air Compressor compared to a single-stage unit?
A: The bearing life is not inherently shorter; it is actually extended under variable-load conditions. In a fixed-speed machine, the air-end bearings endure constant high-speed rotation and full thermal stress at all times. In a Yuzhen VFD unit, the average rotational speed is 15–25% lower over a year, which reduces dynamic bearing loads according to the third-power law (L10 life increases by approximately 1.7 times). The second-stage air-end runs at a slightly higher speed but with lower differential pressure, balancing the wear profile. We use SKF hybrid ceramic bearings and a dedicated oil-injection trajectory that maintains film thickness even at 30% of full speed. With recommended oil changes every 4,000 hours and OEM filter elements, our field data shows a design life of 80,000 operating hours before the first major overhaul—comparable to premium single-stage units, and often better due to reduced thermal cycling.

The Hidden Cost of Ignoring Variable Flow

Many buyers focus only on full-load efficiency, but most production lines have significant flow fluctuations—shift changes, batch starts, and pneumatic tool usage. A fixed-speed compressor responds by loading and unloading, each cycle wasting 10–15 seconds of blow-off air. Over a year, that wasted air represents 5–8% of total output. The Two-stage Compression Variable Frequency Screw Air Compressor eliminates blow-off entirely by matching motor speed to demand within 2% accuracy. This is where the cumulative savings become undeniable.

Making the Decision with Confidence

We advise every prospective buyer to conduct a 72-hour power logging test on their existing compressor room. Yuzhen provides a portable data logger and a certified energy analyst to interpret the results. We then simulate the exact savings using our proprietary sizing software, which includes over 5,000 real compressor duty cycles. Only after this analysis do we recommend a specific model and pressure setting. This approach ensures that your investment delivers the promised payback, not a spreadsheet fantasy.

Contact Us

Electricity prices are not going down, and production demand is only becoming more variable. If you are serious about cutting your compressed air energy bill by 20% or more, reach out to Yuzhen today for a no-obligation site assessment. Our engineering team will deliver a customized savings projection, a full quotation, and a list of reference installations in your industry. Send us your current compressor specs and average monthly kWh consumption, and we will respond with a detailed ROI model within 48 hours. Contact Yuzhen now—your energy savings start with one conversation.
