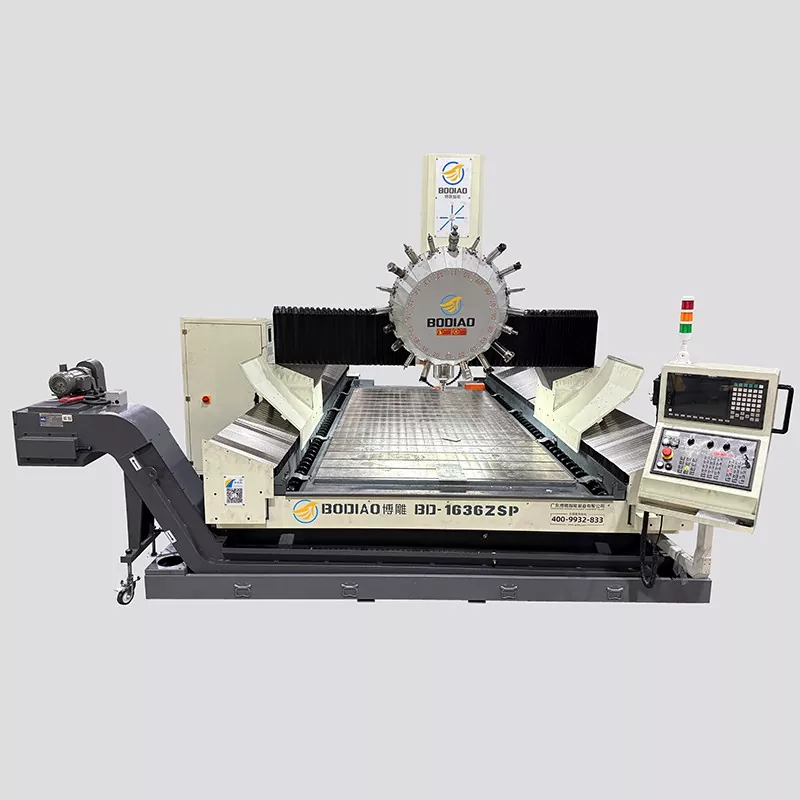

What are the common maintenance issues in a CNC gantry machining center and how can you solve them
2026-04-21
A CNC Gantry Machining Center is the backbone of large-scale precision manufacturing, yet even the most robust systems encounter wear and performance drift over time. At Bodiao, we have helped countless workshops restore and optimize their equipment by identifying frequent failure points and applying targeted solutions. Below is a professional breakdown of common maintenance issues in a CNC Gantry Machining Center and how to solve them effectively.
Common Issues and Practical Solutions
| Issue | Symptoms | Solution |
|---|---|---|
| Spindle overheating | Reduced cutting accuracy, automatic shutdown | Clean cooling system, replace thermal paste, verify lubrication cycle |
| Linear guide rail wear | Vibration, noise, positioning errors | Regular cleaning of chip debris, apply high‑viscosity grease, replace worn rails |
| Ball screw backlash | Inconsistent contouring, poor surface finish | Adjust preload nuts, inspect support bearings, re‑calibrate servo parameters |
| Hydraulic system leakage | Slow tool change, pressure drops | Replace seals, clean filters, check hose connections |
| Control system alarm | Unexpected stops, error codes | Update firmware, test I/O modules, check grounding and shielding |
Step‑by‑Step Troubleshooting for Critical Failures
-
Excessive Vibration During Heavy Cutting – Inspect spindle taper for contamination. Clean with lint‑free cloth and apply anti‑seize compound. Re‑balance tool holders and verify spindle runout below 0.005mm.
-
Unstable Axis Positioning – Perform laser interferometry to map pitch error. Update compensation parameters in the CNC controller. Tighten coupling bolts between motor and ball screw.
-
Coolant Contamination – Install magnetic separator and paper band filter. Schedule weekly pH testing of coolant and replace when pH drops below 8.5.
CNC Gantry Machining Center FAQ – Common Questions
Q1: How often should I perform preventive maintenance on a CNC Gantry Machining Center?
A1: For a CNC Gantry Machining Center operating in a two‑shift production environment, Bodiao recommends a three‑tier schedule: daily operator checks (coolant level, way oil, chip removal), monthly professional inspections (spindle vibration analysis, ball screw backlash measurement), and a full annual service (geometric accuracy verification, electrical cabinet cleaning, servo motor tuning). This prevents 80% of unplanned downtime.
Q2: Why does my CNC Gantry Machining Center lose positioning accuracy after long continuous runs?
A2: Thermal expansion is the primary cause. In any CNC Gantry Machining Center, the guideways and ball screws heat up during extended milling, altering their physical length. Bodiao solves this by implementing a warm‑up cycle (15‑minute spindle rotation at 2000 rpm followed by full axis travel), installing glass scales with temperature compensation, and using synthetic lubricants with stable viscosity. Regular thermal mapping every six months also helps maintain micron‑level precision.
Q3: What are the first signs of linear guide failure in a CNC Gantry Machining Center?
A3: The earliest indicators are audible: a high‑frequency squeal during rapid traverse, followed by visible scoring on the rail surface. You may also notice increased servo load (monitor torque values above 12%). Bodiao advises immediate inspection of the lubricator – if grease is black or contains metal flakes, purge the rail system completely, replace the guide blocks, and switch to a lithium‑based EP2 grease. Ignoring early signs leads to column misalignment and scrapped castings.
Keeping Your CNC Gantry Machining Center at Peak Performance
Consistent documentation is key. Bodiao provides a digital maintenance log template that tracks spindle hours, axis load percentages, and coolant pH. Pair this with vibration analysis every 500 operating hours. Many shops extend their CNC Gantry Machining Center lifespan by 40% simply by following a rigid cleaning protocol – removing chips from telescopic covers daily and inspecting way wipers weekly.
Contact us today for a personalized maintenance audit of your CNC Gantry Machining Center. Bodiao engineers are ready to supply OEM‑spec spare parts, on‑site laser calibration, and remote troubleshooting. Reach out via our website or call your regional support line – let us keep your machining center running without unexpected interruptions.
