What Common Jamming Issues Occur in a Crash Lock High Speed Folder Gluer and How to Fix Them
2026-05-26

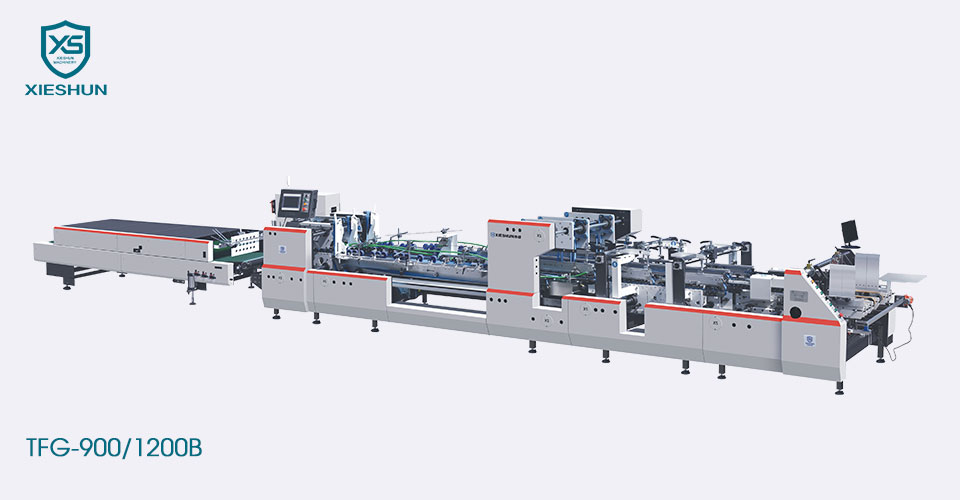

Jamming is one of the most frequent operational challenges when running a Crash Lock High Speed Folder Gluer. For manufacturers like XIESHUN, understanding these disruptions is critical to maintaining uptime. This guide outlines the most common jams in a Crash Lock High Speed Folder Gluer and provides proven solutions, ensuring your production line remains efficient and profitable.
Most Frequent Jamming Issues & Fixes
| Jamming Issue | Primary Cause | Quick Fix | Preventive Measure |
|---|---|---|---|
| Blank misfeed jam | Warped or poorly cut carton blanks | Straighten blanks manually or adjust feed belt tension | Use high-precision die-cut blanks; calibrate feed section weekly |
| Locking tab collision | Misaligned crash lock mechanism | Realign side rails and lock forming plow | Schedule monthly alignment checks for XIESHUN machines |
| Glue residue buildup | Excess adhesive on transport belts | Clean belts with solvent-based cleaner immediately | Install automatic glue cleaning cycle; use low-residue adhesives |
| Overlapping blank jam | Speed mismatch between feed and folding sections | Reduce speed by 10-15% and synchronize drive rollers | Enable master speed control feedback loop |
Step-by-Step Troubleshooting for Persistent Jams
-
Stop the machine safely – Engage emergency stop and isolate power.
-
Open all guard doors – Locate the jam point (usually at folding or lock section).
-
Remove jammed blanks – Use non-marring tools to avoid belt damage.
-
Inspect sensors – Clean photoelectric sensors with dry air.
-
Test-run at low speed – Run 10 blanks at 50% speed before resuming full operation.
Crash Lock High Speed Folder Gluer FAQ – Common Questions
Q1: Why does my Crash Lock High Speed Folder Gluer always jam when processing recycled corrugated board?
A1: Recycled board often has inconsistent thickness and dust residue. This causes two specific issues: first, the board thickness variation disrupts the timing of the crash lock fingers; second, dust clogs the vacuum feed system. XIESHUN recommends using a dust extraction hood and increasing the lock clearance by 0.3mm. Also, install a double-sheet detector to prevent multiple blanks entering the folding section.
Q2: How can I distinguish between a jam caused by operator error and a machine mechanical fault in a Crash Lock High Speed Folder Gluer?
A2: Perform the "idle test": run the machine empty for 30 seconds. If the folding belts and lock plows move smoothly without noise, the jam is likely operator-related (e.g., skewed feed, overfilled magazine). If grinding or knocking sounds persist, inspect the lock cam follower bearings. XIESHUN machines include diagnostic LED codes: a flashing red light indicates a mechanical timing error, while yellow indicates feed sensor misalignment.
Q3: What is the fastest way to clear a jam in the crash lock forming station without damaging the Crash Lock High Speed Folder Gluer?
A3: Never pull jammed blanks backward—this bends the lock fingers. Instead, use the reverse jog function (available on all XIESHUN models) to slowly drive the jam forward out of the station. If the jam remains, open the quick-release panel at the forming station, manually rotate the handwheel counterclockwise until the blank releases, then use compressed air to blow out debris. Total downtime should be under 90 seconds with proper training.
Preventive Maintenance Checklist
-
Daily: Clean glue nozzles and check blank feed alignment.
-
Weekly: Measure lock forming plow wear; lubricate cam followers.
-
Monthly: Calibrate photo-sensors using XIESHUN alignment tool.
-
Quarterly: Replace feed belts and inspect crash lock fingers for cracks.
A well-maintained Crash Lock High Speed Folder Gluer can achieve over 98% jam-free runtime. Ignoring early signs of misfeeds leads to lower output and higher board waste.
Contact us today at XIESHUN to schedule a free jam reduction audit for your Crash Lock High Speed Folder Gluer or request a custom troubleshooting guide tailored to your carton style.
