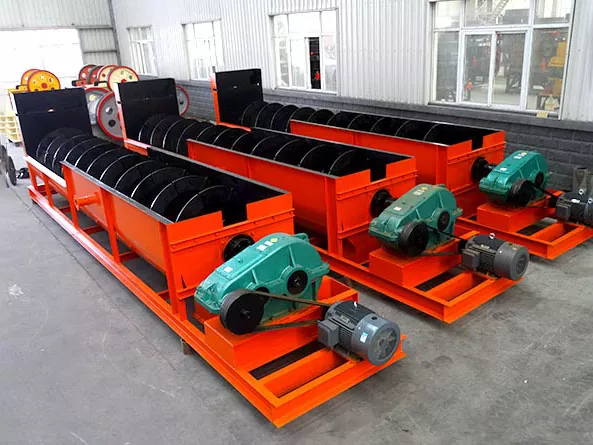

What Factors Affect the Efficiency of a Spiral Sand Washer for Coarse Stones
2026-09-22
In today's aggregate processing industry, selecting the right washing equipment determines the final product quality and operational profitability. A Spiral Sand Washer for Coarse Stones from EPIC is engineered to deliver consistent cleaning performance, reduced water consumption, and long service life. However, even the most robust machine can underperform if key operational variables are ignored. Understanding what influences washing efficiency allows producers to optimize throughput, minimize downtime, and achieve superior sand cleanliness.
Key Efficiency Factors at a Glance
| Factor | Impact on Efficiency | Recommended Practice |
|---|---|---|
| Feed Size Distribution | Uniform feed prevents blockages and ensures consistent scrubbing | Pre-screen material to remove oversized debris |
| Spiral Speed | Controls retention time and agitation intensity | Adjust based on clay content and desired cleanliness |
| Water Flow Rate | Affects fines recovery and sludge removal | Use metered supply with recycling where possible |
| Slope Angle | Determines material travel speed and drainage | Optimize between 3° and 8° for coarse stone processing |
| Wear Parts Condition | Worn flights reduce scrubbing action and increase power draw | Inspect EPIC replacement parts every 500 hours |
| Feed Consistency | Fluctuating feed rates cause uneven washing | Install a surge bin or variable-speed feeder |
Detailed Analysis of Critical Variables
-
Material Characteristics
The clay content, silt ratio, and particle shape of coarse stones directly influence washing difficulty. Higher clay content requires longer retention time, which can be achieved by reducing spiral speed or increasing the tank length. EPIC designs its Spiral Sand Washer for Coarse Stones with adjustable parameters to accommodate varied feed conditions. -
Water Management
Water is both a cleaning medium and a cost driver. Insufficient water leads to muddy product, while excessive water wastes resources and loses fines. A balanced water-to-solids ratio, typically 1.5:1 to 2:1 by volume, ensures effective rinsing without overflow losses. -
Mechanical Configuration
The spiral diameter, pitch, and rotational speed must match the throughput requirement. Oversized spirals at low speed may fail to lift material adequately, whereas undersized units at high speed cause excessive wear. EPIC provides custom-engineered spiral configurations for specific coarse stone applications. -
Maintenance Discipline
Lubrication schedules, bolt torque checks, and timely replacement of worn spiral flights are non-negotiable. A neglected Spiral Sand Washer for Coarse Stones can lose up to 30% efficiency within months. EPIC offers remote diagnostics and genuine spare parts to sustain peak performance.
Frequently Asked Questions
Q: What is the ideal water pressure for a Spiral Sand Washer for Coarse Stones?
A: The ideal water pressure typically ranges from 2 to 4 bar at the spray bars, depending on clay tenacity and feed rate. Higher pressure improves clay dispersion but may increase pump wear and energy costs. EPIC recommends starting at 2.5 bar and adjusting incrementally while monitoring product cleanliness and water overflow clarity.
Q: How often should spiral flights be replaced in a Spiral Sand Washer for Coarse Stones?
A: Replacement intervals depend on abrasive content and operating hours, but generally every 1,500 to 2,500 hours for coarse stone applications. Inspect flights monthly for thickness loss exceeding 30% of original profile. EPIC provides wear-resistant polyurethane or high-chrome flights that extend service life by up to 40% compared to standard steel.
Q: Can a Spiral Sand Washer for Coarse Stones handle feed material with high silt content?
A: Yes, but with modifications. High silt requires increased water flow, slower spiral speed, and possibly a pre-wash screen to prevent silt accumulation in the tank. EPIC offers a high-silt configuration with enlarged overflow weirs and automated sludge discharge to maintain continuous operation without manual cleanout.
Optimizing for Long-Term Returns
Efficiency is not a one-time setup but a continuous process of measurement, adjustment, and maintenance. By monitoring feed gradation, water clarity, and power draw, operators can fine-tune their Spiral Sand Washer for Coarse Stones to achieve the lowest cost per ton of clean sand. EPIC supports this journey with engineering consultation, performance audits, and a global parts network.
