What Is the Difference Between an Automatic L Bar Shrink Wrapping Machine and a Manual Sealer
2026-10-30
Choosing the right packaging equipment directly affects throughput, labor cost, and product presentation. An Automatic L Bar Shrink Wrapping Machine from Huaze is engineered for continuous, high-volume output, while a manual sealer relies on operator skill and physical effort. Understanding these differences helps manufacturers, distributors, and e-commerce sellers select equipment that matches their production goals and budget.
Core Differences at a Glance
| Feature | Automatic L Bar Shrink Wrapping Machine | Manual Sealer |
|---|---|---|
| Operating Mode | Fully automated sealing, cutting, and shrinking | Operator-fed sealing and cutting |
| Output Capacity | 15–40 packs per minute (model dependent) | 3–8 packs per minute |
| Labor Requirement | One operator for monitoring and film loading | One operator per machine, continuous attention |
| Sealing Consistency | Servo-controlled, repeatable seal quality | Varies with operator technique |
| Film Waste | Low, due to precise cut-length control | Higher, due to manual trimming |
| Integration | Compatible with conveyors, labelers, and palletizers | Standalone operation only |
| Typical Footprint | Larger, requires layout planning | Compact and portable |
| Best Fit | High-volume, standardized product lines | Low-volume, mixed or irregular runs |
How the Two Systems Work

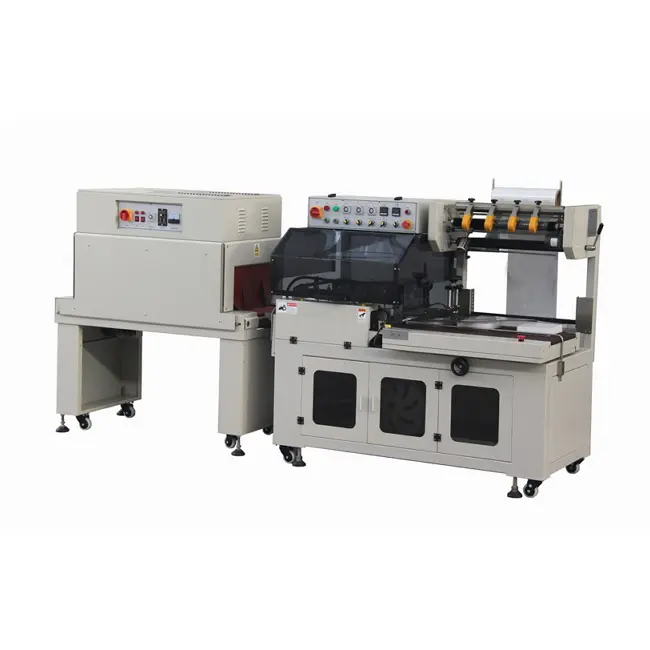

A Huaze Automatic L Bar Shrink Wrapping Machine combines an L-shaped sealing bar with a shrink tunnel. Products are fed automatically, wrapped in film, sealed and cut in one motion, then passed through the tunnel for a tight, uniform finish. This closed-loop process minimizes handling and reduces variability.
A manual sealer performs only the sealing and cutting step. The operator places film around the product, lowers the sealing bar, and trims excess film by hand. Shrinking is typically done in a separate tunnel or heat gun, adding time and inconsistency.
When Automation Delivers the Best Return
-
High daily volume: Automated systems amortize quickly when output exceeds several hundred packs per shift.
-
Uniform product dimensions: Standardized cartons, boxes, and trays suit L-bar geometry perfectly.
-
Consistent retail presentation: Servo-controlled sealing produces clean, repeatable seams for shelf-ready packaging.
-
Labor constraints: One operator can supervise an automated line that replaces multiple manual stations.
When a Manual Sealer Remains Practical
-
Low or seasonal volume: Small batches do not justify automation investment.
-
Highly variable product sizes: Frequent changeovers favor flexible manual operation.
-
Budget-limited startups: Manual units offer a lower entry cost with acceptable output.
Key Selection Criteria
| Criterion | Recommendation |
|---|---|
| Output above 500 packs/day | Choose an Automatic L Bar Shrink Wrapping Machine |
| Mixed SKUs with frequent size changes | Manual sealer or semi-automatic option |
| Retail-ready packaging requirements | Automated system with servo control |
| Limited floor space | Compact manual sealer |
| Long-term labor cost reduction | Automated line with conveyor integration |
Frequently Asked Questions
Q: What film types work best with an Automatic L Bar Shrink Wrapping Machine?
A: Huaze machines are compatible with POF, PE, and cross-linked shrink films. POF is preferred for retail packaging because it offers clarity, strong shrinkage, and clean seals. PE is suited to heavier industrial products requiring puncture resistance. Film thickness typically ranges from 12 to 25 microns, and the machine's temperature and conveyor speed should be adjusted to match film specifications.
Q: How much maintenance does an Automatic L Bar Shrink Wrapping Machine require?
A: Routine maintenance includes daily cleaning of the sealing bar, weekly inspection of the cutting blade, monthly lubrication of moving parts, and periodic calibration of temperature and speed settings. Huaze provides a maintenance schedule and spare-parts support to keep downtime minimal. Consumable components such as PTFE tape and blades should be inspected regularly and replaced as worn.
Q: Can an Automatic L Bar Shrink Wrapping Machine handle products of different sizes?
A: Yes, within its specified working range. Huaze models allow adjustable tunnel height, conveyor speed, and sealing parameters. For lines with frequent size changes, quick-change tooling and programmable recipes reduce changeover time. Products outside the machine's maximum dimensions require a larger model or a different wrapping configuration.
Conclusion
The decision between an Automatic L Bar Shrink Wrapping Machine and a manual sealer rests on volume, consistency requirements, and labor economics. Automated systems deliver speed, repeatability, and long-term savings, while manual units suit low-volume, flexible operations. Huaze supplies both automated and semi-automated packaging solutions tailored to specific production needs.
