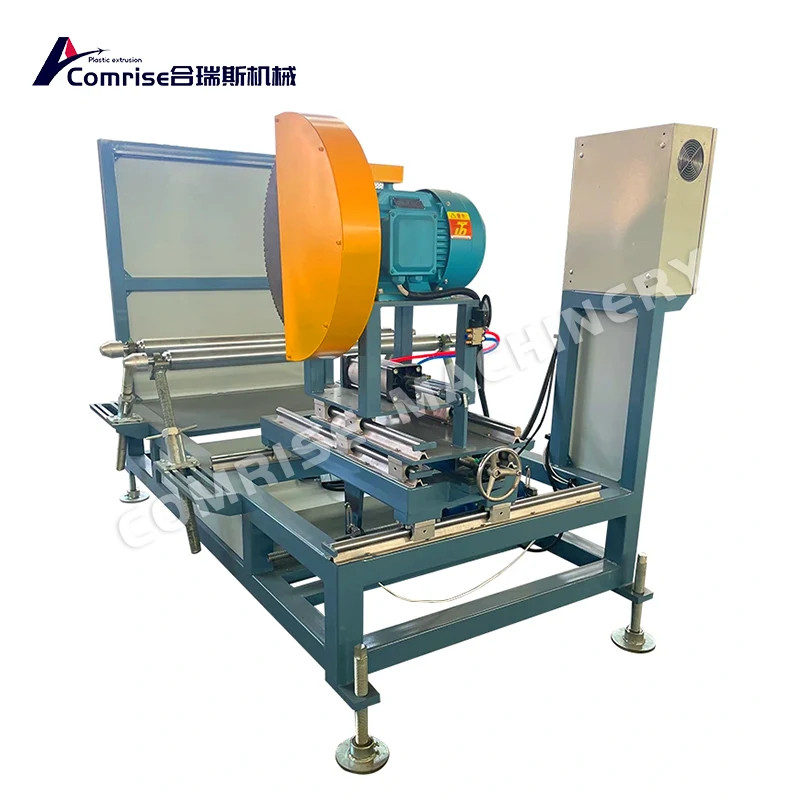

What is the working principle of a steel reinforced plastic spiral winding pipe machine in modern pipeline systems

Modern pipeline infrastructure demands pipes that combine flexibility, corrosion resistance, and high structural strength. The steel reinforced plastic spiral winding pipe machine has become a cornerstone in producing such advanced piping solutions. At Comrise, we specialize in manufacturing these sophisticated machines that integrate steel’s tensile strength with plastic’s durability. Understanding the working principle of a steel reinforced plastic spiral winding pipe machine is essential for engineers and project managers who seek reliable, long-lasting pipeline systems.

Core Working Principle

The operation of a steel reinforced plastic spiral winding pipe machine follows a continuous, multi-stage process. First, flat steel strips are unwound from coils and shaped into a ribbed profile. Simultaneously, thermoplastic material (typically HDPE or PP) is extruded and applied around the steel reinforcement. The machine spirally winds these composite layers onto a mandrel, fusing them under controlled heat and pressure. As the pipe advances, external plastic layers encapsulate the steel, preventing corrosion while the steel provides ring stiffness. The result is a lightweight yet crush-resistant pipe ideal for stormwater, sewage, and industrial drainage systems.

Key Components and Their Functions

Why This Principle Matters for Modern Systems

The steel reinforced plastic spiral winding pipe machine enables pipes with a high stiffness-to-weight ratio. Unlike traditional concrete or metal pipes, these products resist chemical attack, ground movement, and hydraulic surges. Comrise engineering ensures that the winding tension and temperature parameters are precisely controlled, delivering uniform wall thickness and consistent steel embedment.

Steel Reinforced Plastic Spiral Winding Pipe Machine FAQ

Question 1: How does the steel reinforcement prevent corrosion inside the pipe wall?

Answer: The steel reinforced plastic spiral winding pipe machine completely encapsulates the steel rib with a continuous layer of thermoplastic during the spiral winding process. The molten plastic flows around the steel profile, leaving no exposed metal edges. This sealed structure blocks moisture, oxygen, and aggressive chemicals from reaching the steel. Additionally, Comrise machines can apply an extra internal plastic liner, providing a second barrier. As a result, the steel reinforcement provides mechanical strength without ever contacting the conveyed fluid or soil environment.

Question 2: What diameter range can a steel reinforced plastic spiral winding pipe machine produce in one production line?

Answer: A single steel reinforced plastic spiral winding pipe machine from Comrise typically covers diameters from 200 mm to 3500 mm. The machine achieves this wide range by adjusting the mandrel diameter and modifying the winding head geometry. Smaller diameters (200–800 mm) use a solid mandrel, while larger diameters (800–3500 mm) employ an expandable cage mandrel. Production speed remains between 0.5 and 3 meters per minute depending on diameter and wall thickness. This flexibility allows manufacturers to serve both municipal drainage and large-scale industrial projects without purchasing multiple machines.

Question 3: How does the machine maintain consistent steel tension during spiral winding to avoid pipe deformation?

Answer: The steel reinforced plastic spiral winding pipe machine integrates a closed-loop tension control system with load cells and servo motors. As the steel strip passes through the straightener and into the forming rollers, sensors continuously measure pull force. If tension deviates from the preset value (usually 2–5 kN depending on strip width), the servo-driven uncoiler brake adjusts instantly. Additionally, the spiral winding head includes guide rollers that maintain the steel’s position relative to the plastic extrusion nozzle. Comrise machines also feature a real-time display of tension data, allowing operators to detect inconsistencies before they cause ovality or buckling in the finished pipe.

Advantages at a Glance

• Corrosion resistance – Plastic encapsulation of steel

• High ring stiffness – SN4 to SN16 available

• Lightweight – 1/10 the weight of concrete pipes of equal diameter

• Fast jointing – Integral socket or electrofusion welding

• Long service life – 50+ years in aggressive soils
