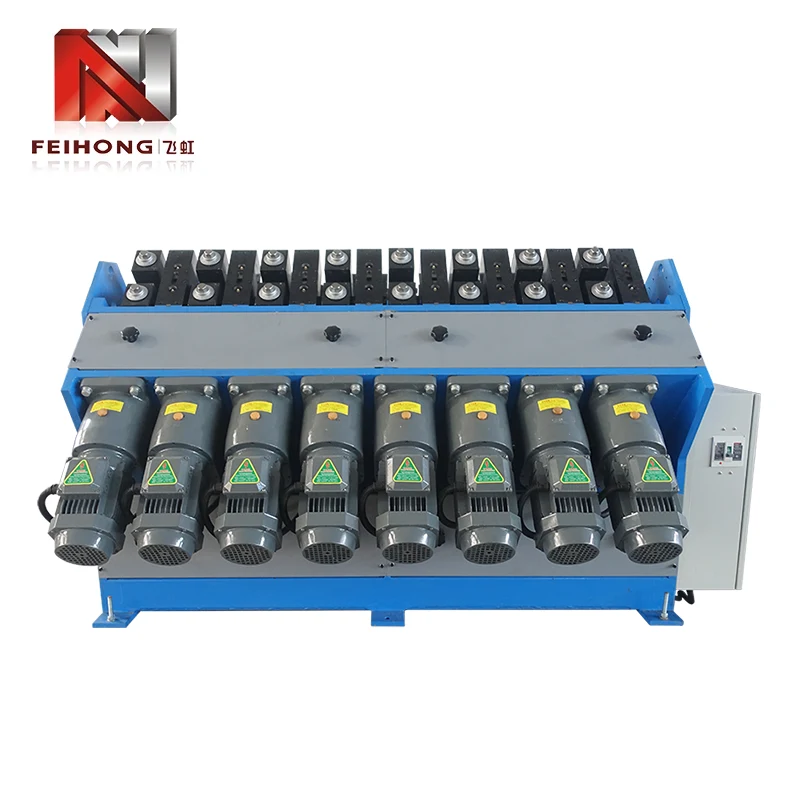

What safety features should you look for in an upgraded pipe shrinking machine
2026-04-27
When investing in an Upgraded Pipe Shrinking Machine, safety is not an option—it is a necessity. Modern manufacturing demands equipment that protects operators while maximizing productivity. Feihong has integrated advanced safety mechanisms into its Upgraded Pipe Shrinking Machine range, setting new benchmarks for industrial protection. Below are the critical safety features to evaluate before purchasing.
Essential Safety Features at a Glance
| Safety Feature | Function | Why It Matters |
|---|---|---|
| Emergency stop system with dual redundancy | Instantly halts all moving parts | Prevents injury during tool jams or operator errors |
| Light curtain sensors | Creates an invisible safety field around the shrinking zone | Stops operation if hands or objects enter dangerous areas |
| Overload protection device | Detects abnormal pressure or torque | Avoids mechanical failure and pipe rupture |
| Thermal monitoring system | Tracks motor and hydraulic fluid temperature | Prevents overheating and fire hazards |
| Automatic pressure release valve | Releases hydraulic pressure when machine idles | Eliminates unexpected ram movement during setup |
Additional Protective Components
-
Interlocking safety guards that prevent operation when opened
-
Anti-slip foot pads to stabilize the machine during high-force cycles
-
Noise reduction casing that also contains potential debris
-
Real-time diagnostic display showing system status and fault codes
Upgraded Pipe Shrinking Machine FAQ – Common Questions Answered
Q1: How does the emergency stop system in an Upgraded Pipe Shrinking Machine differ from older models?
A1: Traditional machines often use a single emergency stop button located on the control panel. An Upgraded Pipe Shrinking Machine from Feihong features multiple strategically placed emergency stops—usually one on each side of the main frame and one foot pedal. These are connected to a dual-channel safety relay that cuts power to hydraulic valves and servo motors within 0.1 seconds. This design ensures that an operator can stop the machine from any working position, significantly reducing reaction time in crisis situations.
Q2: Can an Upgraded Pipe Shrinking Machine automatically detect when a safety guard is left open?
A2: Yes. A modern Upgraded Pipe Shrinking Machine includes magnetic or inductive proximity sensors on every removable guard and access door. When any guard is opened, the control logic immediately disables the hydraulic pump and applies a dynamic brake to the shrinking dies. Feihong machines go further by displaying a specific error code on the HMI screen, telling the operator exactly which guard is open. The machine cannot restart until all guards are closed and a manual reset is performed, eliminating any bypass risk.
Q3: What happens if the machine tries to shrink a pipe beyond its rated capacity?
A3: An Upgraded Pipe Shrinking Machine equipped with overload protection—standard in Feihong units—constantly monitors hydraulic pressure and motor current. If the required force exceeds 95% of the rated capacity, the control system reduces feed speed automatically. If force reaches 105% of the limit, the machine triggers an audible alarm, retracts the shrinking dies, and shuts down. This prevents catastrophic failure such as cracked die plates, burst hydraulic hoses, or pipe explosion. The event is logged with a timestamp for maintenance review.
Why Operator Training Complements Hardware Safety
Even the safest Upgraded Pipe Shrinking Machine requires proper handling. Feihong provides detailed lockout/tagout procedures and daily inspection checklists. Key training points include verifying light curtain alignment, testing emergency stops before each shift, and never bypassing interlocks for faster cycles.
Contact Us for a Custom Safety Review
Every production environment has unique risks. Feihong offers free safety audits to match the right Upgraded Pipe Shrinking Machine with your shop floor layout. Contact us today to schedule a live demonstration or request a detailed safety datasheet. Our engineering team will help you reduce liability while boosting throughput.
