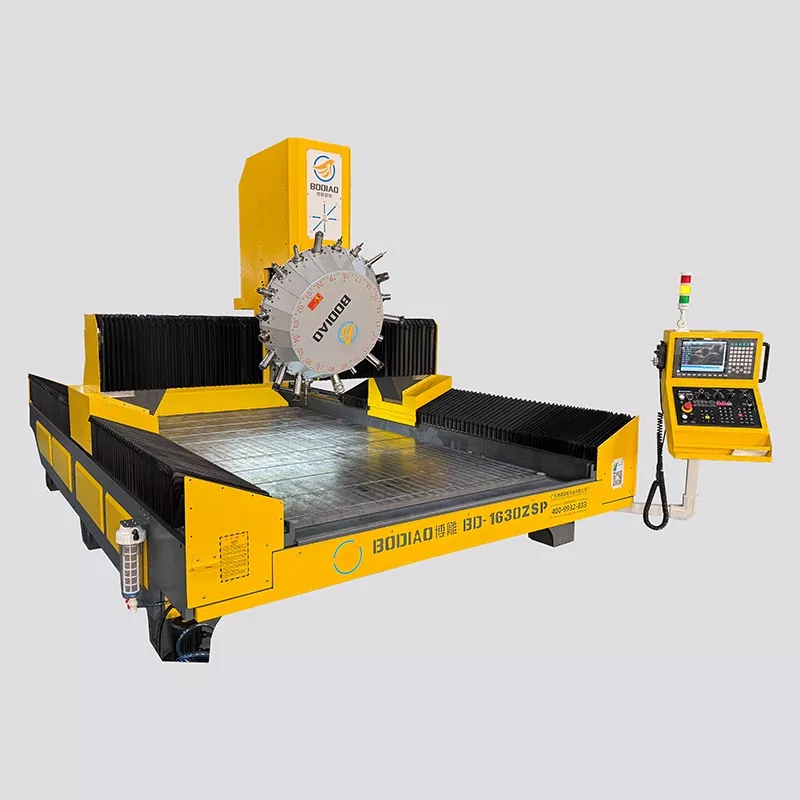

What Tooling Systems Are Compatible with a Rapid Tool Change Gantry Machining Center
2026-10-20
Selecting the right tooling system is one of the most consequential decisions when specifying a Rapid Tool Change Gantry Machining Center. At Bodiao, engineers are frequently asked which interfaces, holders, and automation options work best with these large-format machines. The answer depends on part size, spindle taper, material, and production volume — but several proven configurations consistently deliver fast changeovers and stable cutting.
Core Tooling Interfaces
A Rapid Tool Change Gantry Machining Center typically supports these spindle and holder systems:
| Tooling System | Taper / Interface | Best For | Changeover Speed |
|---|---|---|---|
| CAT / V-Flange | CAT40, CAT50 | General milling, steel and cast iron | Fast |
| BT / JIS | BT40, BT50 | High-speed milling, aluminum | Fast |
| HSK | HSK-A63, HSK-A100 | High-precision, high-RPM work | Very fast |
| Capto | C6, C8 | Heavy-duty turning/milling combos | Moderate |
| Big-Plus | BT40/50 dual contact | Rigid, high-torque cuts | Fast |
Bodiao configures each Rapid Tool Change Gantry Machining Center with the interface that matches the customer's spindle taper and tool magazine capacity, ensuring repeatable clamping and minimal runout.
Tool Magazine and Automation Compatibility
-
Chain-type magazines — 24 to 60 pockets for mixed part families
-
Matrix/umbrella magazines — compact layouts for single large parts
-
Robot-loaded tool carts — for lights-out production
-
Preset tooling with RFID chips — enables automatic offset loading
Bodiao integrates these options directly into the machine's CNC, so tool data flows without manual entry.
Holder and Accessory Considerations
-
Hydraulic and shrink-fit holders — best for HSK spindles at high RPM
-
Collet chucks — flexible for small-diameter tools
-
Shell mill arbors — for face milling large gantry surfaces
-
Balanced holders (G2.5 at 20,000 RPM) — required for high-speed spindles
FAQ
Q: Can a Rapid Tool Change Gantry Machining Center use both CAT50 and HSK-A100 tooling?
A: Generally no on the same spindle. The spindle taper is fixed at build, so Bodiao specifies either CAT50 or HSK-A100 per machine; dual-interface capability requires a separate spindle module or a second machine.
Q: What tool magazine capacity is typical for a Rapid Tool Change Gantry Machining Center?
A: Most Bodiao gantry machines ship with 24–40 pockets, expandable to 60 for mixed-part production; larger matrices are available for single large workpieces requiring many backup tools.
Q: Does a Rapid Tool Change Gantry Machining Center support RFID tool presetting?
A: Yes. Bodiao integrates RFID reading at the magazine load station, so preset offsets and tool life data transfer automatically to the CNC, reducing manual setup errors.
Q: Are shrink-fit holders compatible with all gantry spindles?
A: They are compatible with HSK and high-speed BT/CAT spindles rated for the holder's balance class; Bodiao confirms balance grade and RPM limits during configuration.
Contact us today to discuss the ideal tooling configuration for your Rapid Tool Change Gantry Machining Center — Bodiao's application engineers will match interfaces, magazine capacity, and automation to your production goals.
