Which Production Bottlenecks Can Fully Automatic Powder Spraying Equipment Resolve for Metal Finishing Manufacturers?
2026-10-15
Article Summary
Metal fabrication and coating factories often struggle with unstable coating quality, heavy powder waste, slow production output, high labour dependency, difficult colour switching, inconsistent film thickness, and environmental compliance pressure when using manual or semi-automatic powder spraying systems. This article focuses on Fully Automatic Powder Spraying Equipment developed by Qingguo. It explains the integrated electrostatic spraying structure, intelligent powder recovery system, core performance strengths, standard technical parameters, suitable industrial application fields, on-site installation requirements, operating specifications and routine troubleshooting guidance. This practical guide helps factory managers, production engineers and procurement teams assess whether this automated spraying system matches their finishing workflow, stabilise finished product quality, reduce raw material consumption, cut labour costs and simplify daily compliance management for powder coating workshops.
1. Introduction: What Is Fully Automatic Powder Spraying Equipment

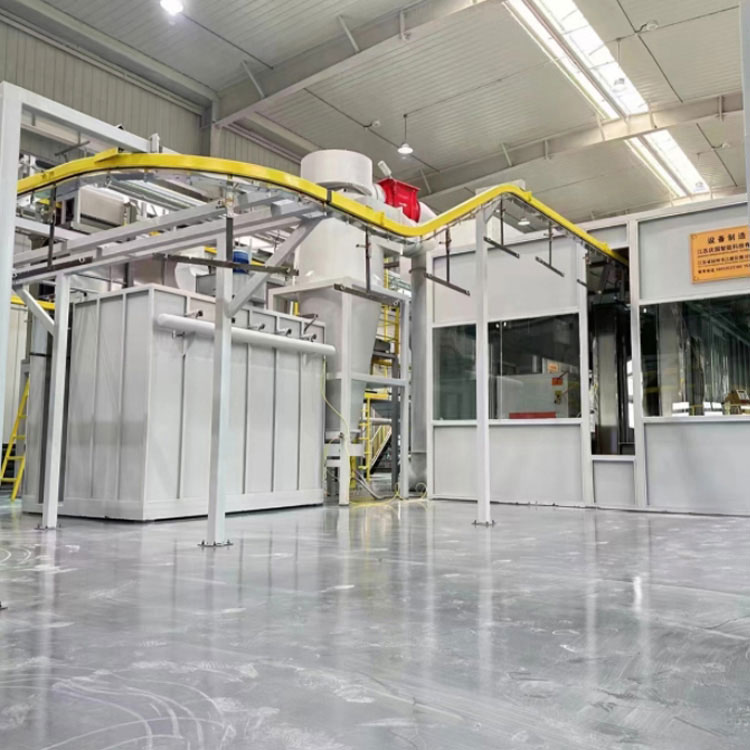

Fully automatic powder spraying equipment, also known as automatic electrostatic powder coating line, is an integrated industrial finishing system. It combines automatic reciprocators or robotic spray guns, powder supply units, closed spray booths, high-efficiency powder recovery devices, PLC control modules, conveyor systems and supporting curing ovens. After pre-treatment including degreasing, rust removal and phosphating, metal workpieces are transported automatically into the spraying station. Electrostatic guns charge powder particles, and the charged powder evenly adheres to grounded metal surfaces before entering the oven for heating and curing, forming a durable protective coating.
Qingguo designs this series for continuous mass production. Different from manual spraying which heavily relies on operator experience, this automatic system stabilises gun distance, spray speed, electrostatic voltage and powder flow through programmable settings. It can run continuously for long shifts with minimal manual intervention. In the following sections, we sort out the most frequent operational problems in traditional coating workshops and explain how Qingguo’s fully automatic powder spraying equipment solves these production challenges systematically.
2. Common Pain Points of Manual and Semi-Automatic Powder Spraying Workshops
From long-term feedback from production supervisors and coating engineers, most workshop losses and customer rejections come from these recurring issues:
- Unstable coating quality: Spraying angle, gun distance and powder output change with operator fatigue, leading to uneven film thickness, pinholes, orange peel and inconsistent colour batches.
- High powder consumption: Low transfer efficiency causes massive powder overspray. Most fine powder drifts away without recycling, pushing up raw material costs.
- Labour shortage and high labour cost: Experienced powder spray operators are hard to recruit and retain; long repetitive spraying work also brings occupational health risks.
- Slow colour change and long downtime: Poorly designed booth and recovery structures take hours to clean when switching powder colours, greatly reducing effective production time.
- Poor workshop environmental control: Uncaptured floating powder pollutes the workshop air and makes it difficult to meet local environmental inspection standards.
- Limited throughput: Manual spraying cannot match fast conveyor speed. Factories cannot fulfil large bulk orders within agreed lead times.
- Difficult quality traceability: Without automatic parameter recording, it is hard to locate the root cause when defective batches appear and avoid repeated mistakes.
These problems limit factory profit margins and restrict business expansion. Qingguo fully automatic powder spraying equipment addresses these pain points from control logic, booth structure and powder recycling design.
3. Core Advantages of Qingguo Fully Automatic Powder Spraying Equipment
Every functional module of this system targets the quality, cost and efficiency pain points of powder coating workshops.
Consistent Spraying Parameters & Stable Coating Finish
PLC system locks voltage, air pressure, powder flow and reciprocator movement path. Film thickness deviation is controlled within a narrow range, reducing rework and rejection rates.
High Transfer Efficiency with Cyclone Recovery System
The large cyclone plus filter cartridge recovery structure captures overspray powder for reuse. It greatly cuts powder waste and lowers the unit coating cost per workpiece.
Fast Colour Change Design
Smooth internal booth surfaces and quick-disassembly recovery components shorten colour switching time, which is suitable for factories with frequent small-batch multi-colour orders.
Reduce Reliance on Skilled Sprayers
Operators only need to load workpieces, monitor the system and replace powder. The threshold for stable mass production is lowered and labour pressure is relieved.
Closed Booth Structure for Environmental Compliance
Negative pressure sealing prevents powder leakage. Filtered exhaust gas meets emission requirements and helps factories pass environmental audits smoothly.
Customisable for Different Workpiece Sizes
Qingguo supports customising spray booth size, number of spray guns, reciprocator stroke and conveyor speed according to the actual workpiece shape and production capacity target.
4. Key Technical Specification Reference Table
| Item | Parameter Description |
|---|---|
| Core Configuration | Automatic electrostatic spray guns, reciprocator, powder feeder, cyclone recovery + filter cartridge |
| Control Mode | PLC + touch screen, recipe storage for different powder and workpieces |
| Electrostatic Voltage Range | 0–100KV adjustable |
| Powder Transfer Efficiency | Up to 85% or higher with standard recovery system |
| Booth Structure | Negative pressure closed spray booth, anti-static material |
| Conveyor Type | Overhead hanging chain or ground conveyor, speed adjustable |
| Curing Temperature Range | 160℃ – 200℃, temperature uniformity ±5℃ |
| Optional Upgrade | Robotic spraying system, automatic colour change module, online thickness monitoring |
Note: These figures serve as general reference. Exact layout, gun quantity and line speed will be designed and confirmed by Qingguo according to workpiece size, hourly output target and powder type.
5. Suitable Application Scenarios for This Powder Spraying System
This fully automatic powder spraying equipment adapts to mass metal finishing and works well in these typical industries:
- Hardware and metal sheet workshops: Cabinet shells, distribution boxes, metal frames, brackets and chassis parts that require stable anti-corrosion coating.
- Aluminium profile and building materials: Aluminium alloy window frames, railings, decorative profiles with consistent colour and surface finish requirements.
- Agricultural machinery and engineering components: Structural parts, machine housings and support frames that need strong weather resistance and salt spray performance.
- Outdoor street lamp and traffic facilities: Lamp housings, guardrails and road accessories exposed to rain, sunlight and coastal salt fog environments.
- Custom metal furniture industry: Metal tables, shelves, storage racks and fitness equipment with high appearance standards and batch delivery demands.
For system integrators and coating service factories, Qingguo can provide layout drawing, sample spraying test, on-site installation guidance and operator training for turnkey coating line projects.
6. Installation Checklist and Daily Operation & Maintenance Guidance
Automatic powder spraying lines involve high-voltage electrostatic parts, air pipelines, heating ovens and dust filtration systems. Standardised installation and regular maintenance directly decide coating quality and equipment service life.
Pre-Installation Checklist
- Reserve enough workshop space for booth, oven, conveyor and powder recovery area; keep ventilation and fire prevention distance
- Prepare stable compressed air supply with dryer and filter to remove water and oil from air source
- Complete reliable grounding for booth, guns, conveyor and all metal frames to avoid static safety risks
- Confirm power capacity matches the whole line load and reserve independent circuit protection
Operation Tips
Set spraying recipes on the touch screen before batch production, run empty machine test first, check gun atomisation and negative pressure of the booth. Keep the workpiece hook clean to guarantee good grounding. Stop feeding powder and clean the gun when switching colours to avoid colour mixing contamination.
Periodic Maintenance Plan
- Daily: Clean gun nozzle, check powder hose blockage, inspect filter cartridge pressure difference and grounding connection
- Weekly: Clean booth inner wall, empty recovery powder bin, check reciprocator guide rail lubrication
- Monthly: Test high voltage output, inspect oven heating tube and temperature sensor, replace damaged filter cartridges
7. Common Fault Diagnosis and Troubleshooting Table
| Fault Symptom | Likely Causes | Recommended Fix |
|---|---|---|
| Low powder adsorption, thin coating | Poor workpiece grounding, insufficient electrostatic voltage, wet compressed air | Clean hooks, adjust voltage, check air dryer and water filter |
| Orange peel and uneven surface | Unstable powder flow, wrong gun distance, improper curing temperature | Calibrate powder feeder, adjust reciprocator stroke and reconfirm oven temperature curve |
| Powder leaks out of spray booth | Insufficient negative pressure, blocked filter cartridges, loose sealing gaps | Check exhaust fan, replace saturated filter cartridges and seal booth gaps |
| Frequent gun clogging | Moist powder, agglomerated powder, dirty feeding hose | Store powder in dry environment, sieve agglomerated powder and clean pipelines |
8. Frequently Asked Questions (FAQ)
Q1: Can fully automatic powder spraying equipment handle irregular and complex workpieces?
Standard reciprocator models suit regular parts. For complex, deep-cavity or three-dimensional workpieces, Qingguo can upgrade to robotic spray gun configurations to cover hidden surfaces and reduce missing spray areas.
Q2: Is it suitable for factories that frequently switch powder colours?
Yes. Qingguo’s quick colour change booth version adopts smooth, easy-to-wipe internal structure and fast-release recovery parts, which greatly cuts cleaning time between different powder colours.
Q3: What preparation is needed before installing this automatic powder spraying line?
Factories need to prepare stable power supply, dry oil-free compressed air, reliable grounding system, fire prevention facilities and enough workshop space. Our technical team will provide site survey guidance before production.
Q4: Can the system save production recipes for different products?
The PLC touch screen supports recipe storage. You can save parameters for different powder types, workpiece materials and target film thickness. Operators can call preset formulas with one click to avoid repeated debugging.
Q5: Does Qingguo provide after-sales service and operator training?
Yes. We supply installation guidance, on-site machine commissioning, operation and maintenance training, spare parts supply and remote technical support for fully automatic powder spraying equipment.
9. Final Notes and Custom Production Line Support
Investing in powder spraying automation is not only buying spray guns and booths. It is a complete upgrade to solve quality fluctuation, powder waste, labour pressure and environmental management challenges. Fully automatic powder spraying equipment stabilises coating results, raises hourly output and makes workshop management more predictable, which helps metal finishing factories gain better competitiveness for bulk orders.
Qingguo focuses on custom automatic powder coating systems for metal fabrication, hardware, aluminium profile and engineering component manufacturers. Whether you plan to build a new finishing workshop, upgrade old manual spraying stations or expand existing production capacity, our team can provide layout design, powder spraying sample testing, budget quotation, equipment commissioning and training service. If you need to confirm line capacity, colour change scheme, oven configuration or workshop layout advice, feel free to contact us. Share your workpiece photos, target output and powder types, and our engineers will design a suitable fully automatic powder spraying solution for your factory.
Ready to upgrade your powder coating workshop with reliable fully automatic powder spraying equipment? Contact us today and Qingguo will deliver custom finishing line solutions to improve your production efficiency and coating quality.
