Why Choose a Cascade Refrigeration System for a Laboratory Lyophilizer?

1. What Is the Temperature Limit of a Single-Stage Refrigeration System?

A single-stage refrigeration system uses one compressor and one refrigerant. The lowest achievable cold trap temperature depends on the boiling point of the refrigerant and the compression ratio. Common refrigerants for laboratory Research lyophilizer cold traps include R404A (boiling point -46°C) and R508B (boiling point -88°C). In practice, a single-stage system using R404A can achieve a cold trap temperature of -50°C to -55°C. A single-stage system using R508B can reach -70°C to -80°C, but the compression ratio becomes very high, which reduces the compressor life and increases the heat rejection load.

The table below shows the practical temperature limits for different refrigeration configurations.

The compression ratio is the key factor. When the compression ratio exceeds 10:1, the compressor discharge temperature rises, the lubrication oil degrades faster, and the reliability decreases. A cascade system splits the temperature lift between two or more compressors, keeping each compression ratio within a reliable range.

2. How Does a Cascade System Achieve Lower Temperatures With Better Reliability?

A cascade refrigeration system uses two separate refrigeration circuits that are thermally coupled through a heat exchanger, which is called the cascade condenser. The first circuit (the high-temperature stage) uses a refrigerant with a higher boiling point, such as R404A. The second circuit (the low-temperature stage) uses a refrigerant with a lower boiling point, such as R508B or R23. The heat from the low-temperature stage is absorbed by the high-temperature stage and rejected to the ambient environment. This arrangement allows each compressor to operate with a moderate compression ratio and a lower discharge temperature. The result is a more reliable system that can achieve a cold trap temperature of -85°C to -105°C.

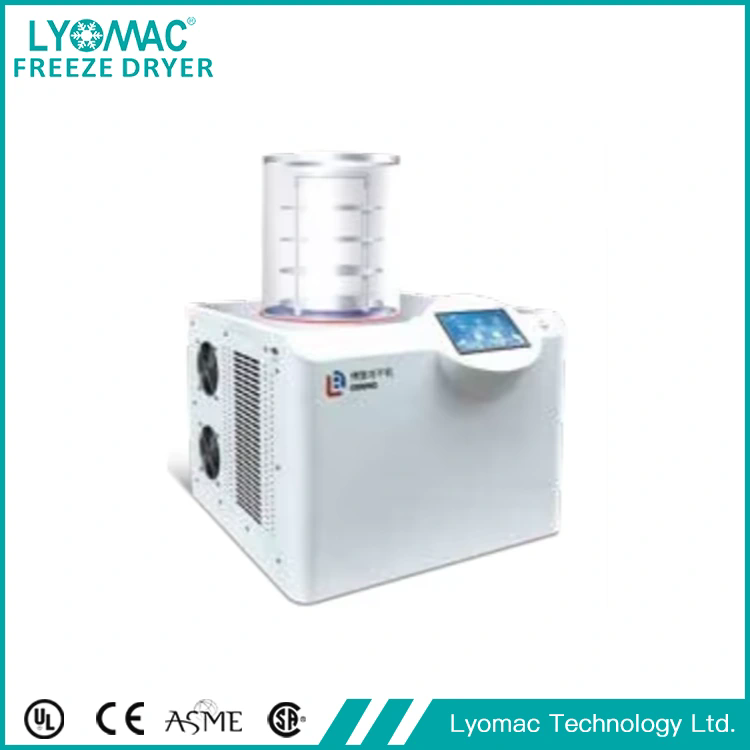

Lyomac Technology Ltd. designs cascade refrigeration systems for Laboratory Research lyophilizer units with cold trap temperatures from -85°C to -105°C. Our systems use a plate-fin heat exchanger for the cascade condenser, which provides high heat transfer efficiency and a compact footprint.

3. What Types of Samples Require a Cascade Refrigeration System?

The decision to use a cascade system depends on the properties of the sample being dried. The most important property is the eutectic point or the collapse temperature of the formulation. If the sample contains a high concentration of volatile organic solvents, such as acetonitrile or methanol, the cold trap must be at least 20°C below the freezing point of the solvent. For methanol, the freezing point is -97°C, which requires a cascade system. For acetonitrile, the freezing point is -45°C, which can be handled by a single-stage system. The table below shows the required cold trap temperature for common laboratory solvents and formulations.

In our factory, we work with customers to determine the required cold trap temperature based on their specific formulation. We also offer a sample testing service where we run a trial lyophilization cycle on the customer's material to verify the performance of the Laboratory Research lyophilizer before purchase.

4. What Are the Operational and Maintenance Considerations for Cascade Systems?

Cascade refrigeration systems require more maintenance than single-stage systems because there are two compressors and two refrigerant circuits. The maintenance schedule includes checking the refrigerant charge in both circuits, inspecting the oil in both compressors, and verifying the performance of the cascade condenser. However, the maintenance is not complex, and the reliability benefits outweigh the additional maintenance. The key operational consideration is the defrost cycle. The cold trap must be defrosted after each batch to remove the accumulated ice. A cascade system can be defrosted using a hot gas bypass or an electric heater. In our factory, we use a hot gas bypass system that reduces the defrost time by 40 percent compared to electric heating. This reduces the downtime between batches and improves the throughput of the Laboratory Research lyophilizer.

Summary for Laboratory Managers and Process Development Scientists

The choice between a single-stage and a cascade refrigeration system for a Laboratory Research lyophilizer depends on the required cold trap temperature, which is determined by the sample formulation. For aqueous samples with a eutectic point above -30°C, a single-stage system is adequate. For samples containing methanol, ethanol, or other low-freezing-point solvents, a cascade system is necessary. The cascade system also provides better reliability and longer service life because it operates with lower compression ratios. Our factory has been manufacturing cascade refrigeration systems for laboratory lyophilizers for over 18 years.

Lyomac Technology Ltd. manufactures Laboratory Research lyophilizer units with cascade refrigeration systems for cold trap temperatures from -85°C to -105°C. We provide sample testing services and full technical documentation for each system.
