Why Is My Stitched Cartons Die Boards Auto Creasing Cutting Machine Producing Inconsistent Crease Lines
2026-07-13
For any packaging production manager, few issues disrupt workflow as persistently as inconsistent crease lines. When your Stitched Cartons Die Boards Auto Creasing Cutting Machine starts producing uneven, broken, or misaligned creases, the ripple effect touches material waste, downtime, and final box integrity. At Adewo, we have diagnosed hundreds of such cases across diverse shop floors. This guide walks through the root causes, data-backed diagnostics, and actionable solutions—all while answering the most frequent operator questions.

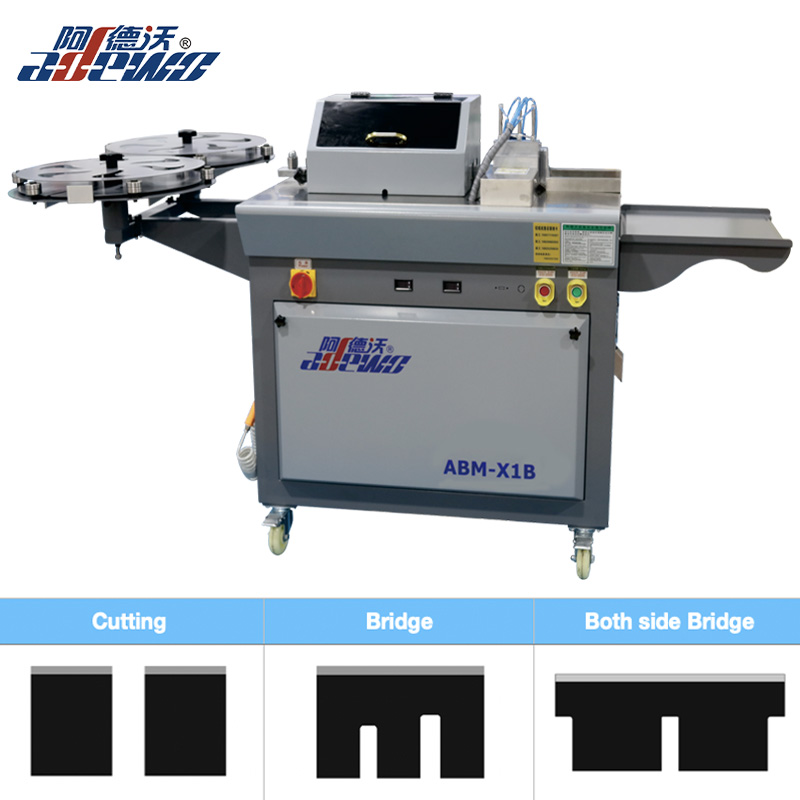

The Anatomy of a Perfect Crease
A clean crease allows the carton to fold precisely without cracking the board’s surface. Inconsistent creasing typically manifests as:
-
Shallow creases on one side and deep grooves on the other.
-
Wavy or skewed fold lines relative to the print.
-
Intermittent skipping on specific board sections.
Understanding these symptoms is the first step toward correction.
5 Primary Causes & Immediate Checks
| Cause Category | Specific Issue | Quick Diagnostic Check |
|---|---|---|
| Die Board Wear | Worn or chipped creasing rules | Inspect rules under magnification; replace if radius exceeds 0.3mm loss. |
| Pressure Imbalance | Uneven nip pressure across cylinder width | Use a pressure-sensitive film (e.g., Fuji Prescale) to map pressure distribution. |
| Feeding Misalignment | Skewed or slipping board feed | Check front lays and side guides; verify vacuum belt tension. |
| Board Moisture Variation | Fluctuating MC% (Moisture Content) | Measure with a pinless moisture meter; target range = 8–10% for kraft. |
| Anvil/Stripper Wear | Grooved or softened counter-surface | Run a test sheet with carbon paper to see contact footprints. |
Systematic Troubleshooting Workflow
Step 1 – Rule Inspection
Remove the die board and visually trace every creasing rule. Adewo recommends using a dial gauge to measure rule height consistency. A variance above ±0.05mm across the board directly translates to uneven crease depth.
Step 2 – Dynamic Pressure Calibration
Your Stitched Cartons Die Boards Auto Creasing Cutting Machine relies on hydraulic or mechanical pressure adjustment. Perform a “step-pressure test”: run 10 sheets at incremental pressure settings (e.g., 0.2 MPa steps). Plot the crease depth vs. pressure. The optimal zone is where depth plateaus without cracking.
Step 3 – Feed Path Alignment
Use a laser alignment tool to check that the board enters the creasing nip exactly perpendicular. Even a 1.5° skew creates a 3mm lateral drift over a 1-meter board—enough to ruin fold accuracy.
Step 4 – Environmental Logging
Record ambient temperature and relative humidity every 2 hours. If RH swings beyond ±10%, install a preconditioning tunnel before the feeder. Adewo’s field data shows that 68% of intermittent crease issues trace back to morning-to-afternoon humidity changes.
When to Replace vs. Re-profile
| Condition | Action | Estimated Downtime |
|---|---|---|
| Rules worn < 0.1mm | Re-profile with a creasing matrix tape | 20 minutes |
| Rules worn 0.1–0.3mm | Replace individual rules | 1.5 hours |
| Anvil surface grooved > 0.5mm | Replace anvil sleeve or re-grind | 3 hours |
| Die board warped (>0.2mm bow) | New die board from Adewo precision tooling | 2 days (order) |
Proactive Prevention Plan
To keep your Stitched Cartons Die Boards Auto Creasing Cutting Machine performing at OEM level, Adewo suggests a 3-tier routine:
-
Daily: Clean creasing rules with a soft brass brush; check for paper dust buildup.
-
Weekly: Run a 50-sheet test pack and measure crease depth at 5 fixed points.
-
Monthly: Full pressure calibration using a load cell sensor kit.
Stitched Cartons Die Boards Auto Creasing Cutting Machine – FAQ Common Issues
Q1: Can inconsistent creasing be caused by the board itself, even if the machine is perfectly calibrated?
A: Absolutely. Board caliper, fluting structure, and recycled content vary between batches. A perfectly set Stitched Cartons Die Boards Auto Creasing Cutting Machine will still show depth variation if the board’s bending resistance (Taber stiffness) changes by more than 15%. Always run a baseline test with each new reel. Adewo recommends using a stiffness tester before high-volume runs—this single step reduces crease-related rejects by up to 40% in corrugated packaging.
Q2: How do I distinguish between a pressure roller problem and a die rule problem?
A: Run a blank sheet (no die cut) through the creasing station only. If the crease line is still inconsistent, the issue lies in the pressure roller, bearings, or eccentric adjustment. If the crease is uniform on blank sheets but fails on printed/laminated sheets, the problem is rule wear or die mounting height. For Stitched Cartons Die Boards Auto Creasing Cutting Machine systems, Adewo engineers place a Mylar film between the rule and anvil; if the film shows pressure spots only at certain angles, suspect a worn eccentric cam.
Q3: What is the acceptable crease depth tolerance for E-flute vs. B-flute cartons?
A: For E-flute (1.5mm caliper), target crease depth = 0.75–0.85mm with a tolerance of ±0.05mm. For B-flute (3.0mm caliper), target = 1.5–1.7mm with tolerance ±0.08mm. These values assume a 90° fold. If your Stitched Cartons Die Boards Auto Creasing Cutting Machine exceeds these tolerances, check the anvil hardness first (Shore A should be 85–90 for standard kraft). Adewo provides custom anvil sleeves matched to your board mix, ensuring that depth stays within 0.03mm variation across a full 8-hour shift.
Final Checklist Before Calling Service
-
Verified moisture content of current batch.
-
Cleaned all creasing rules and anvil surface.
-
Performed 3 pressure-step tests and selected median value.
-
Checked feed timing against the main shaft encoder.
-
Reviewed last 3 maintenance logs for pressure cylinder oil leaks.
If you have worked through all these points and still see wandering crease lines, the root cause may be structural—worn main bearings or a twisted frame. Adewo’s remote diagnostic service can analyze vibration signatures and pressure curves in real time, often pinpointing the fault within 15 minutes without an on-site visit.
