Why is the C-W2 Duplex Pump Controller preferred for water and wastewater applications
2026-05-18

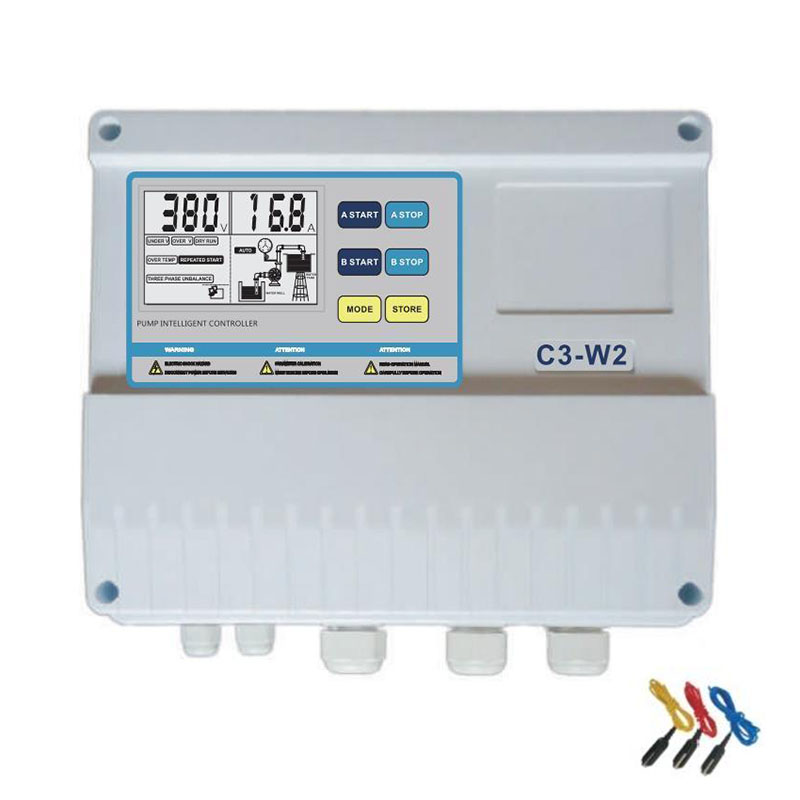

In water and wastewater management, reliability and system uptime are non-negotiable. The C-W2 Duplex Pump Controller has become a trusted solution for engineers and facility operators, often integrated with ZEN automation components, because it eliminates single points of failure while optimizing pump duty cycles. Unlike simplex controllers, this duplex design ensures that a backup pump is always ready, making it the preferred choice for lift stations, sewage treatment plants, and industrial effluent systems.
Key reasons for preference in water and wastewater applications
| Feature | Benefit in Water/Wastewater Environment |
|---|---|
| Alternating pump operation | Extends pump life by balancing run hours |
| Lead-lag configuration | Maintains flow during pump failure or maintenance |
| Built-in overload protection | Prevents motor burnouts due to debris or clogging |
| Float switch or transducer compatibility | Adapts to level measurement preferences |
| Manual-off-auto selector switches | Allows safe override for emergency response |
Comparison with simplex controllers
| Parameter | C-W2 Duplex Pump Controller | Standard Simplex Controller |
|---|---|---|
| Pump redundancy | Yes (two pumps) | No (single pump) |
| Failure response | Automatic lag pump start | System shutdown |
| Average pump lifespan | 20-30% longer due to alternation | Uneven wear |
| Application scale | Municipal, industrial, commercial | Small residential |
The C-W2 Duplex Pump Controller supports both alternating and duty-standby modes. In wastewater, where solids and grease can cause unexpected jams, the standby pump activates within seconds when the lead pump fails or triggers a high-level alarm. ZEN programmable relays can be paired with the controller to add telemetry and remote alarm notifications, further enhancing operational visibility.
Frequently Asked Questions
What happens if both pumps attempt to run simultaneously in a C-W2 Duplex Pump Controller
The controller includes a mechanical and electrical interlock that prevents both pumps from starting at the exact same time unless high-level alarm conditions demand it. In normal alternation mode, only one pump runs per cycle. If the lead pump fails to maintain level drawdown, the lag pump starts only after a delay or high-level trigger. Simultaneous running only occurs during emergency high-water conditions or when manually overridden, protecting the wet well from overflow.
How do I set the alternation interval on the C-W2 Duplex Pump Controller
Alternation is typically controlled by a timer or counter internal to the C-W2 Duplex Pump Controller. Most models allow adjustment from 1 to 100 cycles or hours. To set it, turn the selector switches to OFF, open the enclosure, and locate the alternator relay board or the ZEN logic module. Adjust the DIP switches or potentiometer labeled "Alternation Time" or "Cycle Count." For example, setting it to 24 hours means Pump A runs for one day, then Pump B runs the next. Always verify with a test cycle before returning to AUTO mode.
What types of level sensors are compatible with the C-W2 Duplex Pump Controller
The controller accepts both discrete float switches and continuous analog transducers. For basic wastewater sumps, three or four float switches are common: stop, lead start, lag start, and high alarm. For variable speed or precision applications, a 4-20 mA ultrasonic or submersible pressure transducer works with the C-W2 Duplex Pump Controller. The ZEN analog input module can convert the sensor signal for pump alternation based on level rate-of-change. Always check the controller’s input specifications before sensor selection.
Best practices for installation
-
Use separate motor circuit breakers for each pump.
-
Install a high-level alarm float independently of the controller.
-
Label all float switch wires clearly (Stop, Lead, Lag, Alarm).
-
Test alternation manually after power-up.
