Why is the Grinding Wheel Angle Critical When Using a Straight Groove Screw Tap Sharpener
2026-05-18
When operating a Straight Groove Screw Tap Sharpener, the grinding wheel angle is not just a minor adjustment—it directly determines the tap’s cutting performance, thread accuracy, and service life. Incorrect angles lead to rapid wear, oversized holes, or tap breakage. For professionals relying on TXMC sharpening equipment, mastering this variable is essential for consistent results.
The Science Behind the Angle
A straight groove screw tap relies on its flute face and relief angle to cut material. The grinding wheel must replicate the tap’s original geometry. Too steep an angle weakens the cutting edge; too shallow an angle increases friction and heat. The table below summarizes the impact of angle deviations.
| Grinding Wheel Angle Error | Consequence on Tap Performance | Risk Level |
|---|---|---|
| +2° too steep | Chipping, edge collapse, rough thread finish | High |
| -2° too shallow | Overheating, rapid flank wear, cold welding | High |
| ±1° acceptable range | Normal wear, 80-90% of original tap life | Low |
| Variable angle along flute | Uneven cutting, bell-mouthed threads | Critical |
Why TXMC Emphasizes Precision Angle Control

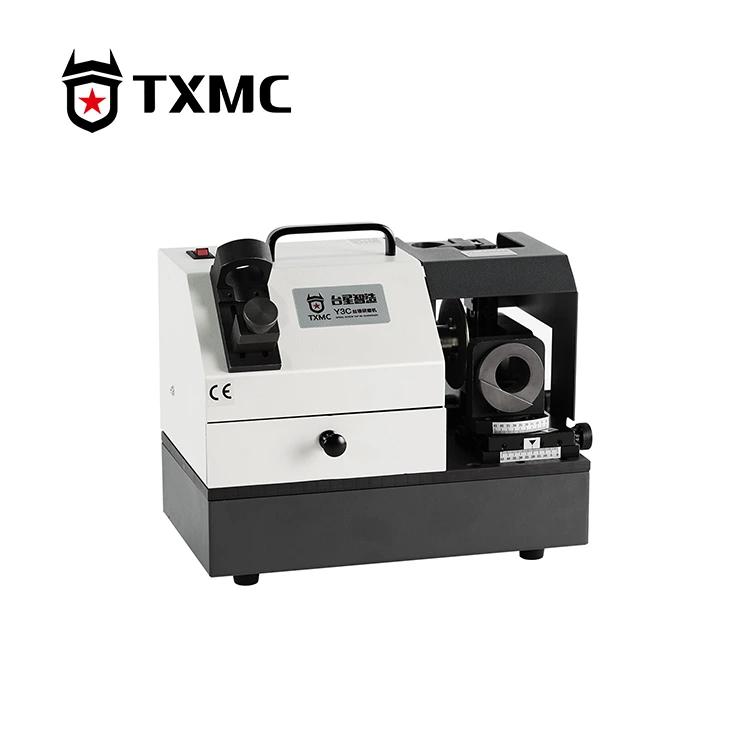

TXMC designs its Straight Groove Screw Tap Sharpener with an adjustable angle scale and positive stops. This allows operators to set relief angles between 6° and 12°, depending on tap material and thread pitch. For harder materials like stainless steel, a 7° angle reduces micro-chipping. For softer alloys, a 10° angle prevents material buildup on the rake face.
Straight Groove Screw Tap Sharpener FAQ
Question 1: How do I know if my grinding wheel angle is wrong after sharpening with a Straight Groove Screw Tap Sharpener?
Answer: Examine the tap under magnification. If the cutting edge shows a reflective flat line (land) wider than 0.15 mm, the angle is too shallow. If the edge appears jagged or has missing micro-chips, the angle is too steep. Additionally, a correctly sharpened tap will produce continuous, uniform chips during a test cut on a pre-threaded nut. Irregular or powdery chips indicate angle correction is needed.
Question 2: Can the same grinding wheel angle be used for all sizes of straight groove screw taps on a Straight Groove Screw Tap Sharpener?
Answer: No. Smaller taps (M3–M8) require a slightly steeper relief angle (9°–12°) to reduce cutting force and prevent breakage. Larger taps (M10–M20) perform best with a shallower angle (6°–8°) to maintain edge strength under higher torque. TXMC sharpener models include a reference chart for diameter-to-angle mapping. Always verify with the original tap manufacturer’s specifications when available.
Question 3: How often should I dress the grinding wheel when using a Straight Groove Screw Tap Sharpener to maintain the correct angle?
Answer: Dress the wheel after every 15–20 taps, or immediately if you notice burning on the tap surface or a rough finish. A worn or loaded wheel changes the effective cutting angle by altering the contact point. TXMC recommends using a single-point diamond dresser with a traverse speed of 0.5–1 inch per second to preserve the wheel’s radius and angle consistency. For high-production environments, dressing every 10 taps ensures repeatable geometry.
Best Practices for Angle Setup
-
Always measure the tap’s original relief angle before first sharpening.
-
Use a protractor or angle gauge—never rely on visual estimation.
-
Lock the angle adjustment knob on your TXMC Straight Groove Screw Tap Sharpener before starting the wheel motor.
-
Perform a scratch test on a scrap tap to verify contact pattern.
Final Checklist for Operators
| Step | Action | Tool Required |
|---|---|---|
| 1 | Measure existing relief angle | Optical comparator or angle finder |
| 2 | Set TXMC sharpener to same angle | Adjustable scale and lock |
| 3 | Dress wheel to remove glazing | Diamond dresser |
| 4 | Sharpen one flute, check edge | 20x loupe |
| 5 | Test cut in identical material | Threaded test nut |
Mastering the grinding wheel angle transforms a dull tap into a precision cutting tool. With TXMC Straight Groove Screw Tap Sharpener, operators achieve repeatable angles within ±0.5°, extending tap life by up to 300%.
