2 Axis Motion Control Card

Product Introduction
This model, ADT-8920A1 universal motion control card, is a ADTECH network 32-bit PCI bus motion controller. A system can support up to 16 control card, can control 64 servo/stepper motor, usually be used in universal point movement. This model has more stable hardware chips, more convenient software design, and more economical product prices.Customers use the 4 axis motion control card for bending machine of advertising application and AOI machine.

Specification
Type 2 Axis PCI Motion Control Card
Application Universal point
Model  ADT-8920A1

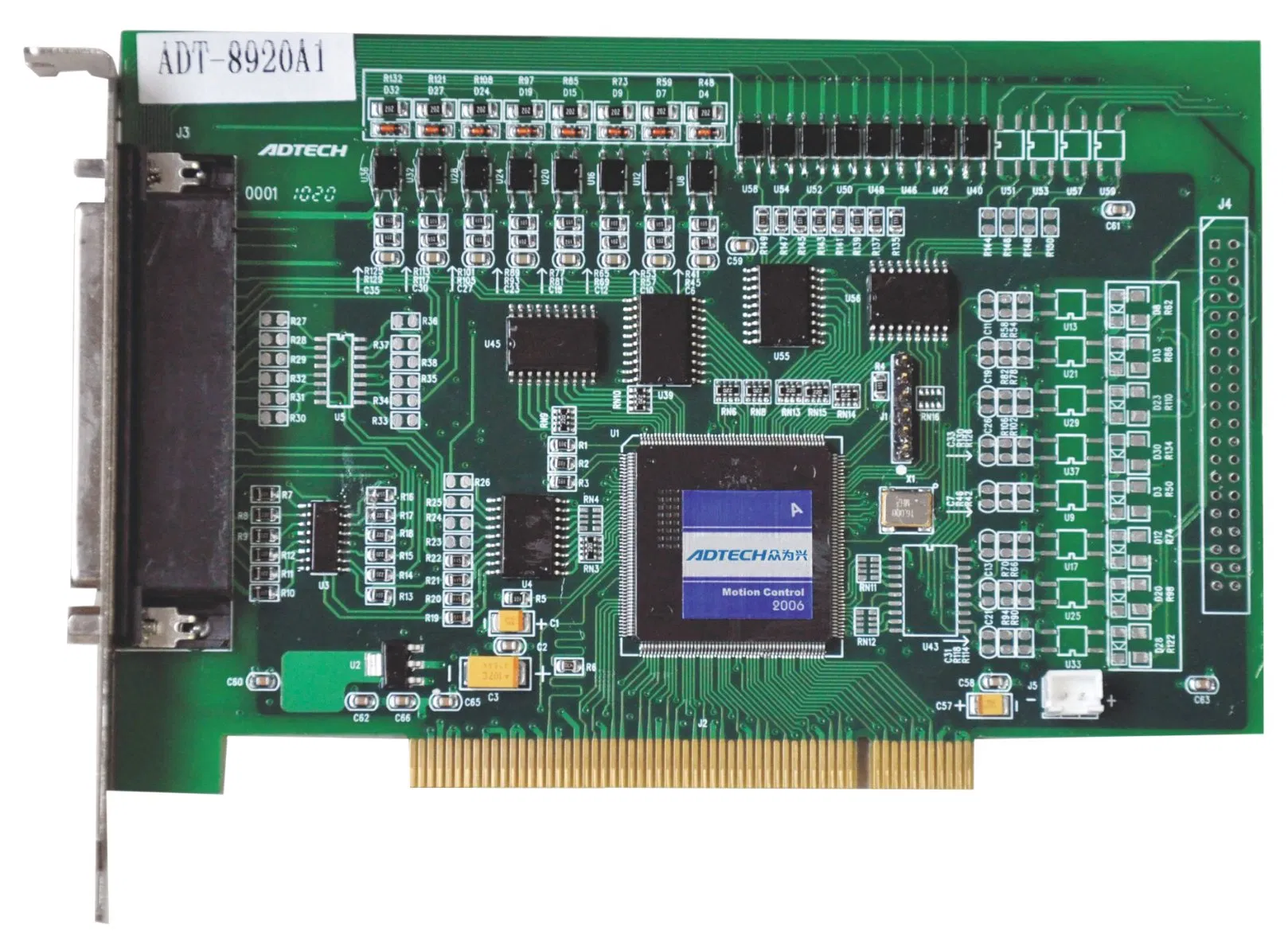

Appearance
External interface Axis number 2 axis
 Pulse frequency 2M
 Digital input 24
 Digital output 12
 Encoder shaft 4
Speed type Symmetric T-type √
 Asymmetric T-type -
 S curve √
Curve layout Coordinate system group 1
 Cache instruction 2M cache
Motion control Linear interpolation 2-4 axis
 Circular interpolation √
 Continuous √

Software Support
1. Operating system: DOS, WINDOWS7,WINDOWS10
2. Programming environment: C#,C++Builder, Delphi, LabVIEW, EVC
3. S-shaped curve acceleration and deceleration

Dedicated purpose IO
1. Machinery positive and negative limit position, original signal
2. Position latch input signal
3. Handwheel control signal
4. Hardware stop signal
5. Alarm input and clear signal
6. Servo enable signal

General purpose IO
Special signal when not in use can be set to universal IO, can be up to:
1.32 general-purpose digital inputs, all optocoupler isolation
2.16 open collector outputs

Application
Equipment vision and automatic detection equipment; Medical automatic sampling machine;

Deliver,shipping and serving
Delivery and shipping:We provide ocean shipping, international express and air transportation to deliver your products to you.(*Arrival time will vary depending on destination country policy and traffic condition.)

Serving:All products have a one-year warranty and online technical support.
