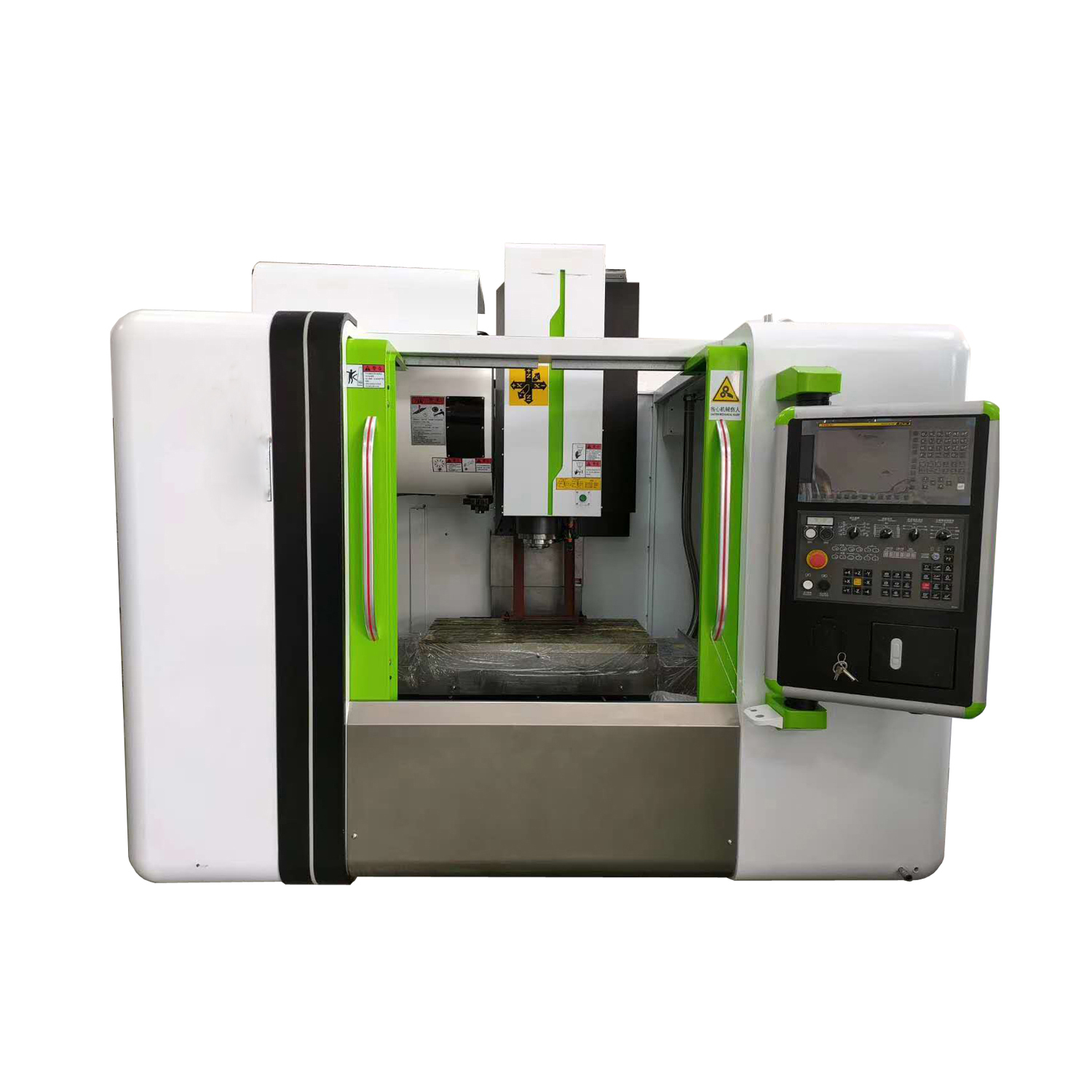

3 Axis Metel Processing Vertical Machining Certer Vmc1060

Product Description

Structural performance of machine tool
1. Fuselage design

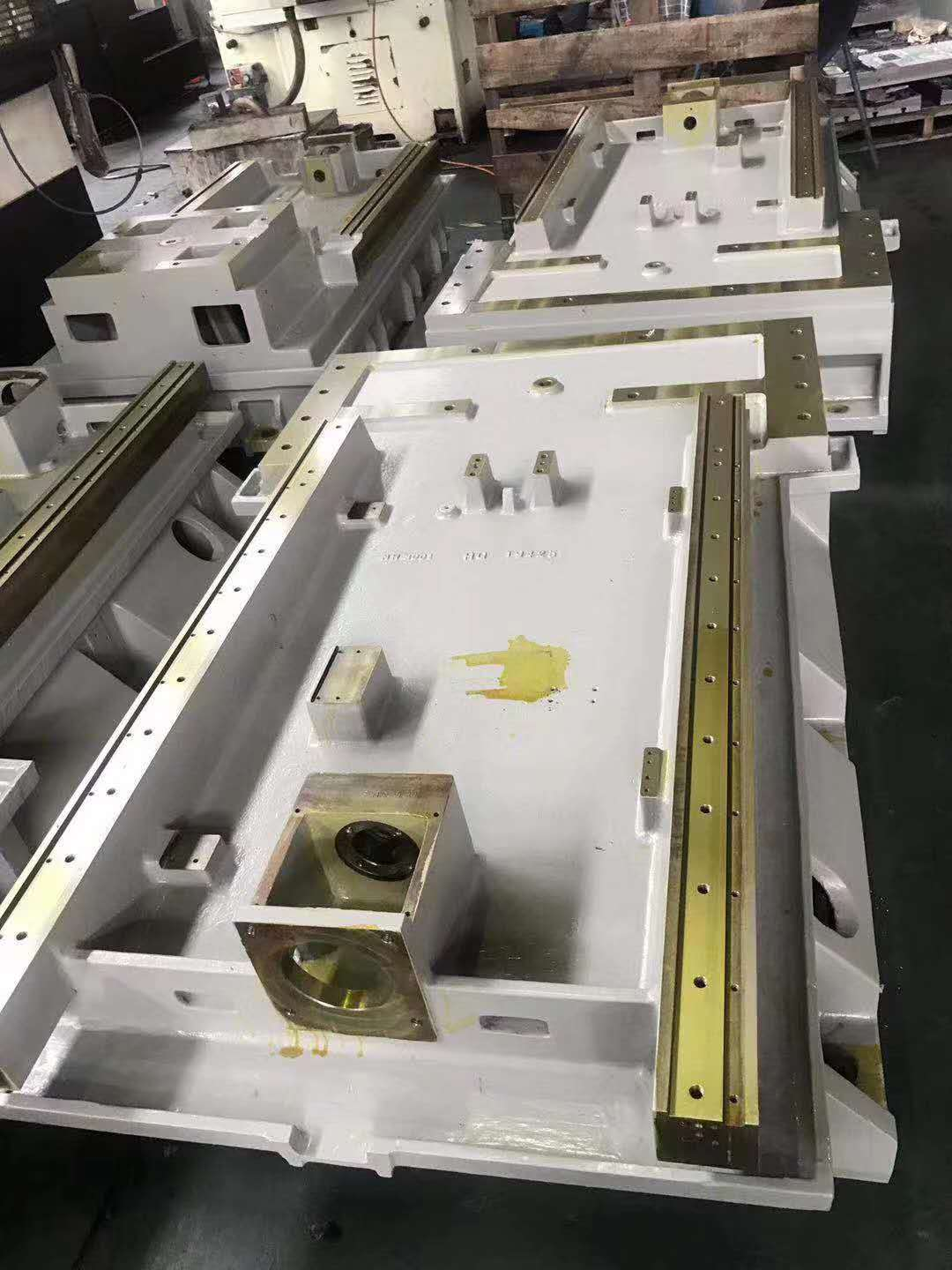

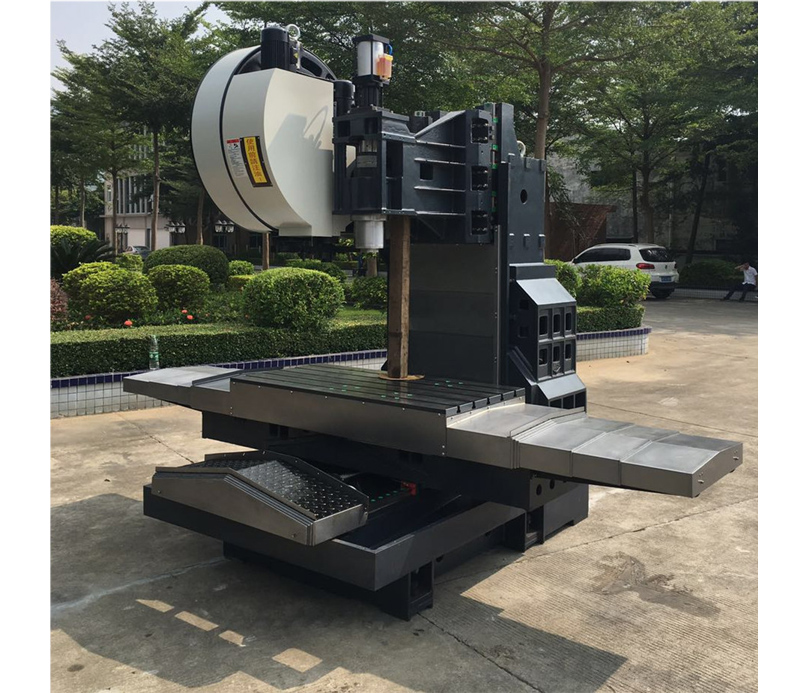

The fuselage and saddle are reinforced by mountain shaped ribs, with the shortest force streamline, ensuring the best rigidity of the fuselage.
Based on the excellent engineering design, the stiffeners of the base and column of the machining center can resist the torsion and damping, and transfer the cutting vibration to non
Cutting area. The column is designed with torque tube, which can provide excellent rigidity, bending and torsion resistance Ultra wide base design,
At the same time, lower the center of gravity of the base and adjust the center of gravity of the machine tool to the best stable height. The span at the bottom of the column is widened to improve the stability of the machine tool.
2. spindle head
The contact length ratio between the main shaft and the column is appropriate to provide stable support for the main shaft. Independent cooling system is built in the spindle head to stabilize the spindle continuously
The head heat is in a reasonable range, which reduces the thermal extension of the spindle and ensures the machining accuracy.

3. counterweight
In response to the processing requirements of different models, the following counterweight methods are adopted:
Counterweight: low failure rate and long service life;
Nitrogen counterweight: rapid action, no noise, greatly improved processing accuracy, increased machine life;
No counterweight: in order to meet the requirements of high speed and high sensitivity processing, the machine tool adopts the method of no counterweight, and enhances the requirements of servo motor and screw,
Z-axis with brake, to ensure the accuracy of the machine tool is stable and lasting, and increase the service life.
4. screw rod
It adopts imported grinding level pre drawn double nut screw rod to eliminate reverse clearance. After heat treatment, it has high rigidity, wear resistance, torsion resistance and long service life, which guarantees high machining accuracy of the machine.
5. AC servo motor
Adopt original imported from Japan, super high performance servo motor, provide stronger power when heavy cutting.
In the case of low feed, high torque can still be maintained.
Higher than 10000 (pixel) resolution and closed-loop position feedback ensure high accuracy.
High quality coupling ensures that the screw rod moves with the axis of the motor.

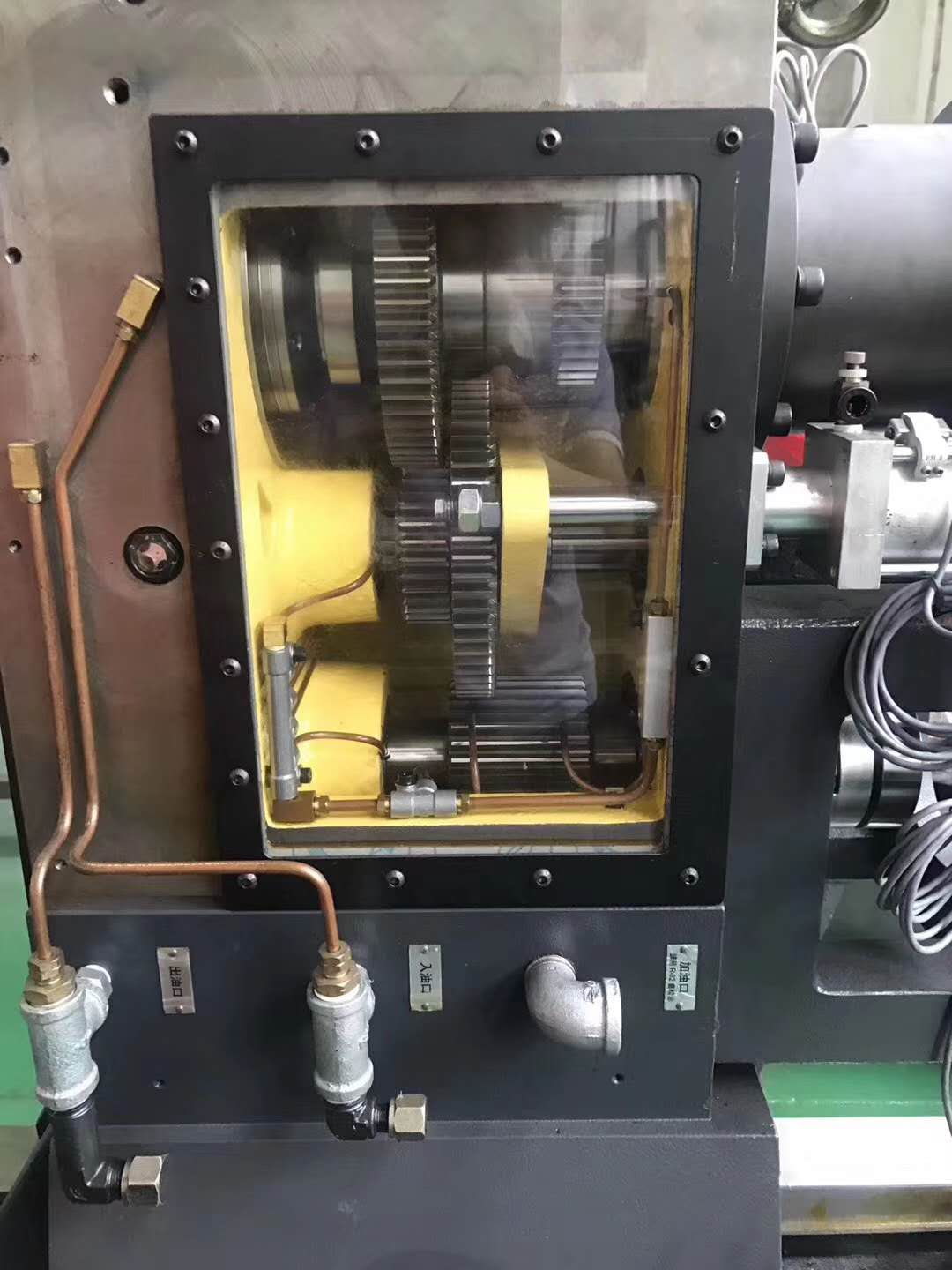

6. Lubrication system
The whole machine adopts a positive displacement lubrication system and a de pressurized oil pump, with stable pressure and flow, which effectively transports the oil to each lubrication point and provides uniform forced lubrication for each slide surface, so as to ensure the accuracy and service life of the machine tool.
7.Chip remover system

3 Axis Metel Processing Vertical Machining Certer Vmc1060

Project	unit	VMC1060
X axis stroke (left and right)	mm	1000
Y axis stroke (before and after)	mm	580
Z-axis travel (up and down)	mm	680
Distance from worktable to spindle end face	mm	110-790
The distance from the front end of the column to the center of the main shaft	mm	610
Table area (L*W)	mm	1060*580
The maximum load	kg	800
T-slot (wide * spacing * number of slots)	mm	18T1005
Working height	mm	880
X-axis roller guide screw	mm	Φ40*P10
Y-axis roller guide screw	mm	Φ40*P10
Z-axis roller guide screw	mm	Φ40*P10
X axis rail specification	mm	45(6 slider roller)
Y axis rail specification	mm	45(4 slider roller)
Z axis rail specification	mm	45(6 slider roller)
Fast displacement (X/Y/Z)	M/min	30/30/30
Recommended X/Y/Z axis motor parameters	NM(kw)	2.0/2.0/3.0
Spindle speed	rpm	10000/12000
Cone hole form and mounting size	kg	BT40∮150
Transmission mode (1:1)	mm	Straight association-like
Motor parameters of spindle are recommended	kW	7.5/11
Positioning accuracy	mm	±0.003/300
Repeated positioning accuracy	mm	±0.003/300
Machine size covers space (length * width * height)	mm	320026002650
The machine weight	kg	7000
