4 Axis Swing Head Long Lathe Bed Metal Auto Parts Processing CNC Milling Machine
PYA4D-CNC4500 4 Axis Curved Surface Profile CNC MachineDescription1. The PYA4D model CNC machining center has capability functions of milling, drilling, tapping;2. X travel: 4500-6500mm(length can be customized), Y/Z travel: 550/700mm;3. PRATIC uses an International CNC controller system: SIEMENS/ F......
Send Inquiry
Product Description
PYA4D-CNC4500 4 Axis Curved Surface Profile CNC Machine
Description
1. The PYA4D model CNC machining center has capability functions of milling, drilling, tapping;
2. X travel: 4500-6500mm(length can be customized), Y/Z travel: 550/700mm;
3. PRATIC uses an International CNC controller system: SIEMENS/ FANUC;
4. Machining for various lengths of the metal profile, such as aluminum, steel, copper, etc;

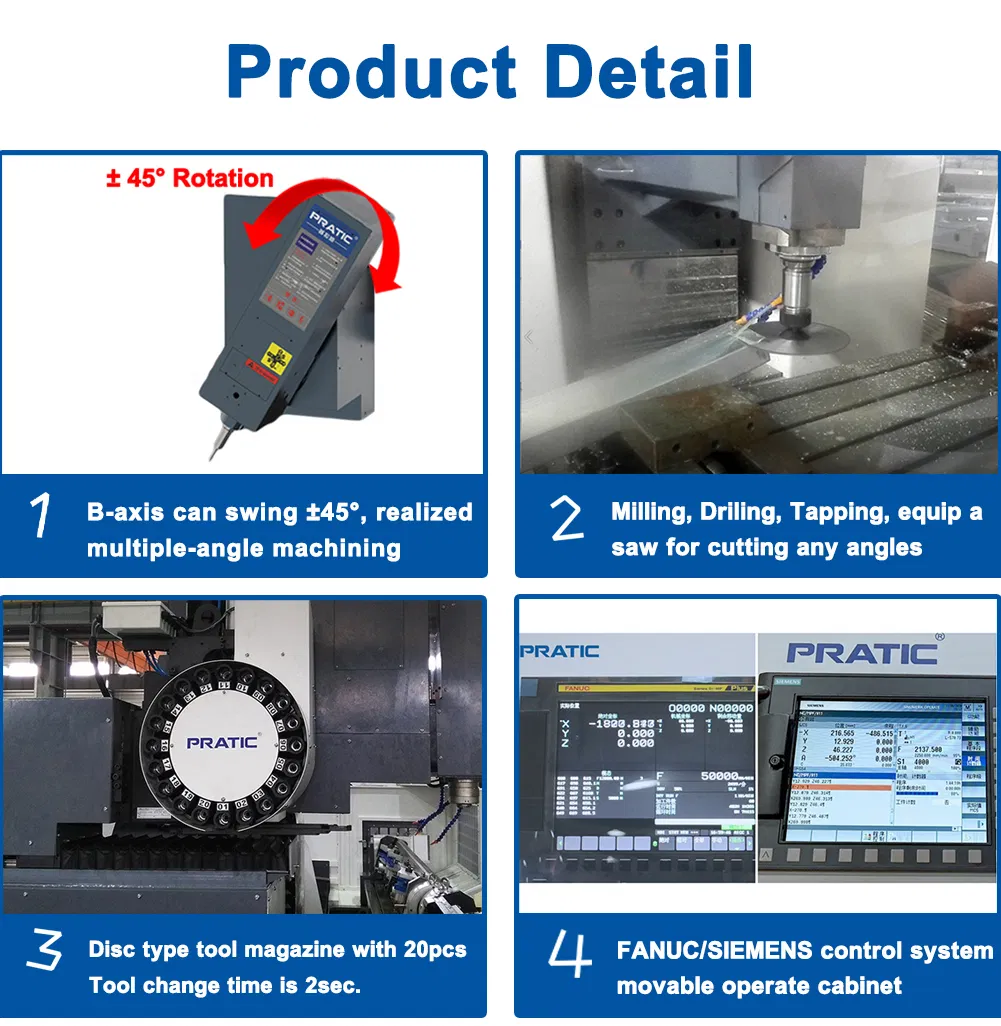

5. The B axis rotation within ±45°, can achieve high accuracy machining with multiple-angle, ;
6. The auto chip conveyor is a standard configuration which makes it easier for chip cleaning;
7. The PYA4D model is widely used in automotive industry(car bumper, sunroof rail, rack and etc), even in curved surface profile

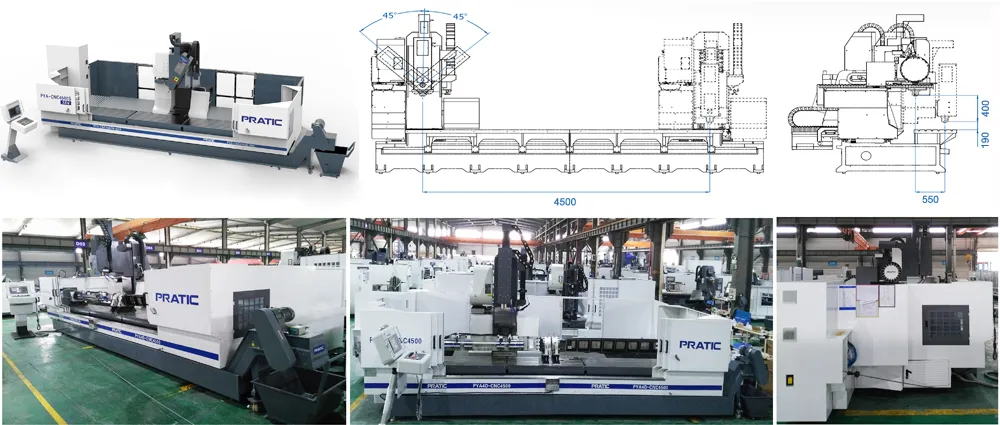

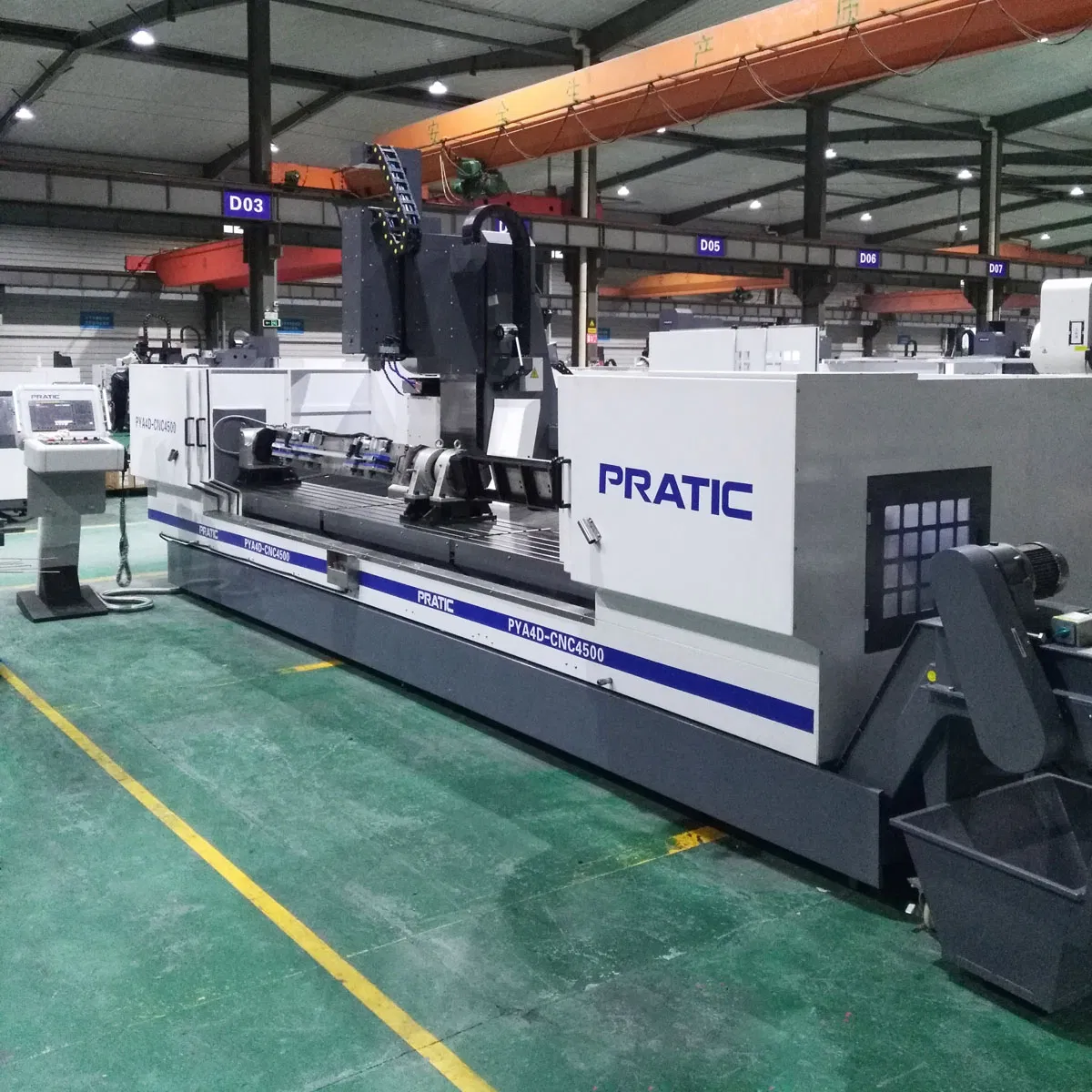

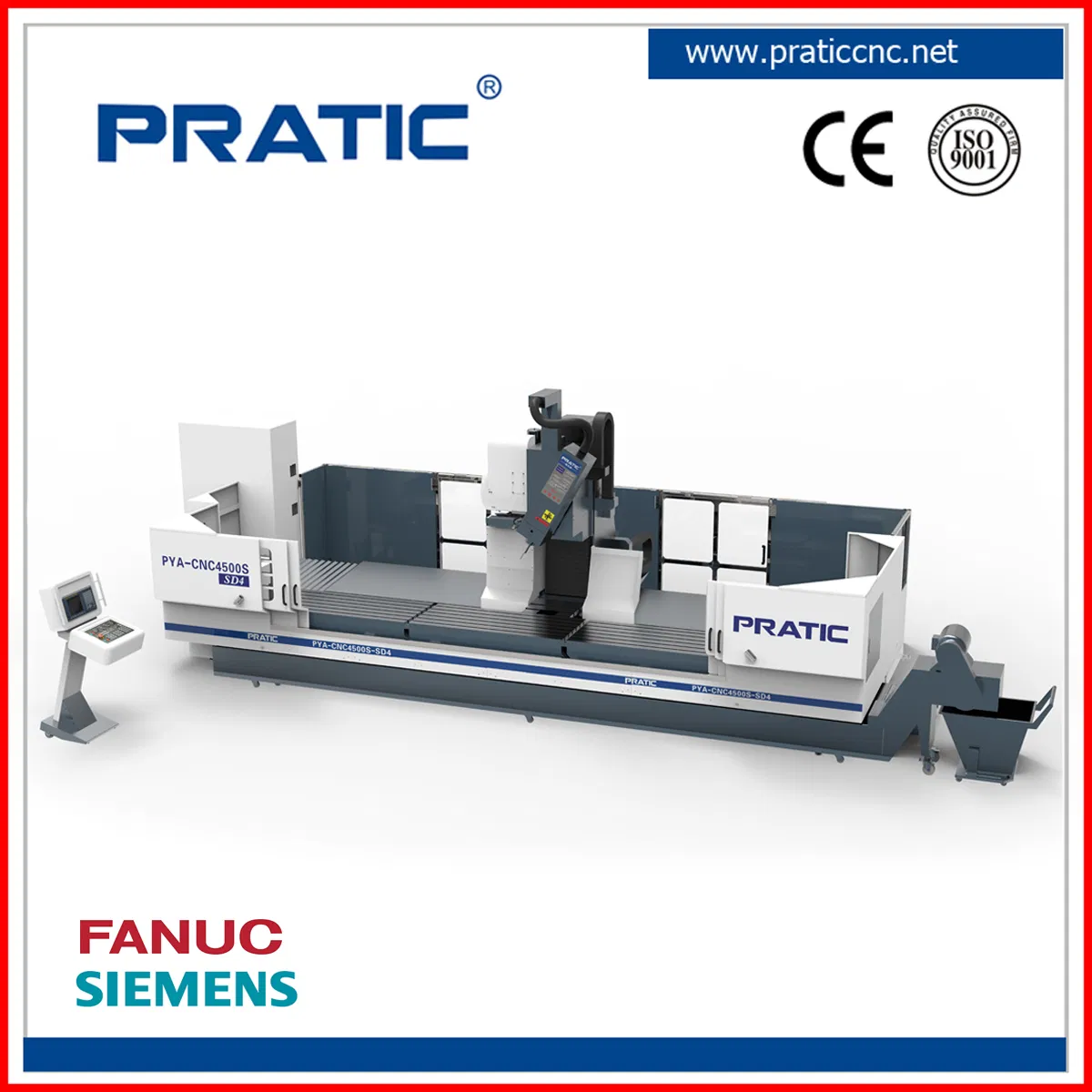

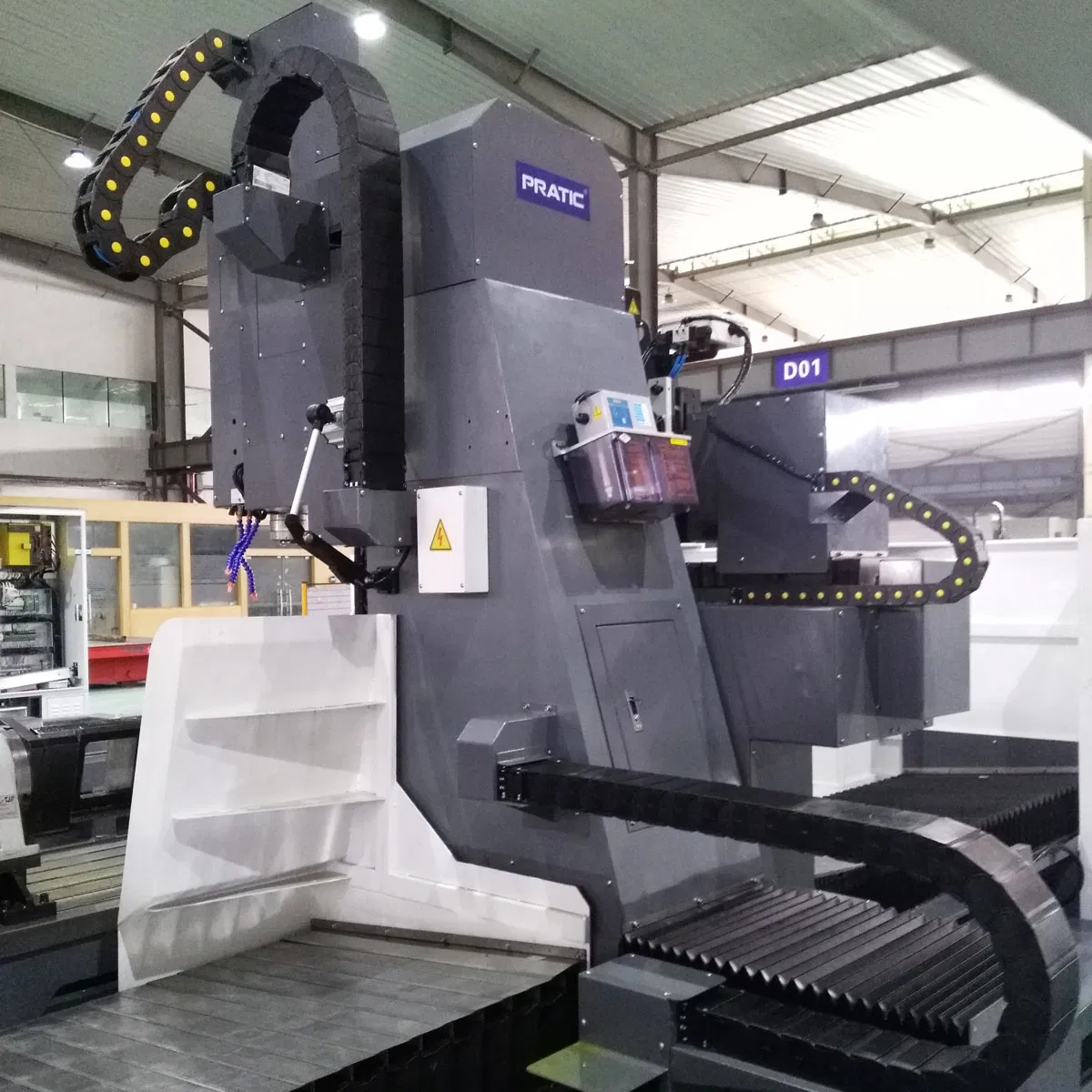

Product Images & Dimensions

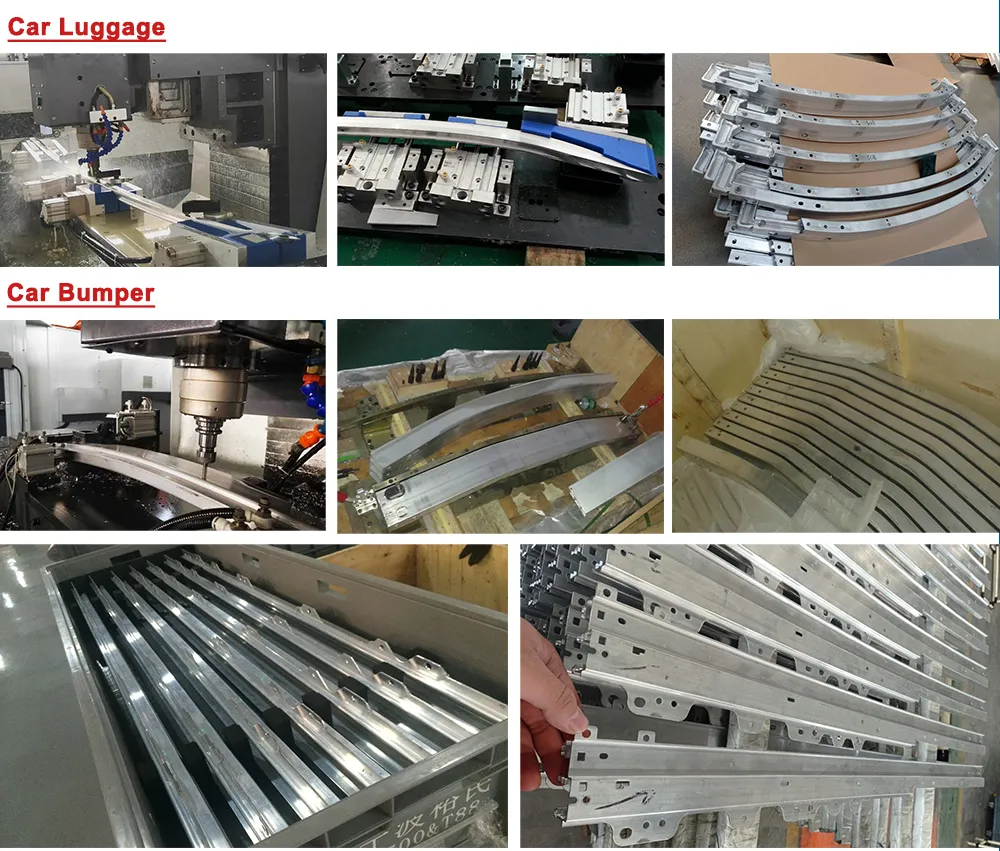

Widely used in auto parts making industry(car bumper, luggage rack, sunroof guide rail and so on), perfect for curved surface profile machining.

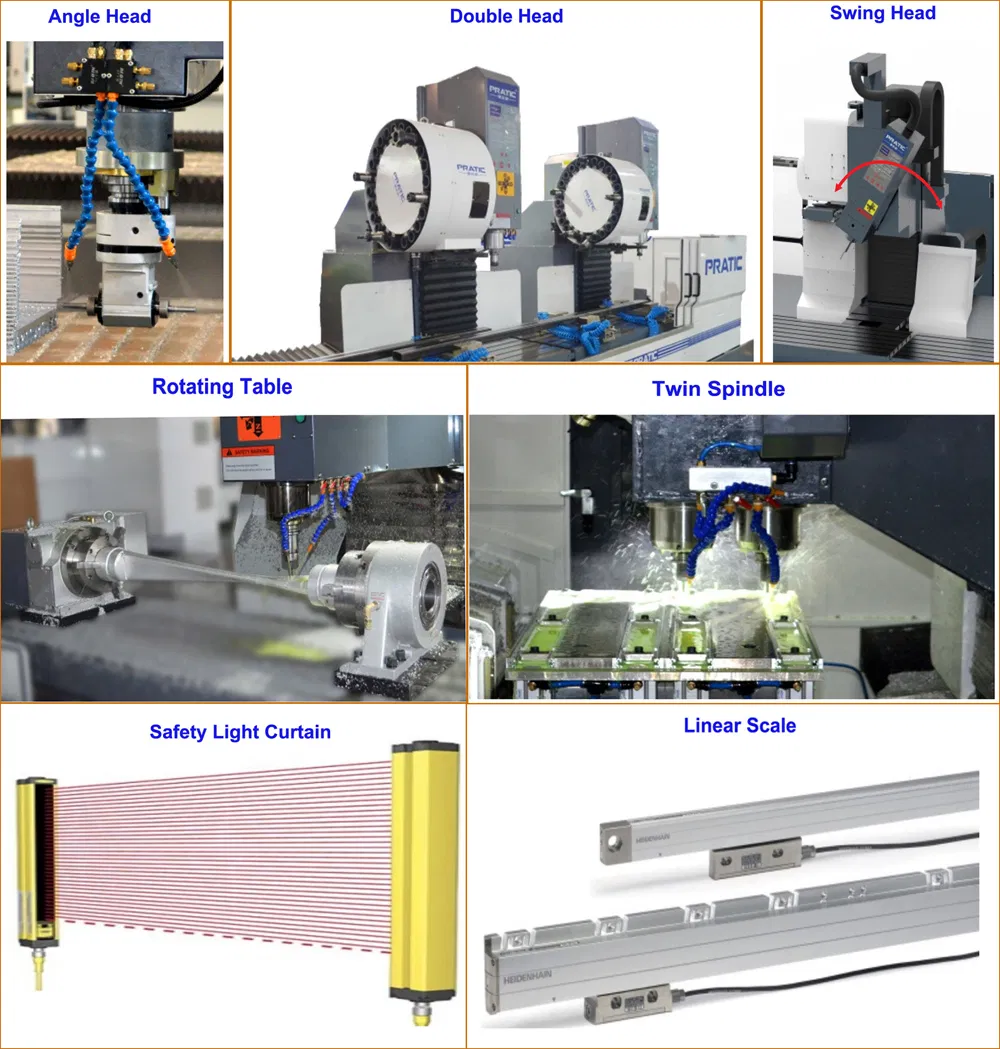

Optional Configuration
Technical Data
* Customized Lengths or Configuration Are Available

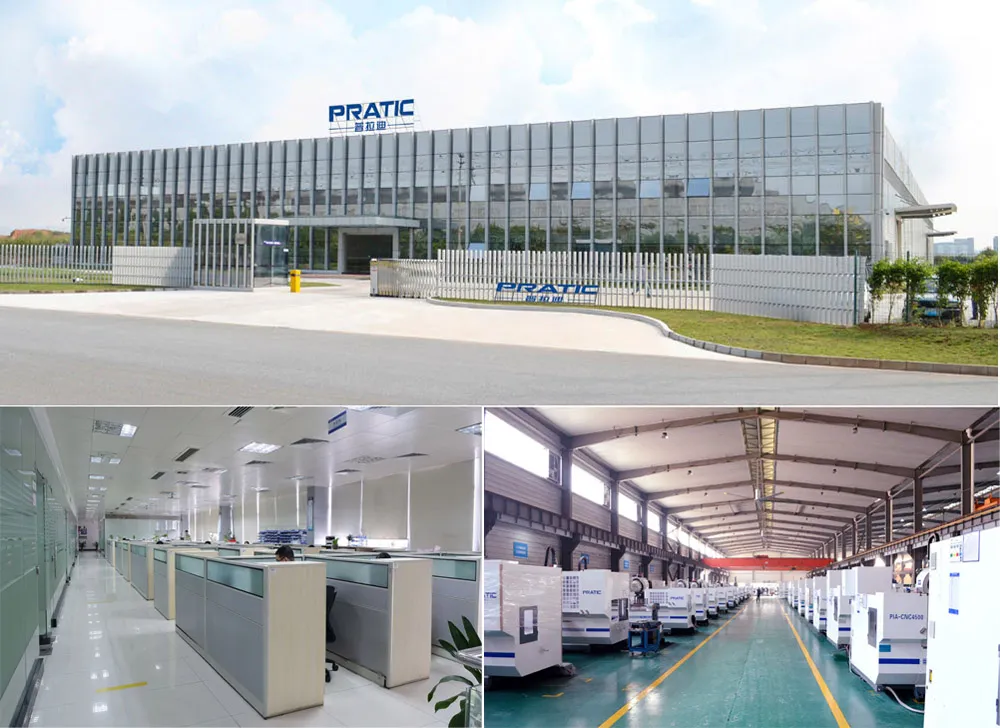

About PRATIC
PRATIC CNC Technology Co., Ltd. is a reputable manufacturer from China that specializes in CNC machining center and automatic machinery. Our products cover a wide range of CNC machining centers for an effective metal machining. Diverse materials from aluminum,steel, composites to plastics can be machined precisely, productively and economically on the milling machines from PRATIC.
Company Strength
1) R&D Team & International Standards
PRATIC owns a design & research team of more than 30 people. PRATIC continuously challenges the technology difficulties, break the limitation of the industry, and carry out deep cooperation with the companies from Germany, Japan, South Korea and Singapore.
PRATIC operates according to a strict quality system and PRATIC has got the international ISO9001 qualification, and PRATIC machining centers are produced by the international standards, and all the moldes of PRATIC machining centers have got CE certificates.
2) Lean Management & After-sale Service
PRATIC carries out 5s management, visible management and demand-oriented management to ensure the effectiveness and efficiency in production and daily operation.
PRATIC offers Free Installing, Free Training, Timely Delivery and Reassuring After-sale Service. Your questions will be answered and your problem will be solved in quickest time! In some countries we have local agents who will offer you the best local after-sale service and maintenance!
3) Quality Assurance: PRATIC enforces the strictest inspections and tests to its each machining center as well as components & workpieces.

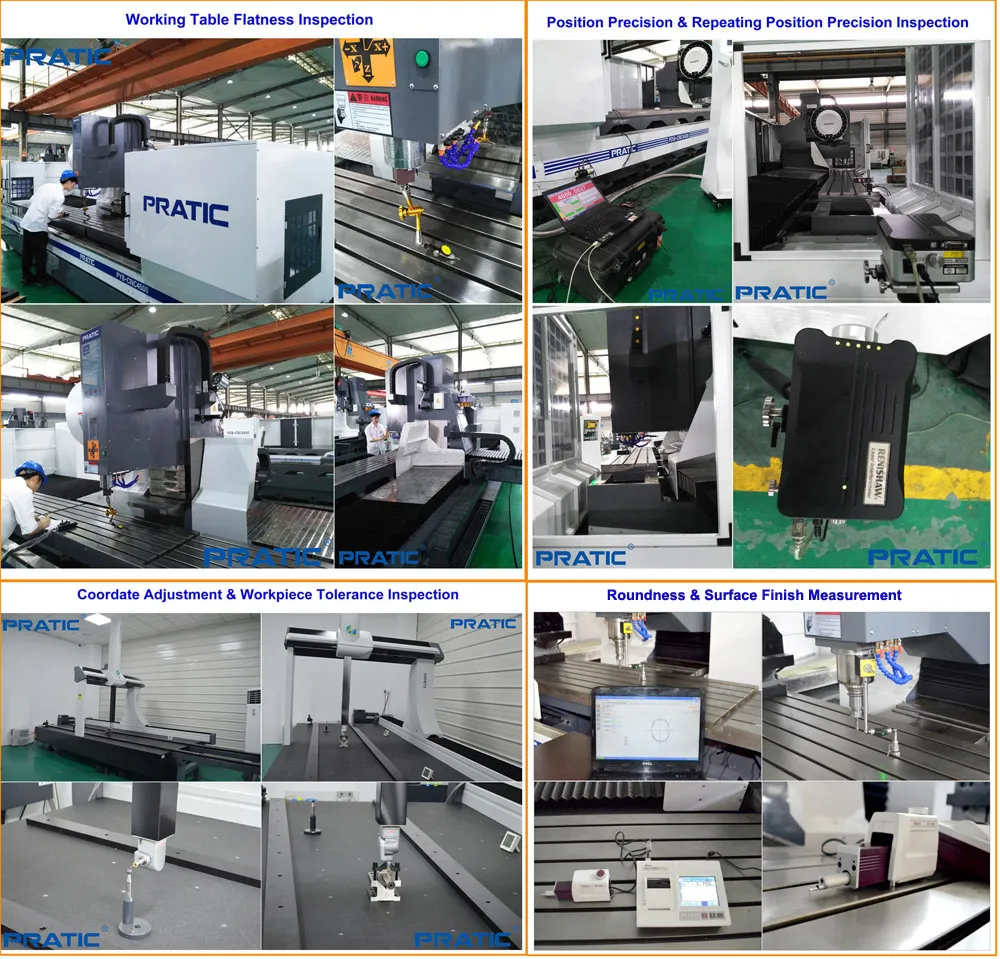

Inspections & Tests: Flatness Inspection, Parallelism Inspection, Position Precision Inspection, Repeating Position Precision Inspection, Three-Coordinate Inspection, Long-Time Run Test...
All the inspections and tests are carried out to ensure each machining center is in 100% perfect condition when delivered to customers!
FAQ
Q1: I knew nothing about this machine, what kind of machine i should choose?
Very easy to choose. Just tell us what you want to do by using CNC machining center, then let us give you perfect solutions and suggestions.
Q2: When I got this machine, but I don't know how to use it. What should I do?
We will send video and English manual with the machine. If you still have some doubts, we can talk by telephone or skype and e-mail.
Q3: If some problems happen to this machine during warranty period, what should I do?
We will supply free parts during machine warranty period if machine have some problems. While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.
Q4: Before sending me an inquiry on our machine, it is better for you to provide me the following information
1)Your metal workpiece size. Because in our factory, we have different models according to working area.
2)Your workpiece materials.
Aluminum/Steel/Iron/Titanium Alloy?
3) You also can send us the drawing of your workpiece, so that we can have a moe careful check and give your more accurate suggestions.
Participation in International Exhibitions
PRATIC Agents Wanted
Factory Online 360° Views
pratic-cnc.en.made-in-china.com/120277
Website and Social Media Contact
@PRATIC CNC (Youtube)
@CNCPRATIC (facebook)
@pratic_cnc.machinery (Instagram)
Description
1. The PYA4D model CNC machining center has capability functions of milling, drilling, tapping;
2. X travel: 4500-6500mm(length can be customized), Y/Z travel: 550/700mm;
3. PRATIC uses an International CNC controller system: SIEMENS/ FANUC;
4. Machining for various lengths of the metal profile, such as aluminum, steel, copper, etc;
5. The B axis rotation within ±45°, can achieve high accuracy machining with multiple-angle, ;
6. The auto chip conveyor is a standard configuration which makes it easier for chip cleaning;
7. The PYA4D model is widely used in automotive industry(car bumper, sunroof rail, rack and etc), even in curved surface profile
Product Images & Dimensions
Widely used in auto parts making industry(car bumper, luggage rack, sunroof guide rail and so on), perfect for curved surface profile machining.
Optional Configuration
| ITEM | SPECIFICATION |
| X/Y/Z Axis Travel | 4500 / 550 /700 mm |
| Spindle Taper | BT30 Ø100mm (outer diameter) |
| Spindle Speed | mechanical spindle 12000 rpm (or motorized spindle 24000 rpm ) |
| Tool Magazine | 20pcs |
| Tool Change Time | 2 sec |
| X/Y/Z Axis Moving Speed | 60 /28 /28 m/min |
| Position Precision of X/Y/Z Axis | 0.05 /0.02 /0.02 mm |
| Repeating Position Precision of X Axis | ±0.01/500mm |
| Repeating Position Precision of Y/Z Axis | ±0.01/300mm |
| Power of Spindle Driven Motor | 5.5 kW or 8 kW |
| Lubricating System | Automatic Lubricating |
| Cooling System | Water Cooling |
| Operation System | SIEMENS / FANUC |
About PRATIC
PRATIC CNC Technology Co., Ltd. is a reputable manufacturer from China that specializes in CNC machining center and automatic machinery. Our products cover a wide range of CNC machining centers for an effective metal machining. Diverse materials from aluminum,steel, composites to plastics can be machined precisely, productively and economically on the milling machines from PRATIC.
Company Strength
1) R&D Team & International Standards
PRATIC owns a design & research team of more than 30 people. PRATIC continuously challenges the technology difficulties, break the limitation of the industry, and carry out deep cooperation with the companies from Germany, Japan, South Korea and Singapore.
PRATIC operates according to a strict quality system and PRATIC has got the international ISO9001 qualification, and PRATIC machining centers are produced by the international standards, and all the moldes of PRATIC machining centers have got CE certificates.
2) Lean Management & After-sale Service
PRATIC carries out 5s management, visible management and demand-oriented management to ensure the effectiveness and efficiency in production and daily operation.
PRATIC offers Free Installing, Free Training, Timely Delivery and Reassuring After-sale Service. Your questions will be answered and your problem will be solved in quickest time! In some countries we have local agents who will offer you the best local after-sale service and maintenance!
3) Quality Assurance: PRATIC enforces the strictest inspections and tests to its each machining center as well as components & workpieces.
Inspections & Tests: Flatness Inspection, Parallelism Inspection, Position Precision Inspection, Repeating Position Precision Inspection, Three-Coordinate Inspection, Long-Time Run Test...
All the inspections and tests are carried out to ensure each machining center is in 100% perfect condition when delivered to customers!
FAQ
Q1: I knew nothing about this machine, what kind of machine i should choose?
Very easy to choose. Just tell us what you want to do by using CNC machining center, then let us give you perfect solutions and suggestions.
Q2: When I got this machine, but I don't know how to use it. What should I do?
We will send video and English manual with the machine. If you still have some doubts, we can talk by telephone or skype and e-mail.
Q3: If some problems happen to this machine during warranty period, what should I do?
We will supply free parts during machine warranty period if machine have some problems. While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.
Q4: Before sending me an inquiry on our machine, it is better for you to provide me the following information
1)Your metal workpiece size. Because in our factory, we have different models according to working area.
2)Your workpiece materials.
Aluminum/Steel/Iron/Titanium Alloy?
3) You also can send us the drawing of your workpiece, so that we can have a moe careful check and give your more accurate suggestions.
