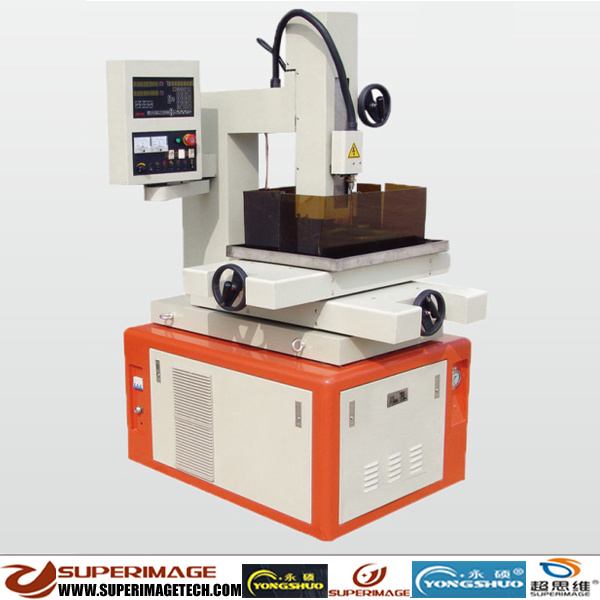

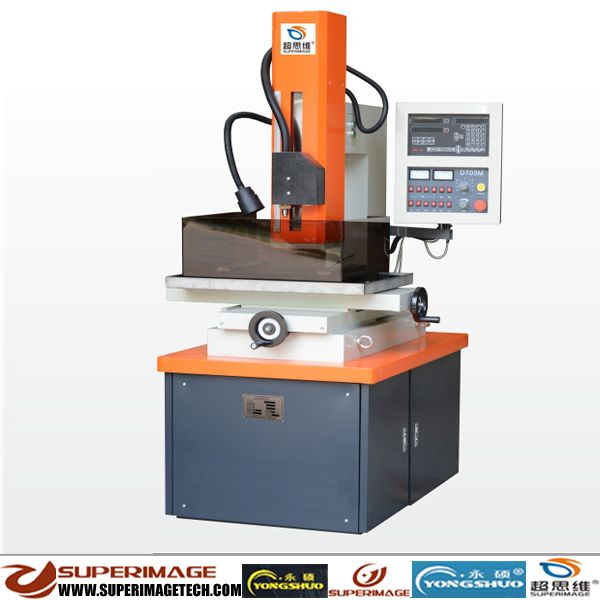

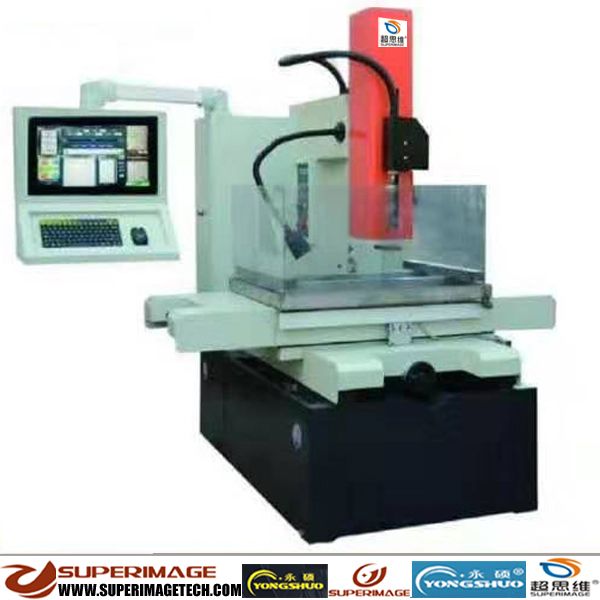

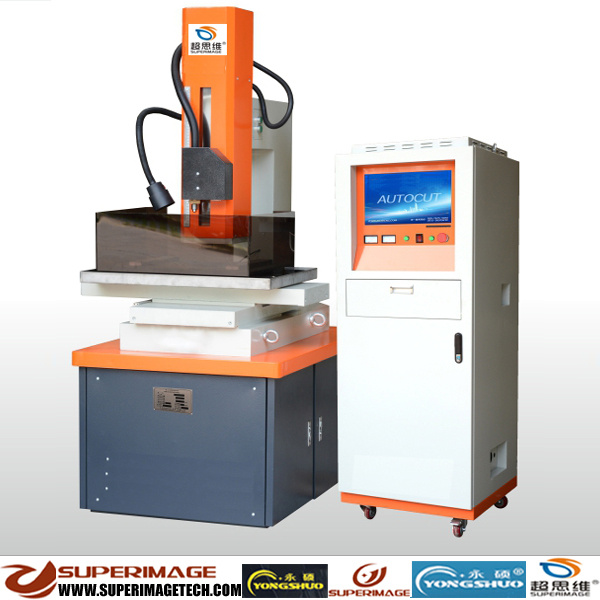

400mm *500mm 3-Axis/4-Axis/5-Axis CNC EDM Small Hole Drill Sinking EDM
1. Products Name: 400mm*500mm CNC Fine Hole EDM MachineCNC Drill Sinking EDMHigh Speed CNC Fine-Hole EDMHigh Speed CNC Drill Sinking MachineCNC Electric Pounching EDMCNC Electric Piercing EDM Machine3-Axis CNC EDM Drills4-Axis CNC Fine Hole EDM5-Axis CNC EDM400mm*500mm CNC EDM Metal Piercing Machine......
Send Inquiry
Product Description
1. Products Name:
400mm*500mm CNC Fine Hole EDM Machine
CNC Drill Sinking EDM
High Speed CNC Fine-Hole EDM
High Speed CNC Drill Sinking Machine
CNC Electric Pounching EDM
CNC Electric Piercing EDM Machine
3-Axis CNC EDM Drills
4-Axis CNC Fine Hole EDM
5-Axis CNC EDM
400mm*500mm CNC EDM Metal Piercing Machine
WORK TABLE 510*800MM CNC EDM
Electric Spark EDM with Work Table 510*800MM
400mm*500mm High-Speed CNC Drill Sink EDM Machine
2. Basic Technical Data:
| TECHNICAL DATA | EDM-YS-D703E |
| CONTROL SYSTEM & AXIS QTY. | AUTOCUT, 3-AXIS /4-AXIS/5-AXIS |
| XY AXIS TRAVELING DISTANCE | 400*500MM |
| WORKTABLE SIZE | 510*800MM |
| MAX.LOADING WEIGHT OF WORKTABLE | 500KG |
| CLAMPING MOTORR DIAMETER | Φ0.3-0.4MM |
| SPINDLE HEAD TRAVELING DISTANCE | 300MM |
| SPINDLE SERVO TRAVELING DISTANCE | 350MM |
| MAX.SPINDLE SPEED | 120MM/MIN |
| THE ROTATING SPEED OF C-AXIX | 60RPM |
| MAX.DISTANCE BETWEEN GUIDE & WORKTABLE | 380MM |
| THE HEIGHT OF WORKTABLE | 920MM |
| MAX.MACHINING CURRENT | 30A |
| MAX.INPUT POWER | 3.0KW |
| MACHINE RUNNGING POWER | 1.5KW |
| POWER SUPPLY MODE | 380V/5OHZ |
| RUNNING MODE OF WORKING LIQUID | CIRCULATING FILTERING MODE |
| MAX.CAPACITY & PRESSURE OF WORK LIQUID | 25LITERS/6MPA |
| MACHINE WEIGHT | 1800KG |
| MACHINE SIZE | 1710MM*1250MM*2000MM |
3. Payment methods
By T/T in advance;
Down payment: 50% of total amount. Before delivery, 50% balance need to be paid.
4. Delivery time:
By Sea
Delivery time: about 25-30 days.
5. Quality Warranty:
SuperImage offers "3R" quality warranty for our CNC Mach-"Replacement, Return, and Refund" will be guaranteed for inferior quality products.
