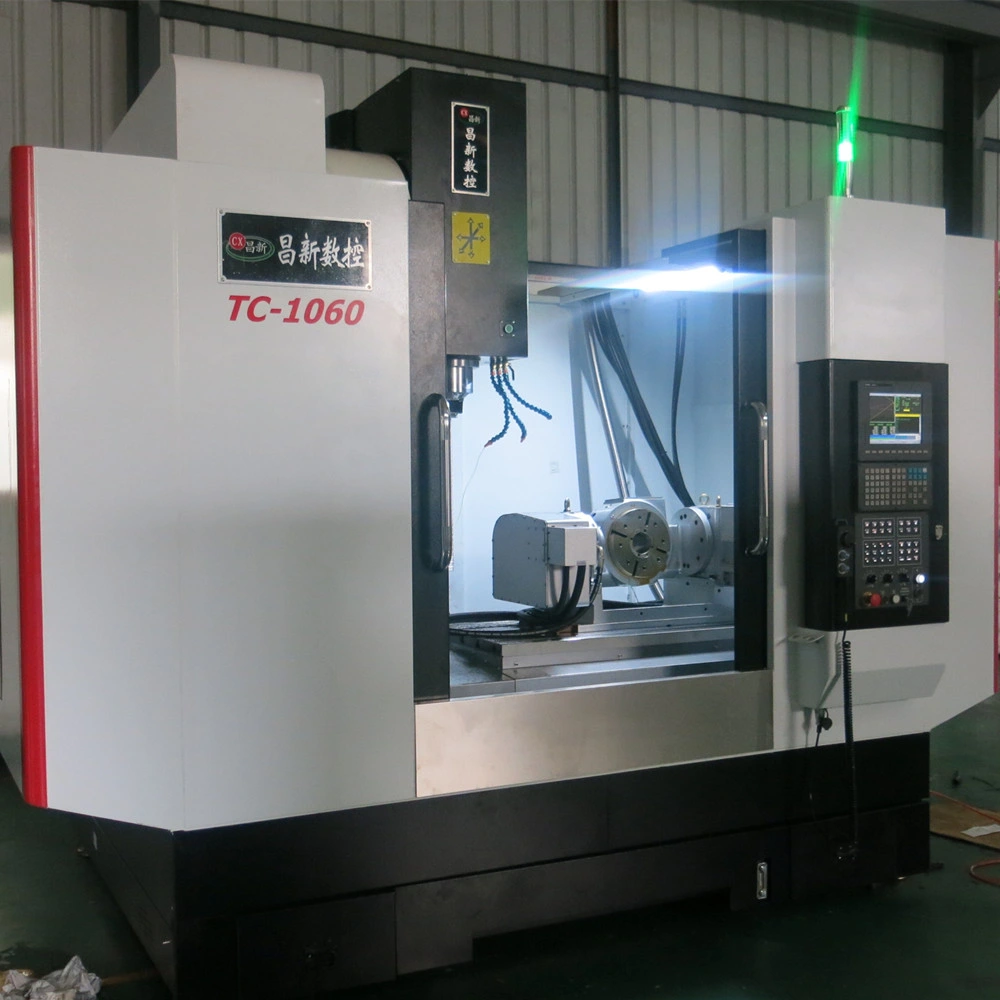

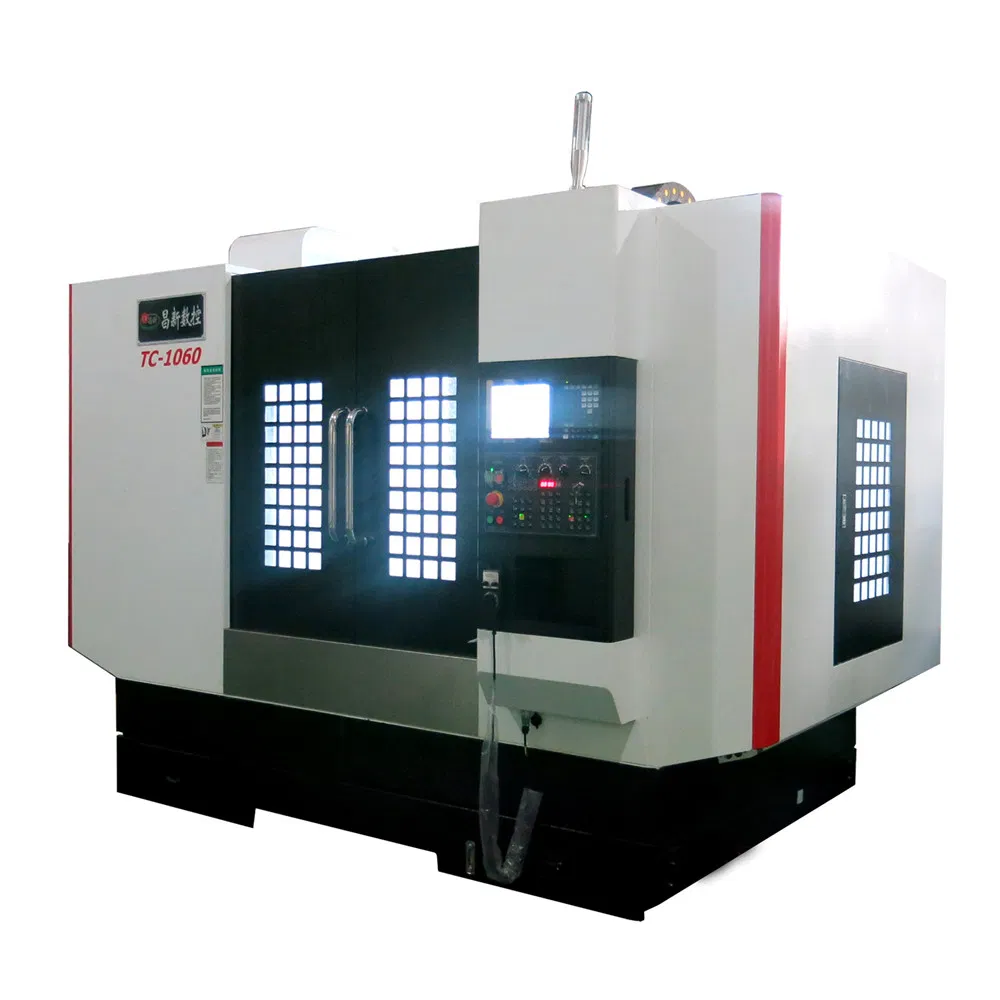

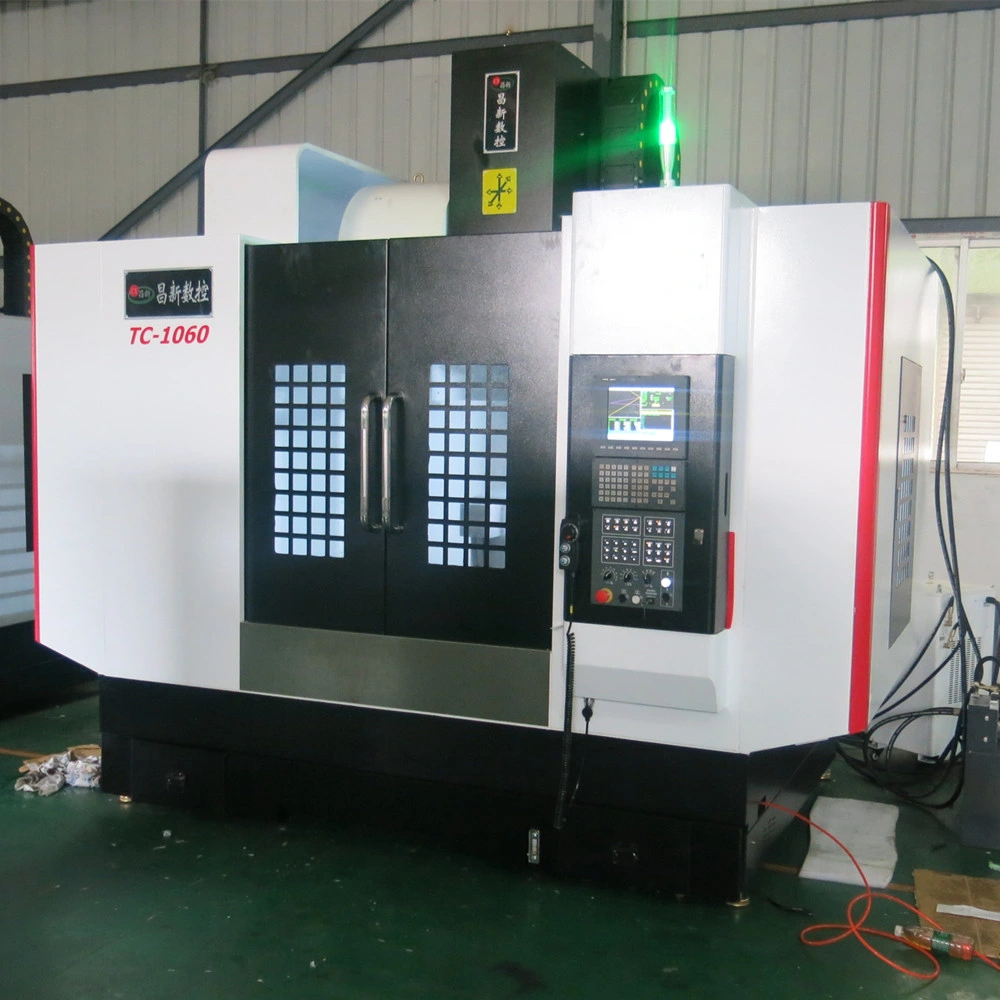

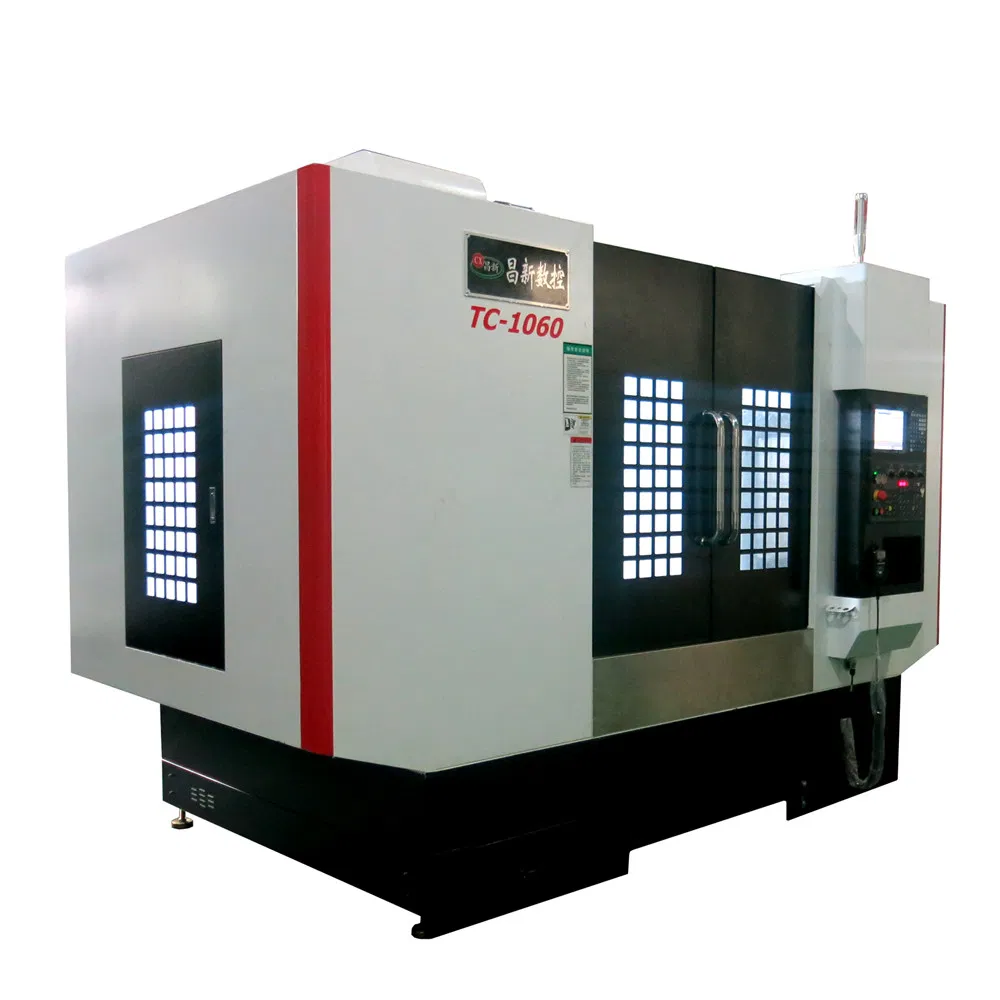

5 Axis Vmc1060 Vertical Machining Center/CNC Milling Machine on Sale (TC- 1060 )
5 axis VMC1060 Vertical Machining Center/CNC Milling Machine on Sale (TC-1060) Specifications of TC-1060:Cnc milling machine center TC-1060Machine BodyChansin Casting three linear guide ways high-strength bodySystem:Japan Mitsubishi M80AMotor:Servo motor:Japan MitsubishiAuto Lubrication System:auto ......
Send Inquiry
Product Description
5 axis VMC1060 Vertical Machining Center/CNC Milling Machine on Sale (TC-1060)
Specifications of TC-1060:
| Cnc milling machine center TC-1060 | |
| Machine Body | Chansin Casting three linear guide ways high-strength body |
| System: | Japan Mitsubishi M80A |
| Motor: | Servo motor:Japan Mitsubishi |
| Auto Lubrication System: | auto evenly distributing lubrication |
| Tool Magazine: | Taiwan ATC Arm type tool magazine(24 tools) |
| Bearing: | Japan NSK or German FAG optional |
| X/Y/Z-Axis Travel | 1000/600/600mm |
| Distance from Spindle Nose to Table | 120-750mm |
| Distance from Spindle Center to Column Guide Rail | 650mm |
| Working Table Size | 1200*600mm |
| Table Max Load | 800kg |
| T Slot | 5pcs,size:18T |
| Main Spindle | Taiwan TD/Volis/Royal |
| Spindle Speed | 12000rpm (direct drive) |
| Spindle Motor Power | 11kw(Japan Mitsubishi servo motor) |
| X/Y/Z-Axis Motor Power | 4.5/4.5/5.0kw |
| Rapid Traverse(X/Y/Z) | 25000/25000mm/25000mm/min |
| Cutting Speed | 0-15000mm/min |
| Spindle Taper Diameter | BT40 |
| Positioning Accuracy | ±0.005mm |
| Repeat Positioning Accuracy | ±0.003mm |
| Total Electricity Demand | 30kw |
| Machine Size | 30000/30000/30000mm/min |
| Machine Weight | 8.5ton |
| Harden guide rail and ball screw | Taiwan Hiwin |
| Transmission belt | Japan UNITA |
| Machine Head Balance System | Comes with counterweight balance system |
| Coupling | German BK3 SW*J |
| Main electrical accessories | German Schneider, Merlin Gerin |
| Circuit breakers and relays | German Schneider, Merlin Gerin |
| Working LED lamp | Taiwan |
| Hand control electronic hand wheel | Taiwan |
| Accessories |
|
| Machine Size | 3250*2800*2900mm |
| Machine Weight | 8500kg |
Payment Term:
Payment:40% deposit,the balance will be paid before shipping.
Delivery:
20-30 days after received the deposit payment.
Remarks:
1.Warranty:One year free warranty and life time maintenance.
2.Loading port: Shenzhen/Guangzhou
3.Engineers are available to serve overseas, you are responsible for the air tickets and accommodations expenses. The price above is not including this expenses.
