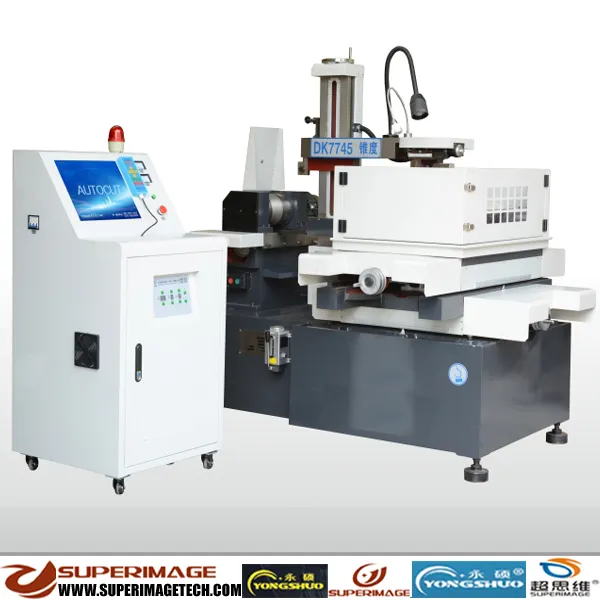

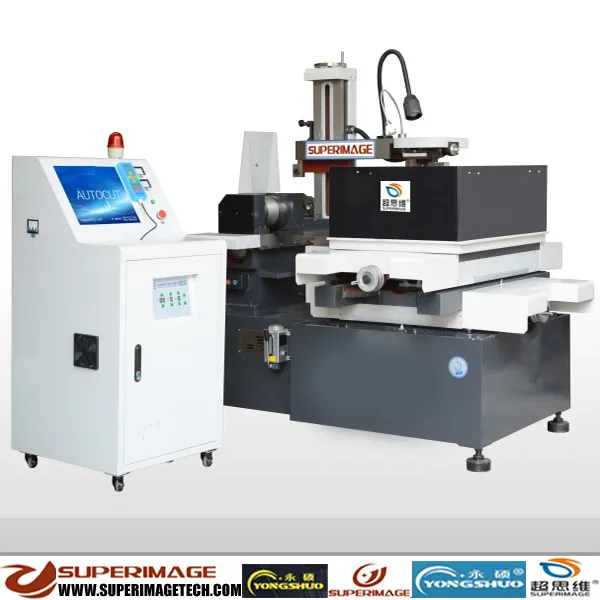

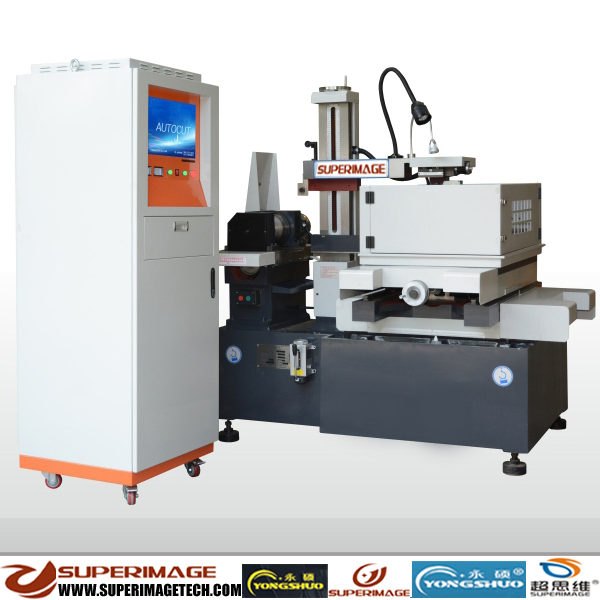

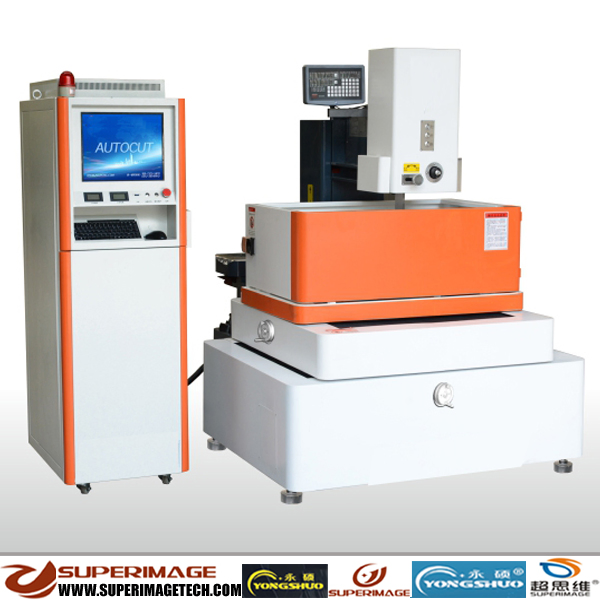

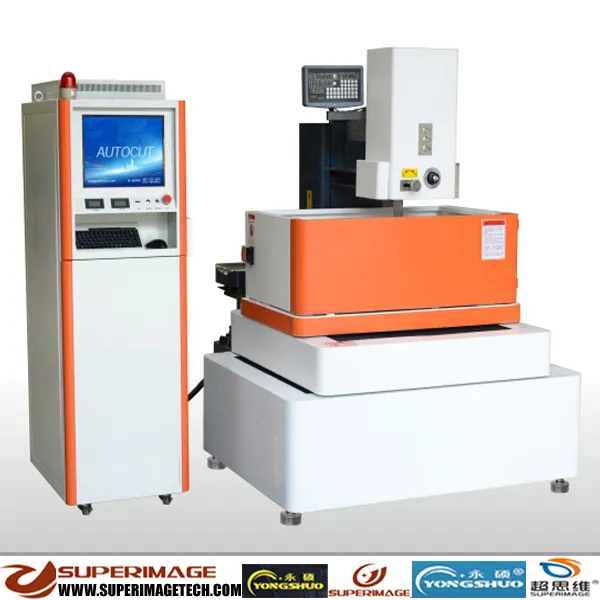

500mm* 630mm High Speed CNC Wire Cut EDM Wedm-Ysdk7750
1. Products Name: 500mm*630mm CNC Wire Electrical Discharge MachineCNC Wire-Cut Machine EDMHigh Speed CNC Wire Cut EDMHigh Speed CNC EDM Wire Cut MachineCNC WIRE CUT EDM4-Axis CNC WEDM4 AXIS CNC EDM WIRE CUT500mm*630mm CNC WEDMWORK TABLE 596*880MM CNC WEDMWIRE-CUT EDM WITH WORK TABLE 596*880MM500mm*......
Send Inquiry
Product Description
1. Products Name:
500mm*630mm CNC Wire Electrical Discharge Machine
CNC Wire-Cut Machine EDM
High Speed CNC Wire Cut EDM
High Speed CNC EDM Wire Cut Machine
CNC WIRE CUT EDM
4-Axis CNC WEDM
4 AXIS CNC EDM WIRE CUT
500mm*630mm CNC WEDM
WORK TABLE 596*880MM CNC WEDM
WIRE-CUT EDM WITH WORK TABLE 596*880MM
500mm*630mm ADVANCED MIDDLE-SPEED CNC WIRE CUTTING MACHINE
2. Basic Technical Data:
| TECHNICAL DATA | WEDM-YSDK7750 |
| CONTROL SYSTEM & AXIS QTY. | AUTOCUT, 4 AXIS |
| XY AXIS TRAVELING DISTANCE | 500*630MM |
| WORKTABLE SIZE | 596*880MM |
| MAX.LOADING WEIGHT OF WORKTABLE | 800KG |
| MOTOR DRIVING MODE | STEPPING MOTOR DRIVE |
| MACHINING SURFACE ROUGHNESS | Ra≤2.5UM |
| MACHINING PRECISION | 0.015UM |
| MAX. CUTTING THICKNESS | 600MM |
| MAX.CUTTING SLOPE/WORKPIECE THICKNESS | +30/100 |
| MAX.CUTTING SPEED | ≥12000MM2/HOUR |
| STABLE MACHINING SPEED | 10000MM2/HOUR(2-3 TIMES THAN THAT OF ORDINARY) |
| SCREWS RUNNING SPEED | 12MM |
| DIAMETER OF ELECTRODE WIRE | Φ0.1-0.25MM |
| MACHINE RUNNGING POWER | 1.5KW |
| MAX.MACHINING CURRENT | 8A |
| MACHINE SIZE | 1760MM*1700MM*1800MM |
| MACHINE WEIGHT | 2500KG |
| HARDWARE CONFIGURATION & INTERFACE | SCHNEIDER ELECTRIC,USB,LAN/RS232 |
| OPERATION PANEL & LANGUAGE | ENGLISH,JAPAN,RUSSIA,ETC |
3. Payment methods
By T/T in advance;
Down payment: 50% of total amount. Before delivery, 50% balance need to be paid.
4. Delivery time:
By Sea
Delivery time: about 25-30 days.
5. Quality Warranty:
SuperImage offers "3R" quality warranty for our CNC Mach-"Replacement, Return, and Refund" will be guaranteed for inferior quality products.
