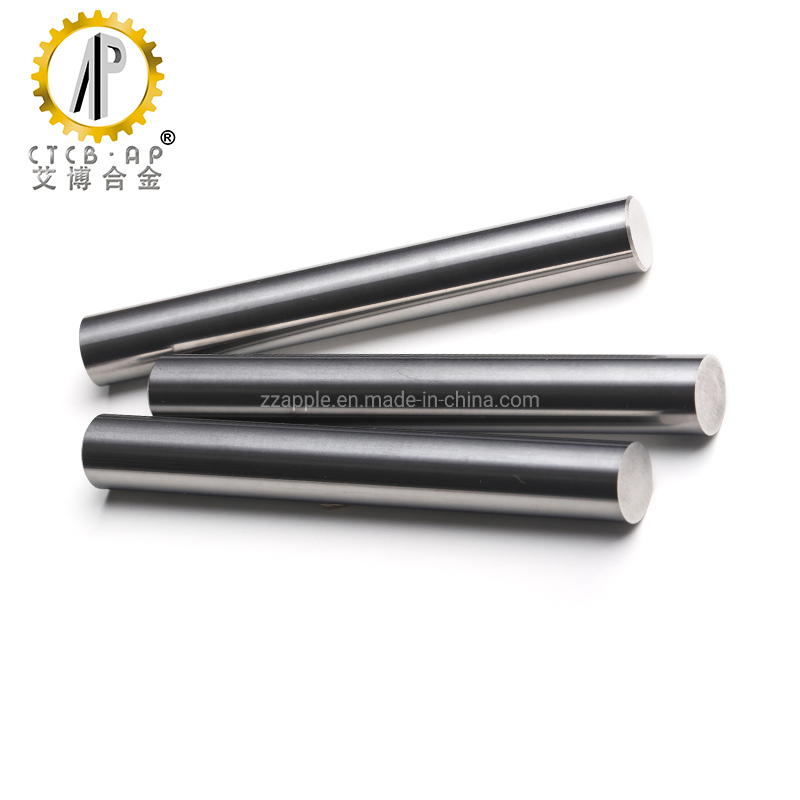

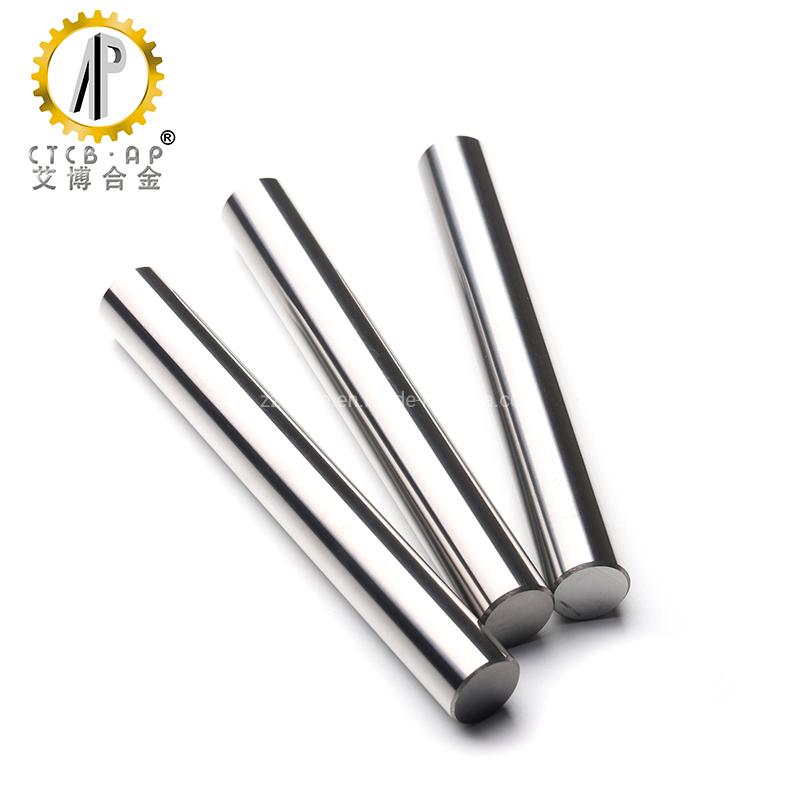

China All Dimension Raw Material K10 Tungsten Carbide Rods

Product Description

All Dimension Raw Material k10 Tungsten Carbide Rods :

Grade list of carbide rods :

Grade	Grain size (μm)	Cobalt content (WT.%)	Density g/cm3	Hardness		T.R.S N/mm2	ISO code
Grade	Grain size (μm)	Cobalt content (WT.%)	Density g/cm3	HRA	HV10	T.R.S N/mm2	ISO code
UF10U	Ultrafine	10	14.35	92.6	1740	4000	K30
An excellent general purpose grade to cover most of the cutting applications for meterails of ISO P.M.K,N. suitable for drilling,milling and reaming.
UF12	Submicron	12	14.05	92.5	1730	4000	K40
Gives high impact strength while maintaining excellent wear resistance,A universal grade for cutting Stainless Steel,Titanium alloys,Nickel base alloy and other difficult to machine materials ,suitable for milling ,drilling.
UF06	Submicron	6	14.9	93.5	1890	3800	K05
A harder grade for machining aluminum alloys,graphite,composite materials,Suitable for milling ,reaming
UF10	Submicron	10	14.42	91.8	1600	4000	K30
An excellent general purpose grade to cover most of the cutting applications for meterails of ISO P.M.K,N. suitable for drilling,milling and reaming.
UF05	Medium	15	14.00	89	1300	4000	K40
For making punches with good impact strength
YG10X	Fine	10	14.43	91.2	1520	3400	K30
An economical grade for stainless steel ,nickel based alloy

Various other types are available:

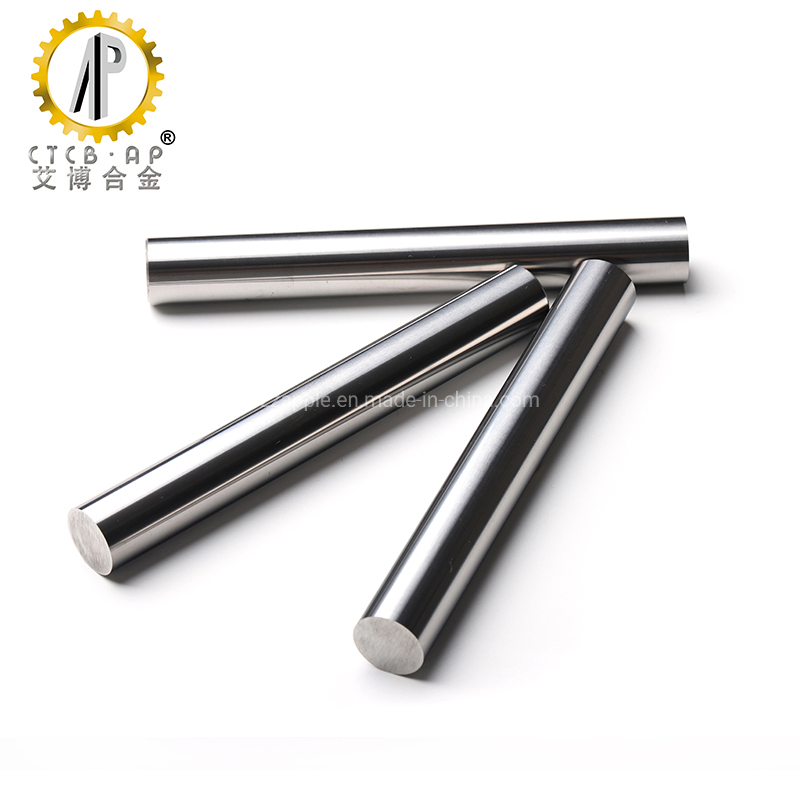

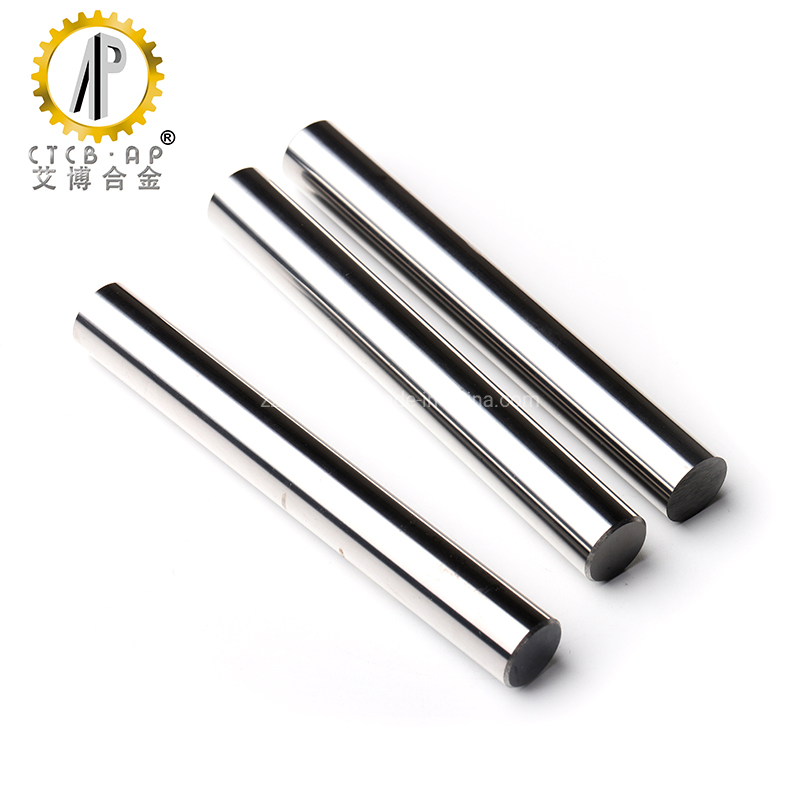

1. solid carbide rods
2. single central hole rods
3. double parallel hole rods
4. double helical 30° 40° hole rods
5. chamfered rods
6. other special customized rods

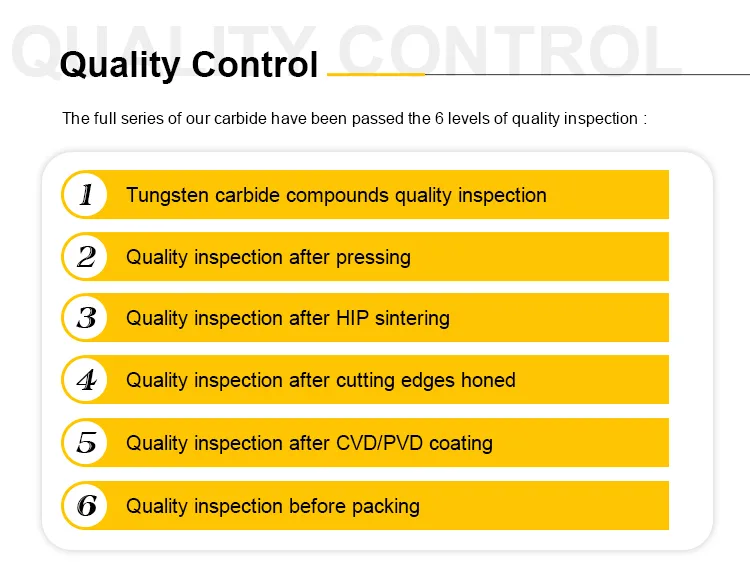

We strictly control the Straightness, Circular Run-Out and Roundness.

If you don't see here what you are looking for, please note that we have more standard and customized sizes available from stock not listed here and can be shipped out in short time.

Advantage of our carbide rods :

1.Use 100% tungsten carbide raw material

2.ISO 9001 Certification

3.with more than ten year experience

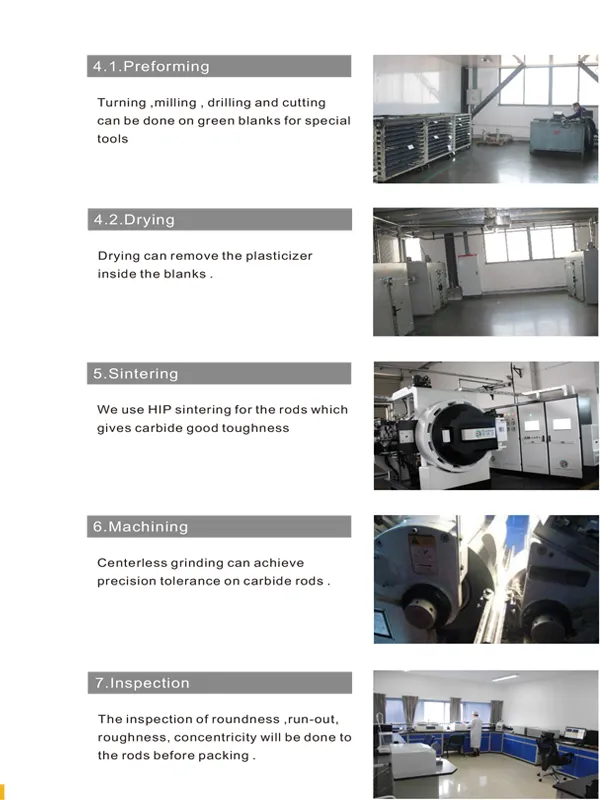

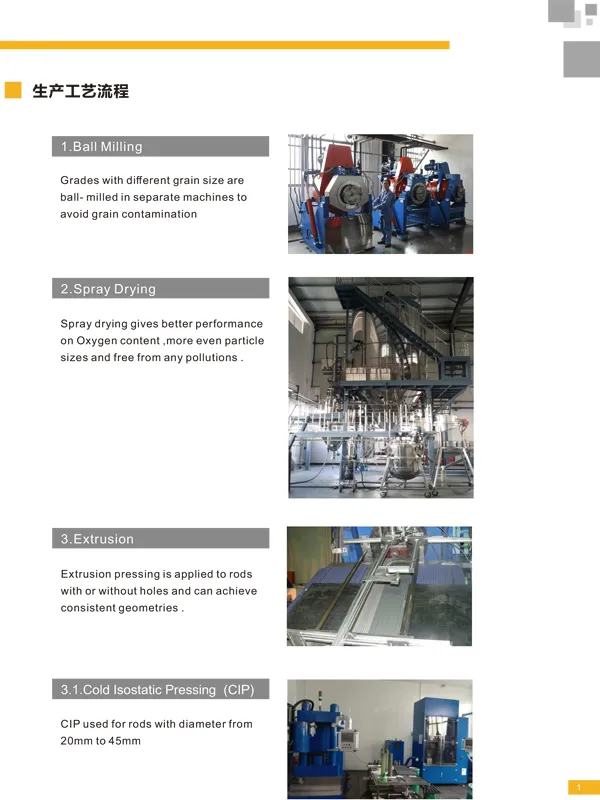

4.Advanced technology , automatic pressing , HIP sintering

5.And precision grinding

6.the tolerance of polish and ground can be +0.005/-0.005m

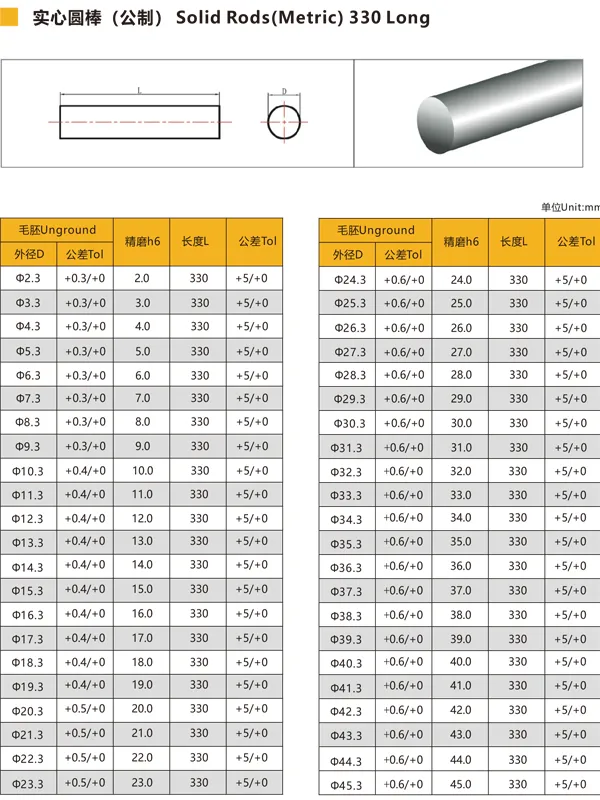

Standard size of solid carbide rods :
